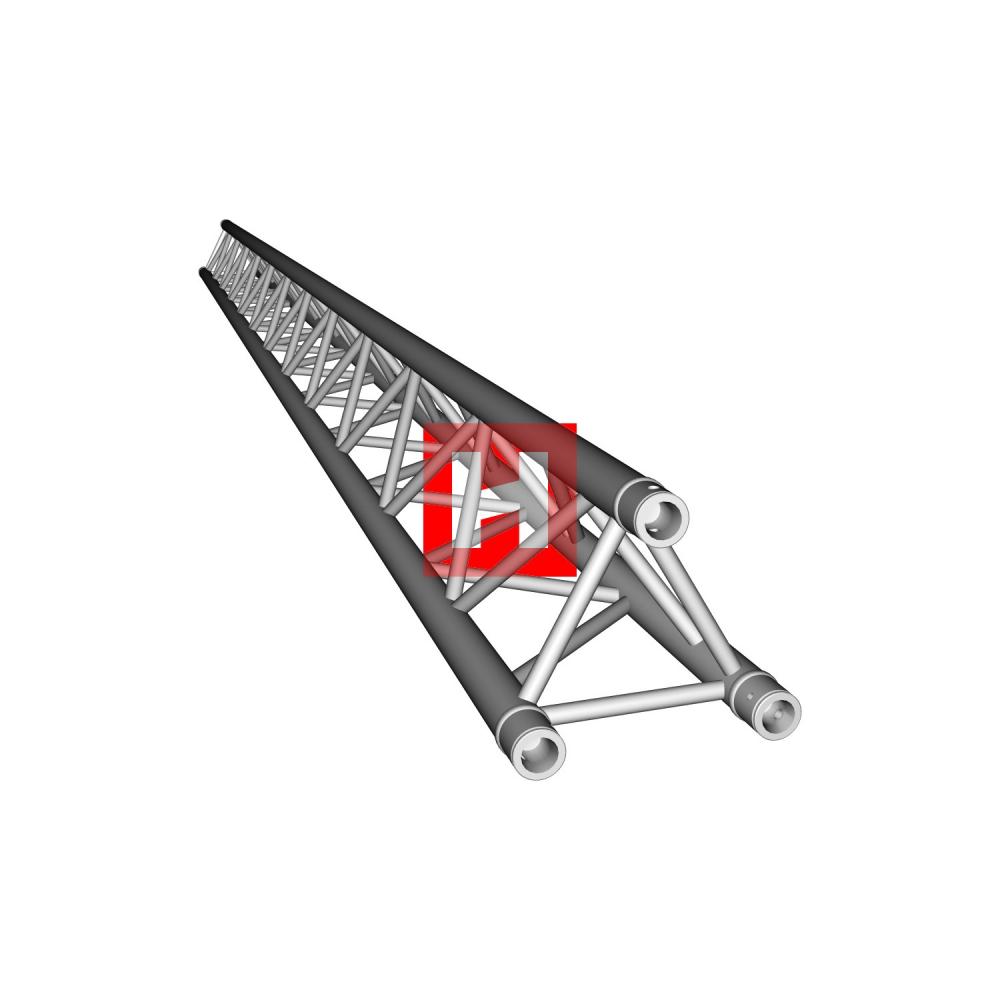

Truss HOFKON 290-3 500cm
H.O.F. Alutec Metallverarbeitungs GmbH & Co.KG
Technische Daten, Datenblätter, Beschreibungen und Ausschreibungstexte für Truss HOFKON 290-3 500cm
| Info | |
|---|---|
| short summary |
3-point truss, incl. Conical connectors
|
| product description |
TECHNICAL DATA: Measure: 290 x 260 mm Length: 5000 mm Tube: 50 x 2 mm Bracing: 20 x 2 mm Material: EN AW 6082 T6 EUROCODE 9 tested TÃV tested factory incl. conical connector set (3x conical connector, 6x trusspin, 6x r-clip) Dimensions: 290 x 260 x 5000 mm Weight: 17,3 kg Powder coating by request Lightness and flexibility are the main characteristics of HOFKON 290-3 series. Its conical connection secures a fast and safe assembly. HOFKON 290-3 is ideal to use for fixed installations or for small stages, but also for: Exhibition booths, geometric body for billboards and decorative constructions. As an extra feature we can deliver HOFKON 290-3 with a power rail. HOFKON 290-3 delivers easy handling and high performance. Ideal for: booth construction decoration constructions store adjustment |
| order code |
11129035000
|
| Product Name |
Truss HOFKON 290-3 500cm
|
| MSRP EUR |
302.36 EUR
|
| Mechanisch | |
| weight |
17.30 kg
|
| width |
290.00 mm
|
| height |
5000.00 mm
|
| length |
260.00 mm
|
| Statisch | |
| max UDL 5m span |
844.20 kg
|
| max UDL 10m span |
396.50 kg
|
| max UDL 12m span |
318.00 kg
|
| max UDL 15m span |
236.00 kg
|
| max CPL 5m span |
442.10 kg
|
| max CPL 10m span |
198.30 kg
|
| max CPL 12m span |
159.00 kg
|
| max CPL 15m span |
118.00 kg
|
| deflection at max UDL 5m span |
22.00 mm
|
| deflection at max UDL 10m span |
89.30 mm
|
| deflection at max UDL 12m span |
129.60 mm
|
| deflection at max UDL 15m span |
205.30 mm
|
| deflection at max CPL 5m span |
17.70 mm
|
| deflection at max CPL 10m span |
73.10 mm
|
| deflection at max CPL 12m span |
107.20 mm
|
| deflection at max CPL 15m span |
172.90 mm
|
