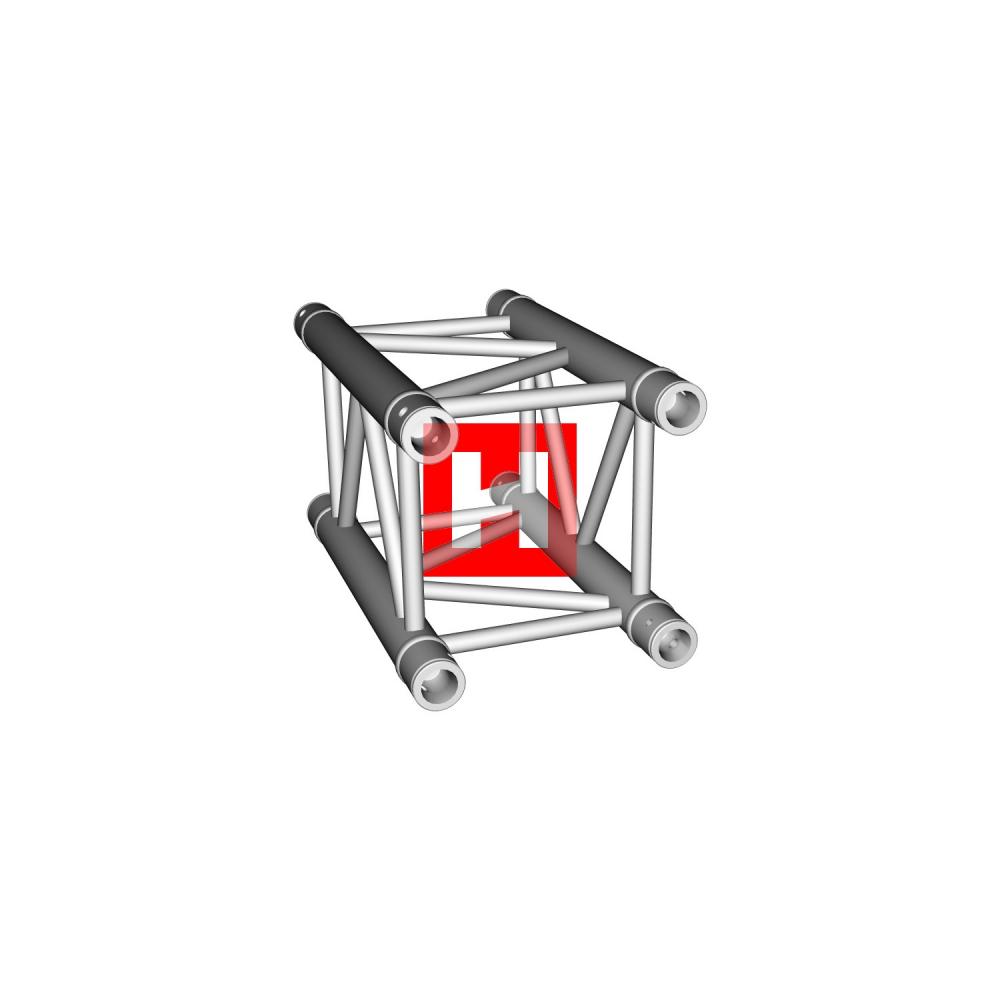

Truss HOFKON 290-4 050cm
H.O.F. Alutec Metallverarbeitungs GmbH & Co.KG
Technische Daten, Datenblätter, Beschreibungen und Ausschreibungstexte für Truss HOFKON 290-4 050cm
| Info | |
|---|---|
| short summary |
4-point truss, incl. Conical connectors
|
| product description |
TECHNICAL DATA: Measure: 290 x 290 mm Length: 500 mm Tube: 50 x 2 mm Bracing: 20 x 2 mm Material: EN AW 6082 T6 EUROCODE 9 tested TÜV tested factory incl. conical connector set (4x conical connector, 8x trusspin, 8x r-clip) Dimensions: 290 x 290 x 500 mm Weight: 3,5 kg Powder coating by request The standard truss -size in the world of trusses is HOFKON 290-4. Lightness and flexibility are the main characteristics of HOFKON 290-4 series. Its conical connection secures a fast and safe assembly. HOFKON 290-4 is ideal to use for fixed installations or for (small) stages, but also for: Exhibition booths, geometric body for billboards and decorative constructions. HOFKON 290-4 delivers easy handling and high performance. Ideal for: small stage roofs booth construction |
| order code |
11129040500
|
| Product Name |
Truss HOFKON 290-4 50cm
|
| MSRP EUR |
99.16 EUR
|
| Mechanisch | |
| weight |
3.50 kg
|
| width |
290.00 mm
|
| height |
500.00 mm
|
| length |
290.00 mm
|
| Statisch | |
| max UDL 5m span |
1940.40 kg
|
| max UDL 10m span |
932.80 kg
|
| max UDL 12m span |
759.10 kg
|
| max UDL 15m span |
580.40 kg
|
| max CPL 5m span |
970.20 kg
|
| max CPL 10m span |
466.40 kg
|
| max CPL 12m span |
379.50 kg
|
| max CPL 15m span |
290.20 kg
|
| deflection at max UDL 5m span |
25.40 mm
|
| deflection at max UDL 10m span |
102.40 mm
|
| deflection at max UDL 12m span |
148.10 mm
|
| deflection at max UDL 15m span |
233.60 mm
|
| deflection at max CPL 5m span |
20.40 mm
|
| deflection at max CPL 10m span |
83.10 mm
|
| deflection at max CPL 12m span |
121.10 mm
|
| deflection at max CPL 15m span |
193.30 mm
|
