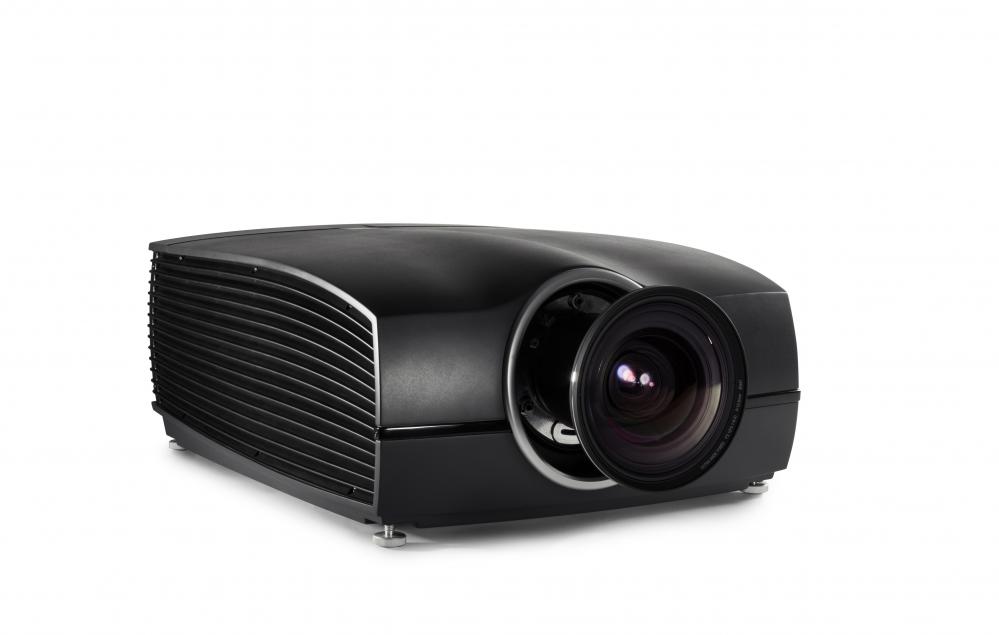

F90-W13

Barco

1

Technische Daten, Datenblätter, Beschreibungen und Ausschreibungstexte für F90-W13

Info
product description
Solid performance, 24/7
Ultimate installation flexibility
Increased uptime, reduced costs|The excellent image quality and laser phosphor light source of Barco's F90 projectors enable you to provide stunning experiences while saving both time and money. Designed for installation in everything from high demanding visitor attractions to simulation applications that require 24/7 operation, the reliable F90-W13 is equally suited for events, retail and advertising as well as boardrooms and auditoriums. Thanks to its 3D functionality, the projector is also perfectly fit for theme park dark rides and interactive experiences.
Excellent image quality
Thanks to its advanced optical design, the F90-W13 delivers excellent image quality. What's more, this reliable projector also offers images with constant light output, for long-term, worry-free operation.
Unprecedented business value
The F90-W13 projector enables you to increase uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides up to 40,000 hours operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.
Ultimate installation flexibility
This projector can run in any orientation, giving you more flexibility in projector location and orientation. Thanks to its wide array of high-resolution FLD and FLD+ lenses – from ultra-short throw (0.28:1) to long throw (9.75:1) – each providing a wide lens shift range, the F90-W13 accommodates almost any projector configuration.
order code
R9023466
product link
Standard Warranty
3 years
Anschlüsse
Number of DisplayPort inputs
Number of DVI inputs
Number of HDMI inputs
Number of SDI inputs
Steuerung
Integrated Ethernet | RJ 45
yes
Elektrische Eigenschaften
power consumption watt, max
0.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
10.00 °C
operating temp, max
45.00 °C
Operating humidity, min
20 %
Operating humidity, max
80 %
BTU/h
4100.00 BTU/h
Mechanisch
weight
44.50 kg
width
575.00 mm
height
295.00 mm
length
730.00 mm
Aspect Ratio
16:10
Video
Brightness
1800.00 ANSI-lm
Horizontal resolution
1920 px
Vertical resolution
1200 px
Remote interface > RJ 45 / serial 232
yes
