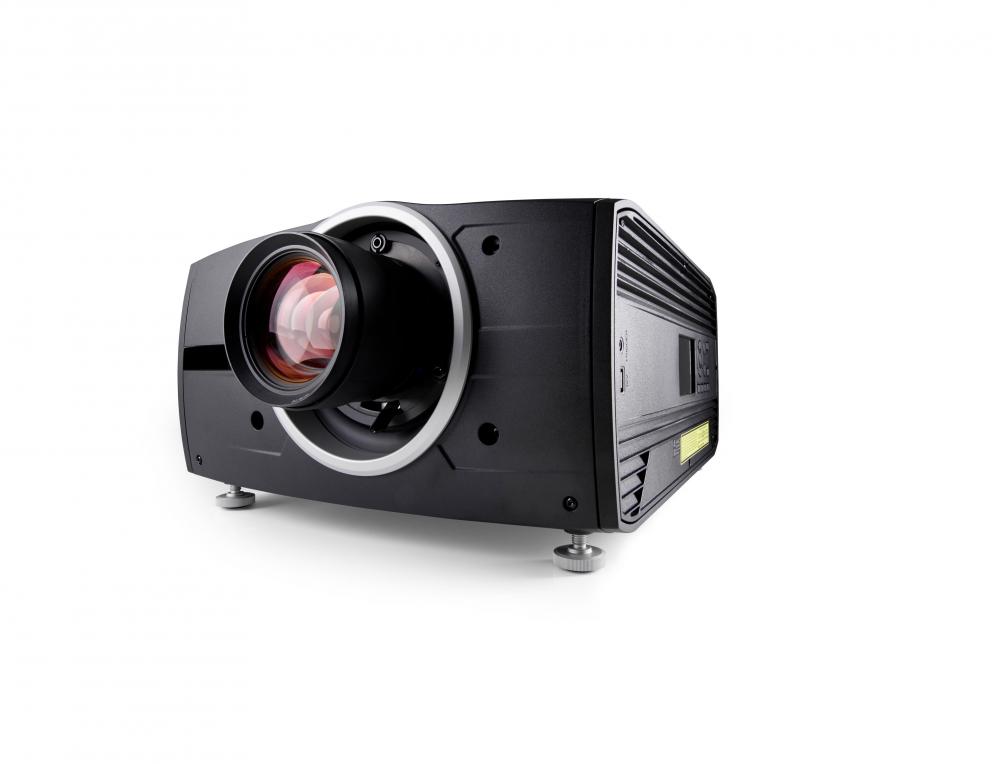

F70-W8

Barco

1

Technische Daten, Datenblätter, Beschreibungen und Ausschreibungstexte für F70-W8

Info
product description
Durable and robust for 24/7 operation
High brightness
Long lifetime (up to 60,000 hours)|The F70-W8 laser phosphor projector answers to the ProAV market's specific requirements - including high robustness, longer lifetime, and laser-sharp image quality. Projectors that do not meet these demands don't last long or might require frequent and expensive maintenance.
Thanks to its rugged design Barco’s F70 is motion platform capable, making it the perfect choice for theme parks, dark rides and the most demanding fixed installations. With a lifetime of up to 60,000 hours (depending on the mode of operation), the F70 is one of the most durable projectors on the market and is ready for service in the most demanding environments.
Designed for 24/7 use
The F70 is designed for performance and reliability. Capable of running in any orientation, the F70 projectors offer more installation flexibility. All of Barco's F-series projectors feature the same high-resolution FLD and FLD+ lenses so that you can reuse your lenses.
Brighter, better
With brightness levels of 8,000 lumens, the F70-W8 is one of the brightest single-chip DLP projectors on the market. With the Constant Light Output (CLOTM) functionality, the projector produces constant brightness and color over a long period of time.
order code
R9023452
product link
Standard Warranty
3 years
Anschlüsse
Number of DisplayPort inputs
Number of DVI inputs
Number of HDMI inputs
Number of SDI inputs
Steuerung
Integrated Ethernet | RJ 45
yes
Elektrische Eigenschaften
power consumption watt, max
0.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
10.00 °C
operating temp, max
40.00 °C
Operating humidity, min
20 %
Operating humidity, max
80 %
BTU/h
4000.00 BTU/h
Mechanisch
weight
37.00 kg
width
475.00 mm
height
286.00 mm
length
593.00 mm
Aspect Ratio
16:10
Video
Brightness
8000.00 ANSI-lm
Horizontal resolution
1920 px
Vertical resolution
1200 px
Remote interface > RJ 45 / serial 232
yes
