Technische Daten, Datenblätter, Beschreibungen und Ausschreibungstexte für E2 Jr

Info

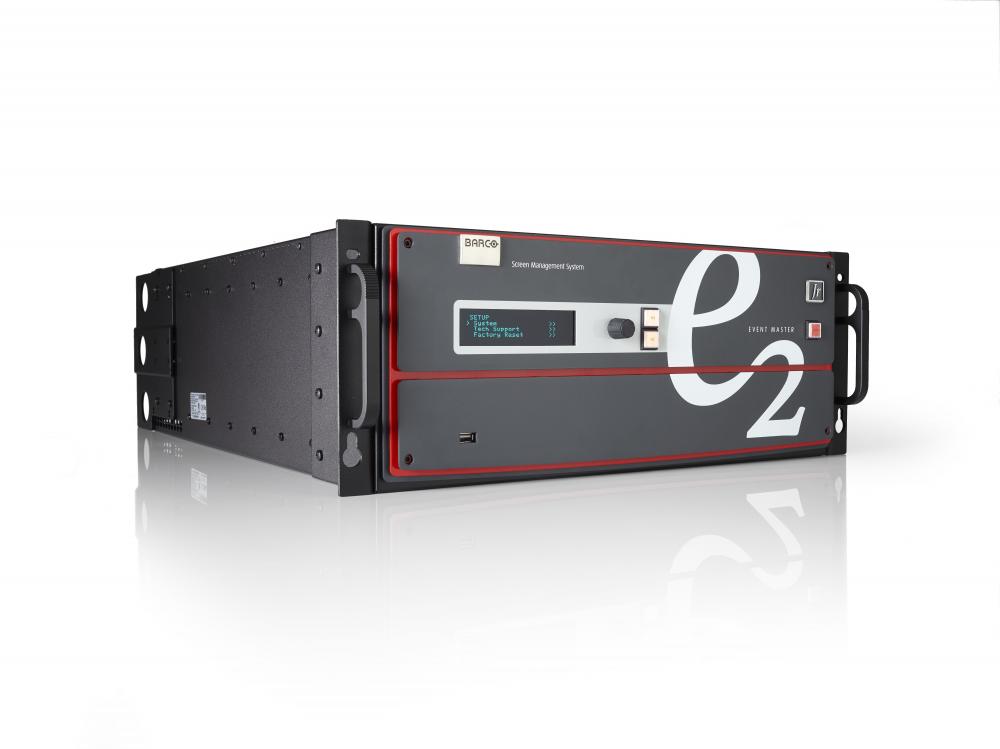

product description
Easy and reliable show setup and production
Market-valued 4K performance
Future-proof upgradability to the full E2 system|Bringing the same performance and features as the E2, the E2 Jr model is ideally suited for applications that do not require the full capacity of the E2. Offering 16 inputs, 8 outputs, and 8 mixers (or 16 single layers), the E2 Jr features the same 4 RU form factor as its bigger E2 brother.
Easy upgrading
Thanks to its modular design E2 grows with your shows so you can easily upgrade the E2 Jr to a fully loaded E2 system at any time. You can simply purchase and install additional cards into your system. This modularity also ensures great serviceability, as users can easily swap a specific input or output card in the case of damage, without needing to ship or replace the entire box.
Designed for life on the road
Designed for the live event industry, the rugged E2 Jr features a steel chassis that’s able to withstand the challenging conditions of life on the road. What’s more, it offers screen control in a compact form factor of only four rack units, which makes it easy to ship and install. And thanks to its modular cards and dual redundant power supplies, the E2 Jr is extremely reliable and easy to service in the field.
order code
R9004777
product link
Standard Warranty
3 years
Anschlüsse
HDMI outputs
4 num
Number of DisplayPort inputs
Number of HDMI inputs
Number of SDI inputs
SDI outputs
4 num
Elektrische Eigenschaften
power consumption watt, max
0.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
0.00 °C
operating temp, max
40.00 °C
Mechanisch
weight
27.80 kg
width
432.00 mm
height
178.00 mm
length
569.00 mm
Video
HDCP support
yes
Remote interface > RJ 45 / LAN
yes
