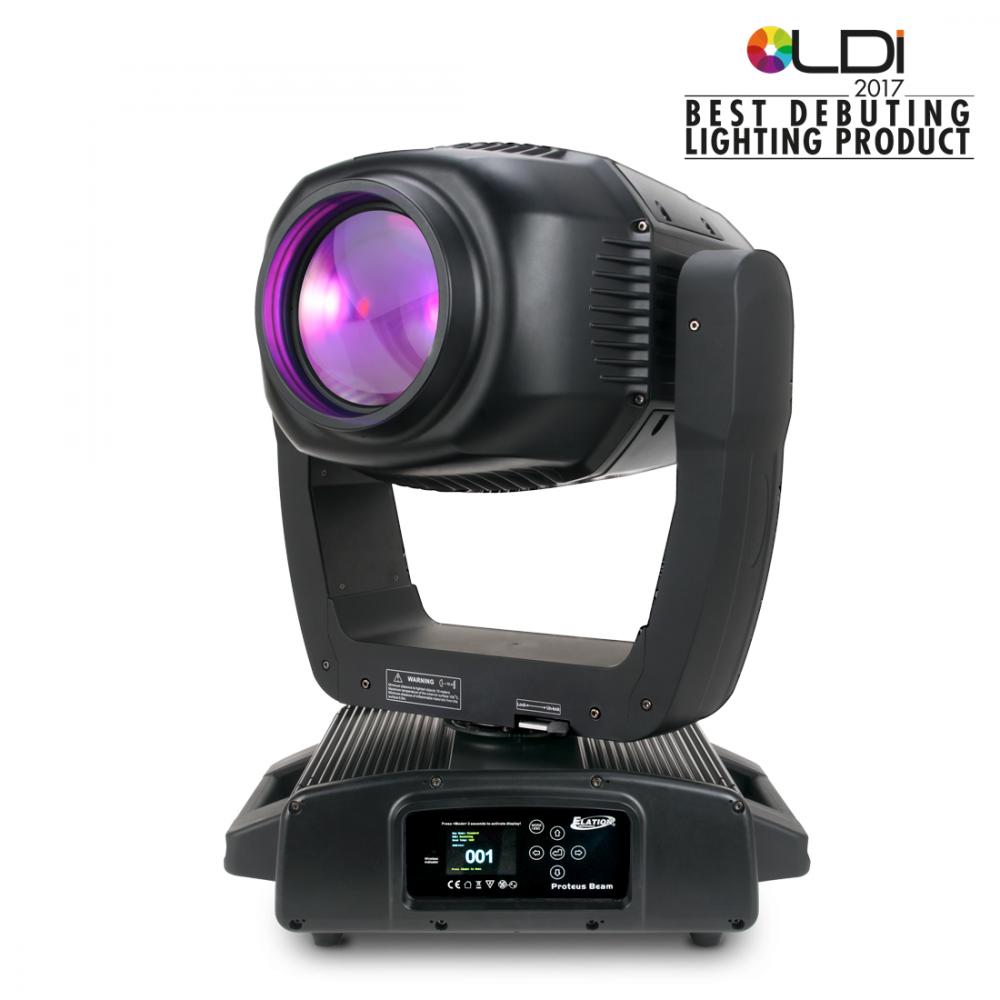

The Proteus Beam™ is an innovative full featured IP65 rated Marine Grade moving head beam luminaire. It features the Philips™ MSD Platinum 14R 280W 80CRI lamp, 7,800K, 12,000 lumens, an advanced optical system producing a precise 2˚ beam aperture, a revolutionary internal thermal cooling system, true CMY color mixing, high CRI filter, 13 dichroic colors including UV, CTO, CTB and white (open), 8 rotating, interchangeable glass & metal gobos and 13 static-stamped gobos, 5-facet and 32-facet rotating prisms with prism morphing, DMX, RDM (Remote Device Management), Art-NET and sACN (DMX over Ethernet) support, internal E-FLY™ wireless DMX receiver, 5pin IP DMX in/out, IP RJ45 etherCON in/out and Power Twist TR1 in connections, 6 button control full color 180° reversible menu display, 500W max power consumption and a multi-voltage universal auto switching power supply (100-240V).
GAEB
TEXT

FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coating
2˚ Beam Aperture
Extremely Powerful Beam Luminaire
Full CMY-Flag Color Mixing System
High CRI Filter
5-Facet and 32-Facet Rotating Prisms
Prism Morphing
Innovative Auto Focus Function
Pan/Tilt Lock
Internal E-FLY™ Wireless DMX Receiver
Art-NET and sACN (DMX over Ethernet) Support
RDM – Remote Device Management

SOURCE
Philips™ MSD Platinum 14R 280W Lamp
12,000 Lumens, 7,800K, 80CRI
1,500 Hour Average Lamp Life*

PHOTOMETRIC DATA
136,800 LUX 12,709 FC @ 49.2’ (15m)

EFFECTS
5-Facet and 32-Facet Rotating Prisms
Prism Morphing
Strobe: 1-18fps
Dimming: 0% - 100%

COLOR
True CMY-Flag Color Mixing
High CRI Filter
13 Dichroic Colors Including UV, CTO, CTB + White

GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 13.8mm / ID 6.0mm**
(13) Static-Stamped / Indexing Metal Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 28)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
Internal E-FLY™ Wireless DMX Receiver
5pin IP DMX In/Out
IP RJ45 etherCON In/Out (Art-NET, sACN)
Power Twist TR1 Power In

SIZE / WEIGHT
Length: 17.1” (445mm)
Width: 13.1” (331mm)
Vertical Height: 26.8” (680mm)
Weight: 77.0 lbs. (35.0 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)

INCLUDED ITEMS
IP XLR Cable
IP CAT5 Cable
Power Twist TR1 to Schuko Cable
(2) Omega Brackets

The luminaire shall be an IP65-rated yoke moving head Beam light with a Philips™ MSD Platinum 14R 280W 80CRI lamp. The luminaire shall include CMY color mixing and 13 dichroic colors including UV, CTO, CTB + White. The luminaire shall be capable of emitting 12,000 total lumens at a color temperature of 7800K and produce a precise 2˚ beam aperture. The luminaire shall house two gobo wheels, one with 8 rotating, interchangeable glass and metal gobos and the other with 13 static-stamped gobos. Strobe effects and 0-100% dimming shall be possible and the luminaire shall include a 5-facet and a 32-facet rotating prism with prism overlay function. An internal thermal cooling system shall be included. 5-pin IP DMX in/out, Power Twist TR1 in connections and IP RJ45 etherCON connections shall be included. The luminaire shall operate via DMX, RDM, Art-NET and sACN protocols. The luminaire shall include a 6-button touch control panel with full-color 180° reversible menu display. Max power consumption shall be 500W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall include an internal wireless DMX receiver. It shall measure 445mm x 331mm x 680mm (LxWxH) and weigh 35.0 kg.
