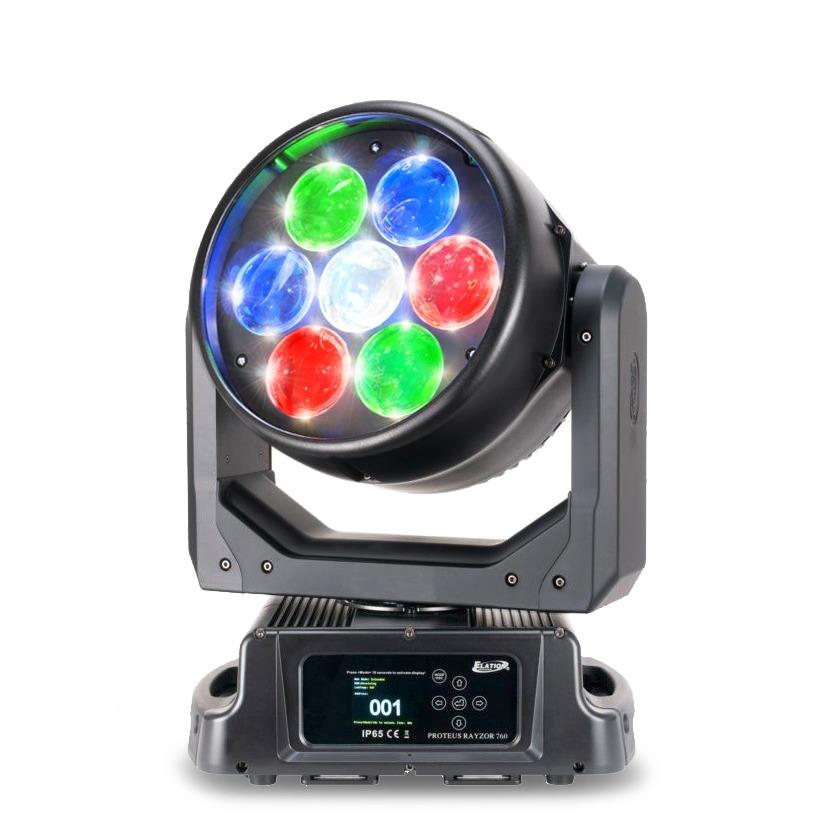

The innovative RAYZOR 760 is available in a compact and lightweight weather and dust protected IP65 version, the Proteus RAYZOR 760™, for use in any environment. The Proteus RAYZOR 760’s multi-environmental design makes it the world's first IP65-rated luminaire with continuous pan & tilt rotation. It offers the identical feature set as the RAYZOR 760, including the SparkLED™ system. SparkLED™ consists of 28 individual white LEDs strategically placed inside the lens itself to create a unique additional layer of effect, allowing designers access to a fresh and innovative way of creating interest on stage.
GAEB
TEXT

FEATURES
IP65 Rated LED Wash Effects Fixture
7x 60W OSRAM RGBW LED with Pixel Control
28x 2W SparkLED™ Effect with Pixel Control (patent pending)
Extreme Zoom 5° for mid-air beam to 77° for even washes
Fast and precise 360° continuous Pan and Tilt rotation
Beam FX and Smooth Wash fixture in a compact IP65 certified housing

SOURCE
(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED™
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
7,200 Total Lumen Output
CRI 80

Zoom Range 5° - 77°
Beam Angle 5.4° - 56.4°
Field Angle 8.1° - 74°

EFFECTS
Motorized Zoom
Linear Color Temperature Presets (2700-8000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming

COLOR
RGBW Multi-Chip LEDs
White SparkLEDs
Variable Color Temperature (2,700K – 8,000K)

CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80 channels)
360° Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 locking Power Cable In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 14.31 in (363.4mm)
Width: 10.24 in (259.97mm)
Height: 19.43 in (493.44mm)
Weight: 41.0 lbs. (18.6kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2387

The luminaire shall be an IP65-rated yoke moving head with 7 independently controlled 60W RGBW LEDs. Lumen output shall be 7200 and the luminaire shall operate flicker-free with an average LED life of 50,000 hours. The luminaire shall include 28x 2W white LEDs placed inside the lenses themselves that create an additional layer of effect (SparkLED™). A multitude of internal SparkLED FX patterns shall be included. A motorized 5 to 77 degree zoom shall be included and pan and tilt rotation shall be 360° continuous. The luminaire shall include linear color temperature presets (2,700 - 8,000K) and macros. Dimming shall be 16-bit and 0-100%. An electronic strobe and variable dimming curves shall be included. A DMX adjustable refresh rate of 900 - 25,000 Hz shall be possible. The luminaire shall operate via DMX, RDM, sACN and Art-NET protocols. It shall include IP65 5-pin DMX in/out, IP65 RJ45 ethernet in/out and IP65 Power In/Out connections. The luminaire shall have a 6-button touch control panel and 180° reversible full-color LCD menu display. Max power consumption shall be 700W and a multivoltage universal auto switching power supply shall be included. It shall measure 363mm x 259mm x 493mm (LxWxH) and weigh 18.6 kg.
