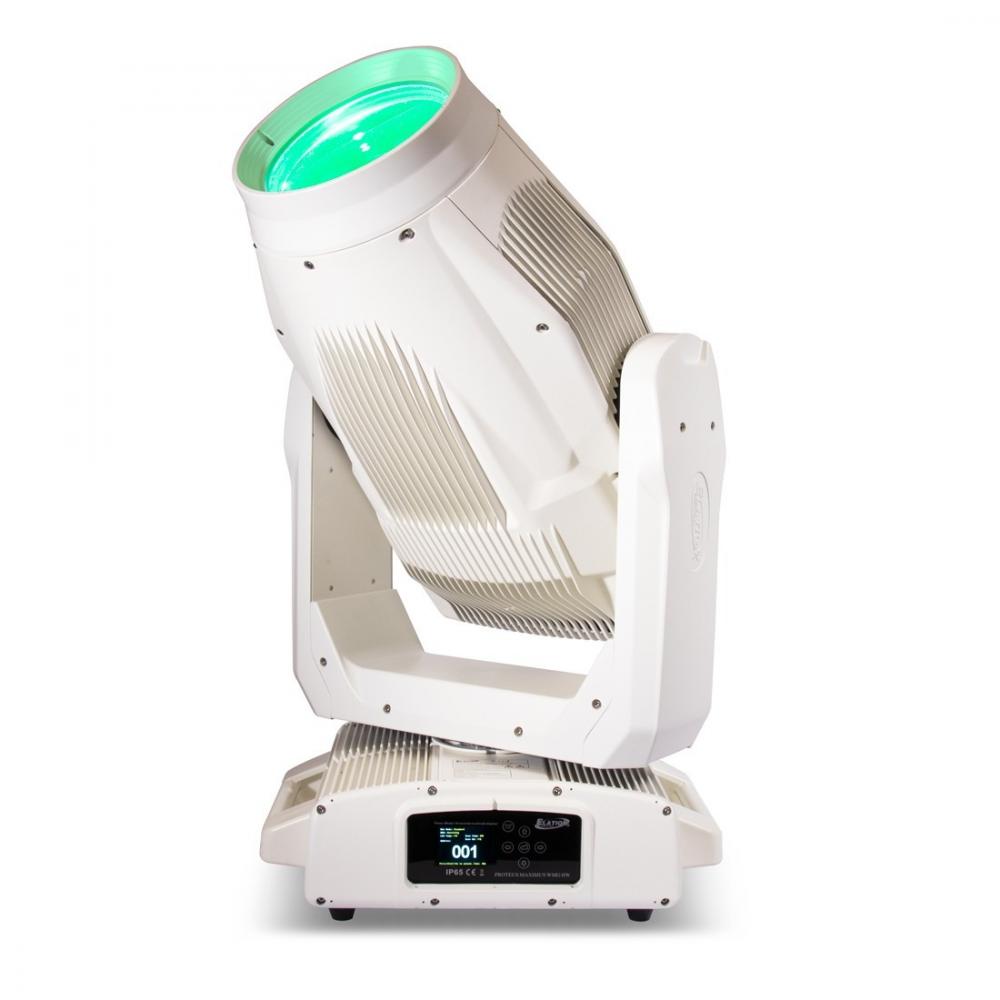

The Proteus Maximus is an extremely bright IP65-rated LED Wash Beam Profile fixture in a white housing offering outstanding projection quality in any environment. Powering out up to 50,000 lumens, it is the ideal fixture for any outdoor application requiring superior output, as well as stunningly precise gobos and colors. Proteus Maximus provides the designer a comprehensive FX package including an indexable framing system. It has the power to cut through at even great distances in any outdoor concert or special event and with its fully IP65-rated dust and waterproof design it is an ideal fixture for theme parks and cruise ships as well.
GAEB
TEXT

FEATURES
High Efficiency 950W 6,500K White LED Engine
Up to 50,000 Total Lumen Fixture Output
CMY Color Mixing and Variable CTO 6 Position Color Wheel, High CRI, UV filter
Complete FX System featuring Rotating and Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 55° / Large 180mm Front Aperture
FIL (Form In Lay) Polyurethane Foam Packaging Included

SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
50,000 Total Lumen Output
CRI 70+ (82+ with HCRI Filter)
2:1 Hotspot Ratio

Zoom Range 5.5° - 55°
Beam Angle 4.8° - 41.2°
Field Angle 6.1° - 51

EFFECTS
Motorized Zoom (Large 180mm Front Aperture)
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate

COLOR
CMY Color Mixing
Linear CTO Color Correction
6 Dichroic Colors including High CRI Filter and UV

GOBOS
2 Gobo Wheels
6 Rotating / Indexing Interchangeable Glass Gobos
7 Static Glass Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (37 / 61)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
Locking 5pin XLR DMX In/Out
IP65 locking RJ45 ethernet In/Out
IP65 locking power In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 18.0 in (458mm)
Width: 23.3 in (591mm)
Height: 32.5 in (825mm)
Weight: 117 lbs. (53kg)

ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
Max Power Consumption 1,400W
14°F to 113°F (-10°C to 45°C)

The luminaire shall be an IP65-rated yoke moving head with a 950W 6,500K white LED engine with an average LED life of 30,000 hours. The luminaire shall be capable of emitting 50,000 total lumens and include variable 16-bit dimming curve modes. The luminaire shall include a CMY color mixing system with linear CTO plus a 6- slot color wheel that includes both high CRI and UV filters. A motorized 5.5° - 55° zoom shall be included and the luminaire’s aperture shall be 180mm. The luminaire shall house 6 rotating, indexing, interchangeable glass gobos as well as 7 static-stamped glass gobos. A full 360° bi-directional animation wheel shall be included and the luminaire shall include a full blackout 4-blade framing module with +/-45° continuous framing indexing. 4- facet and linear rotating prisms shall be included. The luminaire shall include a motorized iris with variable pulse effects and high-speed electronic shutter and strobe. Two variable wash frost filters (light and wash) shall also be included. Internal color, framing, prism, and frost macros shall be available. DMX controllable LED refresh rate shall be adjustable and the luminaire shall operate flicker free. The luminaire shall operate via DMX, RDM, Art-NET and sACN protocols and include a power saving hibernation mode. 5pin XLR DMX in/out, IP65 RJ45 ethernet in/out and power in connections shall be included. The luminaire shall include a 6-button touch control panel with full-color 180° reversible menu display. Max power consumption shall be 1400W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall be outfitted with a wired digital communication network. It shall measure 458mm x 591mm x 825mm (LxWxH) and weigh 53 kg
