Info | |
---|---|
tender specification text |

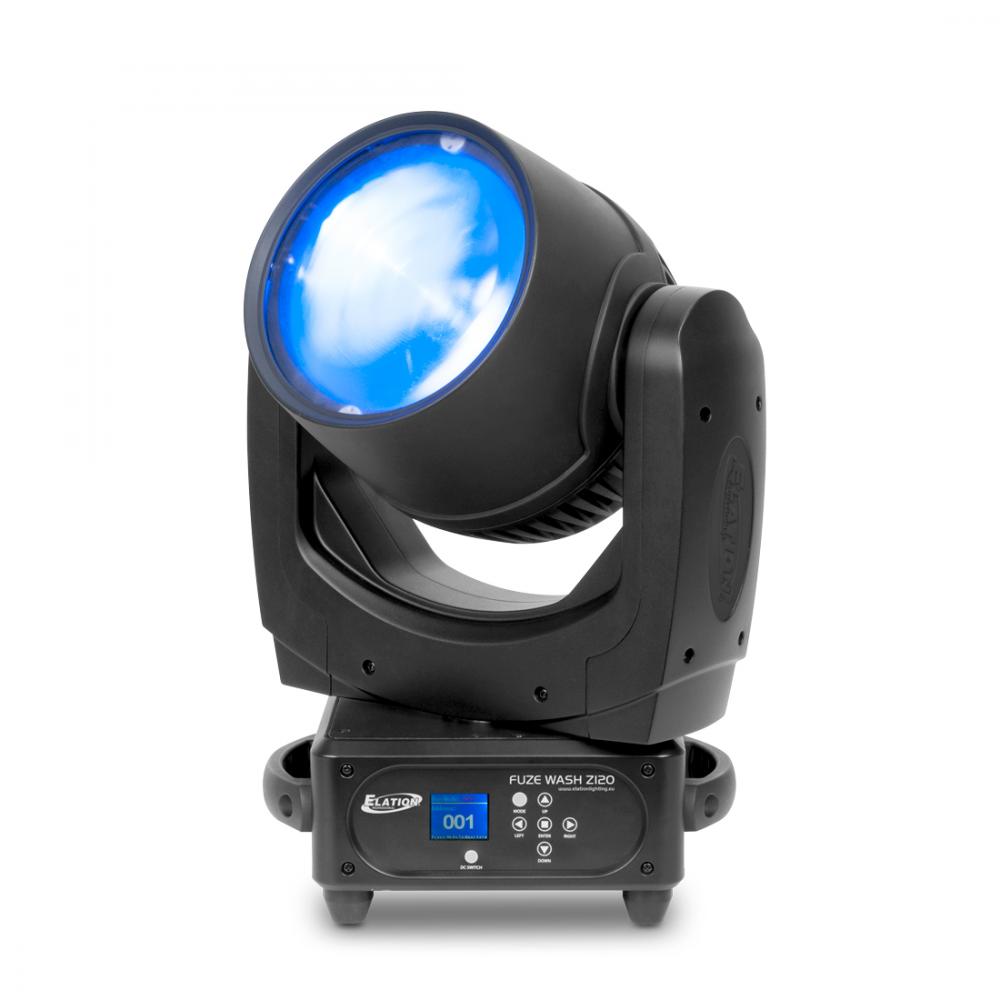

The Fuze Wash Z120™ is a dynamic LED wash luminaire using single-lens RGBW COB LEDs for an extremely homogenized field of light and wide palette of colors. Fuze Series lights include a wide zoom range and are ideal lighting solutions anywhere a wash of high-quality colored light is required. With a lens face that appears as one color instead of individual LED diodes, designers value them for their non-pixel look as well as their versatility.
GAEB
TEXT
|
short summary |
The Fuze Wash Z120 is a moving head wash luminaire with single-lens 120W RGBW COB LED engine for an extremely homogenized field of light and wide palette of colors. It includes a zoom and has a lens face that appears as one color instead of individual LED diodes.
|
product type |
Moving Light LED Wash
|
product description |
FEATURES 120W RGBW COB LED Moving Head Wash Luminaire RGBW Color Mixing 7° TO 55° Wide Motorized Zoom Range Variable Dimming Curves Multiple Unit Power Linking RDM (Remote Device Management) Flicker Free Operation for TV and FILM SOURCE 120W RGBW COB LED 100,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 10,640 LUX 988 FC @9.8’ (3m) (7° Full ON) 692 LUX 64 FC @9.8’ (3m) (55° Full ON) COLOR RGBW EFFECTS RGBW Color Mixing 7° - 55° Beam Zoom Range Electronic Strobe, Dimming and Variable Dimming Curves 64 Color Presets and 14 Unique Color Macros CONTROL / CONNECTIONS 4 DMX Channel Modes (19 Total Channels) 7 Button Control Panel and LCD Menu Display RDM (Remote Device Management) 3pin/5pin DMX and Locking Power Cable In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 13.3" (338mm) Width: 9.0" (229mm) Vertical Height: 18.2" (466mm) Weight: 22 lbs. (10 kg) ELECTRICAL / THERMAL AC 110-240V - 50/60Hz 157W Max Power Consumption Multiple Unit Power Linking 5°F to 113°F (-15°C to 45°C) BTU/hr (+/- 10%) 535.37 |
short, neutral tender spec text |
The luminaire shall be a yoke moving head wash light with 120W RGBW COB LED engine. The luminaire shall include a 7° - 55° motorized zoom and shall be capable of emitting 4,508 Lux @ 5m (Min. Zoom). Dimming shall be 0-100% and variable dimming modes shall be included. The luminaire shall have strobe capability. The luminaire shall operate flicker-free with an average LED life of 100,000 hours. The luminaire shall operate via DMX and RDM and shall include 3-pin and 5-pin DMX in/out and locking power in/out connections. It shall include a 7-button touch control panel and 180° reversible full color LCD menu display. Max power consumption shall be 157W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall measure 338mm x 229mm x 466mm (LxWxH) and weigh 10 kg. GAEB TEXT |
product code |
1237000145
|
order code |
1237000145
|
product link | |
Anschlüsse | |
total number of DMX inputs |
2 pcs
|
total number of DMX outputs |
2 pcs
|
DMX connector types |
both 3/5pin
|
built-in Switch |
no
|
Steuerung | |
max Dimmer resolution |
16 bit
|
control channels, min |
15 ch
|
control channels, max |
19 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
no
|
Elektrische Eigenschaften | |
power consumption amps, max |
0.65 A
|
power consumption watt, max |
157.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power input connector |
Powercon
|
cooling |
active
|
power output connector |
Powercon
|
external PSU |
no
|
Mechanisch | |
weight |
10.00 kg
|
width |
229.00 mm
|
height |
466.00 mm
|
length |
338.00 mm
|
pan range |
630 °
|
tilt range |
250 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optik | |
output lumen, max |
1173 lm
|
beam angle/zoom, min |
7.00 °
|
beam angle/zoom, max |
55.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
120.00 W
|
optics/projection type |
Washlight
|
multichip LED |
no
|
number of separate pixel zones |
1
|
LED light source 'look' |
multicolor LEDs
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
no
|
color temperature, min |
2700 K
|
color temperature, max |
8000 K
|
secondary light source |
none
|
out lumen in silent mode. Max |
1173 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
fixed/virtual colorwheels |
1 pcs
|
beam shapers/framing/barndoors |
no
|
prism |
no
|
other beam effects |
no
|
separate CTO wheel |
no
|
prism morphing |
no
|
Luminous efficacy |
9.78 lm/W
|
Sammeln Sie interessante Produkte in Ihrer Merkliste und laden Sie die Ausschreibungstexte dann gesammelt herunter.
Downloads |
---|
2D CAD File |
---|
elation_FUZE_WASH_Z120_2D_CAD_083016.zip |
2D CAD File with Snoot |
elation_FUZE_WASH_Z120_w_SNOOT_2D_CAD_091516.zip |
3D CAD File |
Elation Fuze Wash Z120 3D CAD.zip |
3D CAD File with Snoot |
Elation Fuze Wash Z120 w_Snoot 3D CAD.zip |
Dimensional Drawings |
elation_FUZE_WASH Z120_dimensional_drawings_080216.pdf |
DMX Traits |
elation_FUZE_WASH_Z120_DMX_traits.pdf |
IES Files |
ELATION_FUZE_WASH_Z120_Photometric_IES_Files_010417.zip |
Manual |
elation_FUZE_WASH_Z120_user_manual_091916.pdf |
Photometric Test Report |
ELATION_FUZE_WASH_Z120_Photometrc_Test_Reports_010417.zip |
Photometrics |
elation_FUZE_WASH_Z120_photometric_data_0816.pdf |
Specification Sheet |
elation_FUZE_WASH_Z120_specification_sheet_091916.pdf |
Vectorworks Files |
Elation FUZE WASH Z120 Vectorworks Symbols v2014-2017.zip |
