Info | |
---|---|
tender specification text |

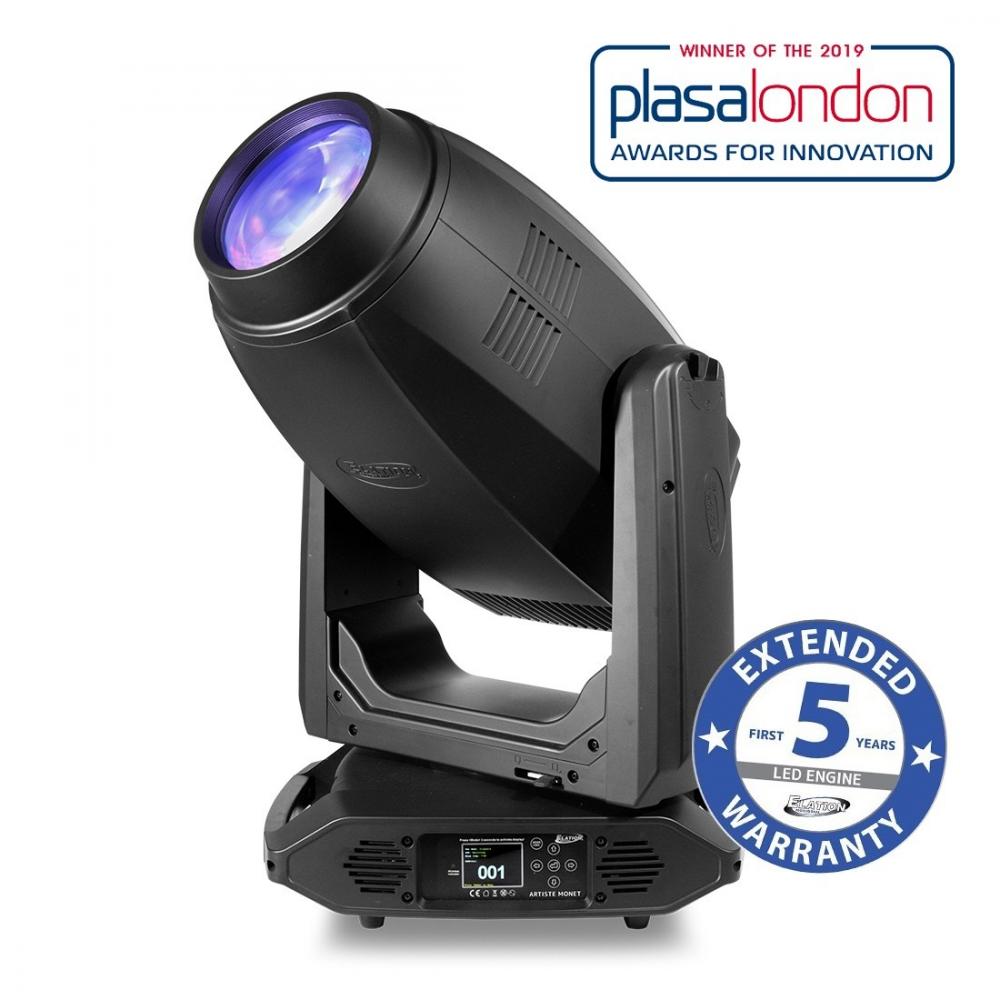

The Award-winning Artiste Monet™ is an extremely bright fully featured LED Profile fixture offering outstanding projection quality and a wide color mixing gamut through its variable SpectraColor engine. Providing up to 45,000 lumens from its efficient 950W 6,500K LED engine the Monet is the ideal fixture for any application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Monet integrates Elation's new SpectraColor system which offers traditional CMY mixing but adds a variable RGB color mix for rich saturated primaries. In combination with the variable CTO the Monet allows for colors that were previously impossible to achieve, from theatrical pastels to the most vibrant red or blues ever produced by a color mixing system. The wide color gamut of the Artiste Monet achieved by seven color mixing flags with 16bit precision provides artistic possibilities that are truly inspiring. The fixed color wheel offers UV and High CRI options to round out the amazing color range of the fixture. The full blackout framing array includes Elation's newly designed unlimited indexing and continuous rotation control. Shapes can rotate like gobos while morphing and transforming, allowing new creative transitions and interesting projection and aerial effects not previously possible. Monet also offers a comprehensive FX package with 7 rotating and 7 fixed interchangeable glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. With a fast zoom range from 6.8° to 55° and an impressive 160mm front lens the Monet has the power to cut through at even great distances in arena touring environments or large TV or Theater Stages. DMX controllable variable fan modes offer low noise operation for noise sensitive environments. The Artiste Monet fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included) and provides enhanced impact protection during transport. GAEB TEXT |
short summary |
The Artiste Monet is an extremely bright, full-featured LED Profile fixture offering outstanding projection quality and a wide color gamut through its variable SpectraColor color-mixing system.
|
product type |
Moving Light LED Profile
|
product code |
1237000120
|
order code |
1237000120
|
product description |
FEATURES High Efficiency 950W 6,500K White LED Engine Up to 45,000 Total Lumen Fixture Output SpectraColor CMYRGB Array and Variable Linear CTO 6 Position Color Wheel, High CRI, UV Filter Full Blackout Framing System with 360° Continuous Index and Rotation of Shapes Complete FX System Featuring Rotating & Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost DMX Controllable Variable Fan Modes / Low Noise Operation Wide Zoom Range from 6.8° to 55° / Large 160mm Front Aperture Lens FIL (Foam In Lay) Polyurethane Foam Packaging Included SOURCE 950W 6,500K Bright White LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 45,000 Total Output Lumens CRI 72+ (84 with HCRI Filter) Zoom Range 6.8° - 55° Beam Angle 4.8° - 41.2° Field Angle 6.1° - 51° COLOR SpectraColor CMY + RGB Color Mixing Array 6 Dichroic Colors including High CRI Filter and UV Linear CTO Color Correction EFFECTS Motorized Zoom (large 160mm front lens) 4-Rotating Full Blackout Framing Blades 360˚Continuous Framing Index and Rotation Full 360° Bi-Directional Animation Wheel 4-Facet and Linear, Rotating Prisms 2 Variable Frost Filters (Light and Wash) Motorized Iris with Variable Pulse Effects Internal Color, Framing, Prism, and Frost Macros Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe DMX Controllable LED Refresh Rate GOBOS 2 Gobo Wheels 7 Static interchangeable Glass Gobos 7 Rotating / Indexing interchangeable Glass Gobos CONTROL / CONNECTIONS Two DMX Channel Modes (40 / 67 channels) Motorized Focus and Auto-Focus Presets DMX Controllable Variable Fan Modes 16-bit Pan, Tilt and Dimming Control DMX, RDM, Art-NET, sACN Protocol Support (6) Button Touch Control Panel Locking 5pin XLR DMX, RJ45 Ethernet and Power Full Color 180° Reversible LCD Menu Display Hibernation Mode (Power Save) USB Connection for Firmware Updates With Wired Digital Communication Network SIZE / WEIGHT Length: 18.55 in. (471.09mm) Width: 22.97 in. (583.37mm) Weight: 94.0 lbs. (42.6 kg) Height: 31.51 in. (800.40mm) ELECTRICAL / THERMAL 1400W Max Power Consumption AC 100-240V - 50/60Hz BTU/hr (+/- 10%) 4456.87 |
short, neutral tender spec text |
The luminaire shall be a yoke moving head with a 950W 6,500K white LED engine with an average LED life of 30,000 hours. The luminaire shall be capable of emitting 45,000 total lumens and include variable 16-bit dimming curve modes. The luminaire shall include a SpectraColor CMY + RGB color mixing array, variable linear CTO and 6-position color wheel that includes a UV and high CRI filter. A motorized 6.8° - 55° zoom shall be included and the luminaire’s aperture shall be 160mm. The luminaire shall house 7 rotating, indexing, interchangeable glass gobos as well as 7 static-stamped interchangeable glass gobos. A full 360° bi-directional animation wheel shall be included and the luminaire shall include a full blackout 4-blade framing module with 360° continuous index and rotation of shapes. 4-facet and linear rotating prisms shall be included. The luminaire shall include a motorized iris with variable pulse effects and high-speed electronic shutter and strobe. Two variable wash frost filters (light and wash) shall also be included. Internal color, framing, prism, and frost macros shall be available. DMX controllable LED refresh rate shall be adjustable and the luminaire shall operate flicker free. The luminaire shall operate via DMX, RDM, Art-NET and sACN protocols and include a power saving hibernation mode. 5pin DMX in/out, RJ45 ethernet in/out and locking power in connections shall be included. The luminaire shall include a 6-button touch control panel with full-color 180° reversible menu display. Max power consumption shall be 1400W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall be outfitted with a wired digital communication network and USB firmware service port. It shall measure 471mm x 334mm x 800mm (LxWxH) and weigh 42.6 kg. GAEB TEXT |
product link | |
Anschlüsse | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
no
|
Steuerung | |
max Dimmer resolution |
16 bit
|
control channels, min |
40 ch
|
control channels, max |
67 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Elektrische Eigenschaften | |
power consumption amps, max |
5.83 A
|
power consumption watt, max |
1400.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
external PSU |
no
|
BTU/h |
4456.87 BTU/h
|
Mechanisch | |
weight |
42.60 kg
|
width |
334.00 mm
|
height |
800.40 mm
|
length |
471.09 mm
|
pan range |
630 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optik | |
output lumen, max |
45000 lm
|
beam angle/zoom, min |
7.00 °
|
beam angle/zoom, max |
55.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
950.00 W
|
optics/projection type |
Profiler
|
multichip LED |
no
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
yes
|
iris min |
5 %
|
iris max |
100 %
|
color temperature, min |
2700 K
|
color temperature, max |
6500 K
|
min CRI |
72 CRI
|
secondary light source |
none
|
drop-in frosts |
2 pcs
|
max CRI |
84 CRI
|
out lumen in silent mode. Max |
45000 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
7 pcs
|
number of rotating gobos |
7 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
9999 °
|
prism |
mutiple (2)
|
other beam effects |
yes
|
separate CTO wheel |
dual flag
|
prism morphing |
no
|
animation wheels |
1 pcs
|
animation wheel functionality |
continous rotation
|
Luminous efficacy |
47.37 lm/W
|
COLD WHITE LED color temp |
6500 K
|
CMY colormixing |
dual flag
|
