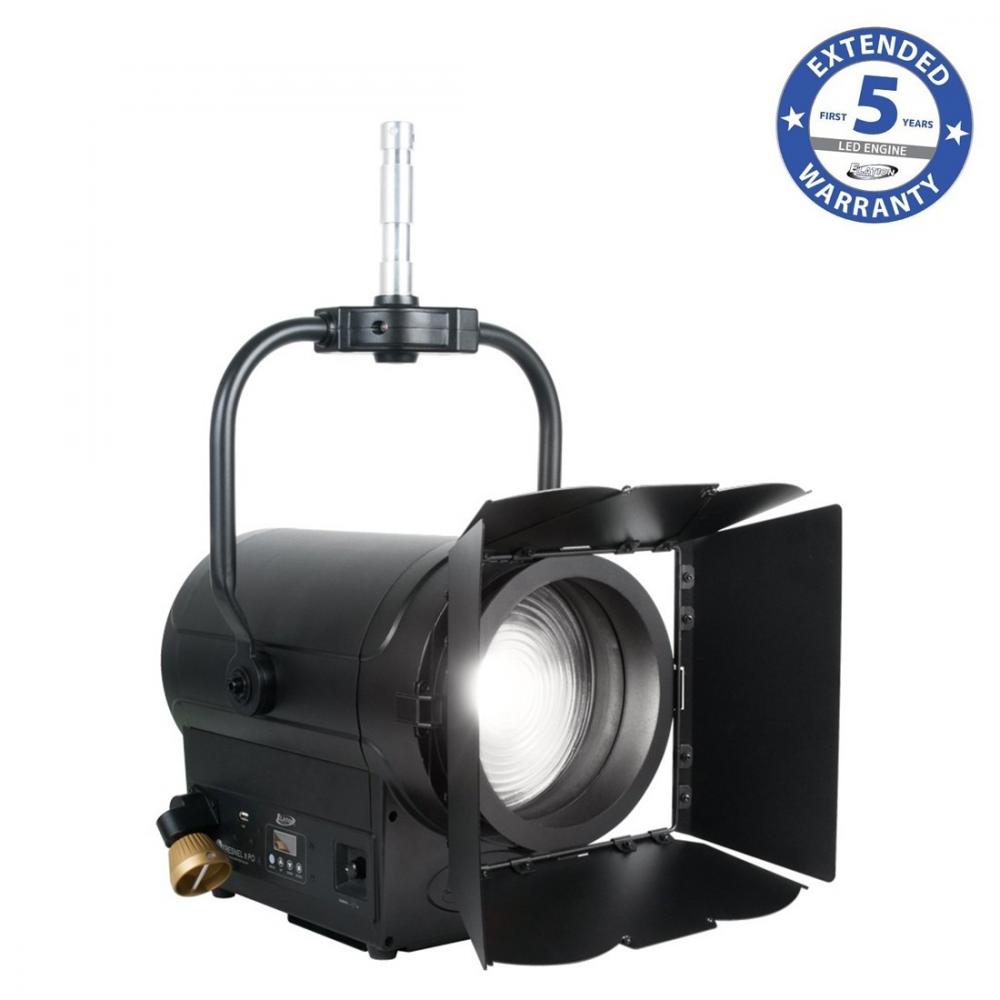

The KL Fresnel PO Series is a line of warm-white or cold-white Fresnel lights with all the benefits of LED. Available in 150W and 350W models, the WW models provide all the warmth of tungsten halogen, a 3,000K fixed color temperature and high color rendering capacity to ideally mimic the warm glow output of traditional tungsten halogen lights while surpassing them in output and efficiency. The CW models are a line of cold-white LED Fresnel lights with 5,600K Cool White LED engine. All KL Fresnel models house a manual zoom and include barn doors and a filter frame. The PO Series are pole operable units for broadcast studio and theater applications. Pole operation allows for easy pan, tilt and zoom maneuverability while avoiding having to access the fixture by climbing on a ladder.
GAEB
TEXT

FEATURES
5,600K Cool White LED Fresnel Luminaire
150W Single Source LED
Pole Operation for Pan and Tilt plus Zoom
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
16° - 39° Manual Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film

SOURCE
150W Cool White LED Engine
8,500 Total Output Lumens, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
8,500+ Total Lumen Output
9,269 LUX 861 FC @ 9.8’ (3m) (Min. Zoom)
2,334 LUX 217 FC @ 9.8’ (3m) (Max. Zoom)
Zoom Range 16° - 39°
Beam Angle 16.1° - 38°
Field Angle 39.1° - 53.9°

EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR
5,600K Cool White LED

CONTROL / CONNECTIONS
4 DMX Channels Modes (1 / 2 / 3 / 4)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Dimming Control
4 Button and 1 Dial Control Panel
Manual and DMX Controlled Dimming
180° Reversible LCD Menu Display
USB Firmware Service Port
Locking 3/5pin XLR DMX In/Out and Power In/Out

SIZE / WEIGHT
Length: 13.5” (344mm)
Width: 10.8” (273mm)
Vertical Height: 15.5” (393mm)
Weight: 18.5 lbs. (8.4 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
170W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Power Linking: 6Pcs @ 110V / 14Pcs @ 240V

INCLUDED ITEMS
Gel frame, Rotating Barndoors & 28mm Junior Pin / Spigot

The luminaire shall be a pole operable, cold-white luminaire with a 150W 5,600K LED engine. The luminaire shall be pole operable to allow for easy pan, tilt and zoom adjustments. The luminaire shall operate silently and flicker-free with an average LED life of 50,000 hours. It shall be capable of emitting 8,500 total lumens and have a CRI >95. The luminaire shall contain a 16° - 39° manual zoom. Full range dimming shall be manually or DMX controllable. The luminaire shall house rotating 8-leaf barn doors and include a gel frame holder. The luminaire shall include a high-speed strobe, be capable of 0-100% dimming and include variable dimming curves. Operation via DMX and RDM protocols shall be possible and the luminaire shall include a 4-button and dial control panel with LCD menu display. LED refresh rate shall be adjustable from 900 – 25,000Hz. 3-pin and 5-pin DMX In/Out, a USB firmware service port and Power In/Out shall be included. Max power consumption shall be 180W and a multi-voltage universal auto switching power supply shall be included. The unit shall measure 344mm x 273mm x 393mm (LxWxH) and weigh 8.4 kg.
