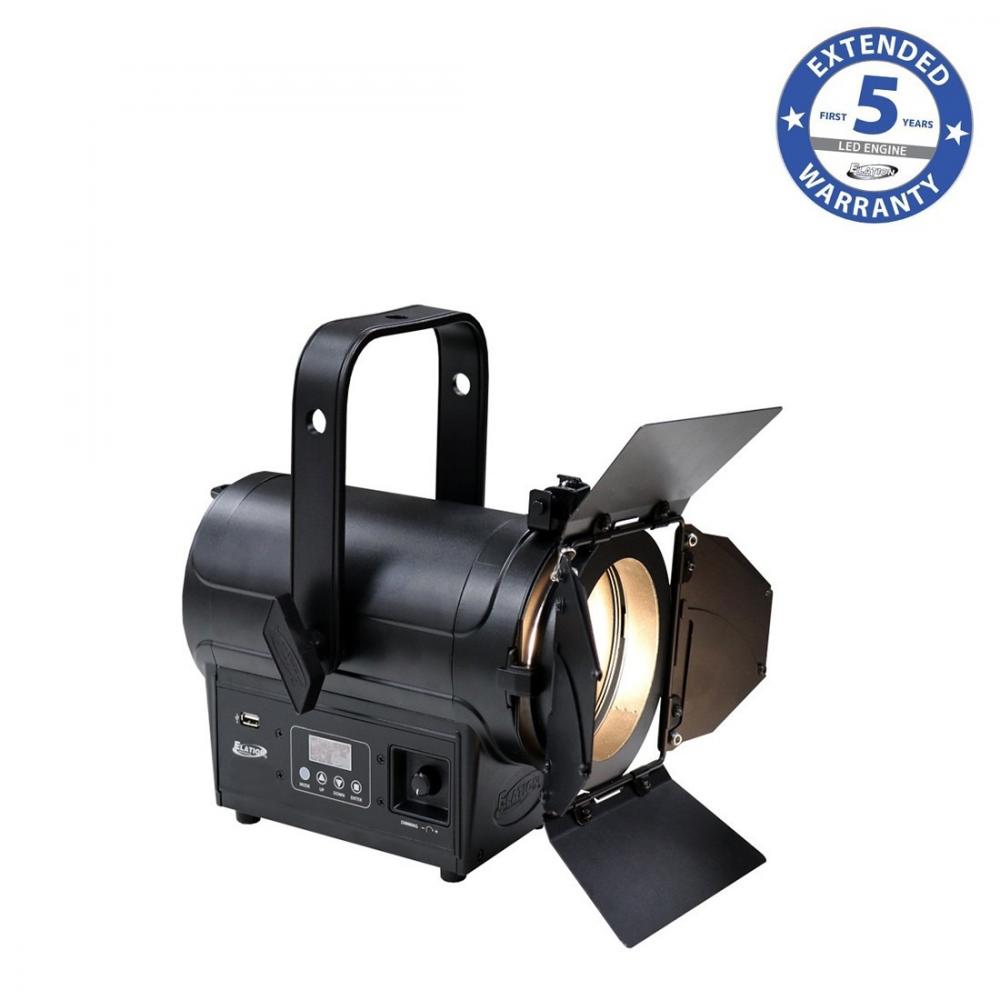

The KL Fresnel Series™ feature 3,000K LED engines, Wide manual zoom range and motorized zoom for the KL Fresnel 8, silent operation mode, manual and DMX controlled dimming, rotating 8-leaf barn doors and gel frame holder included, adjustable refresh frequency and gamma brightness, variable dimming curves, DMX, RDM (Remote Device Management), 5pin DMX in/out and locking power in/out connections, USB firmware service port, flicker free operation for TV and Film, 4 button and recessed dial(s) control panel and a multi-voltage universal auto switching power supply (100-240V).
GAEB
TEXT

FEATURES
50W 3,000K >97CRI Warm White LED Engine
1,900+ Total Lumen Output
On Par with Tungsten Halogen Models
14° to 30° Wide Manual Zoom
Manual and DMX Control
Rotary Dimmer Dial
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
Gel Frame and Rotating Barn Doors (included)
3 Clamp Position Adjustable Mounting Yoke

SOURCE
50W 97CRI 3,000K Warm White LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
1,900+ Total Lumen Output
6,837 LUX 635 FC @6.6’ (2m) (Min Zoom / Full ON)
1,791 LUX 166 FC @6.6’ (2m) (Max Zoom / Full ON)
Zoom Range 14° - 30°
Beam Angle 14.2° - 29.7°
Field Angle 23.2° - 48°

EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR
Warm White 3,000K

CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer Rotary Dial
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
5pin DMX and IP65 Locking Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 13.6” (345mm)
Width: 7.9” (201mm)
Vertical Height: 11.4” (289mm)
Weight: 9.0 lbs. (4.08 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
50W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 12Pcs @ 110V / 27Pcs @240V

INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable


The luminaire shall be a warm-white light LED luminaire with a 50W 3,000K LED engine. The
luminaire shall operate flicker-free with an average LED life of 50,000 hours. The luminaire shall be
capable of emitting 1,900 total lumens and have a CRI >97. The luminaire shall contain a 14° - 30°
manual zoom. Full range dimming shall be manually or DMX controllable. The luminaire shall house
rotating 8-leaf barn doors and include a gel frame holder. The luminaire shall include a silent
operation mode and operate flicker free. The luminaire shall include a high-speed strobe, be capable
of 0-100% dimming and include variable dimming curves. The luminaire shall operate via DMX and
RDM protocols and include a 4-button and recessed dial(s) control panel with LCD menu display. LED
refresh rate and gamma brightness shall be adjustable. 5 pin DMX In/Out and Locking Power
in/out connections shall be included. Max power consumption shall be 50W and a multi-voltage
universal auto switching power supply shall be included. A USB firmware service port shall be
included. The unit shall measure 251mm x 201mm x 289mm (LxWxH) and weigh 4.0 kg.
