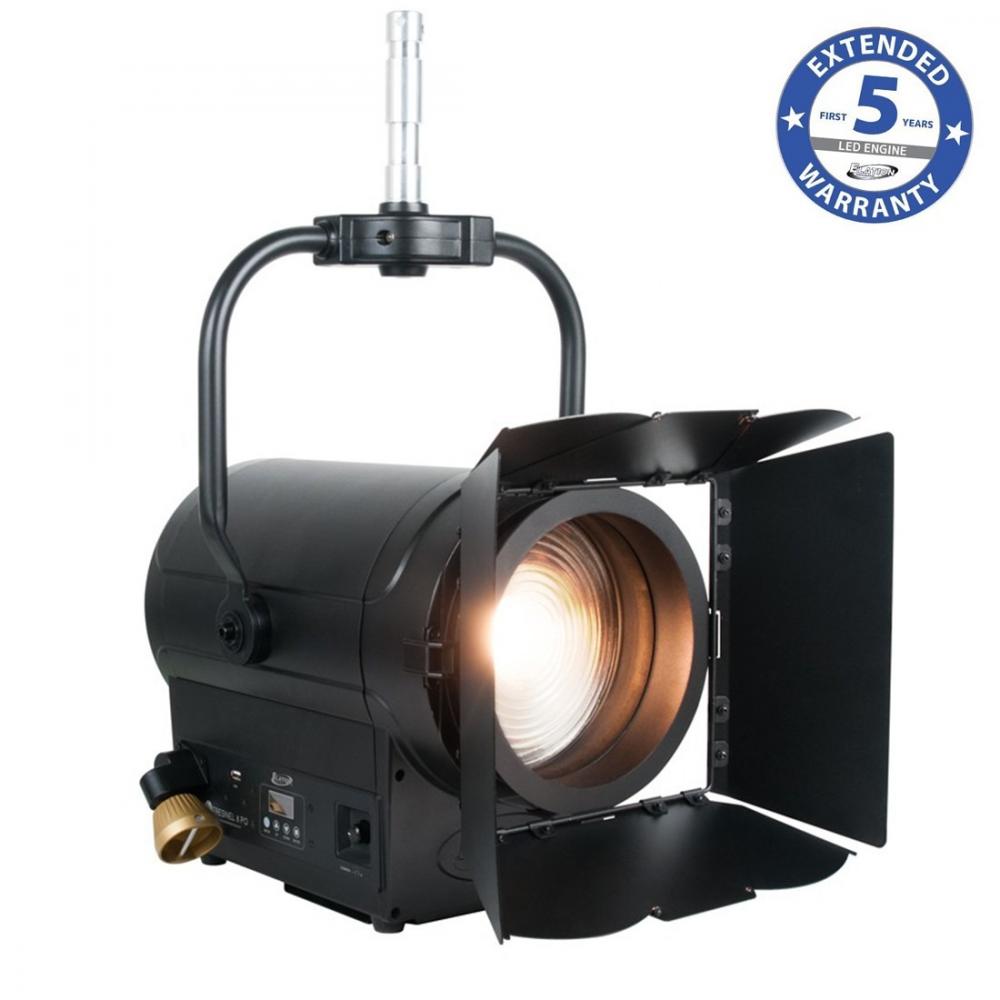

The KL Fresnel Series™ feature 3,000K LED engines, Wide manual zoom range and motorized zoom for the KL Fresnel 8, silent operation mode, manual and DMX controlled dimming, rotating 8-leaf barn doors and gel frame holder included, adjustable refresh frequency and gamma brightness, variable dimming curves, DMX, RDM (Remote Device Management), 5pin DMX in/out and powerCON TRUE1 in/out connections, USB firmware service port, flicker free operation for TV and Film, 4 button and recessed dial(s) control panel and a multi-voltage universal auto switching power supply (100-240V).
GAEB
TEXT

FEATURES
3,000K Warm White LED Fresnel
11° - 68° Zoom
Manual and DMX Controlled Dimming
Adjustable Refresh Frequency and Gamma Brightness
Including 8-Leaf Barn Doors and Gel Frame Holder
Pole Operated (Only KL Fresnel 8 PO)
Silent Operation
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management

SOURCE
350W 3,000K Warm White LED Engine
6,400 Lumen, >97 CRI
50,000 Hour Average LED Life*

PHOTOMETRIC DATA
19,410 LUX 1,803 FC @ 9.8’ (3m) (Min. Zoom)
1,853 LUX 172 FC @ 9.8’ (3m) (Max. Zoom)

EFFECTS
Strobe: 1-18fps
Electronic Dimming: 0% - 100%
Variable Dimming Curves

COLOR
3,000K Warm White

CONTROL / CONNECTIONS
4 DMX Channels Modes (1 / 2 / 3 / 4)
RDM (Remote Device Management)
Adjustable Refresh Rate (900 – 25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button and (1) Dial Control Panel
LCD Menu Display
Manual and DMX Controlled Dimming
3pin & 5pin DMX In/Out
USB Firmware Service Port
powerCON TRUE1 Power In/Out

SIZE / WEIGHT
Length: 16.1” (410mm)
Width: 12.8” (326mm)
Vertical Height: 18.0” (456mm)
Weight: 25.4 lbs. (11.5 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
360W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS
Rotating Barn doors
Gel Frame Holder

The luminaire shall be a warm-white light LED luminaire with a 350W 3,000K LED engine. The luminaire shall operate flicker-free with an average LED life of 50,000 hours. The luminaire shall be capable of emitting 6,400 total lumens and have a CRI >97. The luminaire shall contain an 11° - 68° motorized zoom. Full range dimming shall be manually or DMX controllable. The luminaire shall house rotating 8-leaf barn doors and include a gel frame holder. The luminaire shall include a silent operation mode and operate flicker free. The luminaire shall include a high speed strobe, be capable of 0-100% dimming and include variable dimming curves. The luminaire shall operate via DMX and RDM protocols and include a 4-button and recessed dial(s) control panel with LCD menu display. LED refresh rate and gamma brightness shall be adjustable. 5 pin DMX In/Out and and powerCON TRUE1 in/out connections shall be included. Max power consumption shall be 360W and a multi-voltage universal auto switching power supply shall be included. A USB firmware service port shall be included. The unit shall measure 410mm x 326mm x 456mm (LxWxH) and weigh 11.5 kg.
