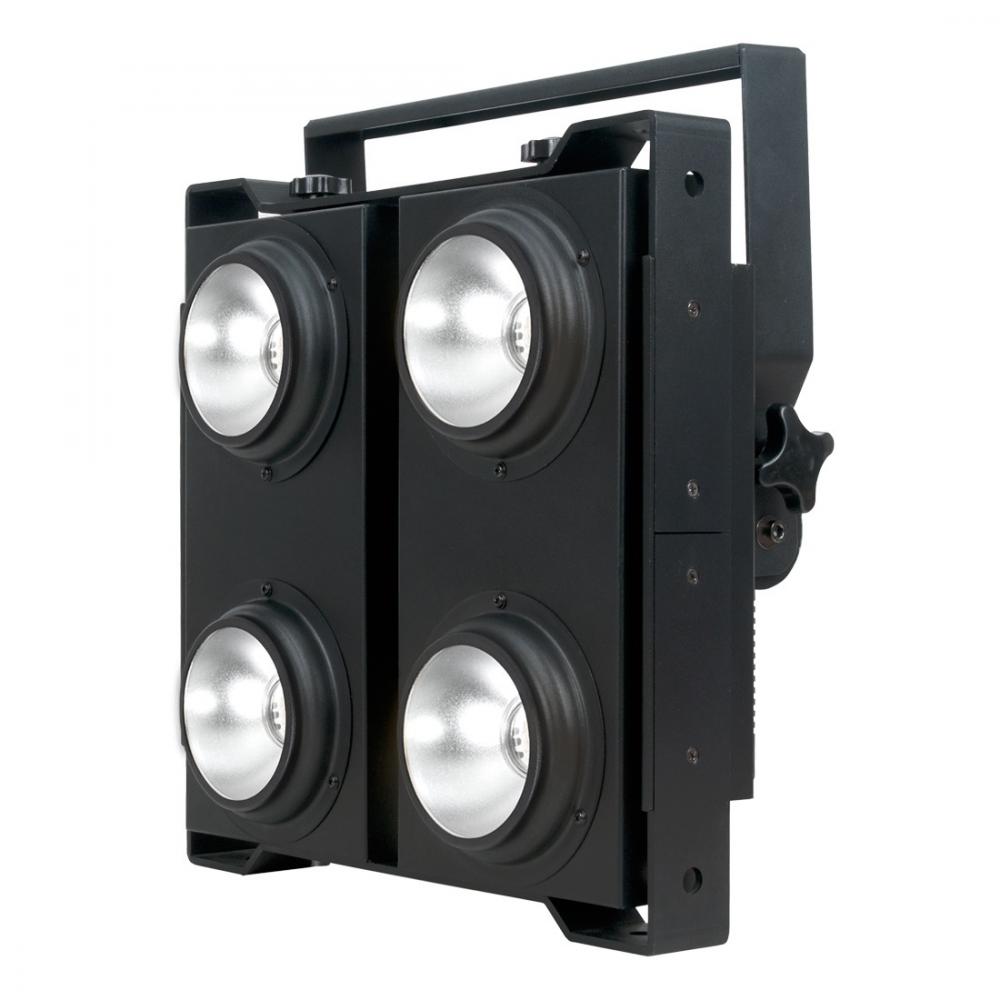

Cuepix Blinder WW4
Elation Professional
Technische Daten, Datenblätter, Beschreibungen und Ausschreibungstexte für Cuepix Blinder WW4
| Info | |
|---|---|
| tender specification text |
The Cuepix Blinder WW2 and WW4 are ideal for adding high-impact white light to productions of all types. These two industry standard blinders have been staples on shows and events around the world for years. They house 2 and 4 long-life 100W warm white 3,200K COB LEDs respectively for a bright, high-density output and superior all-around performance. Both models feature individual pixel control as well as preprogrammed effects macros.
GAEB
TEXT
|
| short summary |
The Cuepix Blinder WW4 is a powerful warm-white LED blinder with four COB LEDs ideal for adding high-impact white light to productions of all types.
|
| product type |
LED Blinder
|
| product description |
FEATURES High Power Warm White LED Blinder Luminaire 100W Warm White LEDs Pixel Controlled LEDs 62° Beam Angle Manual Pan Focus Optional Linking of 2 Cuepix Blinder WW4 Variable Dimming Curves Flicker Free Operation for Broadcast TV and Film SOURCE 4x 100W Warm White 3,200K COB LEDs 100,000 Hour Average LED Life* PHOTOMETRIC DATA 1,581 LUX 147 FC @ 9.8‘ (3m) EFFECTS Manual Pan Focus Pixel Controlled LEDs High Speed Electronic Shutter and Strobe Variable Dimming Curves COLOR 3,200K Warm White CONTROL / CONNECTIONS 6 DMX Channel Modes (1 - 9) DMX, Art-NET and Kling-NET Support RDM (Remote Device Management) 8 / 16 Bit Dimming Control 4 Button Control Panel LCD Menu Display 3pin & 5pin DMX In/Out RJ45 etherCON In/Out (Art-NET) powerCON Power In/Out SIZE / WEIGHT Length: 15.7" (400mm) Width: 6.9" (174mm) Vertical Height: 17.4" (441mm) Weight: 21.0 lbs. (9.5 kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 427W Max Power Consumption 14°F to 113°F (-10°C to 45°C) INCLUDED ITEMS powerCON to Schuko Cable |
| short, neutral tender spec text |
The luminaire shall be an LED blinder with (4) 100W warm white COB LEDs calibrated at 3,200K. It shall operate flicker-free with an average LED life of 100,000 hours. The luminaire shall be capable of emitting 1,581 Lux @ 3m. Individual control of each COB module shall be possible. The luminaire shall have a 60° beam angle and include a manual pan focus. The unit shall include a strobe and be capable of 0-100% dimming with variable dimming curve modes. The luminaire shall operate via DMX, RDM and Art-NET and include a 4-button touch control panel and LCD menu display. 3pin & 5pin DMX In/Out, 2 RJ45 etherCON and powerCON In/Out connections shall be included. Max power consumption shall be 427W and a multi-voltage universal auto switching power supply shall be included. It shall measure 400mm x 174mm x 441mm (LxWxH) and weigh 9.5 kg.
GAEB
TEXT
|
| product code |
1236200039
|
| order code |
1236200039
|
| product link | |
| Anschlüsse | |
| total number of DMX inputs |
2 pcs
|
| total number of DMX outputs |
2 pcs
|
| DMX connector types |
both 3/5pin
|
| built-in Switch |
yes
|
| Steuerung | |
| control channels, min |
1 ch
|
| control channels, max |
9 ch
|
| max Dimmer resolution |
16 bit
|
| RDM |
yes
|
| wireless dmx |
no
|
| protocol-DMX |
both
|
| protocol-Artnet |
no
|
| Elektrische Eigenschaften | |
| power consumption amps, max |
1.78 A
|
| power consumption watt, max |
427.00 W
|
| AC Volts, min |
100 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| operating temp, min |
-10.00 °C
|
| operating temp, max |
45.00 °C
|
| dimmable by external dimmer |
no
|
| built-in dimmer |
LED PWM
|
| power input connector |
Powercon
|
| Battery powered |
no
|
| cooling |
active
|
| power output connector |
Powercon
|
| external PSU |
no
|
| PWM rate |
25000.00
|
| Mechanisch | |
| weight |
9.50 kg
|
| width |
174.00 mm
|
| height |
441.00 mm
|
| length |
400.00 mm
|
| color |
black
|
| truss mountable |
yes
|
| recessed installation |
no
|
| Optik | |
| beam angle/zoom, min |
60.00 °
|
| beam angle/zoom, max |
60.00 °
|
| light source |
LED
|
| light source color temperature |
3200 K
|
| optics/projection type |
Floodlight
|
| beam shapers/framing/barndoors |
no
|
| color temperature, min |
3200 K
|
| color temperature, max |
3200 K
|
| Number of light sources |
4 pcs
|
| wattage per light source |
100.00 W
|
| beam shape |
round
|
| multichip LED |
no
|
| WARM WHITE LED source |
yes
|
| COLD WHITE LED source |
no
|
| number of separate pixel zones |
4
|
| LED light source 'look' |
multicolor LEDs
|
| RED light source |
no
|
| GREEN light source |
no
|
| BLUE light source |
no
|
| UV light source |
no
|
| AMBER light source |
no
|
| YELLOW light source |
no
|
| CYAN light source |
no
|
| WARM WHITE LED color temp |
3200 K
|
| other beam effects |
no
|
| shutter/strobe frequency, max |
18 Hz
|
| variable/linear frost |
no
|
| secondary light source |
none
|
