| product description |

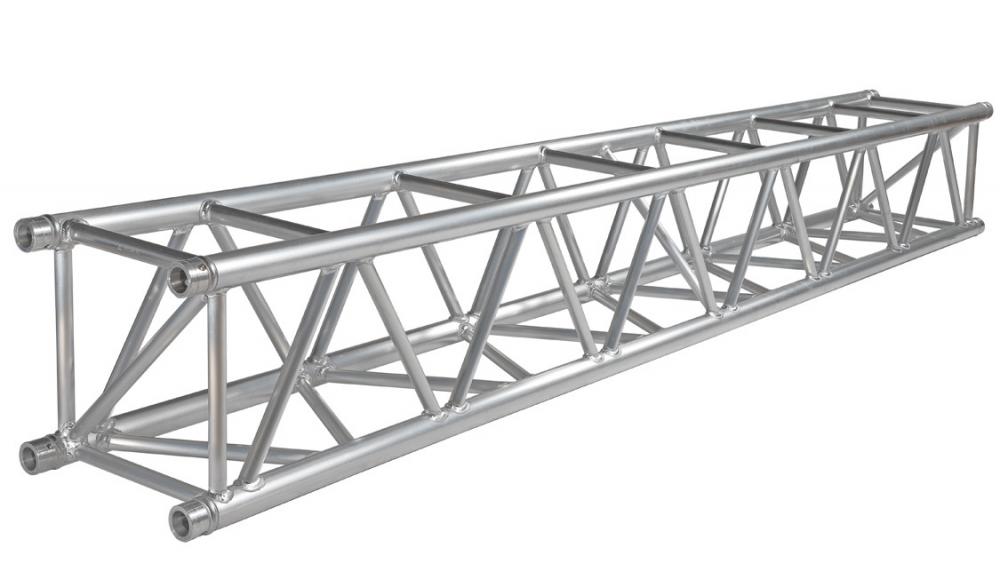

S40 mast sections are constructed of main tubes (50 x 4 mm) and diagonals (25 x 3 mm). Equipped with the CCS6 conical coupling system, the S40 is fast and easy to assemble. Due to its 3-sided webbing the S40 truss can absorb vertical as well as horizontal loads, which make sit ideal for outdoor or 3 dimensional structures. The one-sided horizontal bracing facilitates safe and easy access of the mast sections when in position.
|
| product code |
S40T-L300
|
| order code |
111810024
|
| Product Name |
S TOWER MAST SECTION 300CM
|
| Mechanisch | |
| weight |
30.10 kg
|
| Statisch | |
| max UDL 5m span |
3829.50 kg
|
| max UDL 10m span |
1834.00 kg
|
| max UDL 12m span |
1488.00 kg
|
| max UDL 15m span |
1132.50 kg
|
| max CPL 5m span |
1914.80 kg
|
| max CPL 10m span |
916.90 kg
|
| max CPL 12m span |
744.30 kg
|
| max CPL 15m span |
566.30 kg
|
| deflection at max UDL 5m span |
16.00 mm
|
| deflection at max UDL 10m span |
63.00 mm
|
| deflection at max UDL 12m span |
91.00 mm
|
| deflection at max UDL 15m span |
143.00 mm
|
| deflection at max CPL 5m span |
13.00 mm
|
| deflection at max CPL 10m span |
51.00 mm
|
| deflection at max CPL 12m span |
73.00 mm
|
| deflection at max CPL 15m span |
114.00 mm
|
