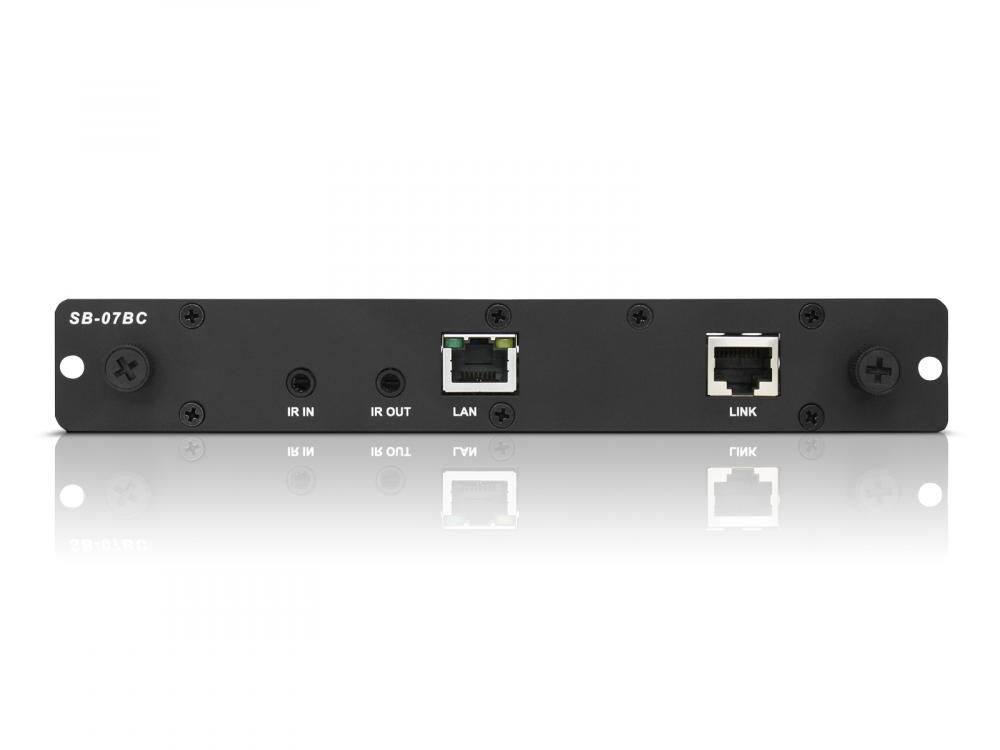

HDBaseT delivers uncompressed full HD digital video plus audio, 100BaseT Ethernet and control signals through a single 100 m LAN cable. The HDBase T transmitter (KT-100TX1) converts the input signal source and provides the high quality signals using a network cable to the HDBaseT receiver (SB-07BC) unit that is embedded into the display.

Compatible with NEC large format displays and projectors featuring OPS technology and with the majority of third party HDBaseT senders.
-no more cable length limitations
-one single cable only
-easy setup and operation
-wide range of applications
-compact and fully embedded
-high flexibility
Resolution Video 480i, 576i, 480p, 576p, 1080i at 50/60 Hz, 720p at 50/60 Hz, 1080p at 24/25/50/60 Hz
640 x 480 to 1920 x 1200 at 60 Hz, 4K2K at 24/25/30 Hz Distance CAT5/6 100 m Control RS232Cm IR, Ethernet (10BaseT/100BaseT) Warranty 3 years, additional services available Shipping Content OPS HDBaseT Receiver (SB-07BC), user manual, external IR sensor
