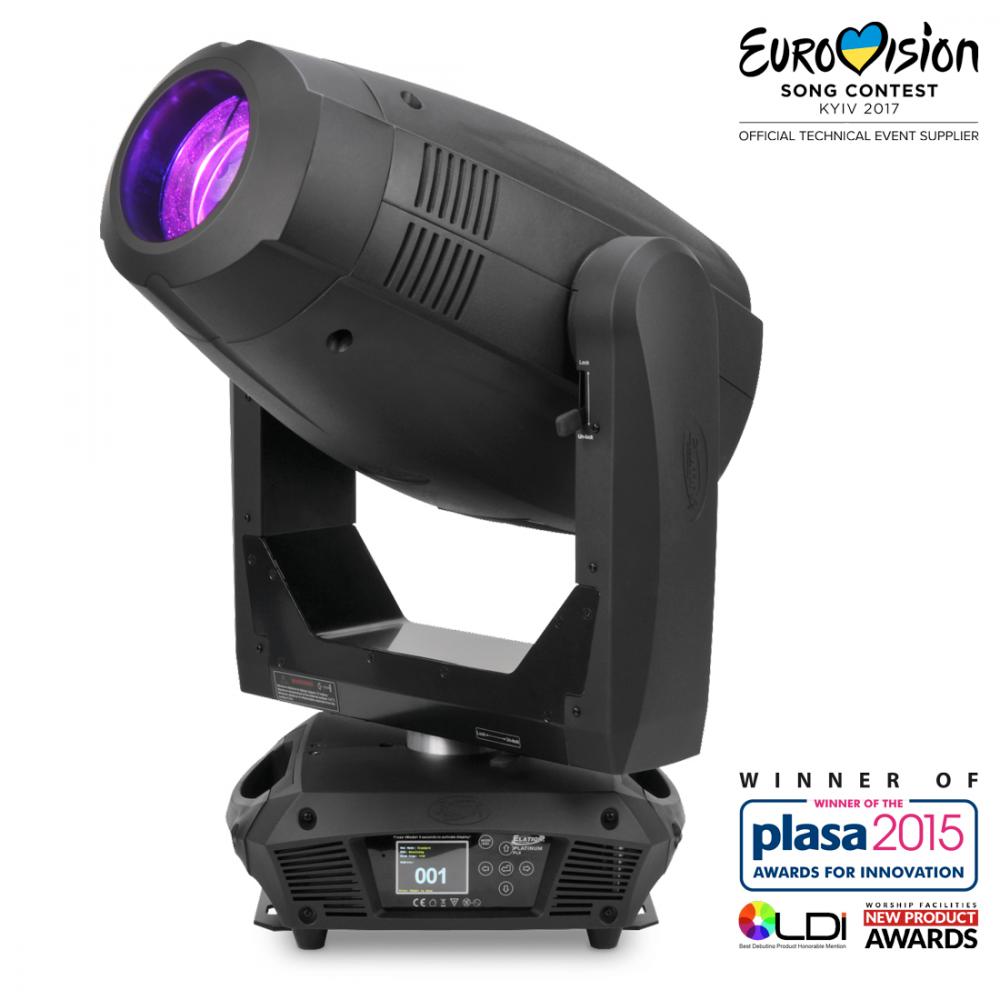

The award-winning Platinum FLX™ is an innovative full featured patent pending design 3-in-1 luminaire which can be utilized as a spot, beam or wash fixture. It features the Philips™ MSD Platinum 20R 470W 80CRI lamp, 7,800K, 23,000 lumen, 2.9° to 25° zoom in spot mode, 1.8° to 18° zoom in beam mode and 6° to 42° zoom in wash mode, true CMY color mixing plus linear CTO color correction, 10 dichroic colors including UV, CTO, CTB and white (open), 8 rotating, interchangeable glass & metal gobos and 6 static-stamped gobos, 6-facet linear and 8-facet rotating prisms, bi-directional animation effects, DMX, RDM (Remote Device Management), Art-NET and sACN (DMX over Ethernet) support, 5pin DMX in/out, RJ45 etherCON in/out and powerCON in connections, 6 button control full color 180° reversible menu display, 740W max power consumption and a multi-voltage universal auto switching power supply (100-240V).
GAEB
TEXT

The Platinum FLX™ is a multi-functional moving head luminaire housing an innovative dual optical system for functionality as a spot, beam, or wash effect. Its 470W Platinum 20R lamp emits up to 20,000 lumens.

The luminaire shall be a 3-in-1 yoke moving head Beam/Spot/Wash light with independent optical systems and a Philips™ MSD Platinum 20R 470W lamp. The luminaire shall include CMY color mixing, linear CTO color correction and 10 dichroic colors including UV, CTO, CTB + White. The luminaire shall be capable of emitting over 23,000 total lumens and be able to zoom in all three modes (1.8° - 18° in Beam mode, 2.9° - 25° in Spot mode and 6° - 42° in Wash mode). The luminaire shall house two gobo wheels, one with 8 rotating, interchangeable gobos and the other with 6 static-stamped indexing gobos. Bi-directional animation effects shall be possible. Strobe effects and 0-100% dimming shall be possible and the luminaire shall include a 6-way linear and an 8-Facet rotating prism. An auto focus function shall be included. 5-pin XLR, powerCON TRUE1 in connections and RJ45 etherCON connections shall be included. The luminaire shall operate via DMX, RDM, Art-NET and sACN protocols. The luminaire shall include a 6-button touch control panel with full-color 180° reversible menu display. Max power consumption shall be 740W and a multi-voltage universal auto switching power supply shall be included. It shall measure 466mm x 335mm x 762mm (LxWxH) and weigh 34.0 kg.
GAEB
TEXT

FEATURES
Patent Pending 3-in-1 Spot, Beam and Wash Luminaire
Independent Optical Systems without Compromising Performance
Innovative Auto Focus Function
Minimal Lux Loss in Spot Mode
2.9° - 25° Spot, 1.8° - 18° Beam and 6° - 42° Wash Zoom Range
6-Facet Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effects
Full CMY Color Mixing and Linear CTO Color Correction
Pan/Tilt Lock
Art-NET and sACN (DMX over Ethernet) Support
RDM – Remote Device Management

SOURCE
Philips™ MSD Platinum 20R 470W Lamp
23,000 Lumens, 7,800K, 80CRI
1,500 Hour Average Lamp Life*

PHOTOMETRIC DATA
11,262 Lumens Spot Mode / 19,133 Lumens Beam Mode
165,500 LUX 15,375 FC @ 32.8’ (10m) (Spot)
360,000 LUX 33,444 FC @ 32.8’ (10m) (Beam)

EFFECTS
6-Facet Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effect
Strobe: 1-18fps
Dimming: 0% - 100%

COLOR
True CMY-Flag Color Mixing
Linear CTO Color Correction
10 Dichroic Colors Including UV, CTO, CTB + White

GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 16.1mm / ID 10.0mm**
(6) Static-Stamped / Indexing Metal Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 37)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 etherCON In/Out (Art-NET, sACN)
powerCON Power In

SIZE / WEIGHT
Length: 18.3” (466mm)
Width: 13.2” (335mm)
Vertical Height: 30.0” (762mm)
Weight: 75.0 lbs. (34.0 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
740W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS
powerCON to Schuko Cable
