Info | |
---|---|
tender specification text |
The IP65-rated DTW Blinder Series are variable white LED blinders and an excellent choice when variable white light is required on stage, including broadcast, theatrical and conventional lighting situations. Available in a 2-lite or 4-lite version, they house high-powered 175W 2-in-1 Warm White / Amber COB LEDs and are color temperature adjustable to emulate the “Dim to Warm” look of conventional tungsten / halogen fixtures. Optimized to give the finest in variable white light, they feature full color temperature range control plus independent Dim-to-Warm channel control from 1,800K to 3,200K for accurate rendition of traditional tungsten halogen lamps. They include extremely smooth dimming with variable dimming curve modes and strobe effects.
GAEB
TEXT
|
short summary |

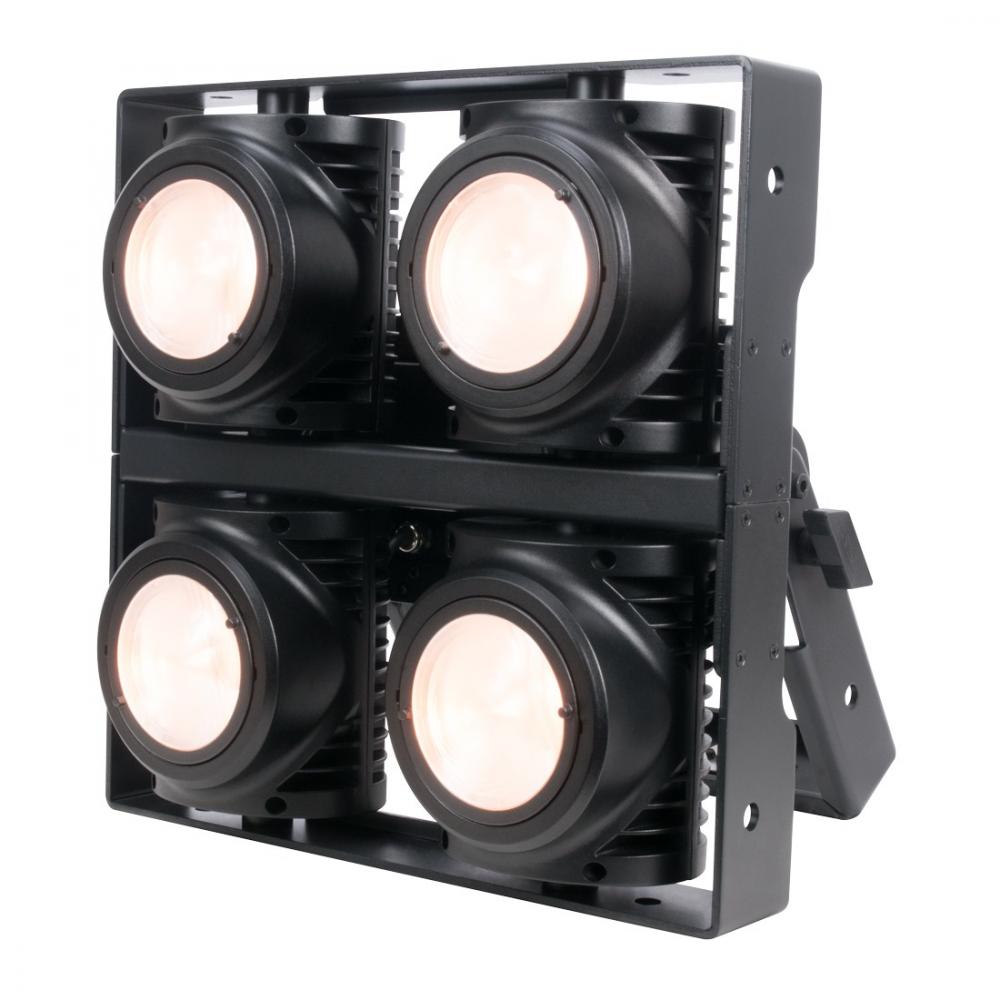

The DTW Blinder 700 IP™ is an IP65-rated, variable white LED blinder with four high-powered LEDs and color temperature adjustment control. It can emulate the “Dim to Warm” look of conventional tungsten / halogen fixtures.
|
product type |
LED Outdoor Blinder
|
product description |
FEATURES IP65 Rated Pixel Control 67° Wide Beam Angle 15° Narrow Beam Filters (included) Independent Dim-to-Warm Channel Control (1,800K - 3,200K) RDM (Remote Device Management) Rugged Die-Cast Aluminum Exterior Flicker Free Operation for TV and FILM SOURCE (4) 175W 2-in-1 Warm White/Amber COB LEDs 50,000 Hour Average LED Life* *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 7,719 LUX 717 FC (15° @ 9.8 ft / 3m w/Fresnel lens) 1,104 LUX 94 FC (67° @ 9.8 ft / 3m w/No Fresnel lens) EFFECTS Pixel Control 15° Narrow Beam Angle with included Fresnel Lens 67° Wide Beam Angle with Fresnel Lens Removed Unique Dim-to-Warm Channel Control (1,800K - 3,200K) Independent Dimming of Each COB LED Module Electronic Strobe and Variable Dimming Curves COLOR Warm White / Amber CONTROL / CONNECTIONS (9) DMX Channel Modes (13 Total Channels) RDM (Remote Device Management) 4 Button Control Panel and LCD Menu Display IP Rated locking 5pin XLR DMX In/Out IP Rated locking power In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 15.7” (400mm) Width: 9.7” (244mm) Horizontal Height: 16.1” (410mm) Weight: 28.0 lbs. (12.7 kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 680W Max Power Consumption Multiple Unit Power Linking 5°F to 113°F (-15°C to 45°C) |
product code |
1236300074
|
order code |
1236300074
|
short, neutral tender spec text |
The luminaire shall be an IP65-rated, variable white LED blinder light with four 175W Warm White / Amber COB LEDs. The luminaire shall operate flicker-free with an average LED life of 50,000 hours. It shall be capable of emitting 7,719 LUX @ 3m and include easily attachable 15° narrow beam filters. It shall be capable of full color temperature range control plus independent Dim-to-Warm channel control (1,800K - 3,200K). The luminaire shall include full pixel control, strobe effects, a manual adjustable pan focus, independent dimming of each COB LED module, and include variable dimming curves. Beam angle shall be 67 degrees. The luminaire shall operate via DMX and RDM protocols and include a 4-button touch control panel and LCD menu display. IP-rated DMX and Power in/out connections shall be included. Exterior construction shall be of die-cast aluminum and the luminaire shall contain integrated yoke and side mounting brackets. Max power consumption shall be 680W and a multi-voltage universal auto switching power supply shall be included. It shall measure 400mm x 241mm x 410mm (LxWxH) and weigh 12.7 kg.
GAEB
TEXT
|
product link | |
Anschlüsse | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
Steuerung | |
control channels, min |
1 ch
|
control channels, max |
13 ch
|
max Dimmer resolution |
16 bit
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
no
|
Elektrische Eigenschaften | |
power consumption amps, max |
2.83 A
|
power consumption watt, max |
680.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
65
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
dimmable by external dimmer |
no
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
Battery powered |
no
|
cooling |
passive
|
power output connector |
Truecon
|
external PSU |
no
|
PWM rate |
25000.00
|
Mechanisch | |
weight |
12.70 kg
|
width |
241.00 mm
|
height |
410.00 mm
|
length |
400.00 mm
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optik | |
beam angle/zoom, min |
67.00 °
|
beam angle/zoom, max |
67.00 °
|
light source |
LED
|
optics/projection type |
Floodlight
|
beam shapers/framing/barndoors |
no
|
color temperature, min |
1800 K
|
color temperature, max |
3200 K
|
Number of light sources |
4 pcs
|
wattage per light source |
175.00 W
|
beam shape |
oval
|
multichip LED |
yes
|
WARM WHITE LED source |
yes
|
COLD WHITE LED source |
no
|
number of separate pixel zones |
4
|
LED light source 'look' |
multicolor LEDs
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
yes
|
YELLOW light source |
no
|
CYAN light source |
no
|
WARM WHITE LED color temp |
3200 K
|
other beam effects |
yes
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
no
|
secondary light source |
none
|
