Info | |
---|---|
product description |

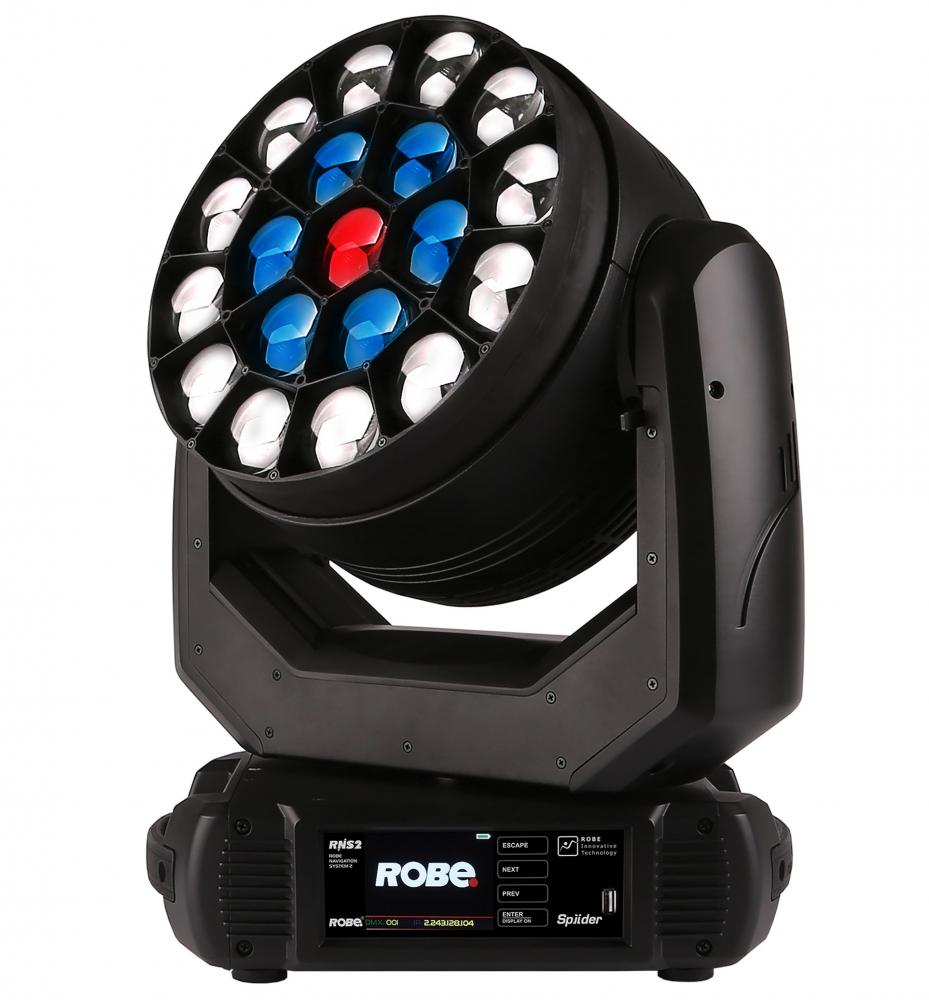

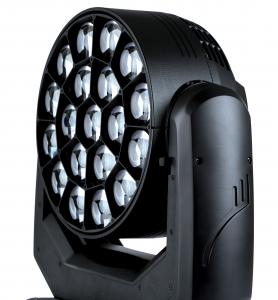

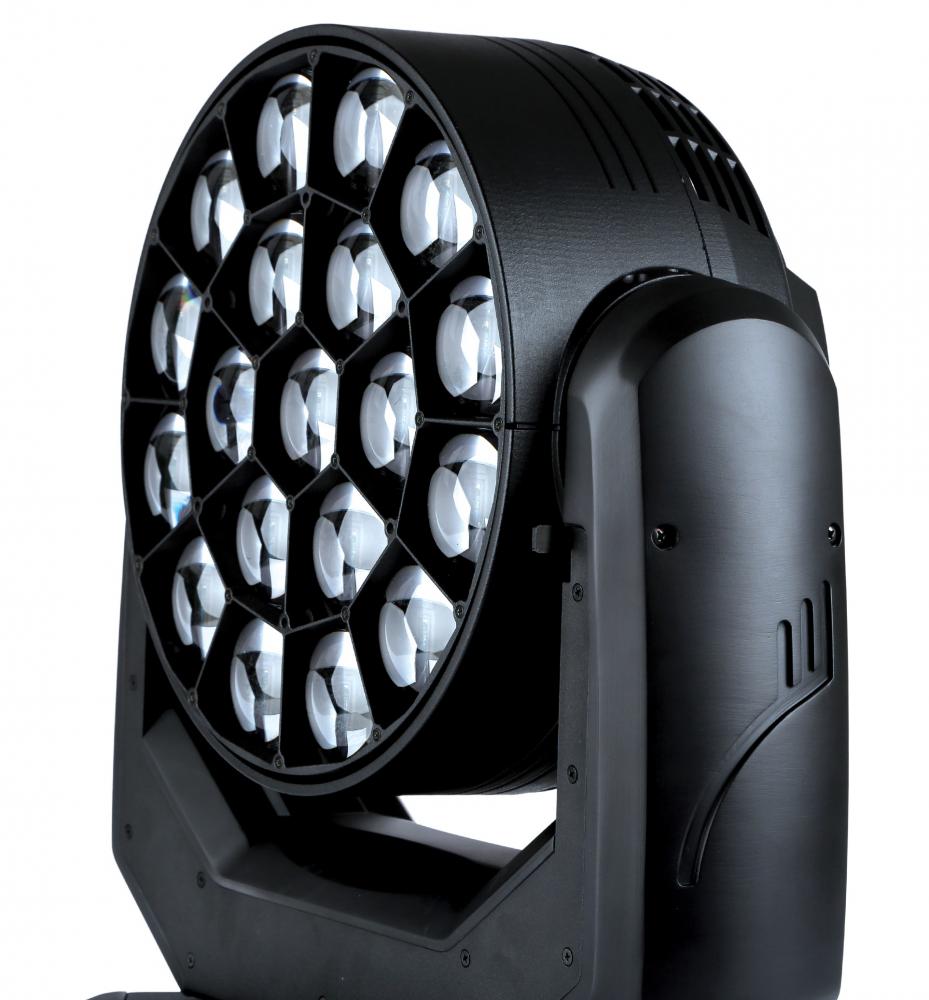

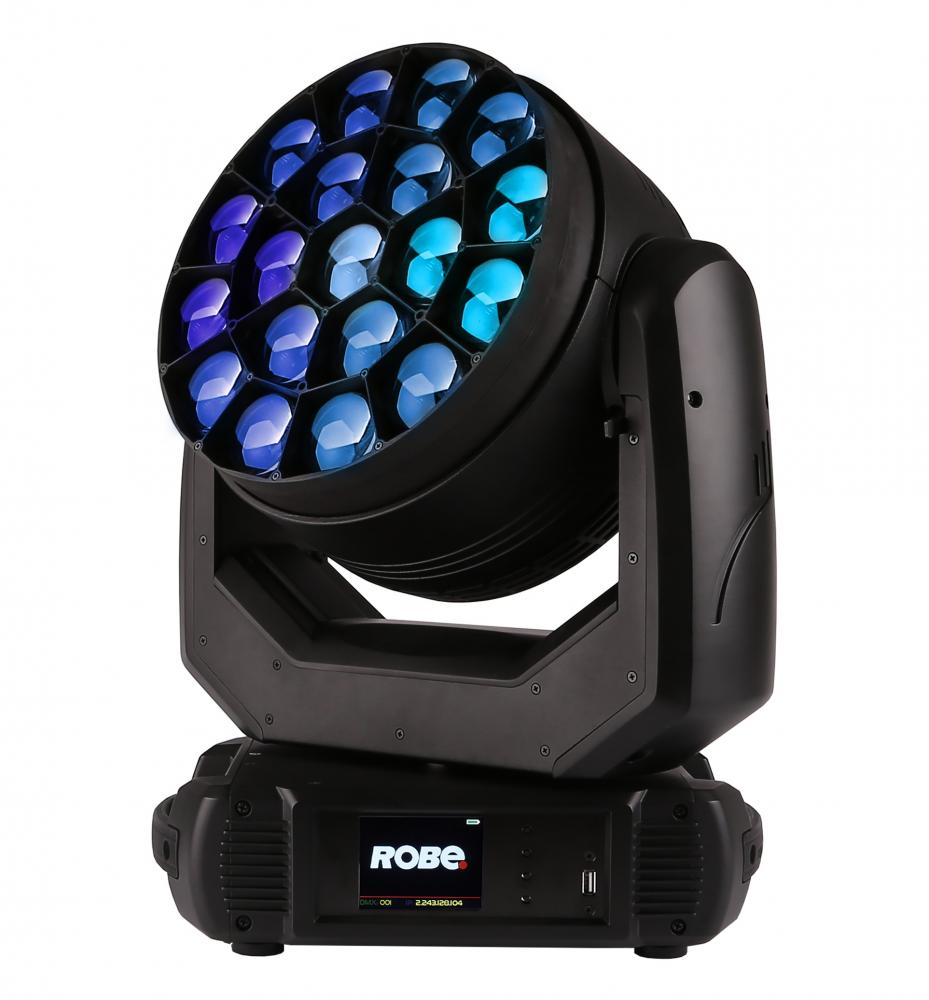

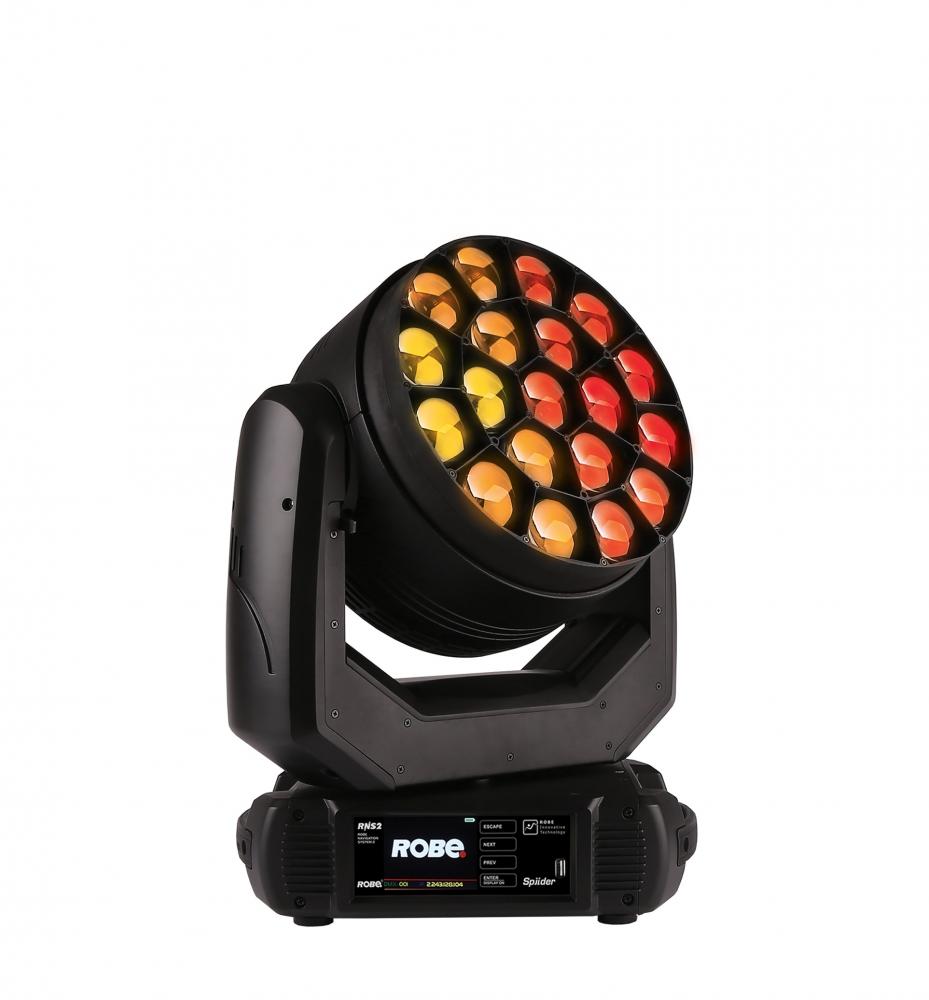

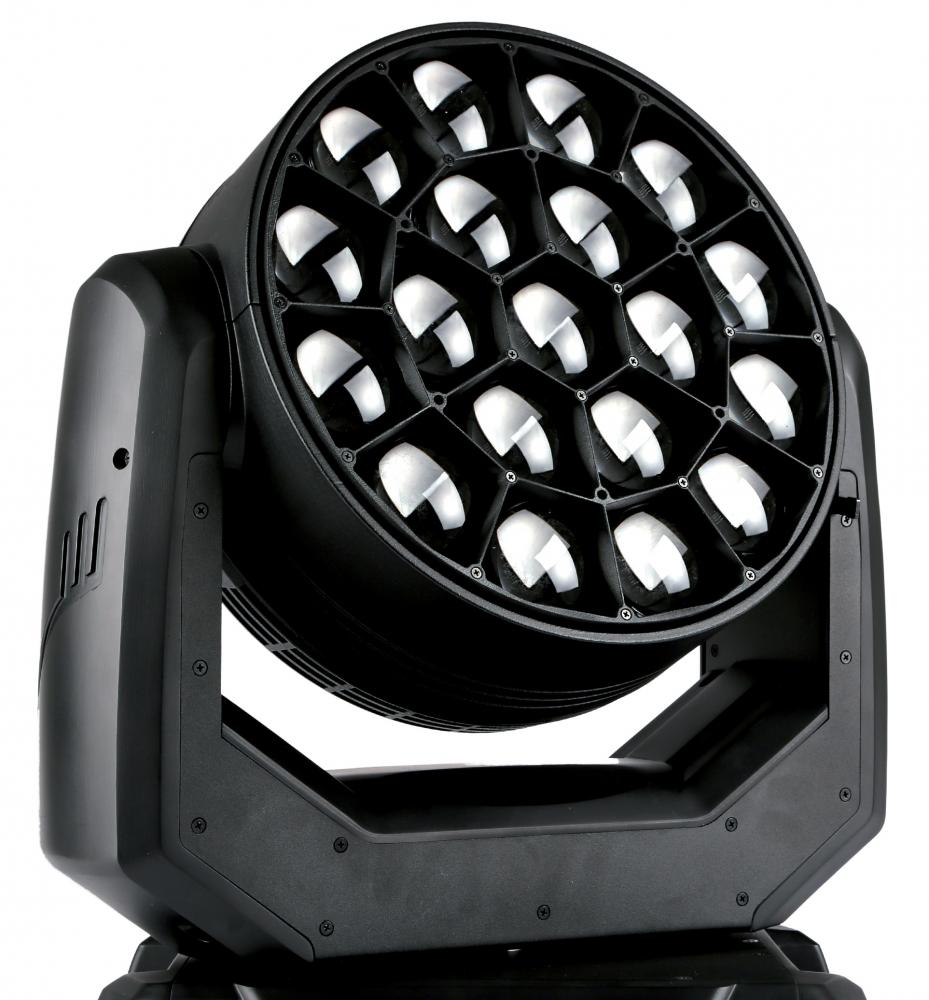

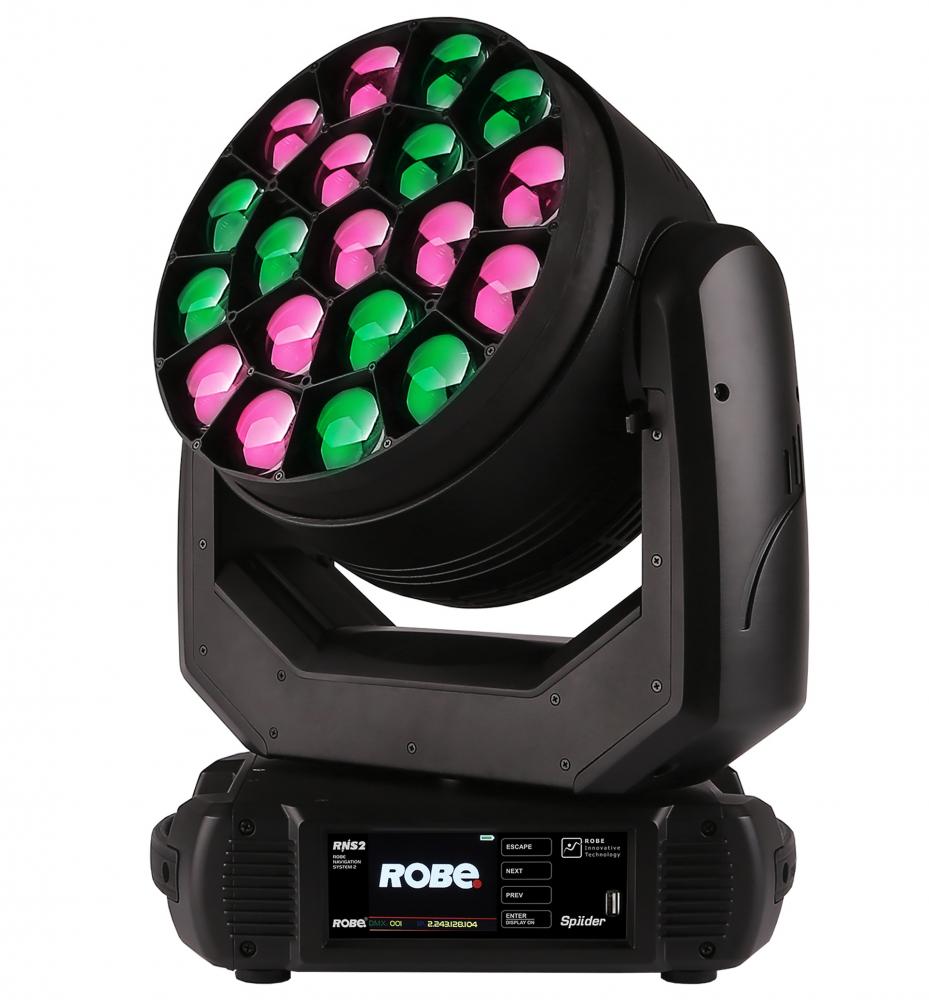

THE NEXT BIG THING FROM ROBE! Spiider, a superbright next generation of LED WashBeam luminaires, using 18x 30 Watt and 1x 60 Watt LEDs and combining it with a very efficient 12,5:1 zoom optical system ranging from tight 4° Beam to wide 50° Wash, makes the product the most powerful LED fixture on the market. Beautiful convergence of hard edge in-air effects, punchy beams and smooth homogenized wash is all encapsulated in the unique Spiider. Rich colors of 19 powerfull RGBW LEDs can create charming wash light with velvety smooth transitions thanks to internal 18bit LED dimming system. Dynamic video effects are easily achieved by mapping individual pixels and controlled by DMX desk or media servers via sACN with internal HTP merging, DMX or by Kling-Net protocol. Unique central piece with Robe exclusive Flower Effect is driven by 60W RGBW LED multichip for new innovative sharp multicoloured spikes of light, rotating in both directions at variable speed, adding another new visual effect to the show.
|
product code |
10071044
|
order code |
10071044
|
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
both 3/5pin
|
total network ports FastEthernet |
1 pcs
|
built-in Switch |
yes
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
27 ch
|
control channels, max |
123 ch
|
RDM |
yes
|
wireless dmx |
yes
|
protocol-DMX |
both
|
protocol-Artnet |
input
|
Electrical | |
power consumption amps, max |
2.50 A
|
power consumption watt, max |
600.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
277 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
operating temp, min |
-5.00 °C
|
operating temp, max |
75.00 °C
|
power input connector |
Powercon
|
cooling |
active
|
external PSU |
no
|
Mechanical | |
weight |
13.30 kg
|
width |
390.00 mm
|
height |
477.00 mm
|
length |
286.00 mm
|
pan range |
540 °
|
tilt range |
230 °
|
color |
black
|
truss mountable |
yes
|
shipping weight |
13.30 kg
|
recessed installation |
no
|
Optical | |
output lumen, max |
11000 lm
|
beam angle/zoom, min |
4.00 °
|
beam angle/zoom, max |
50.00 °
|
light source |
LED
|
optics/projection type |
Hyprid/Dual Optical System
|
multichip LED |
yes
|
variable/linear frost |
no
|
secondary light source |
none
|
out lumen in silent mode. Max |
11000 lm
|
prism |
no
|
other beam effects |
yes
|
separate CTO wheel |
yes
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
