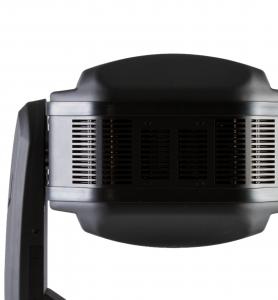

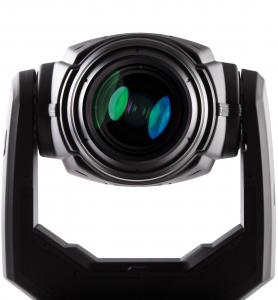

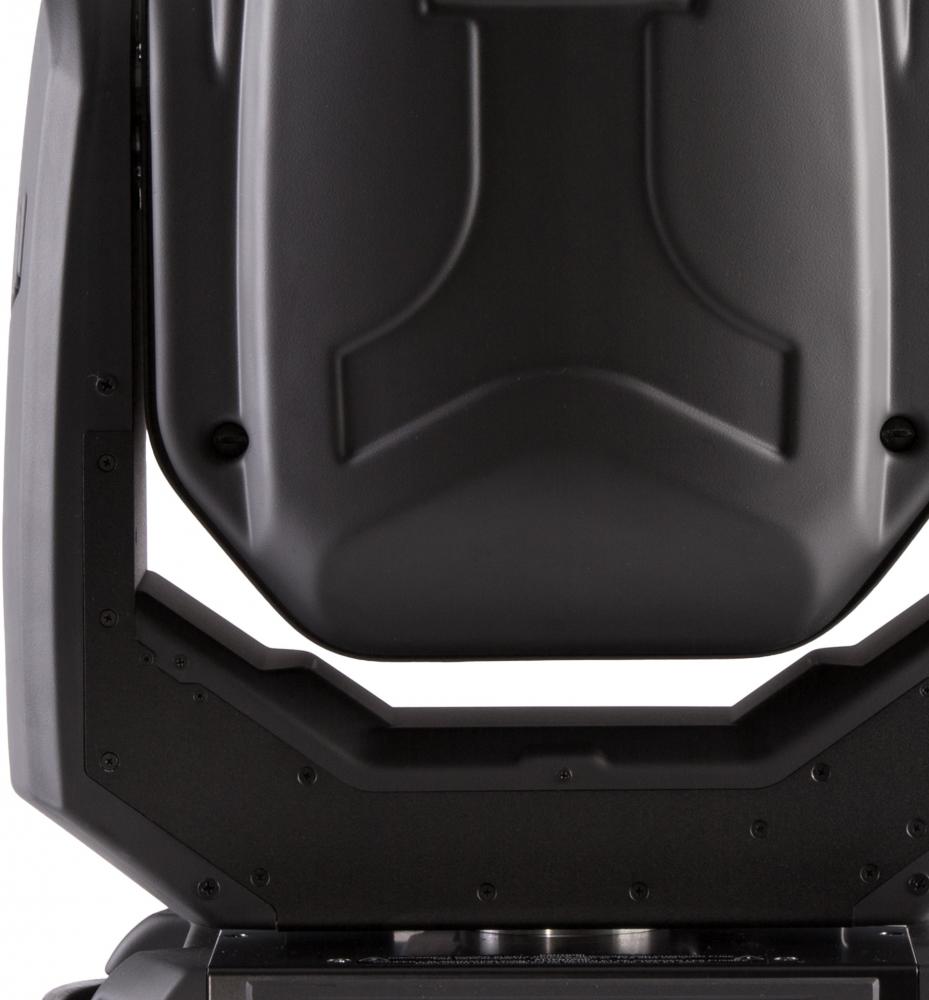

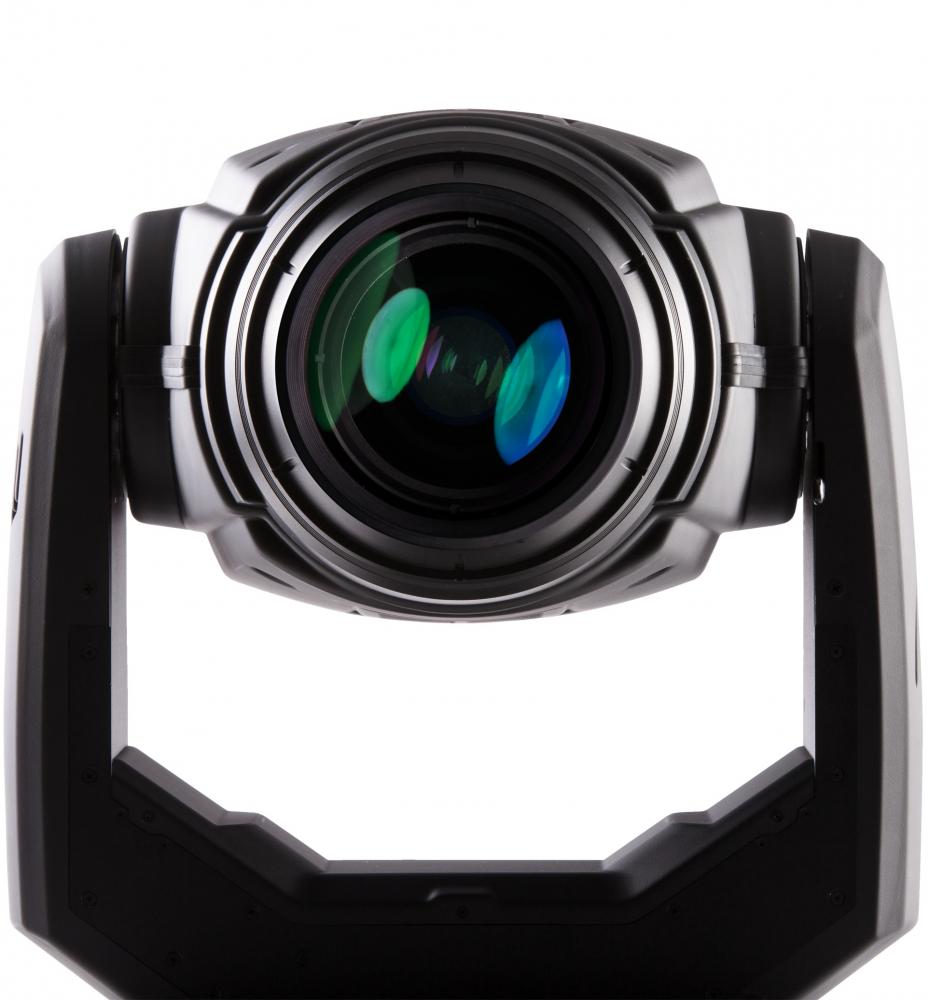

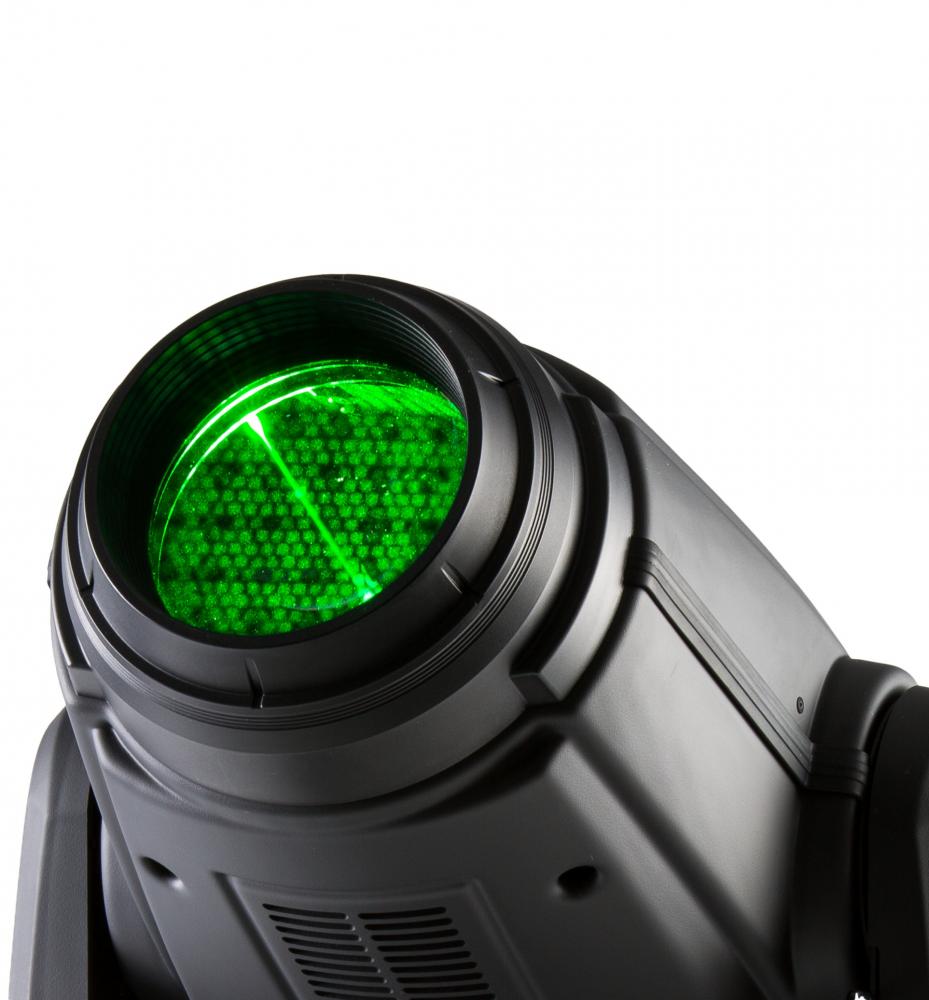

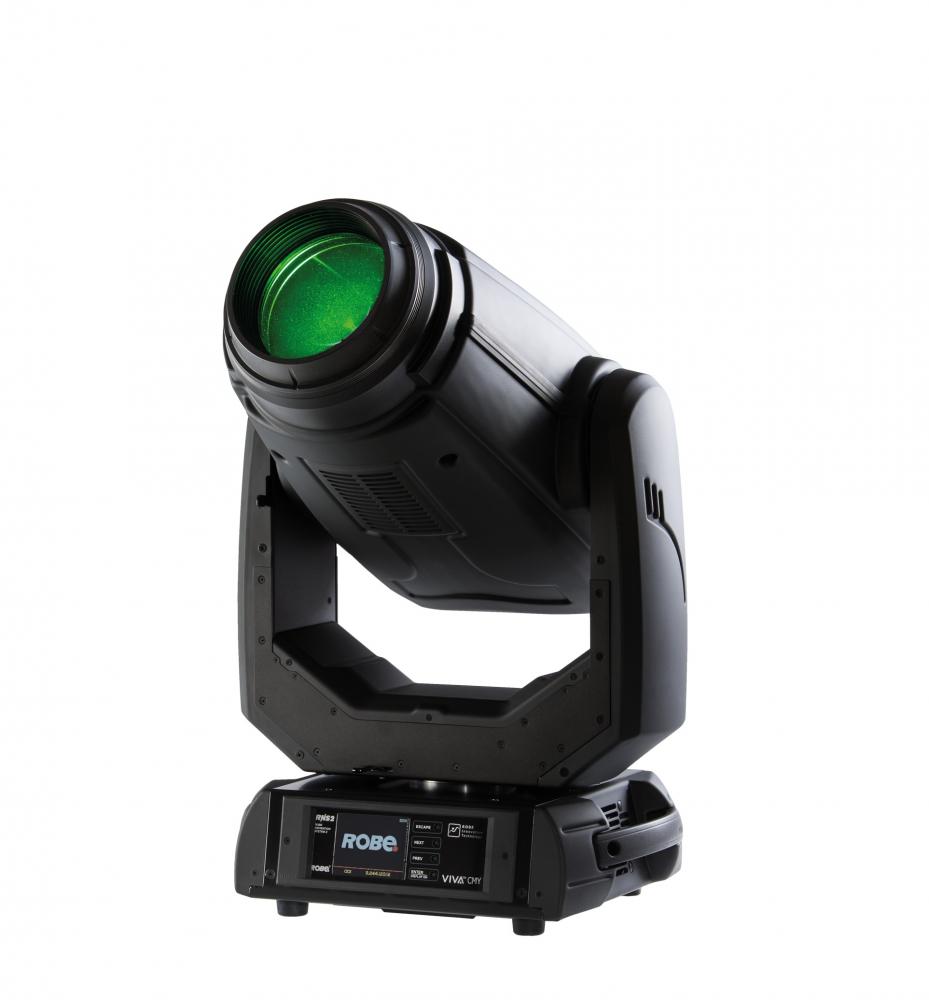

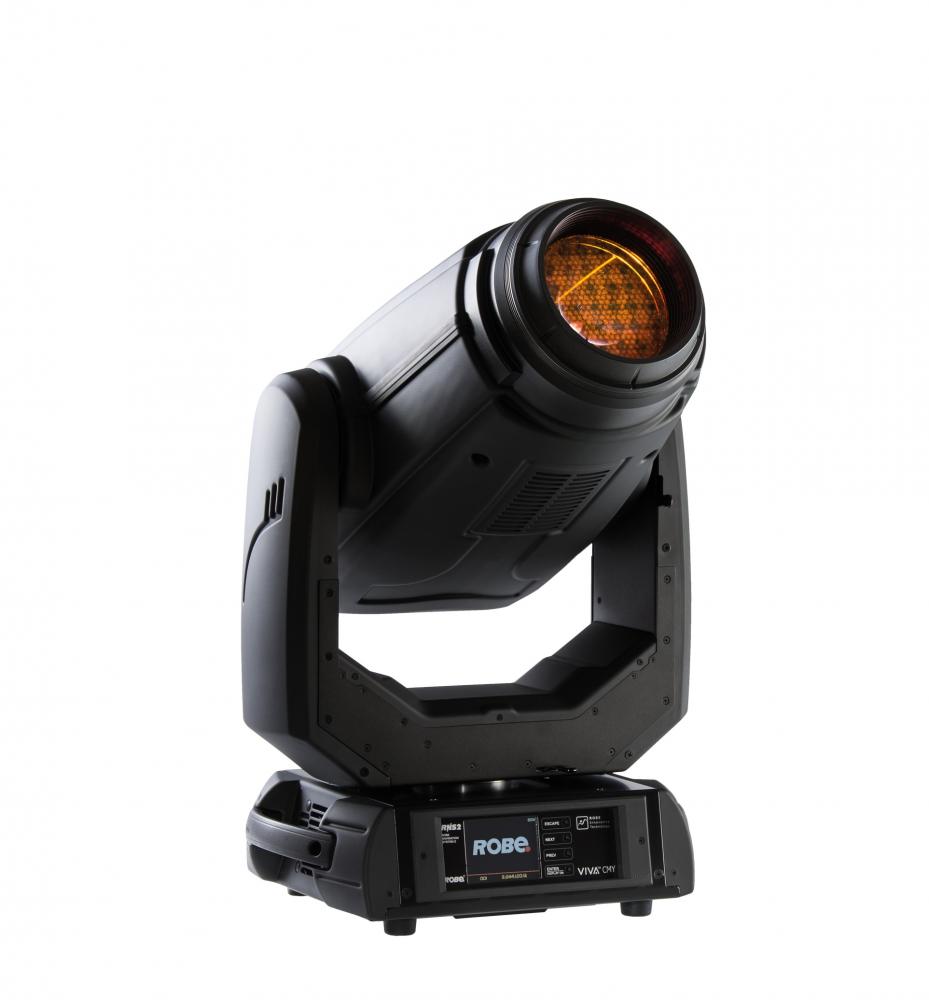

ROBIN Viva CMY Wireless Version

Robe

1
2
3
4
5
6

Technical specifications, datasheets, descriptions and tender texts for ROBIN Viva CMY Wireless Version

Info
product description
Powerfully smooth, Robe’s VIVA CMY combines brightness of exceptionally clear zero-fringing white beam together with continuous color transitions of CMY mixing. Elegant and lightweight, packed with smart effects that are easy to use. The fixture is very powerful yet consumes little energy. The 350W white LED light engine gives an extra punchy beam with even flat field and an incredible 20 000 hours of operation – in fact, no relamping will be needed for the entire life of the fixture! Smooth color transition and fixed vivid and radiant colours can be applied from CMY mixing system and colour wheel, and rotating or static gobos added for projections or mid-air effects. The smooth zoom can go out to 40 degrees at its widest and be softened it up with variable frost to create a gentle wash-like output or dynamic background projections. The minimum 9° zoom produces a piercing beam that can be trimmed with ultra-fast stepless iris for really punchy output, and VIVA has extremely fast pan/tilt movement using Robe’s proprietary EMS™ (Electronic Motion Stabiliser) technology. That and much more is possible with VIVA – entertaining and contemporary!
product code
10018593
order code
10018593
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
both 3/5pin
total network ports FastEthernet
1 pcs
built-in Switch
no
Control
max Dimmer resolution
16 bit
control channels, min
26 ch
control channels, max
32 ch
RDM
yes
wireless dmx
yes
protocol-DMX
both
protocol-Artnet
input
Electrical
power consumption amps, max
2.50 A
power consumption watt, max
400.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
-5.00 °C
operating temp, max
75.00 °C
power input connector
Powercon
cooling
active
external PSU
no
Mechanical
weight
19.00 kg
width
382.00 mm
height
664.00 mm
length
250.00 mm
pan range
540 °
tilt range
270 °
color
black
truss mountable
yes
shipping weight
19.00 kg
recessed installation
no
Optical
output lumen, max
12040 lm
beam angle/zoom, min
9.00 °
beam angle/zoom, max
40.00 °
light source
LED
optics/projection type
Beamlight
multichip LED
no
shutter/strobe frequency, max
20 Hz
variable/linear frost
yes
secondary light source
none
lens diameter
120 mm
out lumen in silent mode. Max
12040 lm
gobowheels total
16 pcs
rotating gobowheels
7 pcs
number of fixed gobos
9 pcs
number of rotating gobos
7 pcs
beam shapers/framing/barndoors
no
prism
multiple (3)
other beam effects
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
no files provided by the manufacturer
