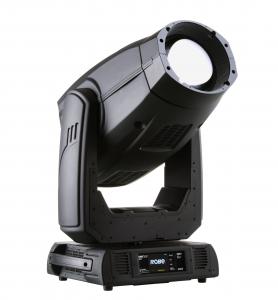

ROBIN DL7F Wash Wireless Version

Robe

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for ROBIN DL7F Wash Wireless Version

Info
product description
Let the colours shine and enjoy the feeling of the gorgeous spectrum of stable high CRI chromatics. Adjust seven colours, individually, to give unprecedented smooth, stable and even colour mixing and a very high CRI of 90 to meet the high standards of your applications. Add or remove green and regulate CCT between 2.700 to 8.000 kelvins via dedicated control channels. Traditional fresnel front lens of the new Robin DL7F Wash ensures a classic look and homogenized conventional beam with high resolution smooth dimmer. The 200 mm diameter fresnel lens is easily interchangeable for optional PC lens. New innovative internal Scrim module of graduated filter can be inserted into the light path and allows rotation of the whole assembly +/- 180° to achieve even wash coverage when projecting onto a non-perpendicular surface. Mechanical features include a newly designed linear motorized zoom of 7°–65° and an interchangeable diffusion filter. The fixture uses an internal barndoor module for creating different shapes. The barndoor module consists of four individually controllable blades and is rotatable by +/- 90°.
product code
10028571
order code
10028571
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
both 3/5pin
total network ports FastEthernet
1 pcs
built-in Switch
no
Control
max Dimmer resolution
16 bit
control channels, min
29 ch
control channels, max
42 ch
RDM
yes
wireless dmx
yes
protocol-DMX
both
protocol-Artnet
input
Electrical
power consumption amps, max
2.50 A
power consumption watt, max
1000.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
-5.00 °C
operating temp, max
80.00 °C
power input connector
Powercon
cooling
active
external PSU
no
Mechanical
weight
36.00 kg
width
321.00 mm
height
835.00 mm
length
472.00 mm
pan range
540 °
tilt range
260 °
color
black
truss mountable
yes
shipping weight
36.00 kg
recessed installation
no
Optical
output lumen, max
9760 lm
beam angle/zoom, min
7.00 °
beam angle/zoom, max
65.00 °
light source
LED
wattage per light source
800.00 W
optics/projection type
Washlight
multichip LED
no
shutter/strobe frequency, max
20 Hz
variable/linear frost
yes
color temperature, min
2700 K
color temperature, max
8000 K
secondary light source
none
drop-in frosts
2 pcs
max CRI
90 CRI
lens diameter
200 mm
prism
no
separate CTO wheel
yes
beam angle horizontal
7 °
beam angle vertical
65 °

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
no files provided by the manufacturer
