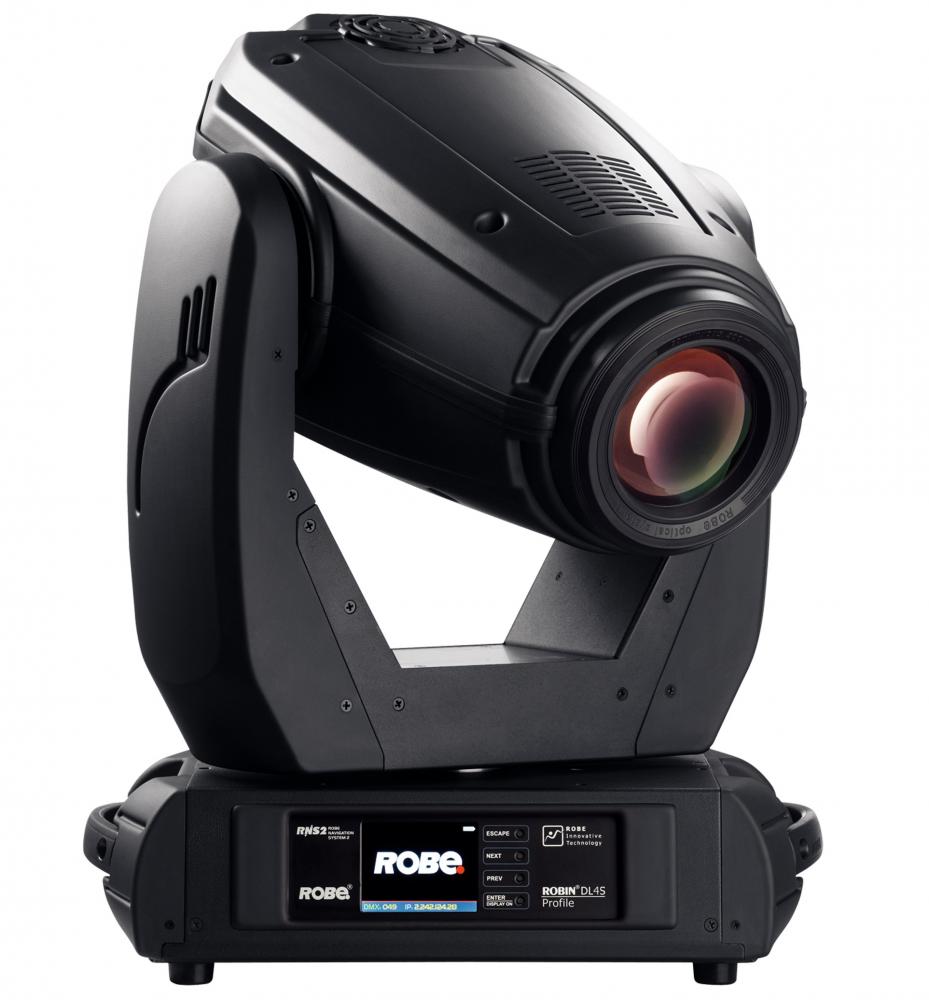

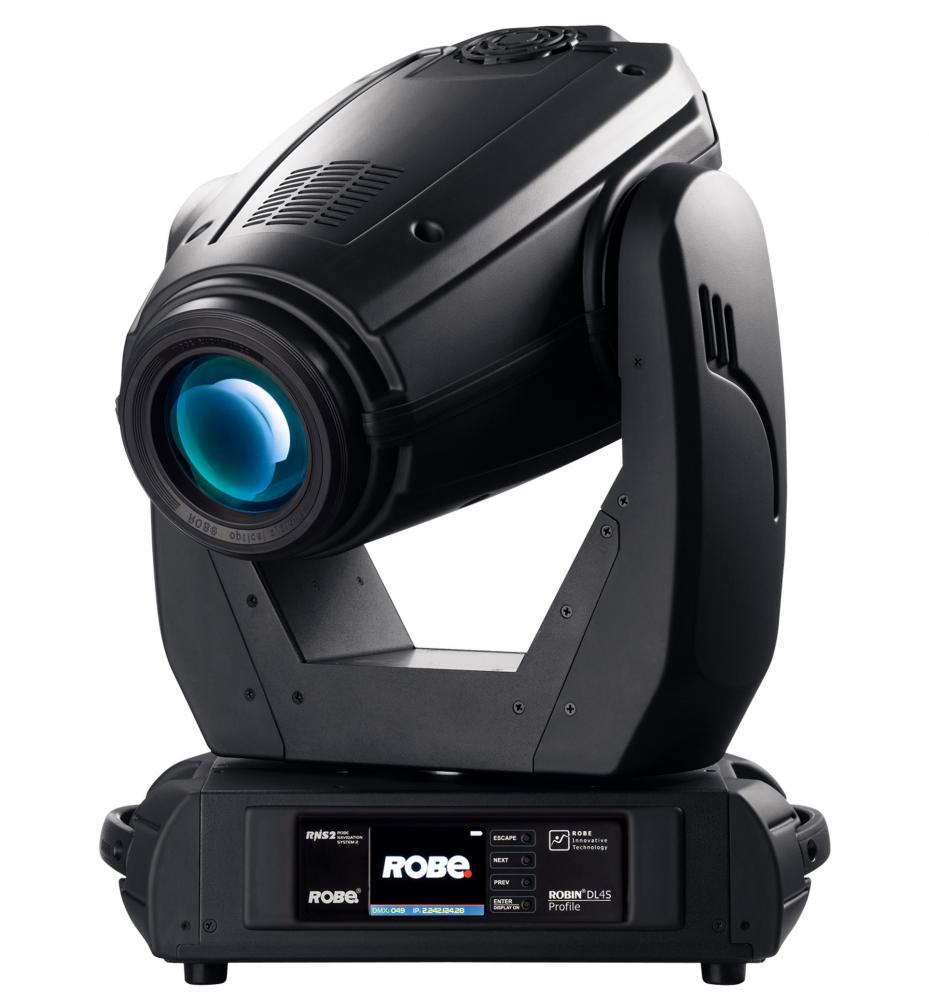

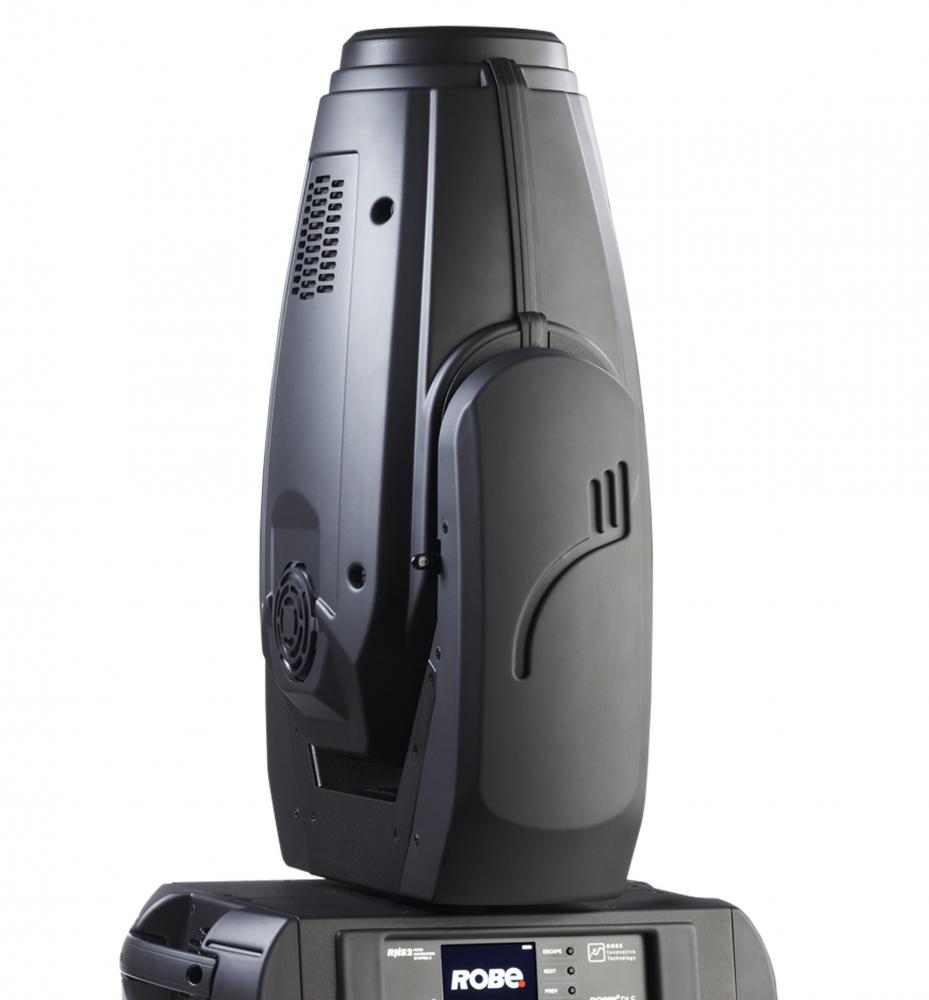

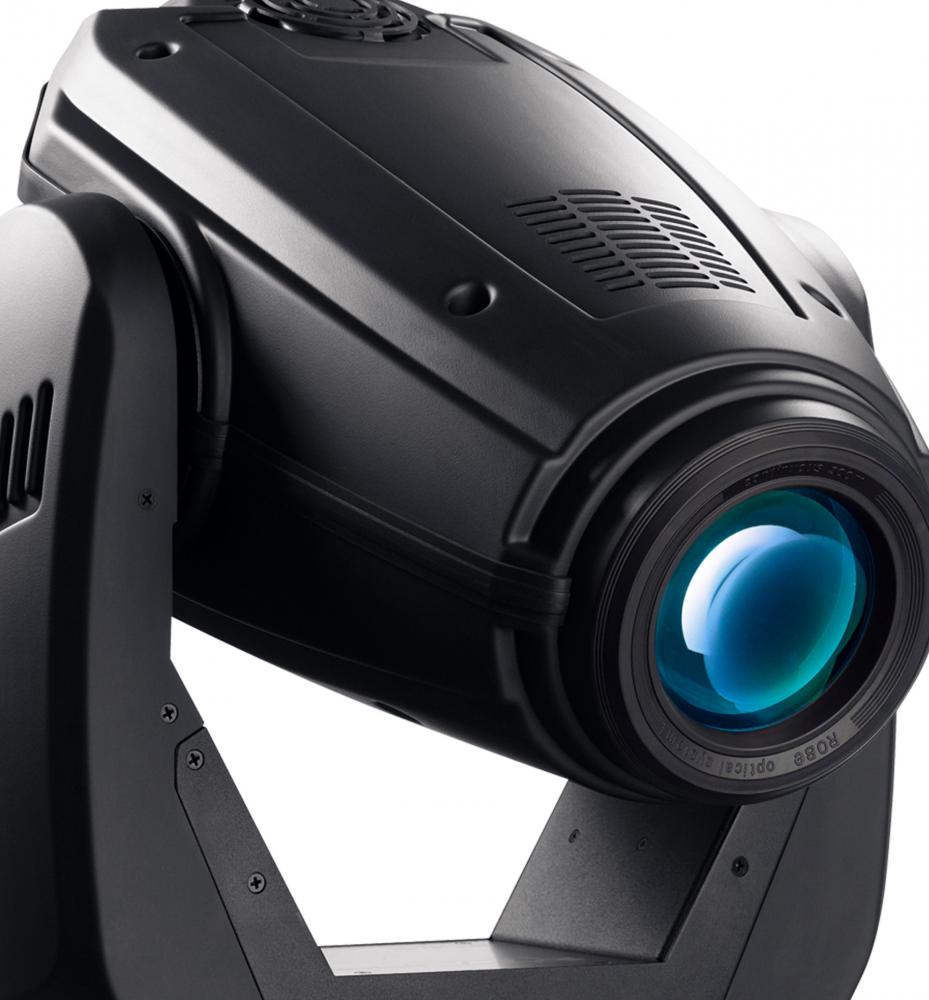

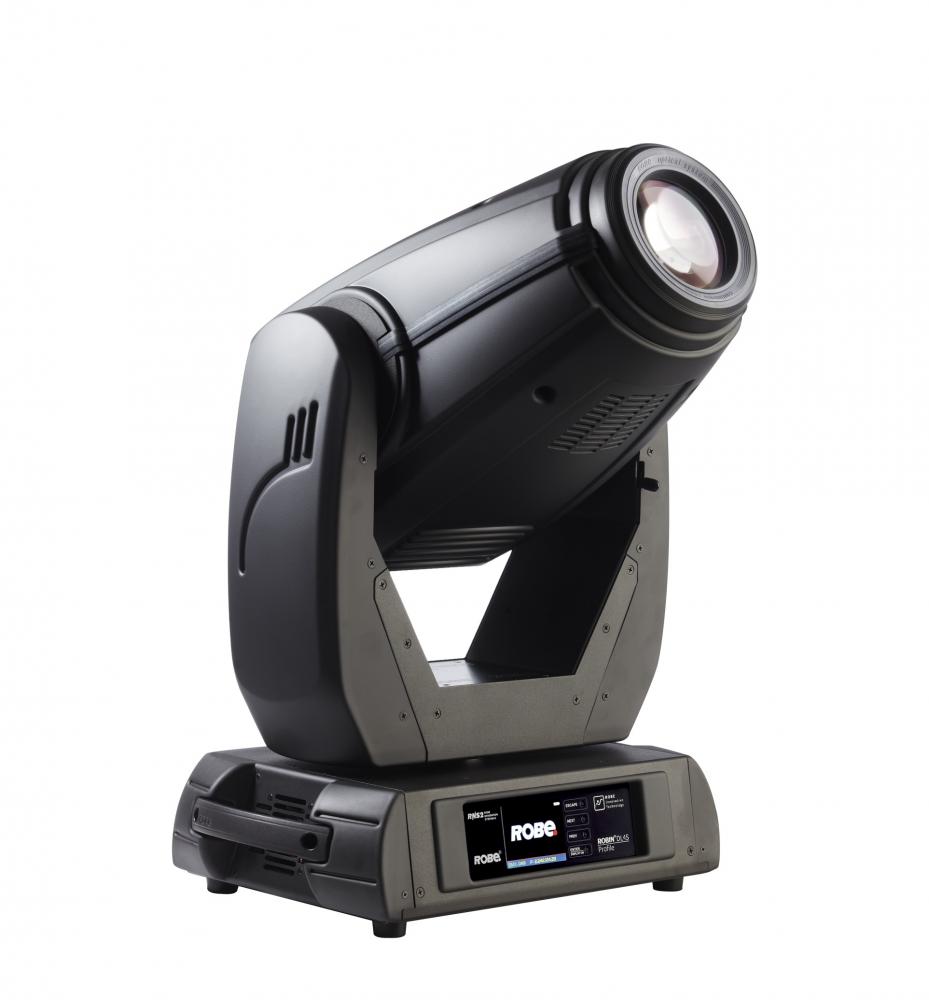

ROBIN DL4S Profile Standard Version

Robe

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for ROBIN DL4S Profile Standard Version

Info
product description
Extending the possibilities of the playful, colorful DLS Profile, the new DL4S is equipped with enhanced version of the ROBE RGBW LED module for brighter saturated colours and more powerful output. To magnify the already perfectly smooth colours, fades and dimming, the DL4S features innovative LED driving system for improved, extremely high definition dimming curve for all R, G, B, W colours, with 18 bit resolution. The DL4S adds a system of 4 fast, smooth, framing shutters within the optical path design of the proven DLS Profile format. There is individual control of each shutter blade position and angle, together with rotation of the complete framing module. As well as providing a sharp precise or soft frame for the projected image, the system produces a new series of effects through pre-programmed shutter blade shape and movement sequences. As with all models in the Robe DL luminaire range, the multiple shadows normally associated with an LED source have been eliminated. The enhanced Robe RGBW LED light source reproduces both rich and pastel colours at output levels normally associated with 1 200 W discharge fixtures as well as pure whites at preselected 2 700, 3 200, 4 200, 5 600 and 8 000 kelvin colour temperatures. The tungsten emulation function allows the fixture to be integrated seamlessly into lighting schemes with existing traditional lanterns.
product code
10018521
order code
10018521
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
both 3/5pin
total network ports FastEthernet
1 pcs
built-in Switch
no
Control
max Dimmer resolution
16 bit
control channels, min
36 ch
control channels, max
48 ch
RDM
yes
wireless dmx
no
protocol-DMX
both
protocol-Artnet
input
Electrical
power consumption amps, max
2.50 A
power consumption watt, max
550.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
-5.00 °C
operating temp, max
90.00 °C
power input connector
Powercon
cooling
active
external PSU
no
Mechanical
weight
22.70 kg
width
432.00 mm
height
678.00 mm
length
480.00 mm
pan range
540 °
tilt range
230 °
color
black
truss mountable
yes
shipping weight
22.70 kg
recessed installation
no
Optical
output lumen, max
6320 lm
beam angle/zoom, min
10.00 °
beam angle/zoom, max
45.00 °
light source
LED
wattage per light source
480.00 W
optics/projection type
Profiler
multichip LED
no
shutter/strobe frequency, max
20 Hz
variable/linear frost
yes
color temperature, min
2700 K
color temperature, max
8000 K
secondary light source
none
RED light source
yes
GREEN light source
yes
BLUE light source
yes
gobowheels total
7 pcs
rotating gobowheels
7 pcs
prism
multiple (3)
beam angle horizontal
10 °
beam angle vertical
45 °
animation wheels
1 pcs
