ROBIN Square Standard Version

Robe

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for ROBIN Square Standard Version

Info
product description

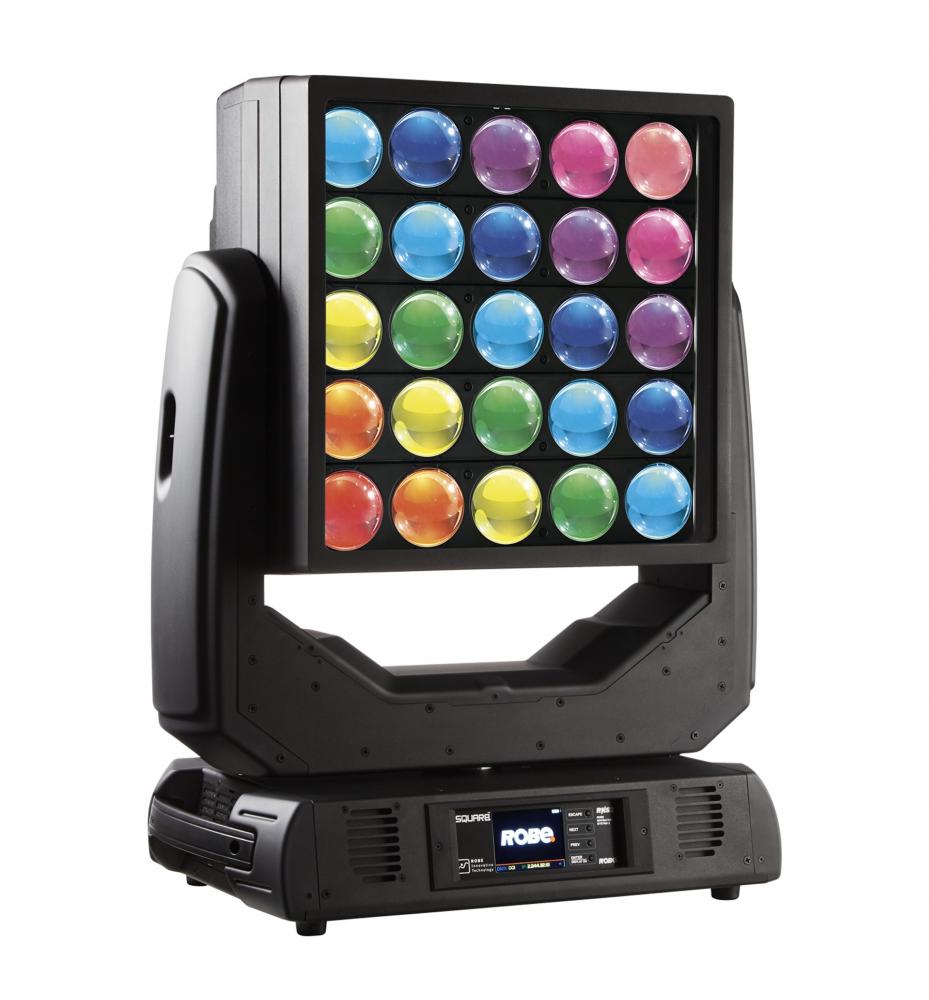

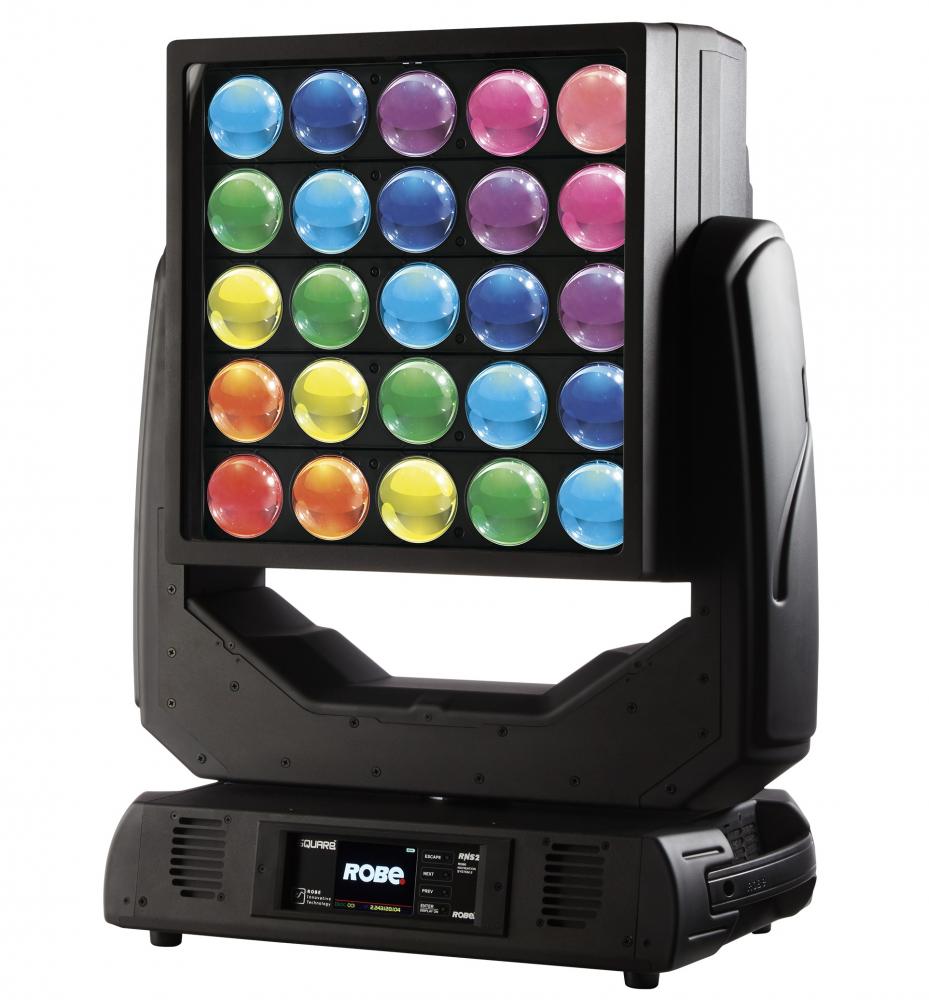

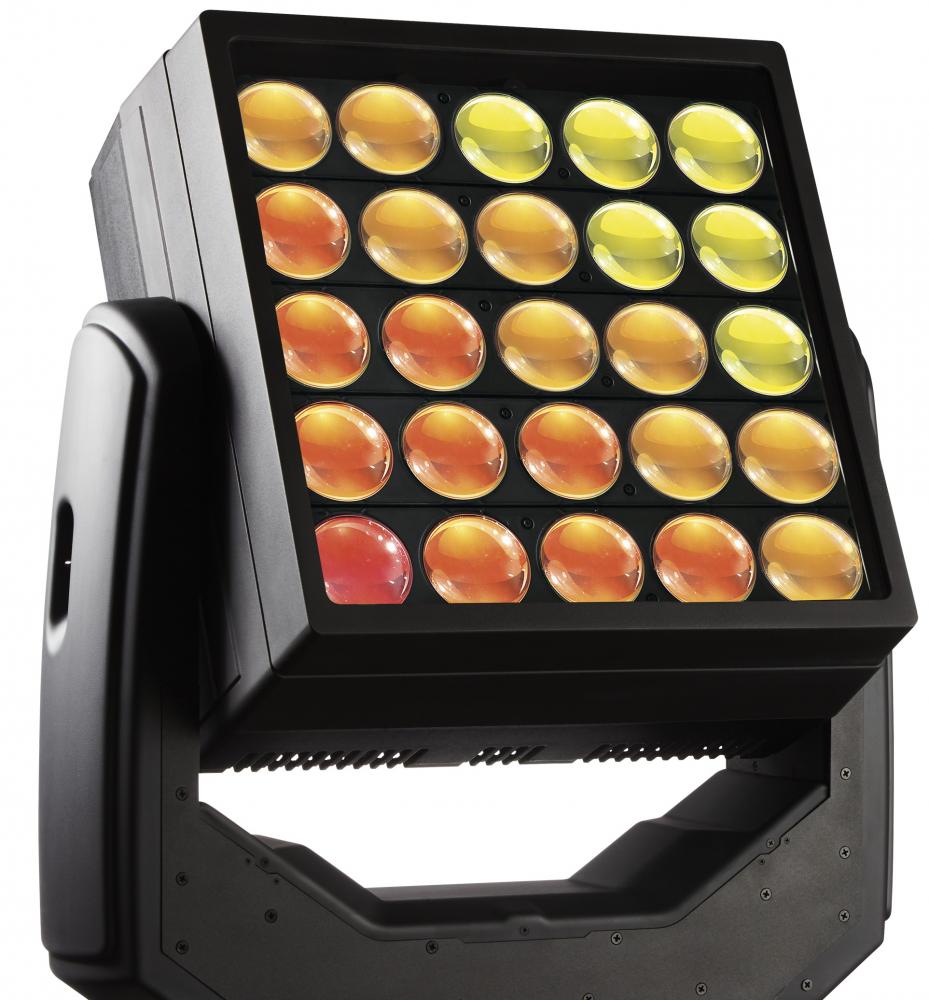

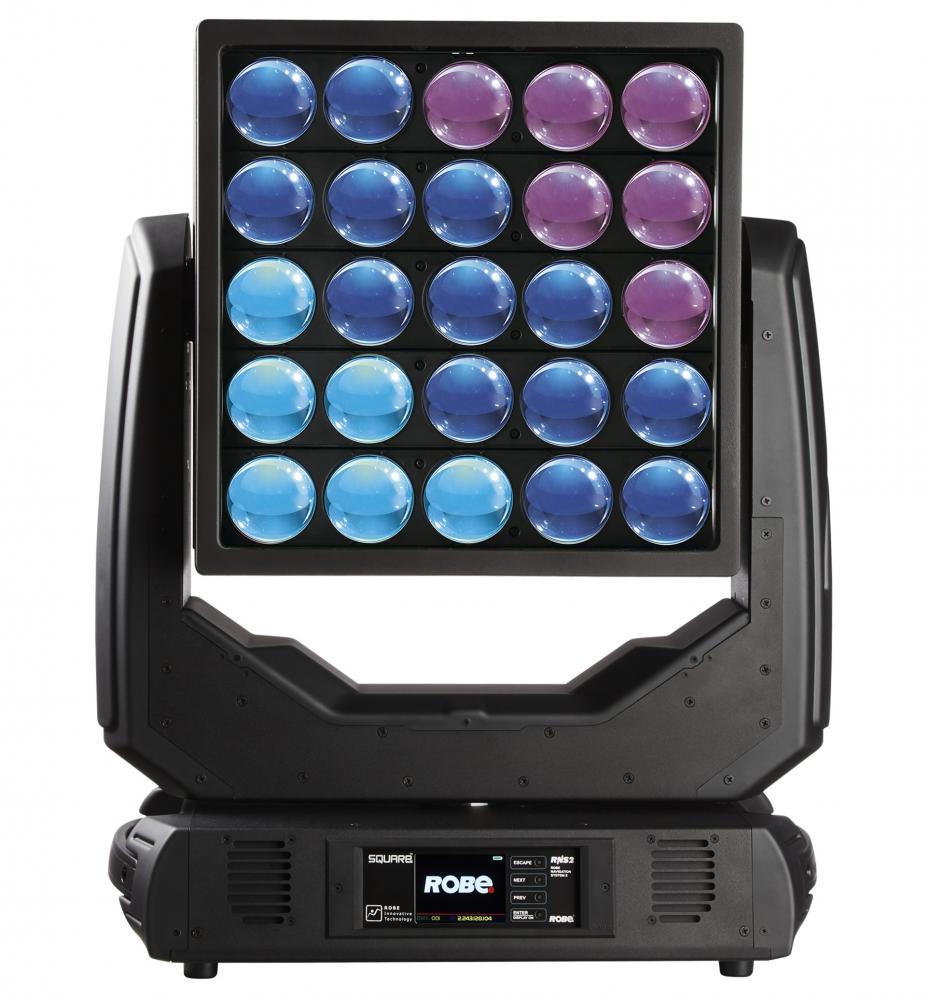

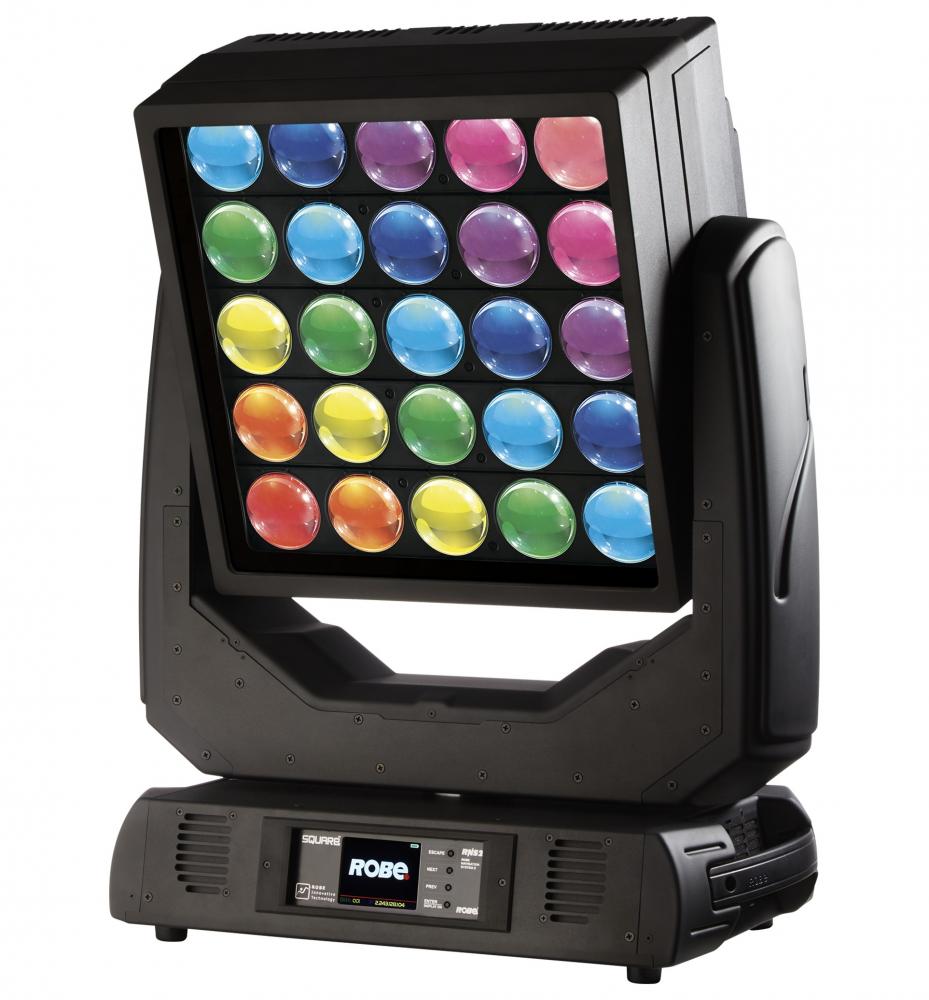

The ROBE Square™ offers new exciting possibilities by combining video projection, pixel animations, beam effects and LED wash light all in a continuous rotation movement fixture. LED matrix of 25 powerful RGBW multichips in pixel mappable array can be controlled via traditional RGB channels or via easy-to-use network driven application. Nine individually controllable effect engines can create beam effects or in-air animations. Five independent zooming layers offer unique possibilities of zoom waves and combination of wash coverage on the edges and beam effect in the center at the same time. Continuous rotation movement of pan and tilt offers creation of video as well as scenographical elements on the scene.
product code
10070901
order code
10070901
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
both 3/5pin
total network ports FastEthernet
1 pcs
built-in Switch
yes
Control
max Dimmer resolution
16 bit
control channels, min
24 ch
control channels, max
118 ch
RDM
no
wireless dmx
no
protocol-DMX
both
protocol-Artnet
input
Electrical
power consumption amps, max
2.50 A
power consumption watt, max
800.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
-5.00 °C
operating temp, max
80.00 °C
power input connector
Powercon
cooling
active
external PSU
no
Mechanical
weight
36.50 kg
width
559.00 mm
height
700.00 mm
length
321.00 mm
pan range
540 °
tilt range
230 °
color
black
truss mountable
yes
shipping weight
36.50 kg
recessed installation
no
Optical
output lumen, max
6960 lm
beam angle/zoom, min
4 °
beam angle/zoom, max
48 °
light source
LED
wattage per light source
30.00 W
optics/projection type
Hyprid/Dual Optical System
multichip LED
yes
shutter/strobe frequency, max
20 Hz
variable/linear frost
no
color temperature, min
2700 K
color temperature, max
8000 K
secondary light source
none
out lumen in silent mode. Max
6960 lm
RED light source
yes
GREEN light source
yes
BLUE light source
yes
prism
no
other beam effects
yes
separate CTO wheel
yes
