ROBIN BMFL Blade Standard Version

Robe

1
2
3
4
5
6
7

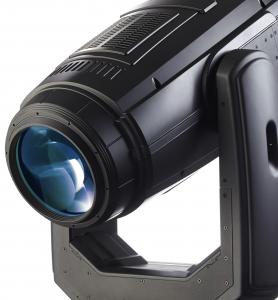

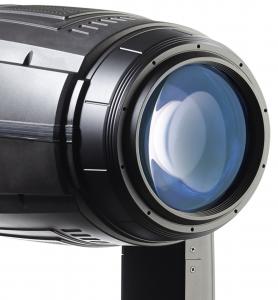

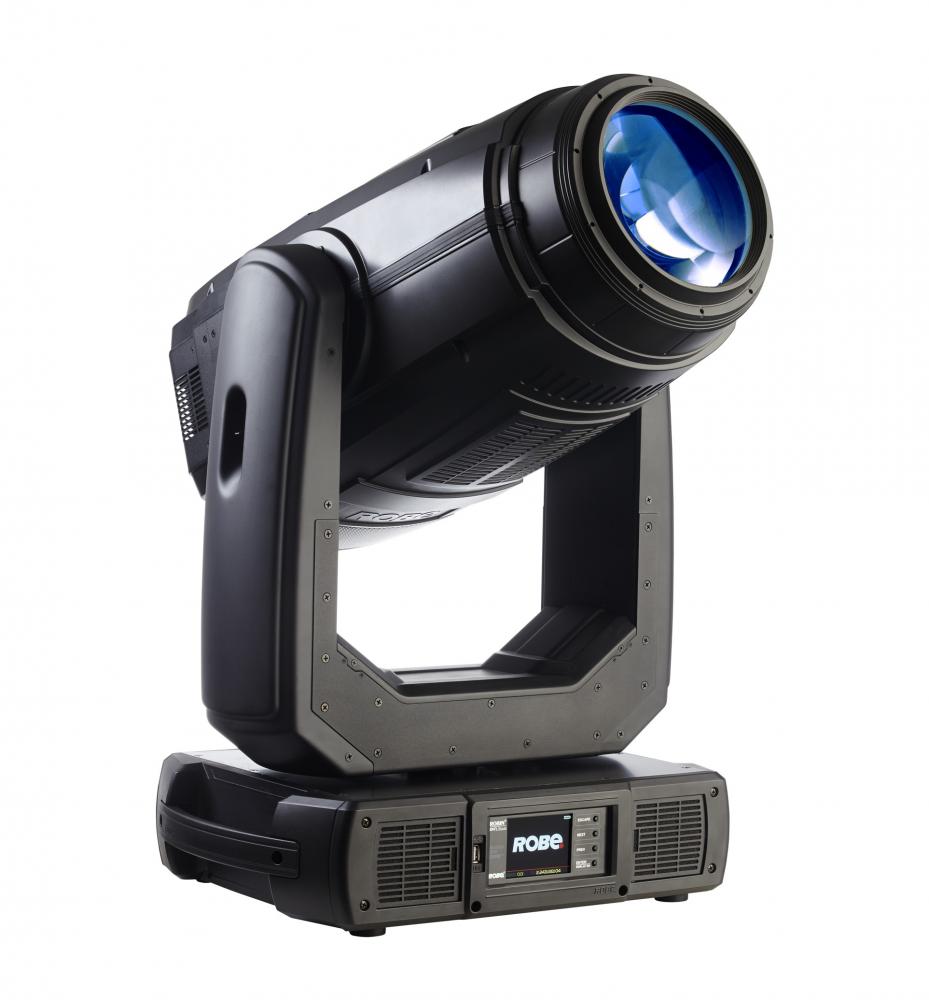

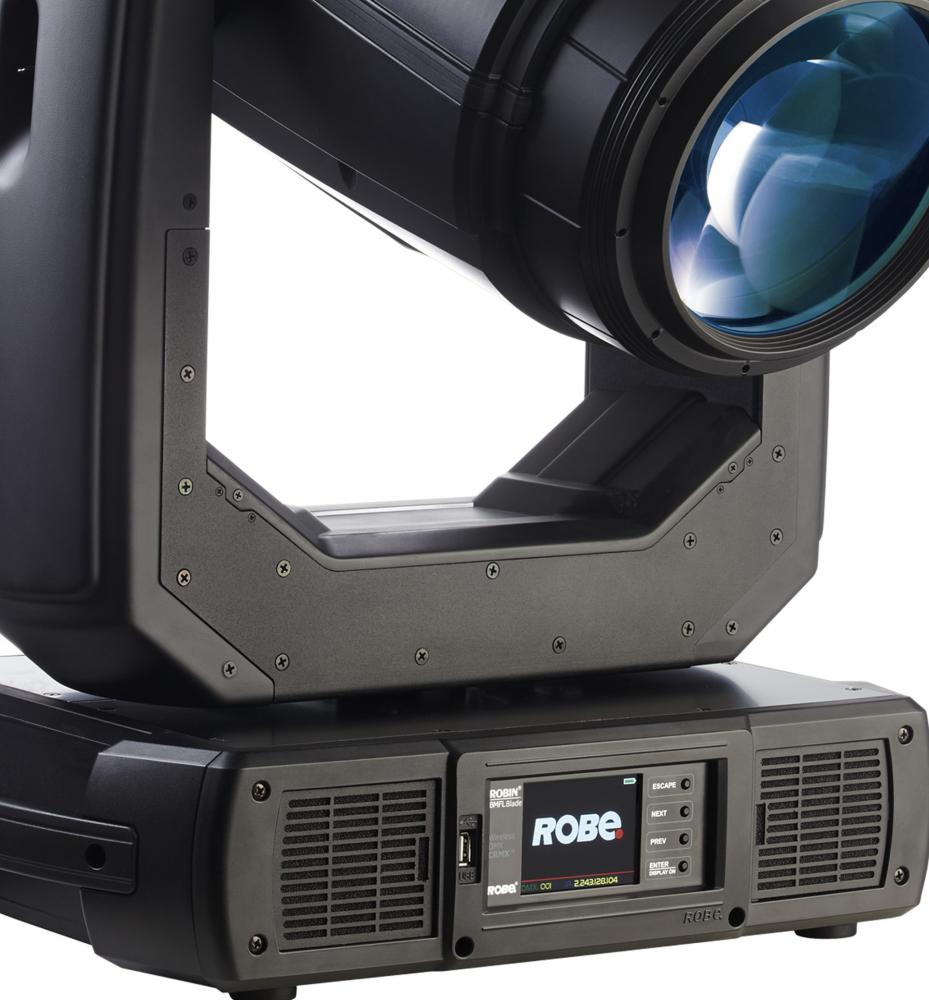

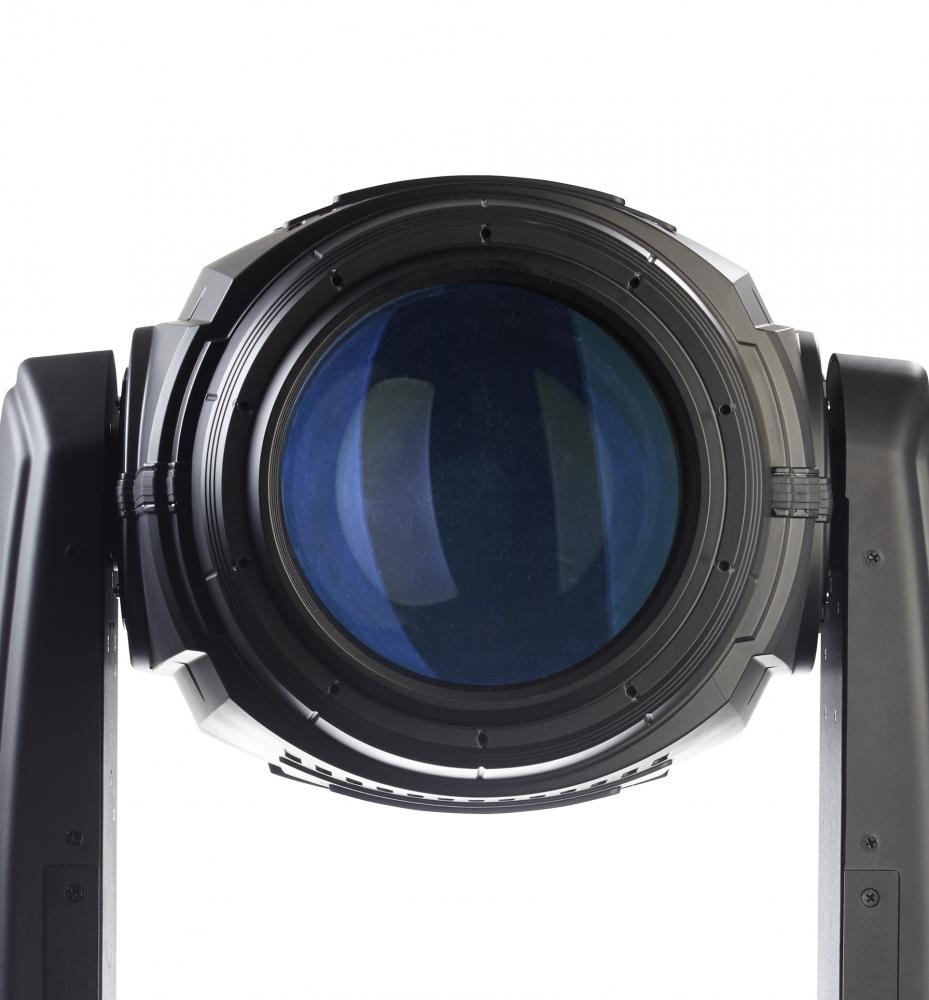

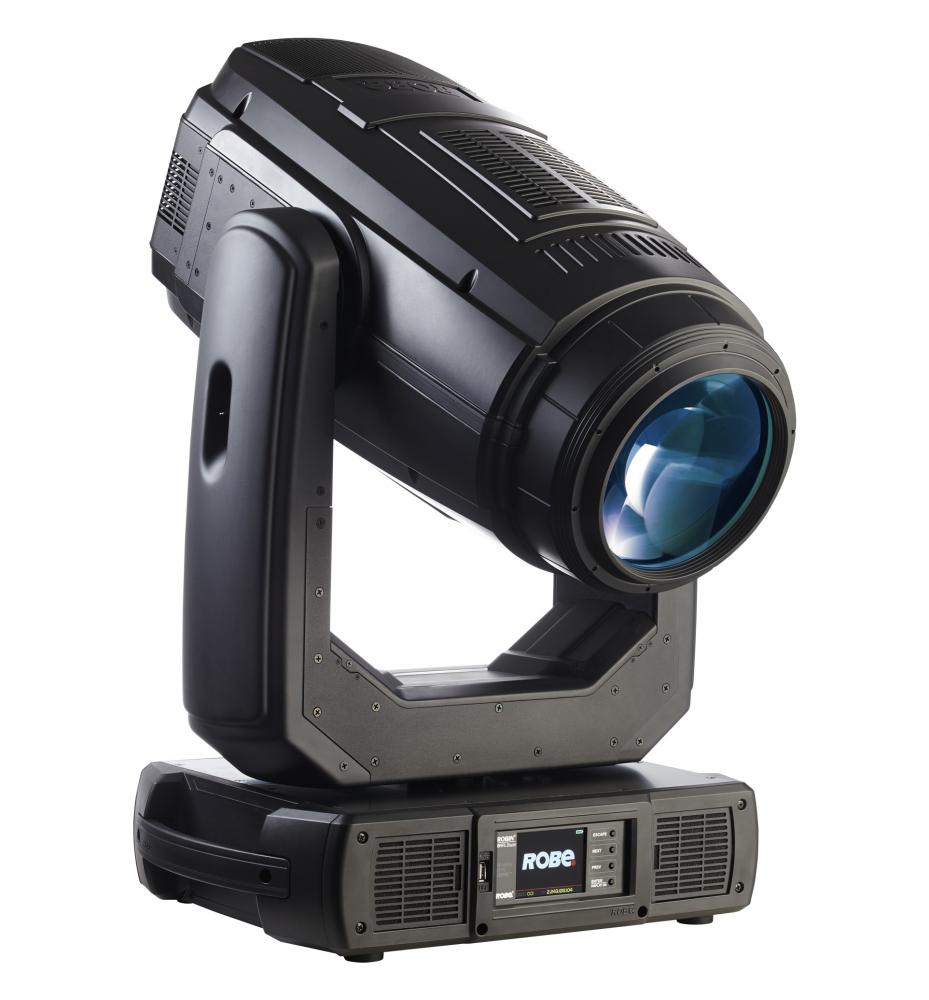

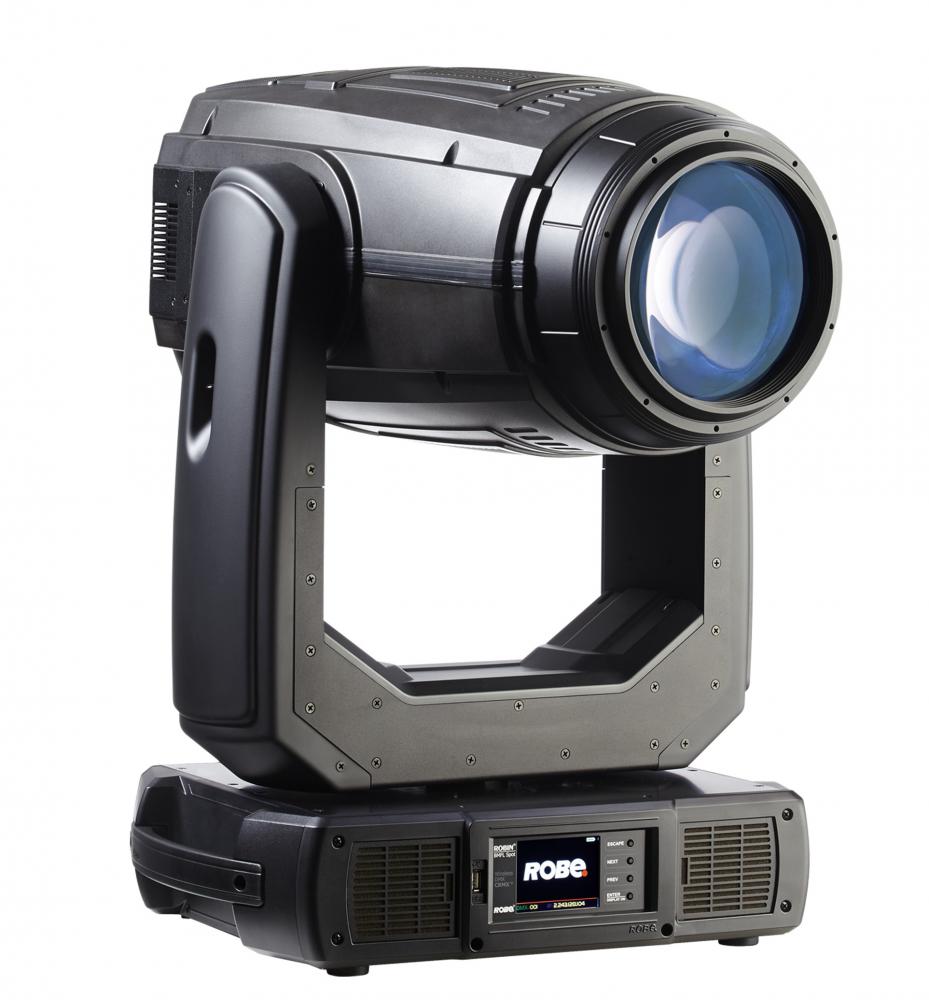

Four fast shutter blades with smooth and precise movement in the new BMFL™ Blade lighting fi xture. Individually angled and positioned within a frame – which itself can rotate through 90 degrees, providing a sharp or soft, precisely repeatable, frame for the projected image. Producing a new series of fast-moving in-air effects through pre-programmed shape and movement sequences of the blades, gobo images can be trimmed or framed in a regular, triangular or trapezoid shape. Each pair of opposing blades can close to a complete blackout. Two gobo wheels – one rotating with six "SLOT&LOCK" gobo positions plus another with 8 static gobos can be combined with the Animation wheel to create numerous dynamic projected effects. Add all this to the already acclaimed BMFL™ features including: exceptionally smooth linear dimming, imperceptible high defi nition colour mixing, full width beam, output in excess of 250.000 lx at 5 metres – and the Robe EMS™ (Electronic Motion Stabiliser) technology, enabling the BMFL™ to both move and stop faster and more precisely than any other fi xture in its class – all this housed in a compact body profi le weighing just 37.9 kgs.

Technical specifications, datasheets, descriptions and tender texts for ROBIN BMFL Blade Standard Version

Info
short summary
Four fast shutter blades with smooth and precise movement in the new BMFL™ Blade lighting fi xture. Individually angled and positioned within a frame – which itself can rotate through 90 degrees, providing a sharp or soft, precisely repeatable, frame for the projected image. Producing a new series of fast-moving in-air effects through pre-programmed shape and movement sequences of the blades, gobo images can be trimmed or framed in a regular, triangular or trapezoid shape. Each pair of opposing blades can close to a complete blackout. Two gobo wheels – one rotating with six "SLOT&LOCK" gobo positions plus another with 8 static gobos can be combined with the Animation wheel to create numerous dynamic projected effects. Add all this to the already acclaimed BMFL™ features including: exceptionally smooth linear dimming, imperceptible high defi nition colour mixing, full width beam, output in excess of 250.000 lx at 5 metres – and the Robe EMS™ (Electronic Motion Stabiliser) technology, enabling the BMFL™ to both move and stop faster and more precisely than any other fi xture in its class – all this housed in a compact body profi le weighing just 37.9 kgs.
product type
Moving Light
product code
10018631
order code
10018631
product description
Four fast shutter blades with smooth and precise movement in the new BMFL™ Blade lighting fi xture. Individually angled and positioned within a frame – which itself can rotate through 90 degrees, providing a sharp or soft, precisely repeatable, frame for the projected image. Producing a new series of fast-moving in-air effects through pre-programmed shape and movement sequences of the blades, gobo images can be trimmed or framed in a regular, triangular or trapezoid shape. Each pair of opposing blades can close to a complete blackout. Two gobo wheels – one rotating with six "SLOT&LOCK" gobo positions plus another with 8 static gobos can be combined with the Animation wheel to create numerous dynamic projected effects. Add all this to the already acclaimed BMFL™ features including: exceptionally smooth linear dimming, imperceptible high defi nition colour mixing, full width beam, output in excess of 250.000 lx at 5 metres – and the Robe EMS™ (Electronic Motion Stabiliser) technology, enabling the BMFL™ to both move and stop faster and more precisely than any other fi xture in its class – all this housed in a compact body profi le weighing just 37.9 kgs.
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
both 3/5pin
total network ports FastEthernet
1 pcs
built-in Switch
no
Control
max Dimmer resolution
16 bit
control channels, min
33 ch
control channels, max
41 ch
RDM
yes
wireless dmx
no
protocol-DMX
both
protocol-Artnet
input
Electrical
power consumption amps, max
8.34 A
power consumption watt, max
2000.00 W
AC Volts, min
200 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
operating temp, min
-5.00 °C
operating temp, max
100.00 °C
lamp socket
PGJX28
built-in dimmer
none
power input connector
Powercon
cooling
active
external PSU
no
Mechanical
weight
36.00 kg
width
483.00 mm
height
813.00 mm
length
335.00 mm
pan range
540 °
tilt range
270 °
color
black
truss mountable
yes
shipping weight
37.90 kg
amount per case
2 pcs
recessed installation
no
Optical
output lumen, max
40000 lm
beam angle/zoom, min
5.00 °
beam angle/zoom, max
55.00 °
light source
Discharge
Number of light sources
1 pcs
wattage per light source
1700.00 W
light source color temperature
6000 K
optics/projection type
Spotlight
COLD WHITE LED source
no
shutter/strobe frequency, max
10 Hz
variable/linear frost
yes
color temperature, min
2700 K
color temperature, max
6000 K
min CRI
92 CRI
secondary light source
none
CMY colormixing
dual flag
drop-in frosts
3 pcs
max CRI
92 CRI
lens diameter
160 mm
out lumen in silent mode. Max
32000 lm
beam shape
other
fixed/virtual colorwheels
2 pcs
gobowheels total
2 pcs
rotating gobowheels
2 pcs
number of rotating gobos
12 pcs
beam shapers/framing/barndoors
no
prism
yes
other beam effects
yes
separate CTO wheel
yes
prism morphing
yes
animation wheels
2 pcs
animation wheel functionality
continous rotation
Luminous efficacy
20.00 lm/W
