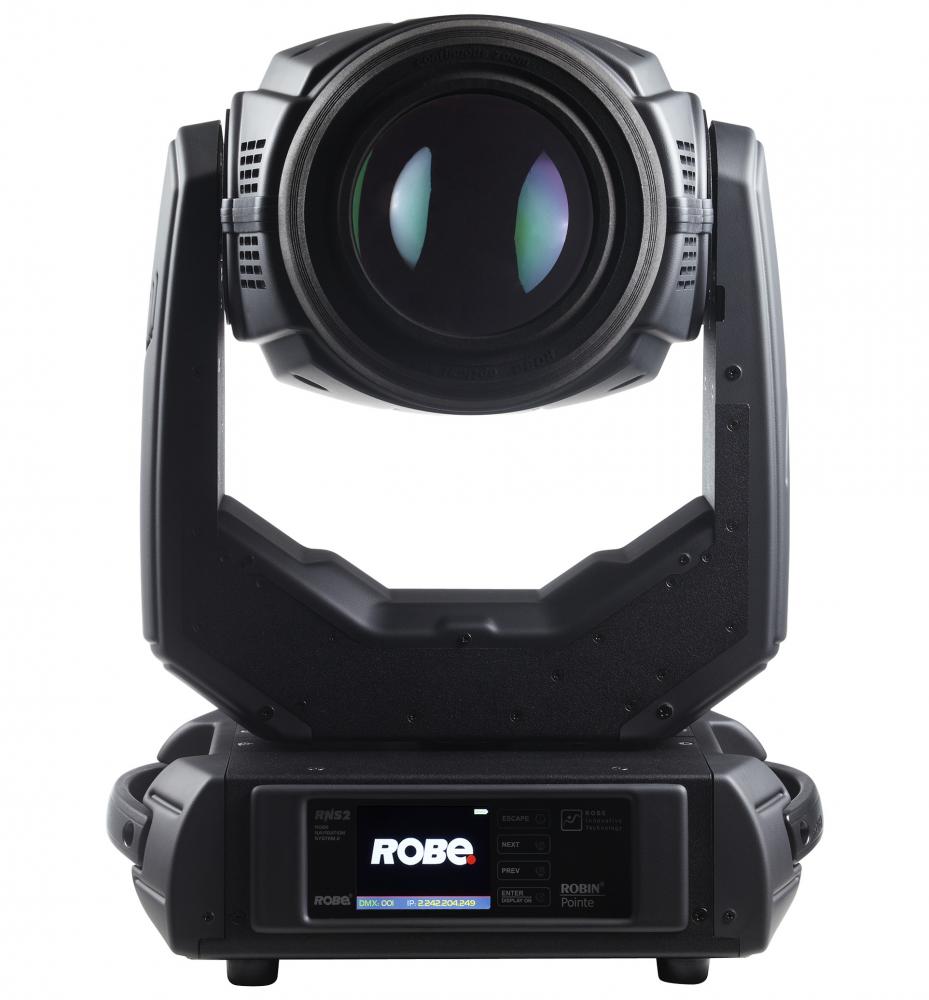

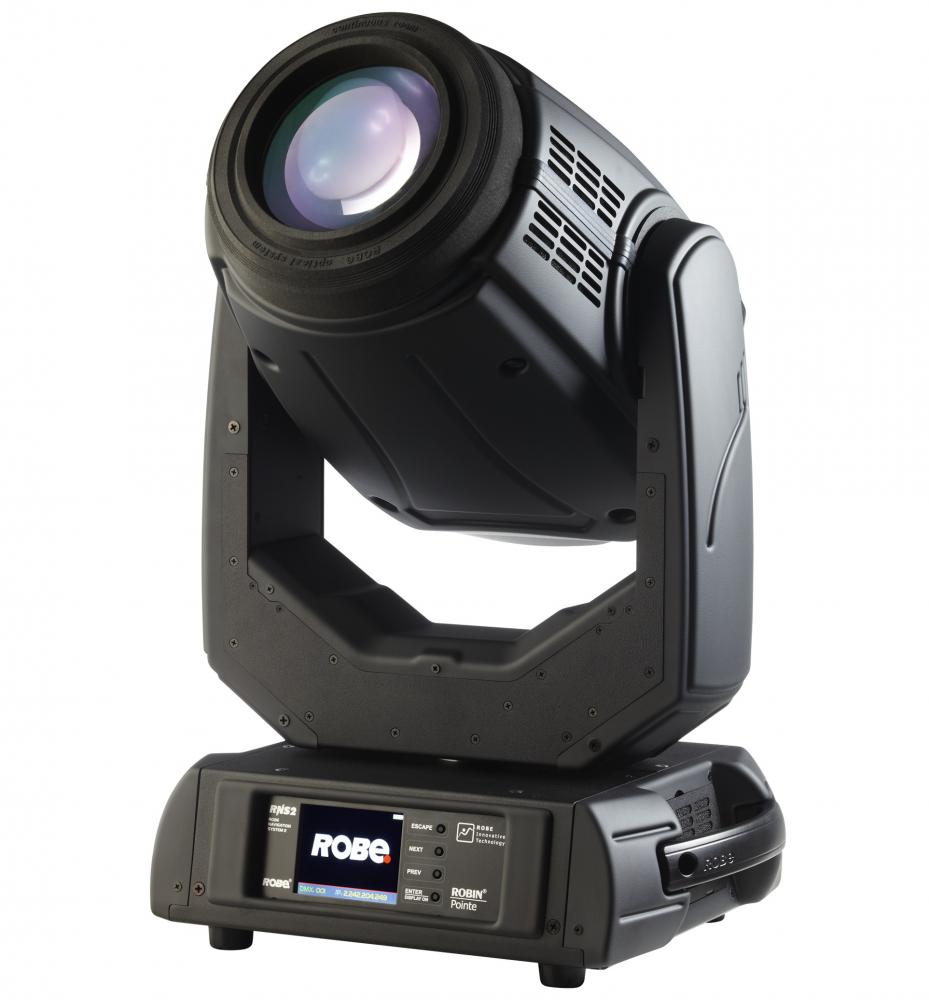

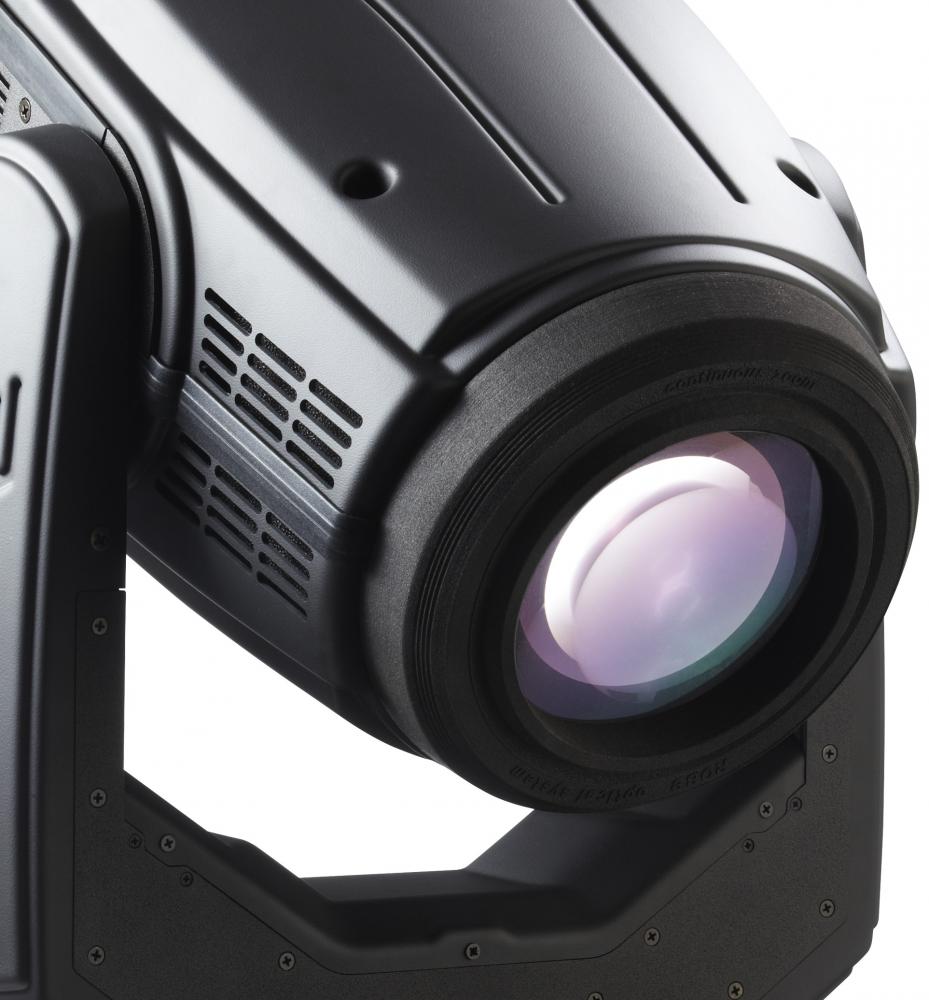

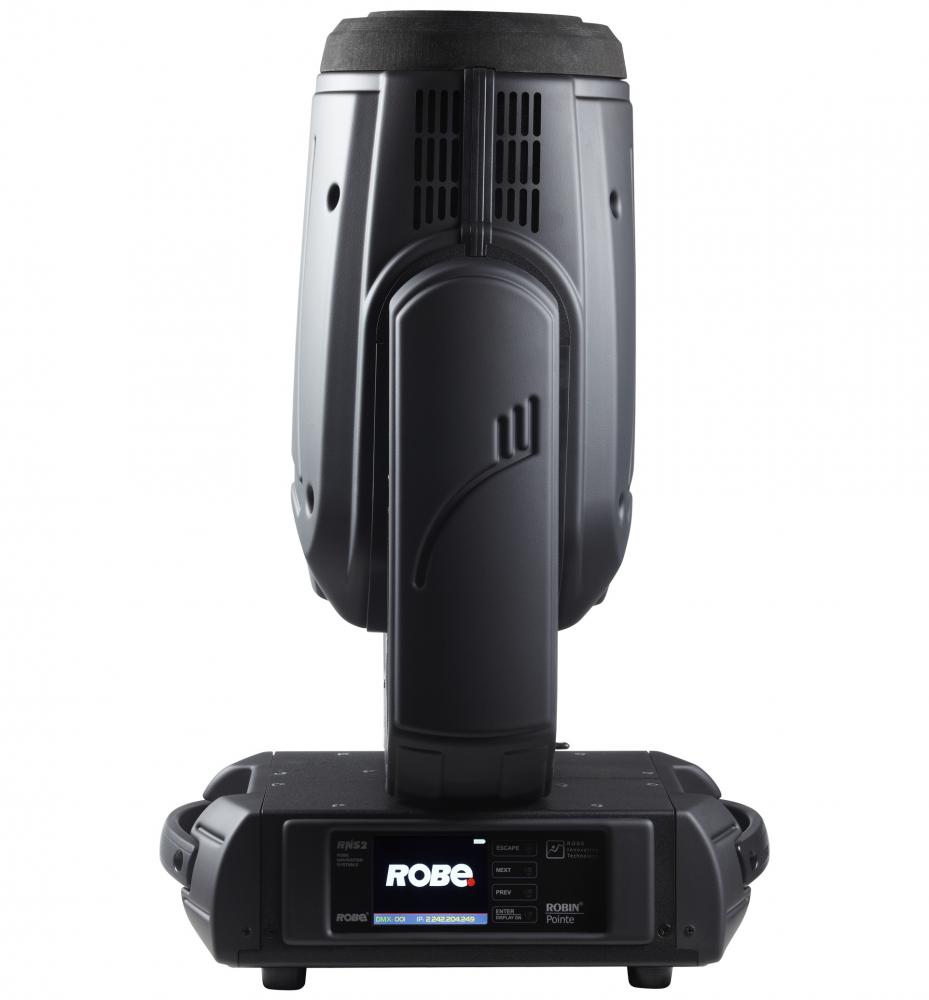

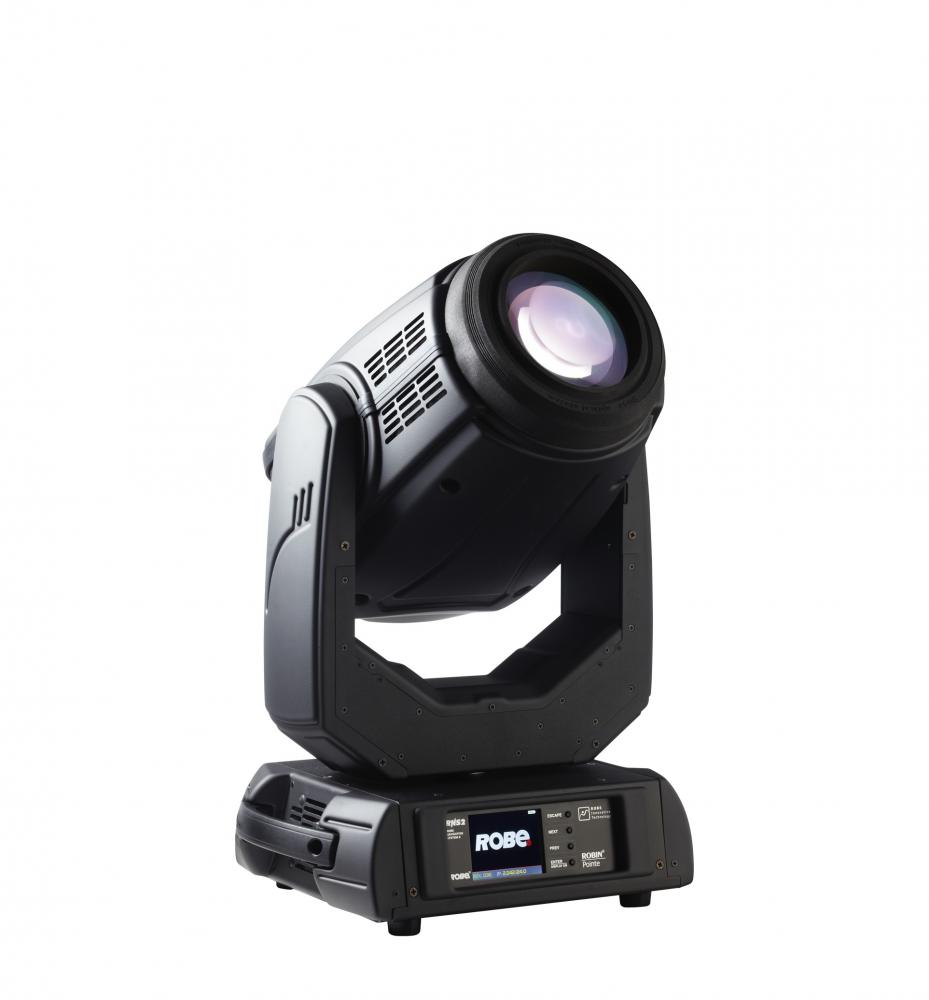

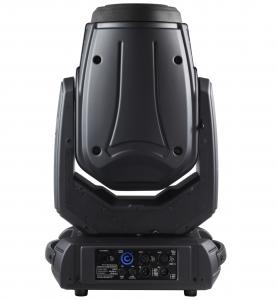

ROBIN Pointe Standard version EU
Robe
Technical specifications, datasheets, descriptions and tender texts for ROBIN Pointe Standard version EU
| Info | |
|---|---|
| short summary |
Here's our Point. It's very bright and super-fast with a sharp parallel beam that cuts through the air and across video with ease. It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane. Tight or at full 20 degree zoom, the output is crystal clear and brilliant. Add in either rotating, 6-way linear or 8-way circular, get rid of comma prisms to create wide reaching effects across any set. Drop in the frost fi lter and use any of the 13 rich colours to create a smooth even wash. The Pointe has an output far greater in size, quality and power than seems possible from its small, lightweight body–due to the effi cient short arc 280W discharge source and the Robe optical confi guration. This new technology fi xture even travels effi ciently in a case of 4 and will cover all your needs - Beam, Spot, Wash, FX - there is no point in using any other fi xture. You get the Pointe?
|
| product type |
Moving Light
|
| product description |
Here's our Point. It's very bright and super-fast with a sharp parallel beam that cuts through the air and across video with ease. It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane. Tight or at full 20 degree zoom, the output is crystal clear and brilliant. Add in either rotating, 6-way linear or 8-way circular, get rid of comma prisms to create wide reaching effects across any set. Drop in the frost fi lter and use any of the 13 rich colours to create a smooth even wash. The Pointe has an output far greater in size, quality and power than seems possible from its small, lightweight body–due to the effi cient short arc 280W discharge source and the Robe optical confi guration. This new technology fi xture even travels effi ciently in a case of 4 and will cover all your needs - Beam, Spot, Wash, FX - there is no point in using any other fi xture. You get the Pointe?
|
| product code |
10018451
|
| order code |
10018451
|
| product link | |
| Connectors | |
| total number of DMX inputs |
1 pcs
|
| total number of DMX outputs |
1 pcs
|
| DMX connector types |
both 3/5pin
|
| total network ports FastEthernet |
1 pcs
|
| built-in Switch |
no
|
| Control | |
| max Dimmer resolution |
16 bit
|
| control channels, min |
30 ch
|
| control channels, max |
34 ch
|
| RDM |
yes
|
| wireless dmx |
yes
|
| protocol-DMX |
both
|
| protocol-Artnet |
input
|
| Electrical | |
| power consumption amps, max |
8.34 A
|
| power consumption watt, max |
2000.00 W
|
| AC Volts, min |
200 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| operating temp, min |
-5.00 °C
|
| operating temp, max |
100.00 °C
|
| lamp socket |
PGJX28
|
| built-in dimmer |
none
|
| power input connector |
Powercon
|
| cooling |
active
|
| external PSU |
no
|
| Mechanical | |
| weight |
35.00 kg
|
| width |
483.00 mm
|
| height |
826.00 mm
|
| length |
335.00 mm
|
| pan range |
540 °
|
| tilt range |
270 °
|
| color |
black
|
| truss mountable |
yes
|
| shipping weight |
15.00 kg
|
| amount per case |
2 pcs
|
| recessed installation |
no
|
| Optical | |
| output lumen, max |
38000 lm
|
| beam angle/zoom, min |
5.00 °
|
| beam angle/zoom, max |
55.00 °
|
| light source |
Discharge
|
| Number of light sources |
1 pcs
|
| wattage per light source |
1700.00 W
|
| light source color temperature |
6000 K
|
| optics/projection type |
Washlight
|
| COLD WHITE LED source |
no
|
| shutter/strobe frequency, max |
10 Hz
|
| variable/linear frost |
yes
|
| color temperature, min |
2700 K
|
| color temperature, max |
6000 K
|
| min CRI |
90 CRI
|
| secondary light source |
none
|
| CMY colormixing |
dual flag
|
| drop-in frosts |
3 pcs
|
| max CRI |
90 CRI
|
| lens diameter |
200 mm
|
| out lumen in silent mode. Max |
27630 lm
|
| beam shape |
other
|
| fixed/virtual colorwheels |
2 pcs
|
| beam shapers/framing/barndoors |
yes
|
| prism |
no
|
| other beam effects |
yes
|
| separate CTO wheel |
yes
|
| prism morphing |
no
|
| animation wheel functionality |
continous rotation
|
| Luminous efficacy |
19.00 lm/W
|
