Info | |
---|---|
product type |
Followspot
|
product description |

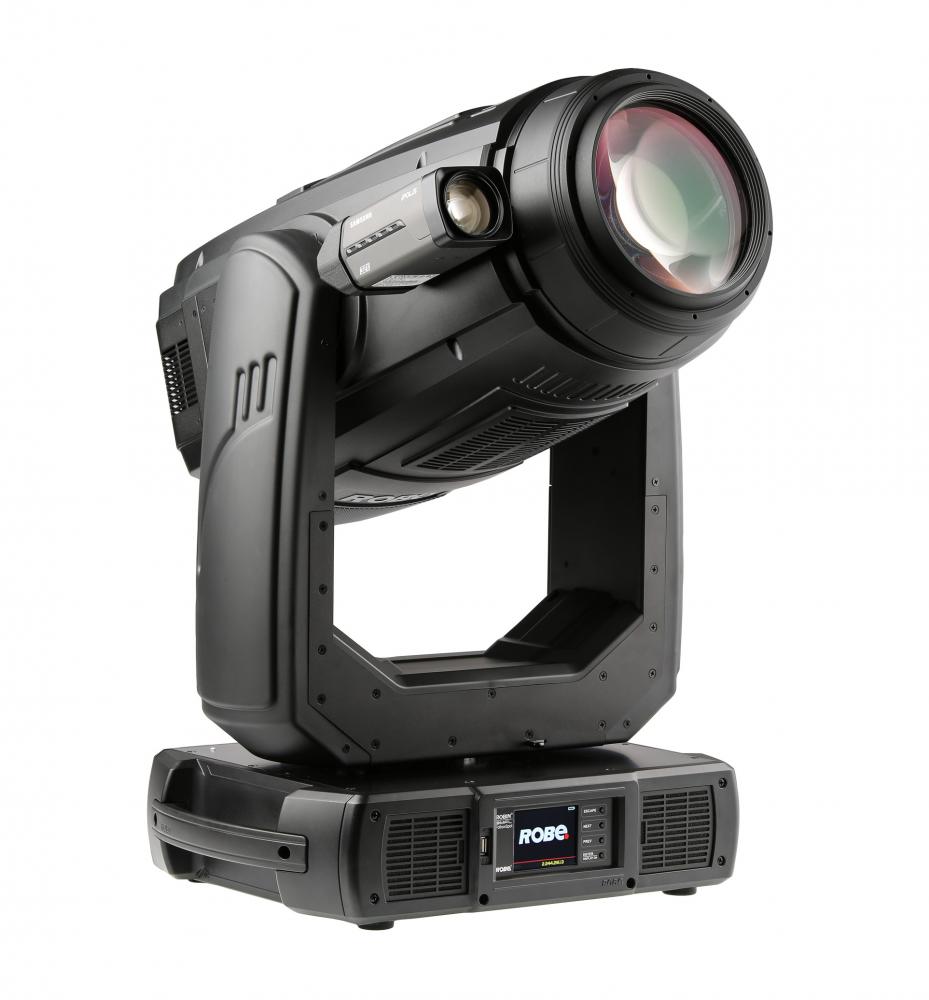

Created specifically for follow-spot operation, this custom modified version of BMFL comes with specific features to provide both motorised movement and manual operation with follow-spot handles. Based on the powerful BMFL WashBeam it blasts beams of extra bright output and has an abundance of great features.
The BMFL FollowSpot takes advantage of its wide 160 mm front lens and a high CRI 1700W lamp. With a custom light source designed for Robe it produces an astounding 251.000 lux at 5 metres and has a wide zoom range of 5° to 45° with precise focusing. Manually or remotely controllable features include smooth color mixing and CTO flags, two color wheels, multiple variable frost filters, focus, zoom and quick pulsing iris. Follow-spot operation can be extended by using LightMaster handles - an optional accessory. The BMFL FollowSpot is pre-wired for installation of the digital camera on the head and is connected with the new RoboSpot base station for off-stage follow-spot operation… |
product code |
10018661
|
order code |
10018661
|
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
both 3/5pin
|
total network ports FastEthernet |
1 pcs
|
built-in Switch |
no
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
26 ch
|
control channels, max |
32 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
input
|
Electrical | |
power consumption amps, max |
8.34 A
|
power consumption watt, max |
2000.00 W
|
AC Volts, min |
200 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
operating temp, min |
-5.00 °C
|
operating temp, max |
170.00 °C
|
lamp socket |
PGJX28
|
built-in dimmer |
none
|
power input connector |
Powercon
|
cooling |
active
|
external PSU |
no
|
Mechanical | |
weight |
35.00 kg
|
width |
483.00 mm
|
height |
813.00 mm
|
length |
335.00 mm
|
pan range |
540 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
shipping weight |
35.00 kg
|
amount per case |
2 pcs
|
recessed installation |
no
|
Optical | |
output lumen, max |
39770 lm
|
beam angle/zoom, min |
5.00 °
|
beam angle/zoom, max |
45.00 °
|
light source |
Discharge
|
Number of light sources |
1 pcs
|
wattage per light source |
1700.00 W
|
light source color temperature |
6000 K
|
optics/projection type |
Spotlight
|
COLD WHITE LED source |
no
|
shutter/strobe frequency, max |
10 Hz
|
variable/linear frost |
yes
|
color temperature, min |
2700 K
|
color temperature, max |
6000 K
|
min CRI |
92 CRI
|
secondary light source |
none
|
CMY colormixing |
dual flag
|
drop-in frosts |
3 pcs
|
max CRI |
92 CRI
|
lens diameter |
160 mm
|
out lumen in silent mode. Max |
33220 lm
|
beam shape |
other
|
fixed/virtual colorwheels |
2 pcs
|
beam shapers/framing/barndoors |
no
|
prism |
no
|
other beam effects |
no
|
separate CTO wheel |
yes
|
prism morphing |
no
|
