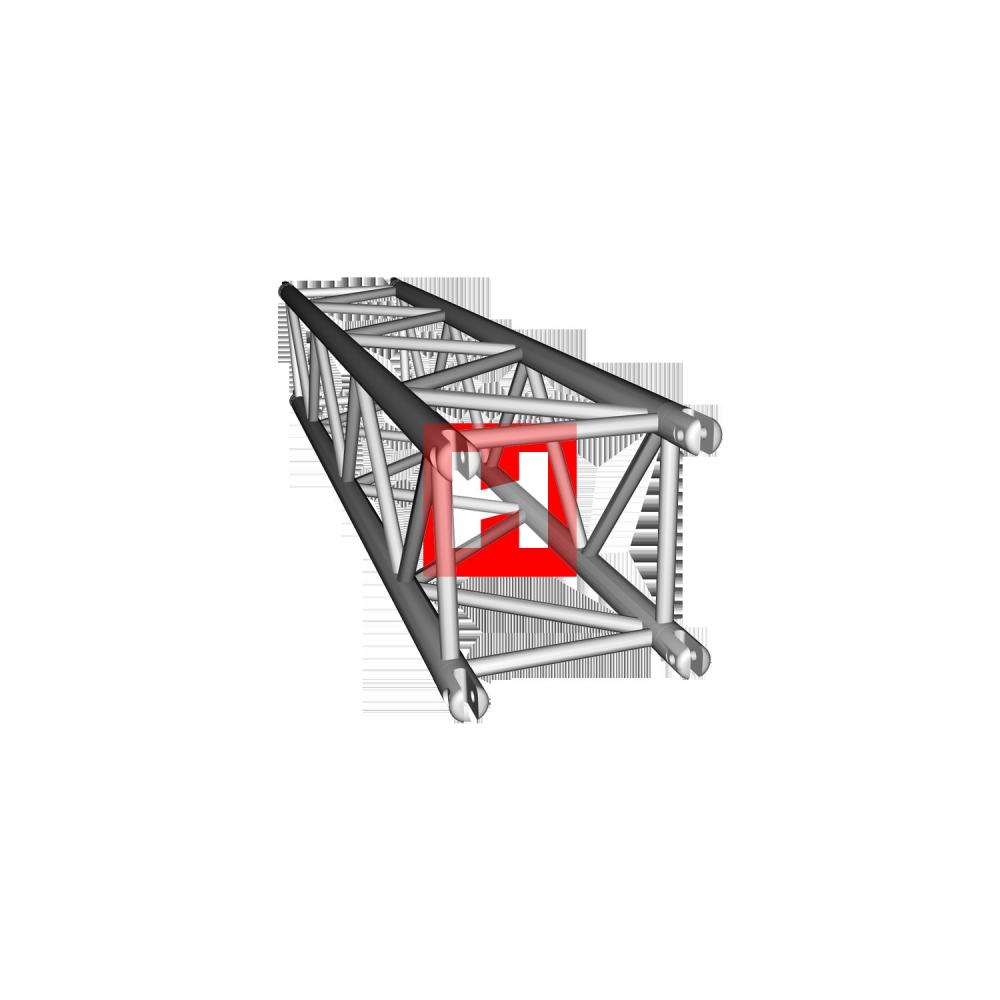

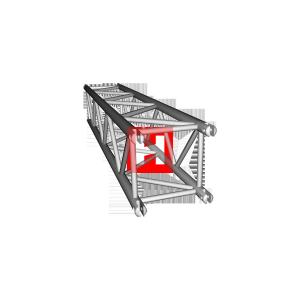

Truss HOFFORK 350-4 182cm
H.O.F. Alutec Metallverarbeitungs GmbH & Co.KG
Technical specifications, datasheets, descriptions and tender texts for Truss HOFFORK 350-4 182cm
| Info | |
|---|---|
| short summary |
4-point truss, incl. Conical connectors
|
| order code |
11335041G6
|
| Product Name |
Truss HOFFORK 350-4 182cm
|
| MSRP EUR |
600.46 EUR
|
| Statical | |
| max UDL 5m span |
4480.50 kg
|
| max UDL 10m span |
2191.10 kg
|
| max UDL 12m span |
1790.60 kg
|
| max UDL 15m span |
1380.50 kg
|
| max UDL 20m span |
951.10 kg
|
| max CPL 5m span |
2263.40 kg
|
| max CPL 10m span |
1095.60 kg
|
| max CPL 12m span |
895.30 kg
|
| max CPL 15m span |
690.20 kg
|
| max CPL 20m span |
475.50 kg
|
| deflection at max UDL 5m span |
18.70 mm
|
| deflection at max UDL 10m span |
74.90 mm
|
| deflection at max UDL 12m span |
108.10 mm
|
| deflection at max UDL 15m span |
169.60 mm
|
| deflection at max UDL 20m span |
303.90 mm
|
| deflection at max CPL 5m span |
15.00 mm
|
| deflection at max CPL 10m span |
60.70 mm
|
| deflection at max CPL 12m span |
88.00 mm
|
| deflection at max CPL 15m span |
139.20 mm
|
| deflection at max CPL 20m span |
254.30 mm
|
