ECOlite 1600-4

Movecat GmbH

1
chain hoist, BGV D8, 1600kg lifting capacity 4 m/min,

Technical specifications, datasheets, descriptions and tender texts for ECOlite 1600-4

Info
short summary
chain hoist, BGV D8,
1600kg lifting capacity
4 m/min,

product type
Chain Hoist (DGUV 54 / BGV D8)
product link
product description

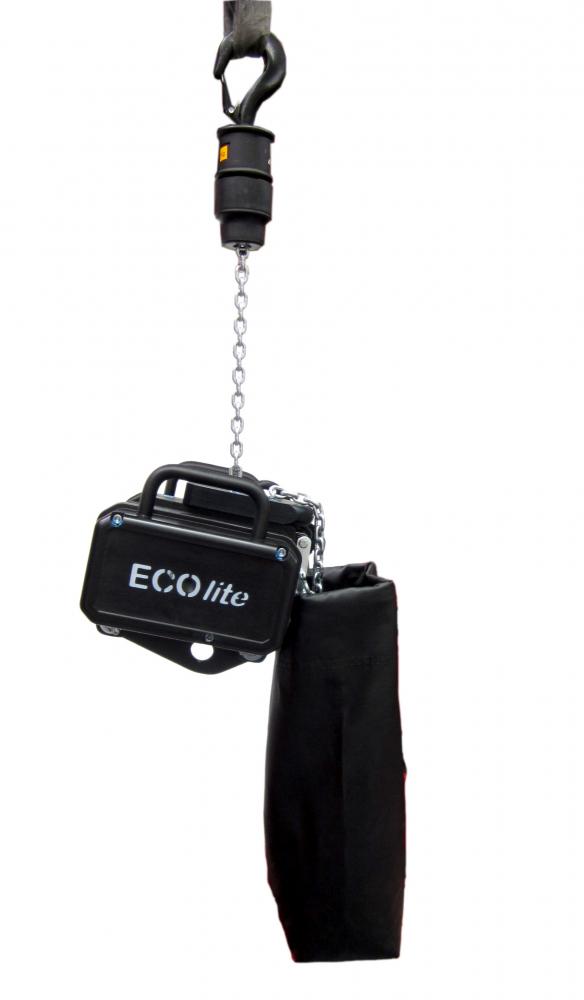

Movecat’s ECOlite chain hoists were developed as economical rigging hoists for use in environments containing media equipment. They are the first choice when it comes to the safe and reliable hoisting and positioning of trusses, stages, ground support structures and other devices used in media applications. Despite the attractive price point, even in the basic configuration great importance has been attached to professional quality and first-class safety equipment.
Five-fold safety for the chain as well as a high-quality transmission and an efficient DC brake in combination with a patented overload system, naturally, are standard features of this series. The Basicplate chain guide ensures reliable chain transmission and reduces the risk of the chain jamming. The hoists are exceptionally light as well as compact and are recommended in particular for applications where space is limited.
All hoists can be used without conversion either as ECOlite - En 01.2016 climbers or in the standard installation position, and most models can be converted to dual chainfall operation to increase their safe working loads. ECOlite hoists are supplied as standard with 18 m or 24 m hoisting capacity, a singlehole suspension eyelet, two robust handels, a permanently installed textile chain bag, screwed cable glands with 360° anti-kink protection, DC versions with an H07RN-F connector cable with a black CEE 4-pin plug and RC versions with a black CEE 4-pin plug for power and a yellow CEE 4-pin plug for remote control. The hoists are available in both DC (direct control 400 V AC) and RC (remote control/ low-voltage 24 V DC) versions and are CE-compliant, tested, and ready for operation at the time of delivery.
The chain hoists are designed for operation with Movecat phase-changing controllers in accordance with DIN 60204- 32 and EN 13849-1 and when used accordingly are certified as CE compliant provided the instructions set out in the user manual are adhered to. A UVV specialist factory inspection prior to first use for mobile applications as well as the VDE 0701/0702 first inspection are also included.
short, neutral tender spec text
chain hoist, 1600kg lifting capacity,
4 m/min, BGV D8,
direct control,
2 handles,
1 chain hook,
Basicplate chain guide,
connection cable 1 m with CEE 16/4 plug,
incl. UVV-testing, DIN VDE 0701/0702, CE sign
GAEB
TEXT
product code
102862
order code
102862
MSRP EUR
2200.00 EUR
EAN
102862
MOQ (minimum order quantity)
1 pcs
Control
speed controllable
no
Electrical
AC Volts, min
380 V
AC Volts, max
415 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
hoist power input connector
red 3P+E IEC-60309 16A
BTU/h
7506.00 BTU/h
EU Energy Label
A+++
Mechanical
weight
113.00 kg
width
435.00 mm
height
531.00 mm
length
506.00 mm
max chain length
80.00 m
max speed
4.00 m/min
falls (in default configuration)
1 pcs
number of brakes
1 pcs
max number of falls
2 pcs
2-track geared limit switch
optional
4-track geared limit switch
no
shipping weight
118.00 kg
Other
chain color
black
Statical
load capacity
1600 kg
brake/security level
BGV D8
integrated load cell
upgradeable
programmable start/stop ramps
no
position detection
optional
load cell connectors
wired (star wiring)
load cell control
analog
