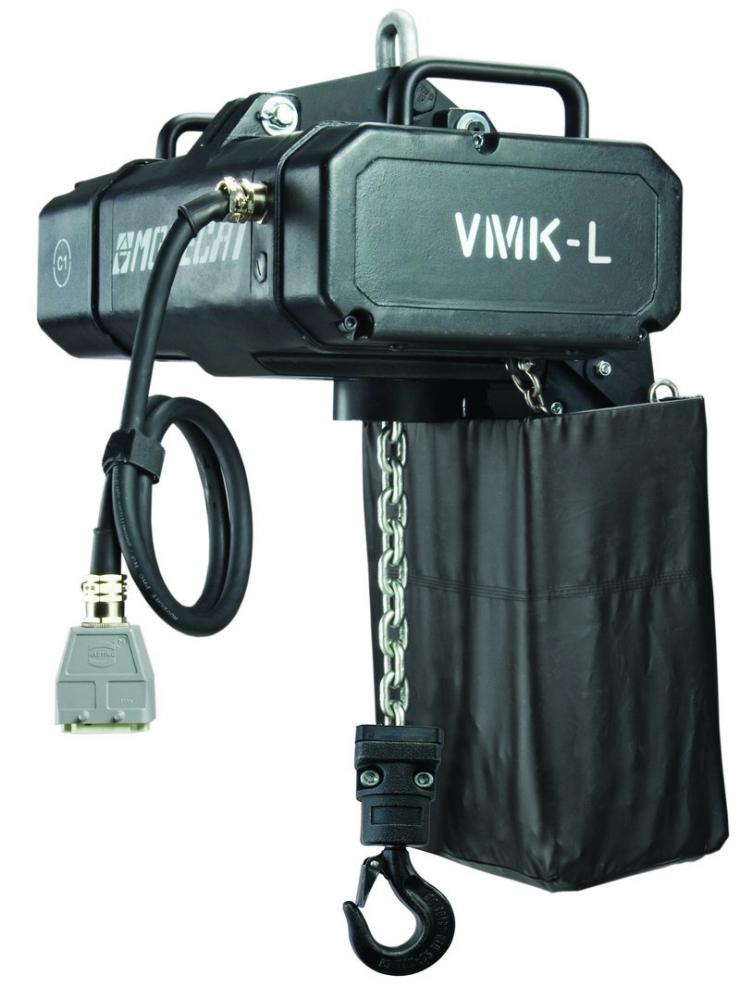

VMK-L 1250-10

Movecat GmbH

1
chain hoist, BGV C1, 1250kg working load, 0 - 10 m/min,

Technical specifications, datasheets, descriptions and tender texts for VMK-L 1250-10

Info
short summary
chain hoist, BGV C1,
1250kg working load,
0 - 10 m/min,

product type
Chain Hoist (BGV C1)
product description
The VMK-L hoists according to BGV C1 are notable for their innovative feature set and unusually flexible handling, whilst satisfying at all times the highest standards of safety. Particularly remarkable are the two independent DC brakes, an integrated real-time load-measuring module that ascertains the real load and from it the overload and underload values, and a thermosensor that monitors permanently the operating temperature of the motor. No less exceptional is the patented overload system that protects the drive and chain. Continuous force and form closure without interruption between brakes and load is at all times guaranteed. Furthermore, a high-resolution, dual-channel incremental encoder is used that allows exact positioning - better than +/- 1 mm ( with V-Motion ) - and therefore precise target runs with the highest repetition accuracy. In conjunction with V-Motion Powerpacks, VMK-L hoists can be controlled at variable speeds for way- and time-synchronous runs or else directly (hoists up to 10 m/min) with the MPC 4IC1 controllers at a fixed speed. These highspeed hoists in combination with V-Motion Powerpacks are capable of speeds ranging VMK-L - En 11.2017 from 0 to 40 m/min whilst functioning as a closed-loop system with full torque even during runs continuing beyond the null point (‚floating state‘) and reversal of direction without incursion of the brakes. With their remarkable features, VMK-L hoists are recommended for all highquality applications in locations such as in TV studios, theatres and events venues demanding maximum performance and safety combined with the widest possible bandwidth of uses.
product code
400009
order code
400009
short, neutral tender spec text
chain hoist, 1250kg working load,
0 - 10 m/min, BGV C1,
1 cloth chain container,
1 rotating chain ring eye,
1 one hole lug with integrated load measurement cell,
2 brakes,
4-way limit and overtravel switch gear box,
2-channel incremental encoder,
29-bit absolute encoder,
2 handles,
Easyplate chain guide,
1,5 m PMC-HV connection cable,
included inspections:
DGUV V17/BGV C1 and VDE 0701/0702 factorycheck as a mobile chainhoist with inspection report and sticker
GAEB
TEXT
product link
MSRP EUR
5900.00 EUR
EAN
400009
MOQ (minimum order quantity)
1 pcs
Control
speed controllable
yes
Electrical
AC Volts, min
380 V
AC Volts, max
415 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
hoist power input connector
Harting
BTU/h
10236.00 BTU/h
Mechanical
weight
138.00 kg
width
486.00 mm
height
382.00 mm
length
640.00 mm
max chain length
80.00 m
max speed
10.00 m/min
falls (in default configuration)
1 pcs
number of brakes
2 pcs
max number of falls
2 pcs
2-track geared limit switch
no
4-track geared limit switch
yes
shipping weight
138.00 kg
Other
chain color
black
Statical
load capacity
1250 kg
brake/security level
BGV C1
integrated load cell
yes
programmable start/stop ramps
yes
position detection
yes
load cell connectors
hybrid plug
load cell control
analog
