MPC 4ID8

Movecat GmbH

1
2
4-channel motor controller, according to BGV D8 / D8 plus, prepared for use with MRC ED8 Remote Control and network operation

Technical specifications, datasheets, descriptions and tender texts for MPC 4ID8

Info
short summary
4-channel motor controller,
according to BGV D8 / D8 plus,
prepared for use with MRC ED8 Remote Control and network operation
product type
4-channel Controller (BGV D8 plus)
product code
400370
order code
400370
product link
product description

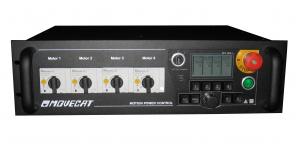

The Motion Power Controller 4ID8 is based on the established industry standard MPC 4ED8 controllers and represents an intelligent control unit for the governance of asynchronous three-phase drives such as the Movecat ECO, PLUS, Compact and Plus-C chain hoists and their Lite counterparts compliant with D8 and D8 Plus.
This is an independent control platform by means of which up to four hoists or drives series in direct control 400 V AC or remote control 24 V DC version can be directly operated in an operationally secure and user-safe fashion without any additional control devices. A large, back-lit LCD displays the operating states and parameters. The integrated operating and safety processors monitor all functions, whereby the general evaluation of all safety-relevant parameters, including all run states, is implemented as a superordinate safety chain. Any operating error therefore leads invariably to the shutting-down of the connected drives. The relays and safety circuits required for the operation of up to four chain hoists are integrated.
The system corresponds in its basic configuration to the stipulations of BGV D8 and D8 Plus in accordance with igvw SQ P2. A modular concept adaptable to the prevailing functional and safety requirements has been realized_x000D_
The MPC 4ID8 is systemcompatible with the existing MPC 4ED8 controllers and can be operated by means of the established Movecat Link system both within a group and also with the wellknown MRC controllers. Furthermore, it is ready for I-Motion network operation, and up to 8 devices can be operated in direct link mode or up to 60 devices via I-Motion network in decentralized group mode in combination with a central controller e.g. a controller from the I-Motion series.
The clearly identifiable input buttons in combination with a rotary/push-button encoder permit the simple and intuitive configuration and handling of the controller. The user is guided by a logically structured and intuitive interface with display output. Even target* and group* runs (*depending upon the drive configuration) can be programmed and executed by this means.
The MPC 4ID8 solution is recommended for use with the ECO, PLUS and Compact Plus-C hoists, as well as their respective Lite counterparts series in direct control 400 V AC or remote control 24 V DC version, in particular for professional rigging applications in the trade fair, events, studio and touring sectors.
MSRP EUR
3400.00 EUR
EAN
400370
Connectors
I-Motion Network ports
1 pcs
Control
speed controllable
no
remote control option
yes (included)
Electrical
channels
4 pcs
power input connector
fixed

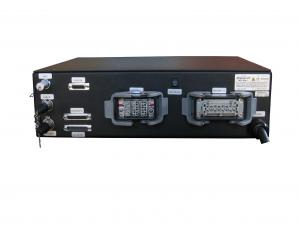

hoist power output connector
HAN 16-E
Mechanical
weight
16.40 kg
width
482.60 mm
height
133.35 mm
length
470.00 mm
height in rack-units
3 U
Statical
brake/security level
BGV D8 plus
programmable start/stop ramps
no
load cell connectors
wired (star wiring)
load cell control
analog
connection option for load cells
optional
load cell plug type
SUB-D15 female

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
German data sheet
Movecat Datenblatt MPC 4ID8_DE.pdf
English data sheet
Movecat Datenblatt MPC 4ID8_EN.pdf
Overview I-Motion Network
Movecat I-Motion Network_Stop Category1_EN.pdf
