Info | |
---|---|
product type |
Static light
|
product description |

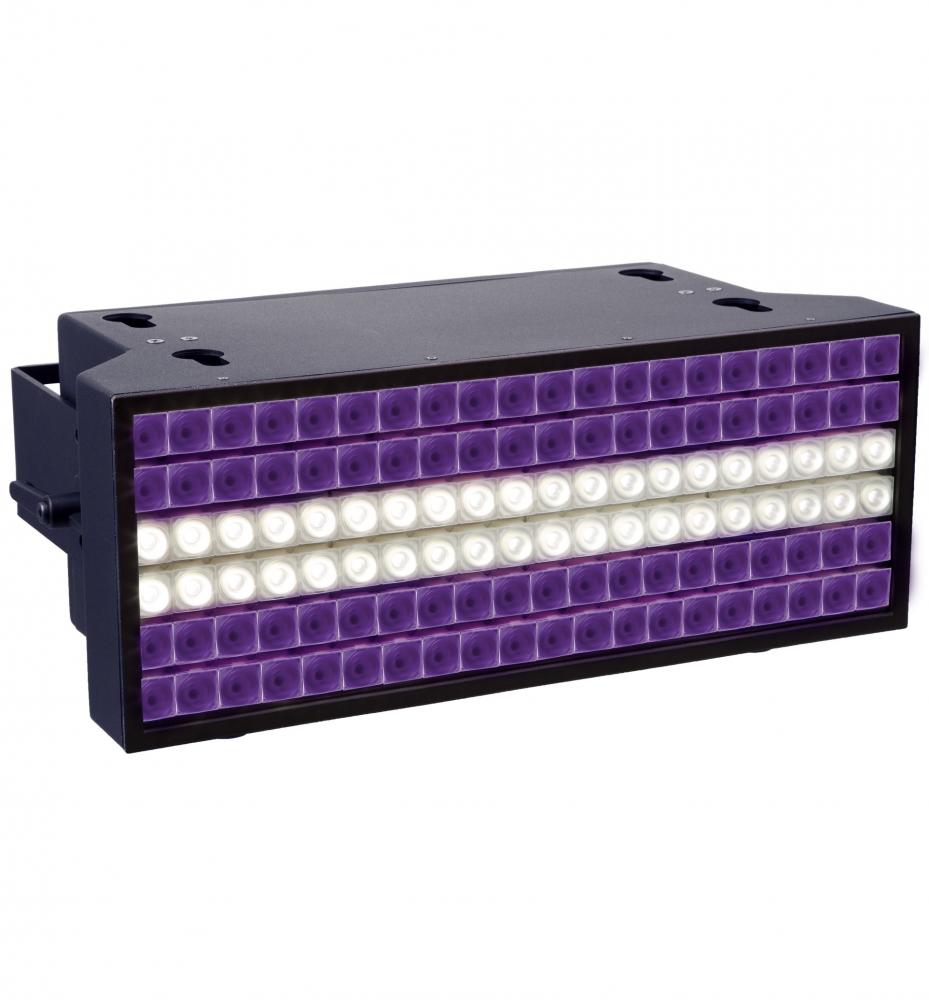

Eye – popping UV effects with visible indigo glow combined with bright white strobe-blinder effects is making this product a truly unique on the market. Ultimately controllable, configurable and arrayable. Super fast bursts of high-powered pulses can be adjusted in frequency, duration and intensity, optically harnessed from the 40x High Power White LED chips and 80x High Power UV LED chips. UV Strobe is easy to rig individually or in multiples and easy to program using direct segment control or predefined macros. Fitted with the standard Robe RNS touch screen system with DMX, RDM, Art-Net, MA Net and sACN protocols. Optional wireless DMX module.
|
product code |
10070863
|
order code |
10070863
|
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
no
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
3 ch
|
control channels, max |
20 ch
|
RDM |
no
|
Electrical | |
power consumption watt, max |
660.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
1 Hz
|
AC Frequency, max |
30 Hz
|
IP rating |
22
|
operating temp, max |
45.00 °C
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
15.30 kg
|
width |
315.00 mm
|
height |
350.00 mm
|
length |
300.00 mm
|
color |
black
|
truss mountable |
yes
|
shipping weight |
15.30 kg
|
Optical | |
beam angle/zoom, min |
32.00 °
|
beam angle/zoom, max |
60.00 °
|
light source |
LED
|
Number of light sources |
120 pcs
|
wattage per light source |
15.00 W
|
optics/projection type |
Other
|
shutter/strobe frequency, max |
30 Hz
|
variable/linear frost |
no
|
secondary light source |
other
|
multichip LED |
no
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
yes
|
beam angle horizontal |
60 °
|
UV light source wavelength |
385 nm
|
