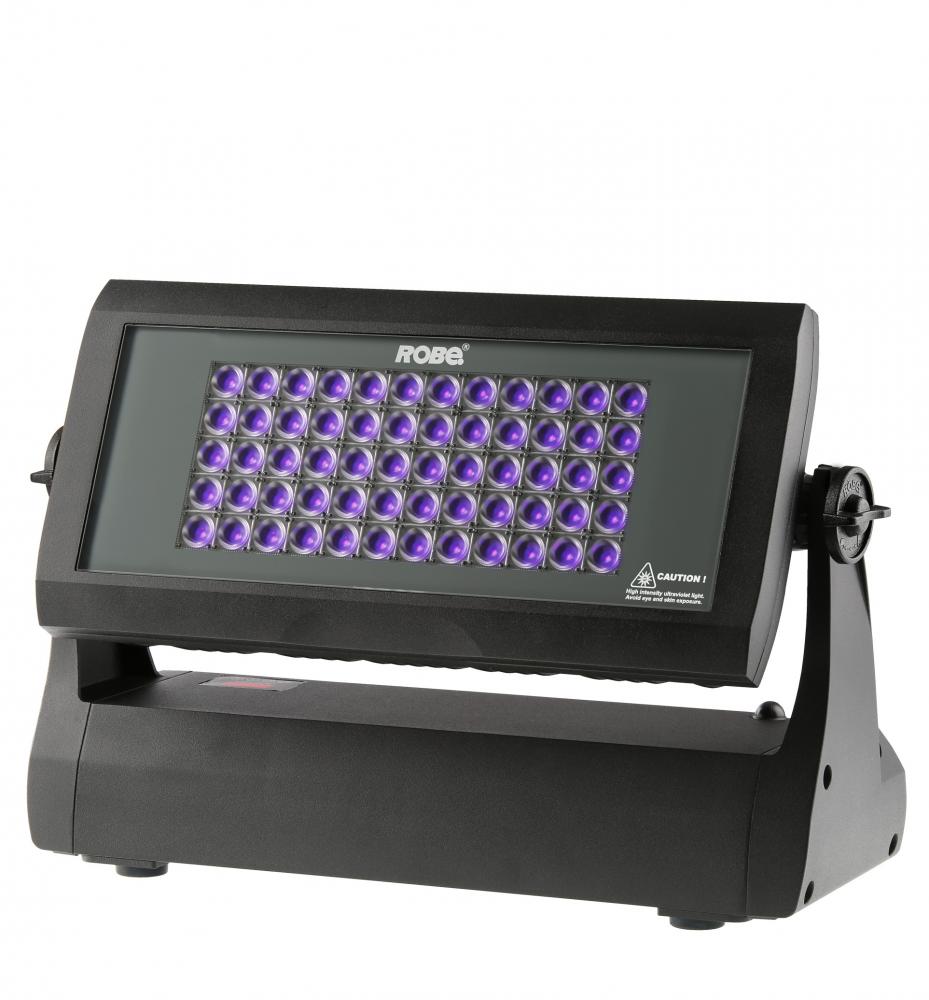

UV Strobe IP Standard Version
Robe
Technical specifications, datasheets, descriptions and tender texts for UV Strobe IP Standard Version
| Info | |
|---|---|
| short summary |
INDIGO Strobe, Fluter; iP67; 180W; 60 x 385nm UV LED Chips;
UVStrobe IP Lüfterlos; 14,3kg |
| product type |
Static light
|
| product description |
Breathtaking UV strobe and wash for outdoor exposures, this 180W LED luminaire provides the ideal output of 385nm for all types of entertainment events. UV Strobe IP has a high IP rating of 67 providing the reliability required for the most demanding projects, including fixed installations and temporary events. UV Strobe IP is easy to rig and program using segment control or predefined macros and produces super-fast bursts of high powered LEDs with adjustable duration and intensity. UV Strobe IP is a great tool for theme parks, theatres and all types of entertainment events.
|
| short, neutral tender spec text | |
| product code |
10063191
|
| order code |
10063191
|
| product link | |
| Connectors | |
| total number of DMX inputs |
1 pcs
|
| DMX connector types |
5pin
|
| built-in Switch |
no
|
| Control | |
| max Dimmer resolution |
16 bit
|
| control channels, min |
3 ch
|
| control channels, max |
14 ch
|
| RDM |
yes
|
| Electrical | |
| power consumption watt, max |
180.00 W
|
| AC Volts, min |
100 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
1 Hz
|
| AC Frequency, max |
30 Hz
|
| IP rating |
67
|
| operating temp, min |
-20.00 °C
|
| operating temp, max |
40.00 °C
|
| power input connector |
fixed
|
| cooling |
active
|
| Mechanical | |
| weight |
14.30 kg
|
| width |
463.00 mm
|
| height |
314.00 mm
|
| length |
175.00 mm
|
| color |
black
|
| truss mountable |
yes
|
| shipping weight |
14.30 kg
|
| Optical | |
| beam angle/zoom, min |
32.00 °
|
| beam angle/zoom, max |
60.00 °
|
| light source |
LED
|
| Number of light sources |
60 pcs
|
| optics/projection type |
Other
|
| shutter/strobe frequency, max |
30 Hz
|
| variable/linear frost |
no
|
| secondary light source |
none
|
| multichip LED |
no
|
| RED light source |
no
|
| GREEN light source |
no
|
| BLUE light source |
no
|
| UV light source |
yes
|
| beam angle horizontal |
60 °
|
| UV light source wavelength |
385 nm
|
