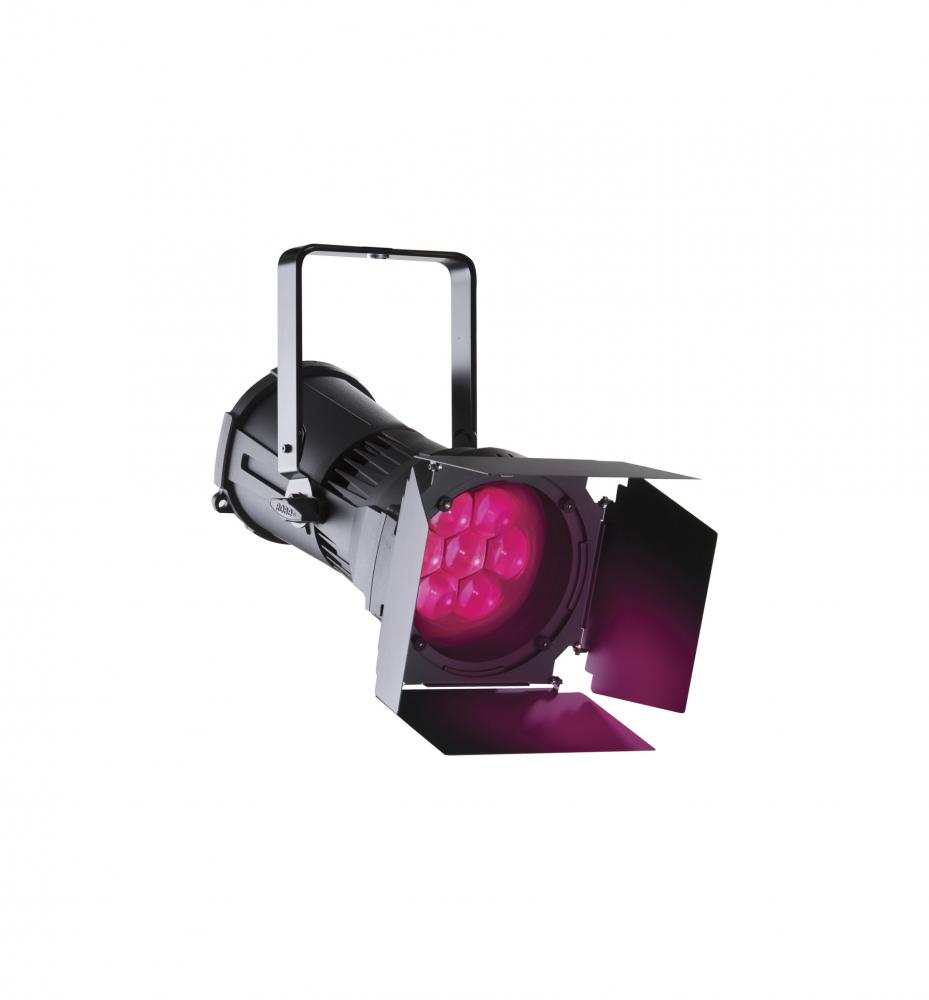

IParfect 150 RGBW Standard Version

Robe

1

Technical specifications, datasheets, descriptions and tender texts for IParfect 150 RGBW Standard Version

Info
product description
The all-new iParFect 150 FW RGBW is loaded with killer features. It has an exceptionally-wide zoom range, is completely silent with passive cooling and with an IP 65 rating, is ideal for television, theatres, concert halls and any kind of outdoor events. Other characteristics include CMY & RGBW colour control, 18-bit dimming and Tungsten emulation with both selectable & variable colour temperatures providing total output control. The powerful, punchy beam with a zoom range of 3,8° to 60°, combined with a Fresnel style beam edge, results in a smooth, homogenised beam of light. This compact, lightweight fixture includes a combined hanging / floor stand bracket and accessories such as gel frame and barn doors.
product code
10071201
order code
10071201
product link
Connectors
total number of DMX inputs
1 pcs
total number of DMX outputs
1 pcs
DMX connector types
5pin
Control
control channels, min
11 ch
control channels, max
17 ch
max Dimmer resolution
16 bit
RDM
yes
Electrical
power consumption watt, max
220.00 W
AC Volts, min
100 V
AC Volts, max
277 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
65
operating temp, min
-5.00 °C
operating temp, max
45.00 °C
power input connector
Powercon
DC Volts, min
100 V
DC Volts, max
277 V
Battery powered
no
cooling
passive
power output connector
Powercon
external PSU
no
Mechanical
weight
7.50 kg
width
251.00 mm
height
235.00 mm
length
413.00 mm
color
black
truss mountable
with optional accessories
Optical
output lumen, max
1310 lm
beam angle/zoom, min
4.00 °
beam angle/zoom, max
60.00 °
light source
LED
optics/projection type
Hyprid/Dual Optical System
beam shapers/framing/barndoors
yes
color temperature, min
2700 K
color temperature, max
8000 K
Number of light sources
7 pcs
wattage per light source
30.00 W
RED light source
yes
GREEN light source
yes
BLUE light source
yes
AMBER light source
no
