Info | |
---|---|
order code |
60306822
|
product link | |
EAN |
4026397616385
|
Product Name |

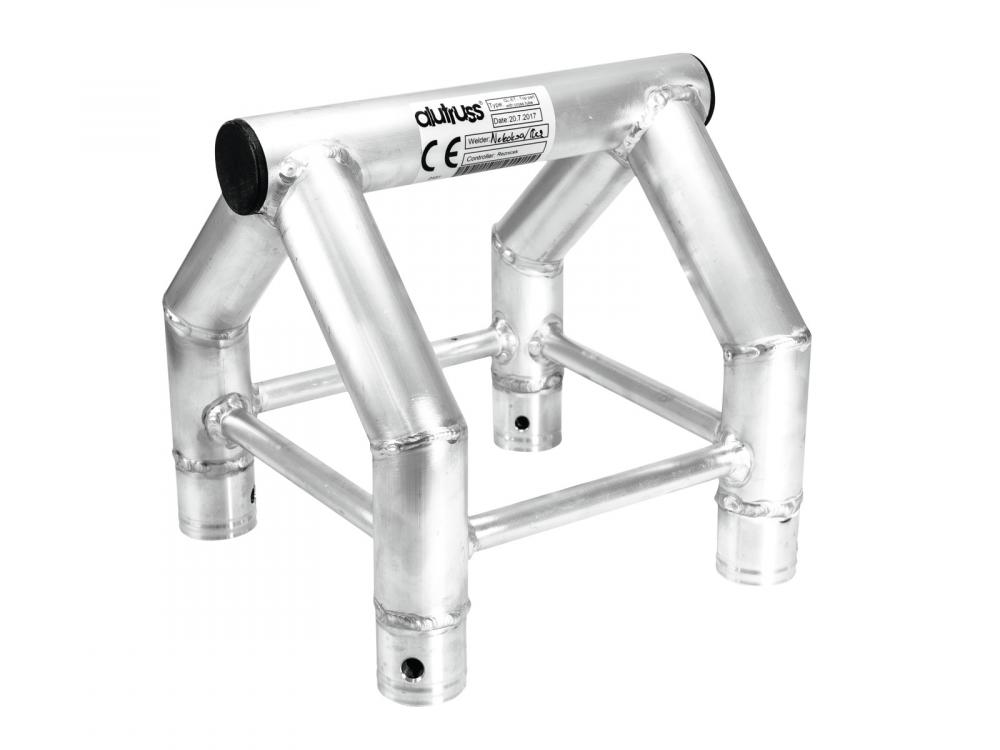

ALUTRUSS QUADLOCK QL-ET34 Toppart
|
technical overview |
Main chords: 50 x 2 mm Braces: 20 x 2 mm Alloy: EN-AW 6082 T6 (AlMgSi1 T6) Welding material: AlMg 5 Welding technique: TIG-welding Trusspipe: 50 mm x 2 mm Strut diameter x thickness: 20 x 2mm Color: Alu colored Weight: 3,05 kg Length: 310 mm |
main features |
4-point truss system -Strong EN-AW 6082 alloy for high loads -High-quality aluminum-tubes with 50 mm in diameter -Easy installation -Low weight -Distance center - center: 240 mm -For exhibition and shop installers, discotheque and theatre installations -1 x Connection set included -Trusspipe diameter: 50 mm -Made in Europe |
Mechanical | |
weight |
3.05 kg
|
length |
310.00 mm
|
truss system |
ladder
|
pipe diameter |
50 mm
|
metal alloy |
EN-AW 6082 T6 (AlMgSi1 T6)
|
