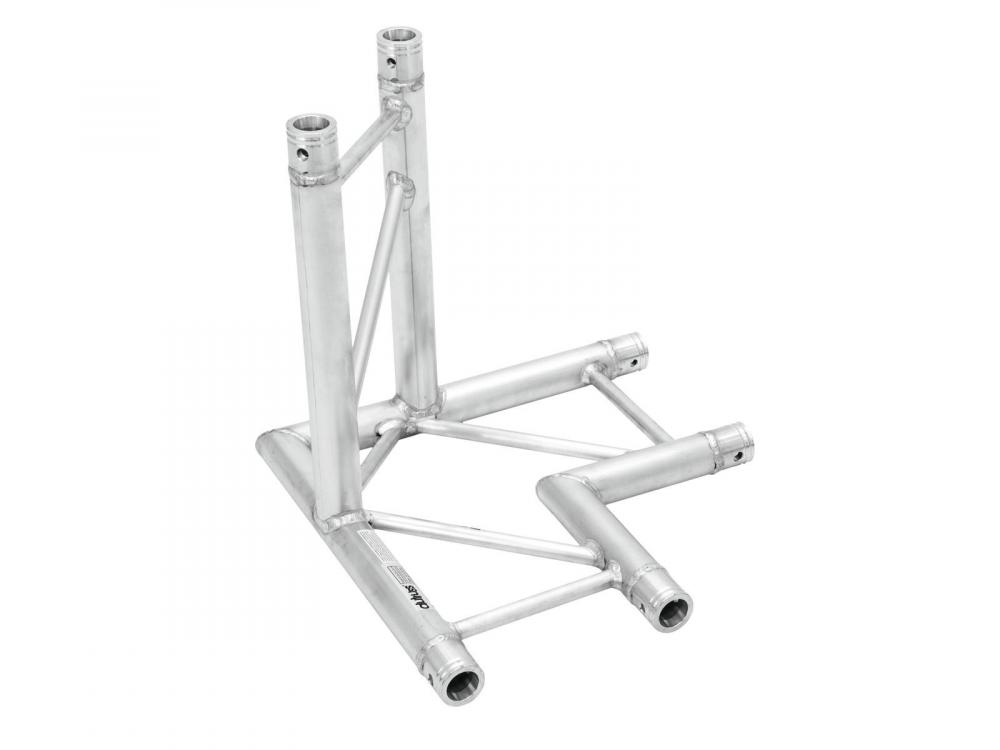

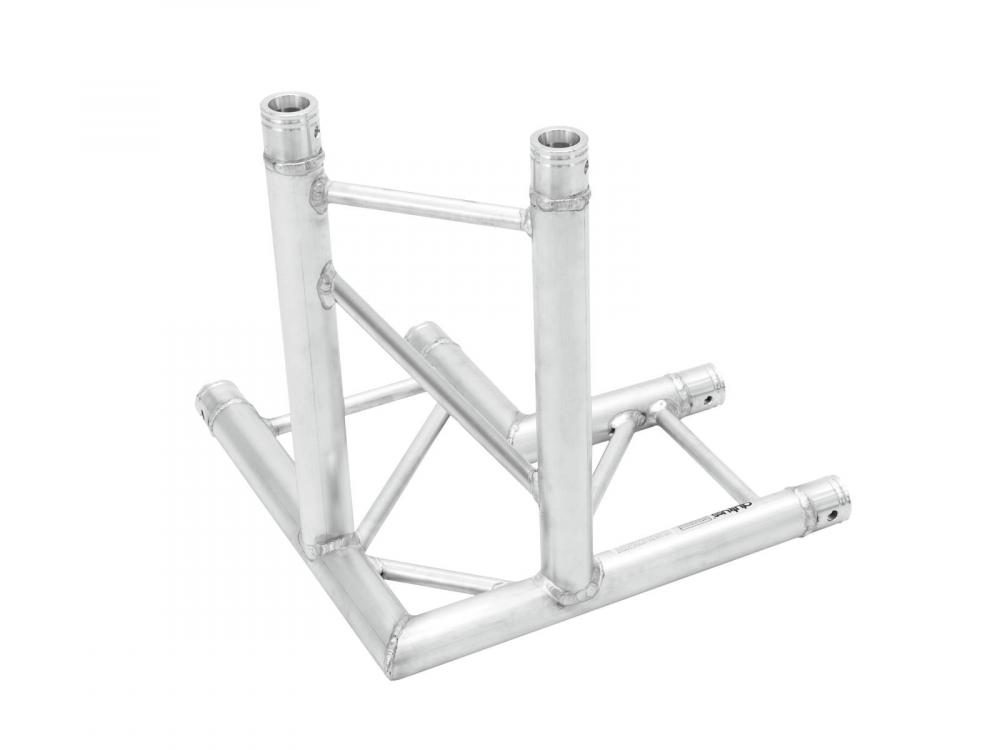

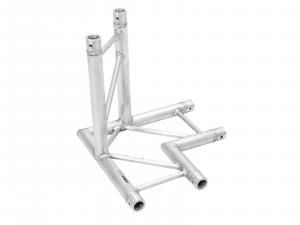

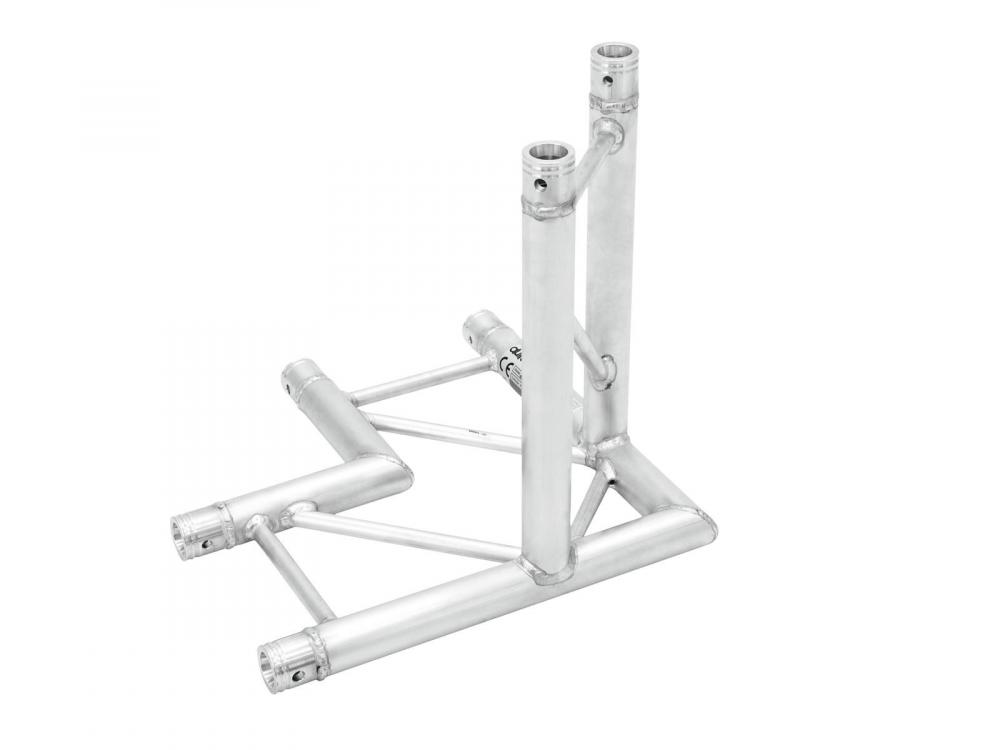

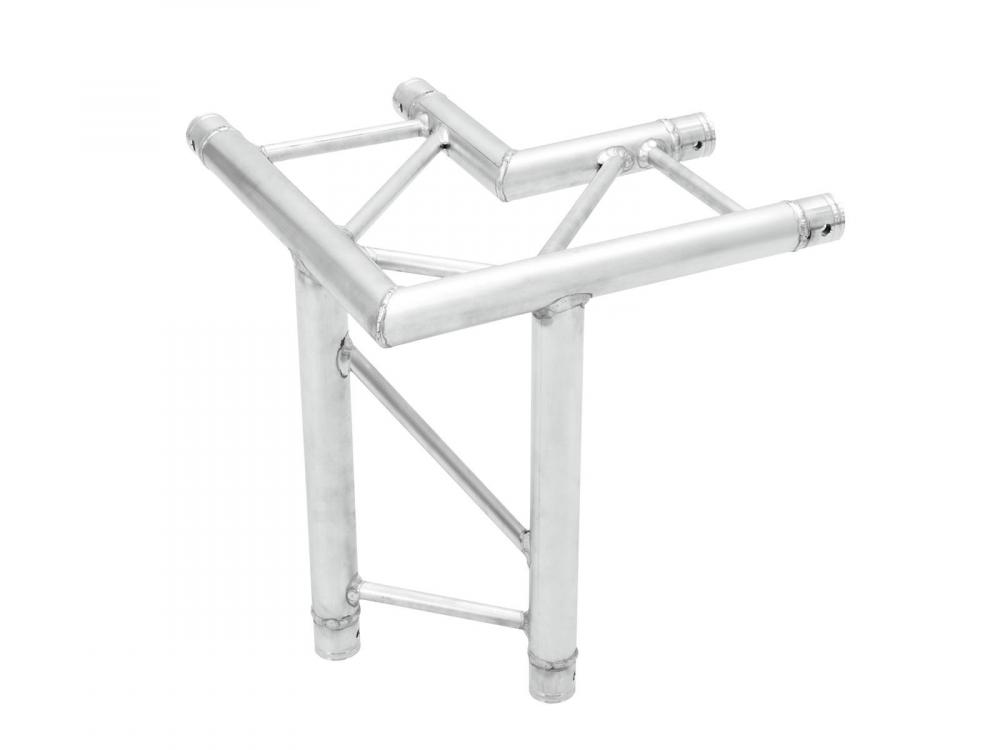

ALUTRUSS BILOCK E-GL22 C31-H 3-way corner 90°

ALUTRUSS

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for ALUTRUSS BILOCK E-GL22 C31-H 3-way corner 90°

Info
order code
60302111
product link
EAN
4026397573886
Product Name
ALUTRUSS BILOCK E-GL22 C31-H 3-way corner 90°
technical overview
Main chords: 50 x 2 mm
Braces: 20 x 2 mm
Alloy: EN-AW 6082 T6 (AlSi1MgMn)
Welding material: AlMg 5
Welding technique: TIG-welding
Dimensions: 240 mm (center - center)
Trusspipe: 50 mm x 2 mm
Strut diameter x thickness: 20 x 2mm
Color: Alu colored
Weight: 4,3 kg
main features
-Trusspipe diameter: 50 mm
-Corner angle: 90°
-Made in Europe
Mechanical
weight
4.30 kg
truss system
ladder
pipe diameter
50 mm
metal alloy
EN-AW 6082 T6 (AlSi1MgMn)
welding technique
TIG-welding

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
no files provided by the manufacturer
