Info | |
---|---|
order code |
20000568
|
product link | |
EAN |
4026397512724
|
Product Name |

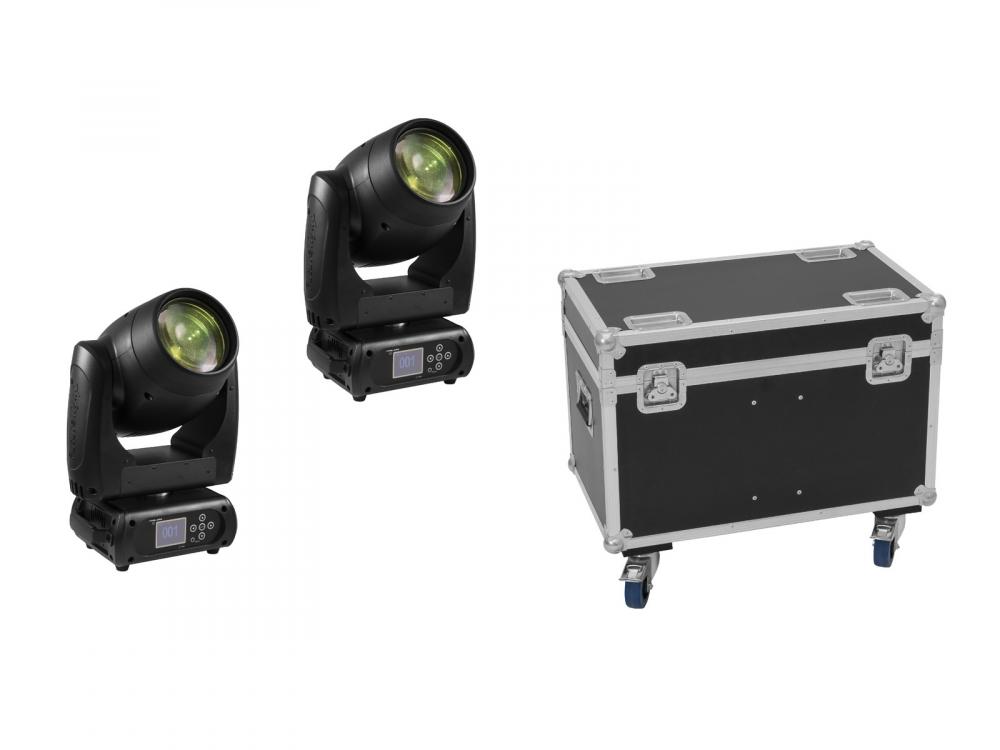

FUTURELIGHT Set 2x DMB-50 + Case
|
technical overview |
51841802 FUTURELIGHT DMB-50 LED Moving-Head Power supply: 100-240 V AC, 50/60 Hz Power consumption: 115 W DMX channels: 16/18/20/21 DMX connection: 5-pin XLR Sound-control: via built-in microphone LED type: 50 W RGB (module 3in1) LED number: 1 Beam angle: 2° Flash-rate: 20 Hz Static gobo-wheel: 17 gobos and open Maximum PAN-movement: 630° Maximum TILT-movement: 270° Dimensions (L x W x H): 267 x 298 x 398 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 11,5 kg Cooling fan: Yes, temperature-controlled IP classification: IP20 Laser class: Without laser Power consumption: 115 W Beam angle: 2° Height: 39,8 cm Depth: 26,7 cm Width: 29,8 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 270° Pan tilt feedback Equipment: Gobos static; Prisma 8-fold; Frost filter; Focus motor-driven Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 16; 18; 20; 21 LED: 1 x COB (chip-on-board) 50 W 3in1 TCL RGB (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz 31005072 ROADINGER Flightcase 2x DMH-75.i/DMH-80/TMH XB-130 Strength: 7 mm Outside dimensions (W x D x H): 770 x 375 x 635 mm Inside dimensions (W x D x H): 730 x 330 x 455 mm Compartment dimensions (W x D x H): 195 x 320 x 355 mm Accessory compartment (W x D x H): 85 x 330 x 375 mm Maximum load: 50 kg Weight: 18,5 kg Width: 77 cm Color: Dark brown laminated Depth: 37,5 cm Height: 63,5 cm Material: Glued plywood 7 mm |
main features |
51841802 FUTURELIGHT DMB-50 LED Moving-Head PRO beam Moving Head with a 50 W LED and very good RGB color mixing -Extraordinary projection possibilities, thanks to the RGB LED module (3in1) - even color mixing, sharp, narrow beams, vivid single colors and homogeneous white -Very narrow illumination angle of 2° -Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden) -Supports RDM (Remote Device Management) -16, 18, 20 or 21 DMX channels selectable -8-facet prism and frost filter -Preset colors and color temperatures (virtual color wheel) -Gobo wheel with 17 static gobos plus open -With gobo shake function -Exact positioning via 16 bit PAN/TILT movement resolution -Dimmer -Motorized focus -Strobe effect with adjustable speed -Random strobe effect -Automatic position correction -PAN angle switchable between 540° and 630° -Sound-controlled via built-in microphone -ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included) -Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset -DMX-controlled operation or stand-alone operation with Master/Slave function -The scenes can be modified via the Control Board or via an external controller and loaded into the memory -Number of scenes can be changed individually -Software upload by optional accessories via DMX link -Power connection via Neutrik PowerCon jack and included power cable -Feed-through output allows to power up to 8 devices -DMX control via any standard DMX controller -Case color: Black -Effect: Gobo effect -Projection: flicker-free -Power out: 1 x Powercon (Power out) gray, mounting version -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Control: WDMX upgradeable (optional); RDM; DMX; Stand-alone -LED: 1 x COB (chip-on-board) 50 W 3in1 TCL RGB (homogenous color mix) 31005072 ROADINGER Flightcase 2x DMH-75.i/DMH-80/TMH XB-130 Flightcase for two DMH-75.i spots -Interior seperated in three compartments, two for Futurelight DMH-75.i and one for accessories -High-quality workmanship with wood, dark brown laminated -Aluminum profile frames (25 mm) with rounded edges -Interior upholstered with foam -Three-leg, medium-sized steel ball corners -2 high-quality butterfly locks -3 high-quality hinged, zinc-plated case handles -4 x BlueWheels, 75 mm diameter, 2 with brakes -Transport aid: With wheels -Made in Europe |
Connectors | |
DMX connector types |
5pin
|
Control | |
control channels, min |
16 ch
|
control channels, max |
21 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
50.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
11.50 kg
|
width |
298.00 mm
|
height |
398.00 mm
|
length |
267.00 mm
|
pan range |
540 °
|
tilt range |
270 °
|
Optical | |
beam angle/zoom, min |
2.00 °
|
beam angle/zoom, max |
2.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
50.00 W
|
shutter/strobe frequency, max |
20 Hz
|
gobowheels total |
1 pcs
|
number of fixed gobos |
17 pcs
|
prism |
yes
|
multichip LED |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
