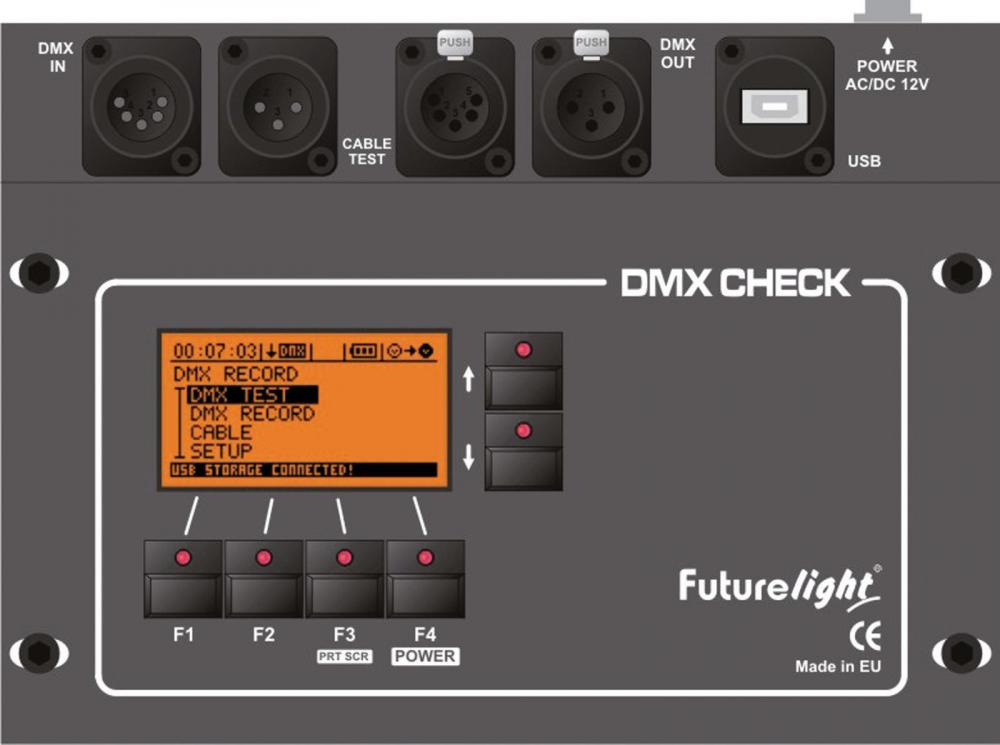

DMX512 Tester, Recorder, Repeater
-The following can be tested: DMX input and output signal, XLR cable, pin connection
-Exact data analysis and comparison with DMX standard
-Output of exact error descriptions
-Different DMX standards can be defined (1986, 1990, A, user defined)
-USB port for memory back up, loading of DMX data and software updates (for USB pendrives up to 2 GB)
-DMX recorder: DMX data can be saved on USP pendrive and played back
-Operates on power unit or rechargeable battery
-Built-in accumulators for mains independent operation (up to 6 hours)
-The necessary power adapter is included

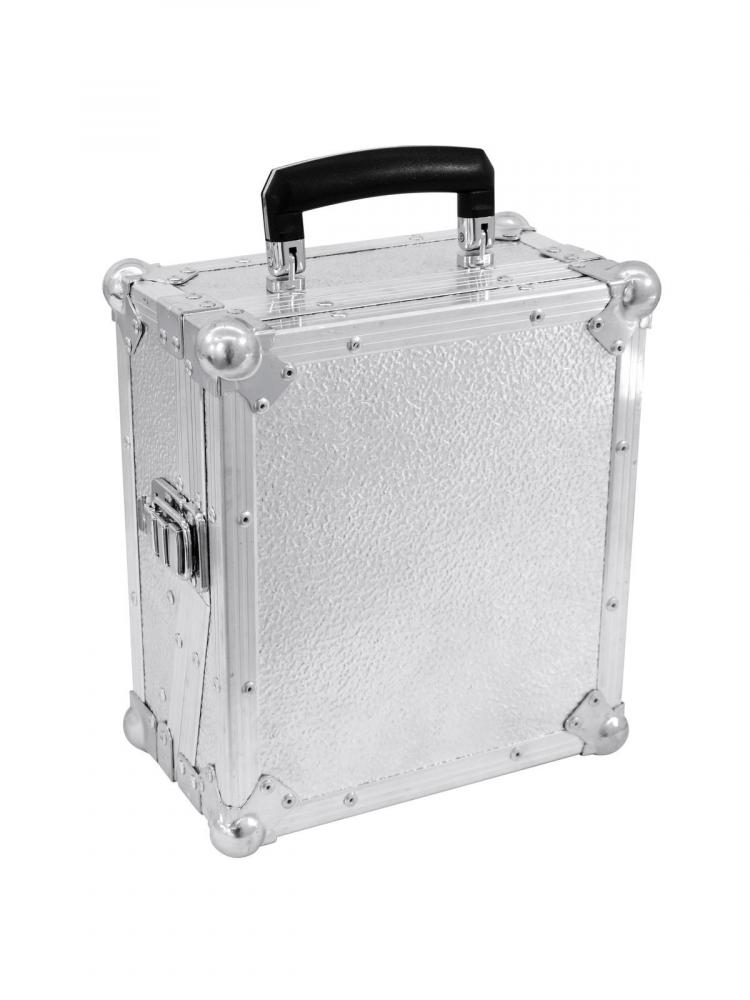

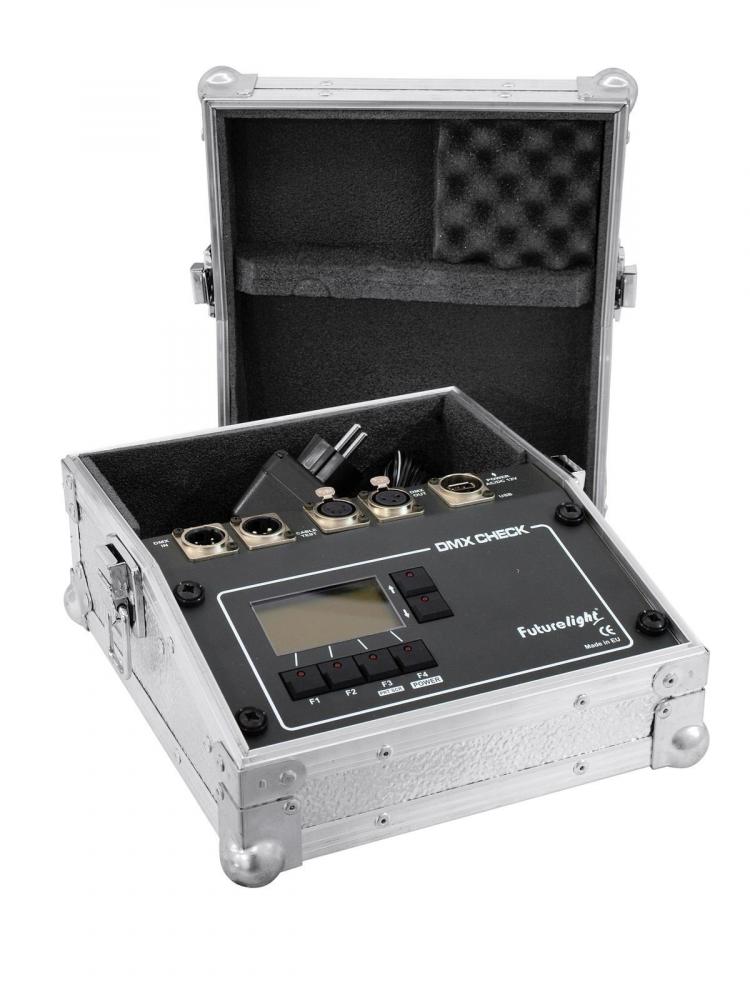

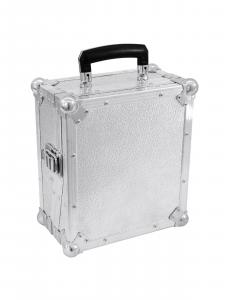

-Delivery in a practical transport case
-Made in Europe

Power supply: 230 V AC, 50 Hz
via 12 V DC, 1500 mA power unit included in the delivery
DMX channels: 512
DMX connection: 5-pin and 3-pin XLR
Accumulator capacity: 2 x 1.5 mAh, 6 hours work time with one charge
Incoming DMX signal level: -10 / +15V, 20mV-os sensibility
USB data storage: max. size 2 GB
DMX digital level accuracy: 200 ns
Dimensions (W x D x H): 350 x 250 x 130 mm
Weight: 4 kg
Power consumption: 20,00 W
Height: 13 cm
Depth: 25 cm
Width: 35 cm
DMX channels: 512
Power supply: 230 V AC, 50 Hz
