Info | |
---|---|
order code |
51834850
|
product link | |
main features |

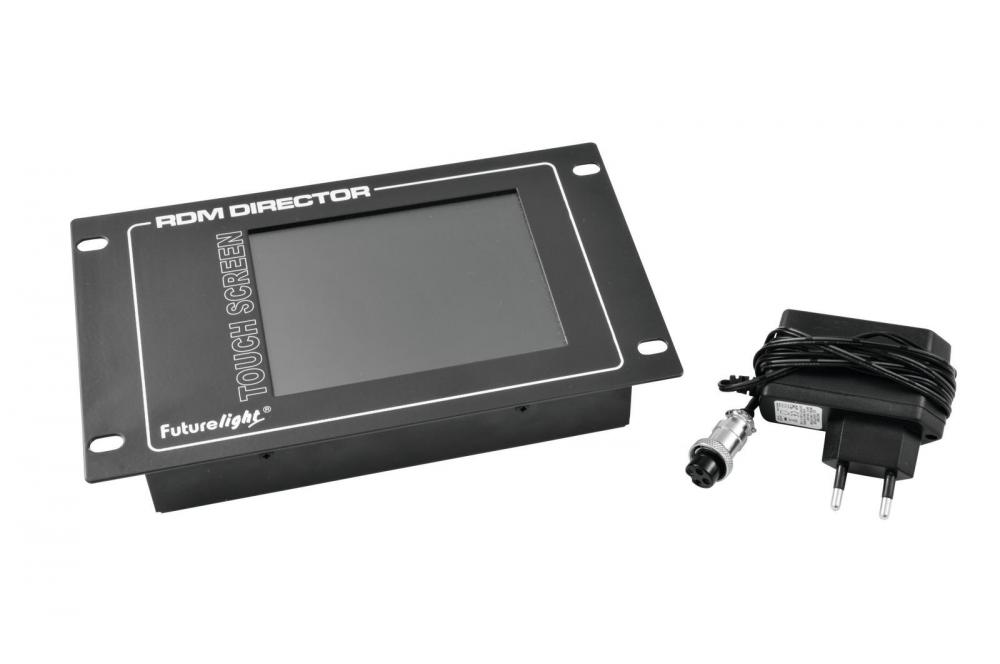

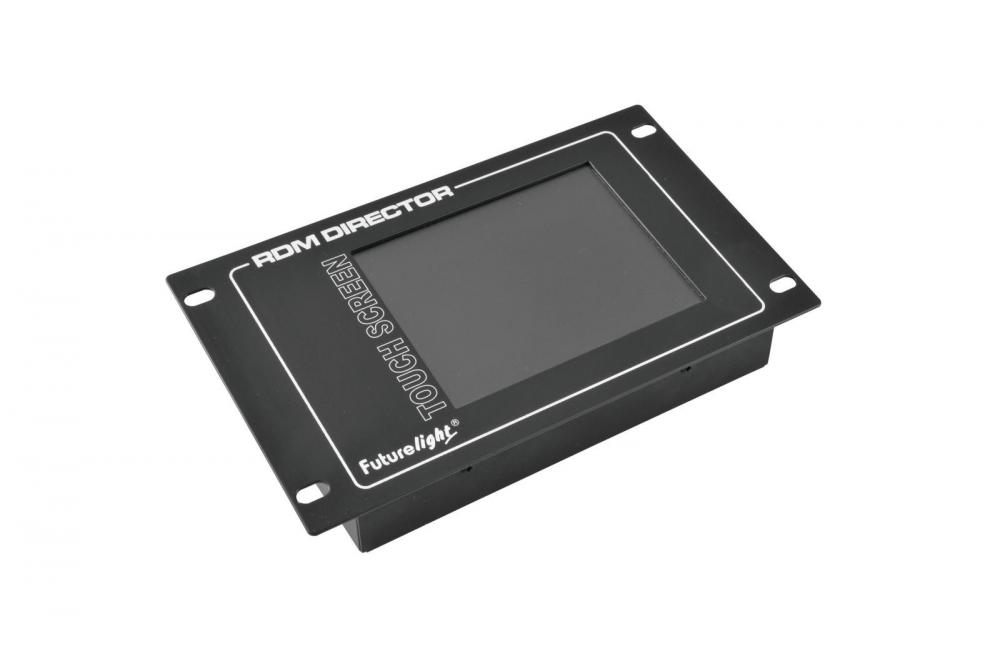

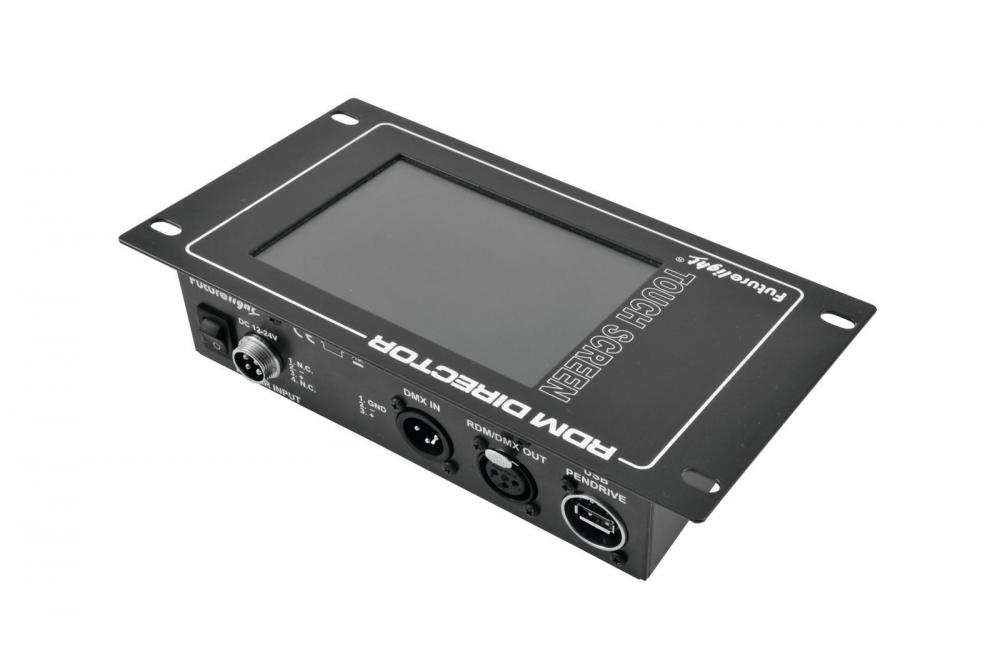

RDM controller with TFT touchscreen -RDM controller for monitoring and remote control of DMX fixtures compliant with RDM (Remote Device Management) -Quick analysis and configuration of fixture parameters, i.e. DMX start address, DMX mode, lamp hour count, fixture status -TFT touchscreen for menu settings -Various basic DMX control features integrated -1 DMX universe -USB port for firmware updates -3-pin XLR connectors -Power supply via included PSU -Power connection: Mains Input Socket (M) 4-pin screw plug connector (m) mounting version Power supply cord with AC adapter (m) (provided) -Made in Europe |
technical overview |
Power supply: 230 V AC, 50 Hz via 12 V DC, 1 A power unit included in the delivery Number of control channels: 512 DMX512/RDM connectors: 3-pin XLR USB port: 2.0, type B Dimensions (LxHxD): 230 x 133 x 60 mm Rack installation Minimum mounting depth: 60 mm Weight: 1 kg Mounting depth min.: ca. 60 mm Power consumption: 12 W Height: 6 cm DMX output: 1 x 3-pin XLR (F) mounting version Depth: 13,3 cm Power connection: Mains Input Socket (M) 4-pin screw plug connector (m) mounting version Power supply cord with AC adapter (m) Power supply: 110-240 V AC, 50/60 Hz 12 V DC 1 A DMX input: 1 x 3-pin XLR (M) mounting version Width: 23 cm DMX channels: 512 |
EAN |
4026397451481
|
Product Name |
FUTURELIGHT RDM Director Touch Screen
|
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
512 ch
|
control channels, max |
512 ch
|
Electrical | |
power consumption watt, max |
12.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
DC Volts, min |
12 V
|
DC Volts, max |
12 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
external PSU |
yes
|
Mechanical | |
weight |
1.00 kg
|
width |
230.00 mm
|
height |
60.00 mm
|
length |
133.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00069295.pdf |
