Info | |
---|---|
order code |
51834023
|
product link | |
EAN |
4026397588965
|
Product Name |

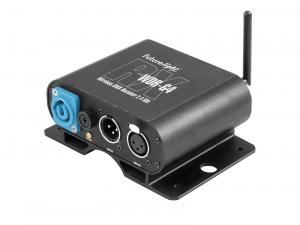

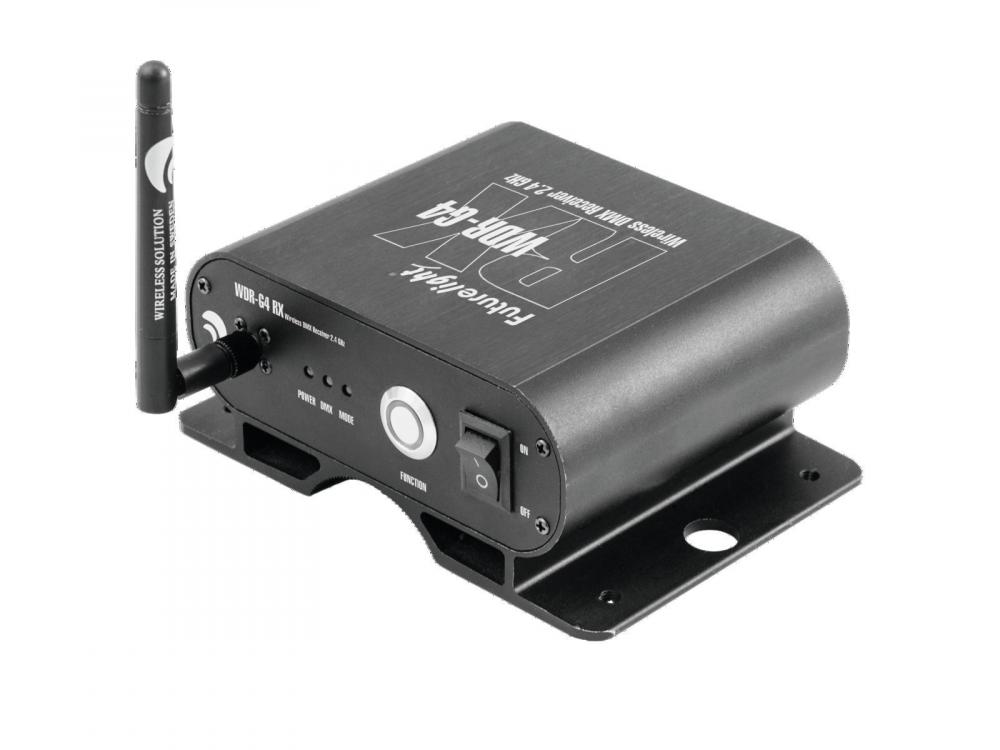

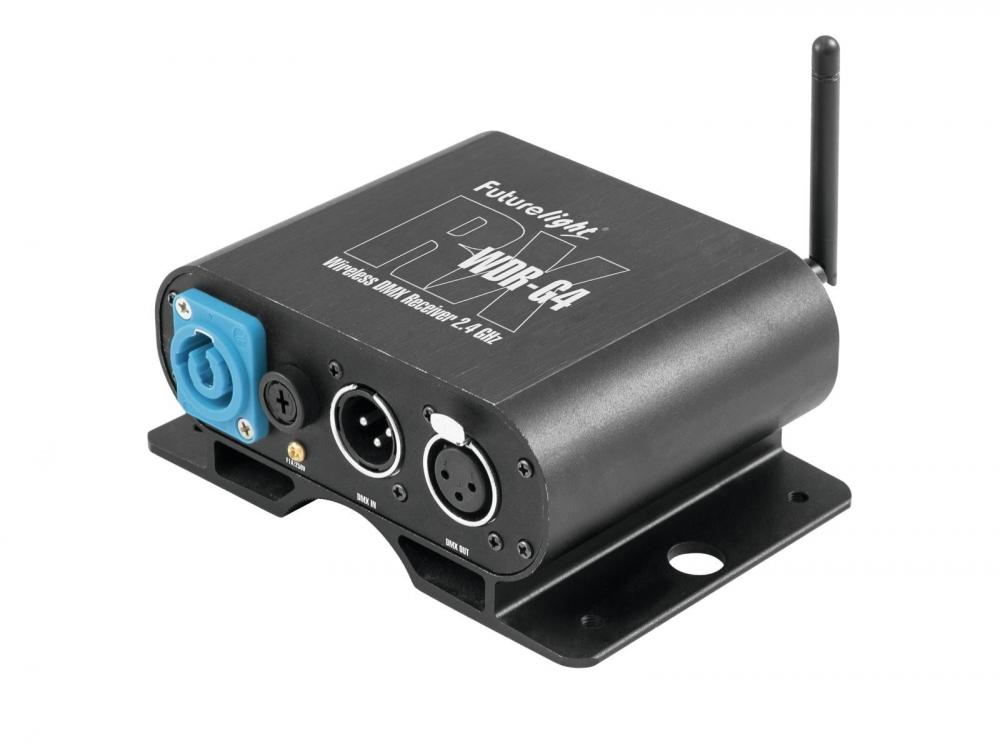

FUTURELIGHT WDR-G4 RX Wireless-DMX-Receiver
|
technical overview |
Power supply: 230 V AC, 50 Hz Carrier frequency: 2.4 GHz ISM band, 58 channels Modulation: AFHSS Coverage: up to 500 m (line-of-sight) Parallel operation: max. 6 transmitters (16 in advanced mode) Antenna: 2 dBi Latency: DMX channels: 512 (1 universe) DMX connectors: 3-pin XLR mounting socket 3-pin XLR mounting plug Dimensions with antenna (L x W x H): 145 x 100 x 58 mm Weight: 0,7 kg Power consumption: 3 W IP classification: IP20 Color: Black Height: 5,8 cm Width: 14,5 cm DMX channels: 512 Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) Depth: 10 cm Power supply: 230 V AC, 50 Hz |
main features |

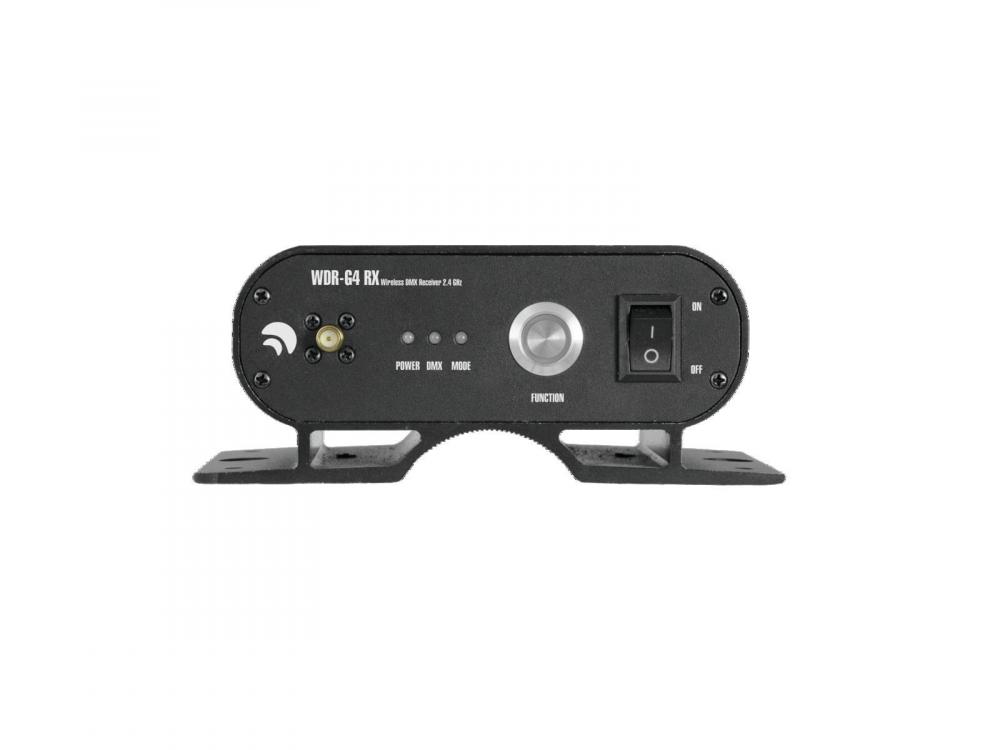

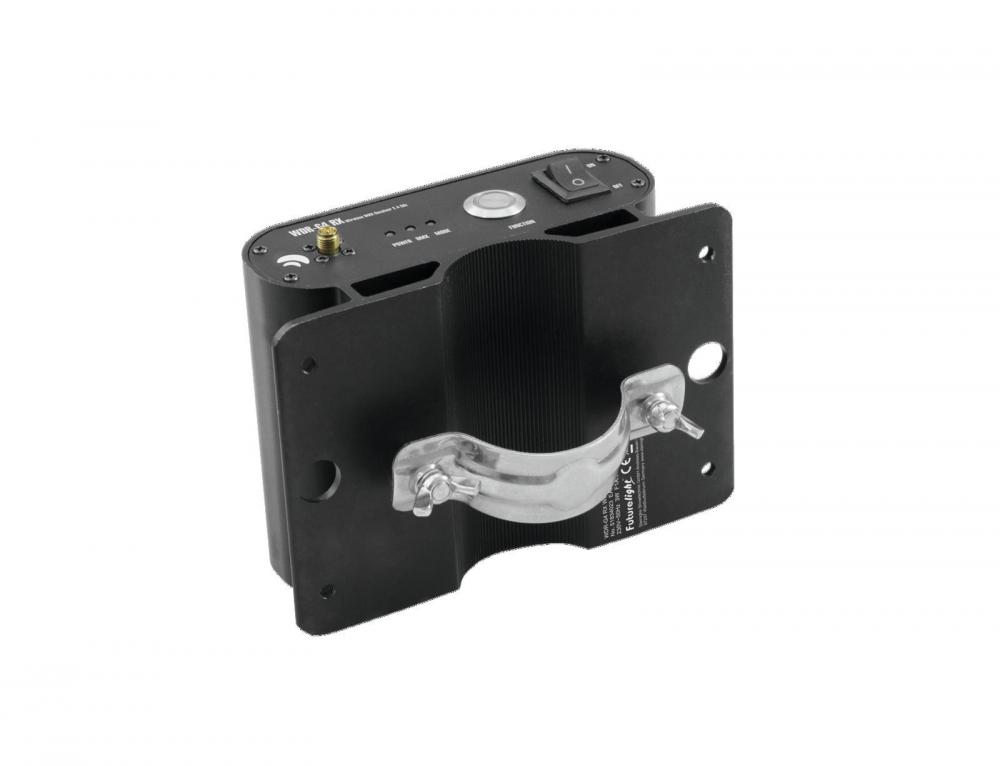

DMX wireless receiver with technology from Wireless Solution -Wireless transmission of DMX and RDM data -Compatible with Wireless Solution W-DMX systems -Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations -AFHSS technology ensures interference-free operation also alongside other WDR-G4 receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth) -Operating range up to 250 m (with line-of-sight) -1 to 512 receivers can be controlled by each transmitter -Plug & Play: quick and easy setup with one operating button -LED indication for operation and functions -DMX input and output, 3-pin XLR -Truss attachment option -2.4 GHz - license-free worldwide -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) -Control: RDM; W-DMX; DMX |
Connectors | |

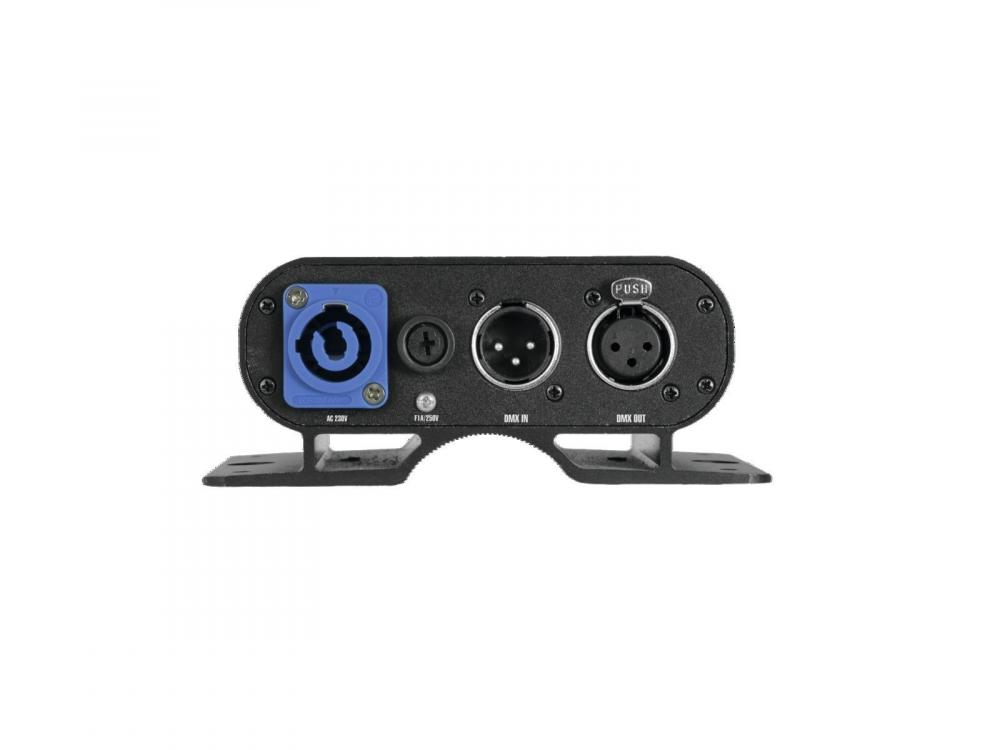

DMX connector types |
3pin
|
Control | |
control channels, min |
512 ch
|
control channels, max |
512 ch
|
Electrical | |
power consumption watt, max |
3.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
power input connector |
Powercon
|
IP rating |
20
|
Mechanical | |
weight |
0.70 kg
|
width |
145.00 mm
|
height |
58.00 mm
|
length |
100.00 mm
|
color |
black
|
