Info | |
---|---|
order code |
51834340
|
product link | |
EAN |
4026397193862
|
Product Name |

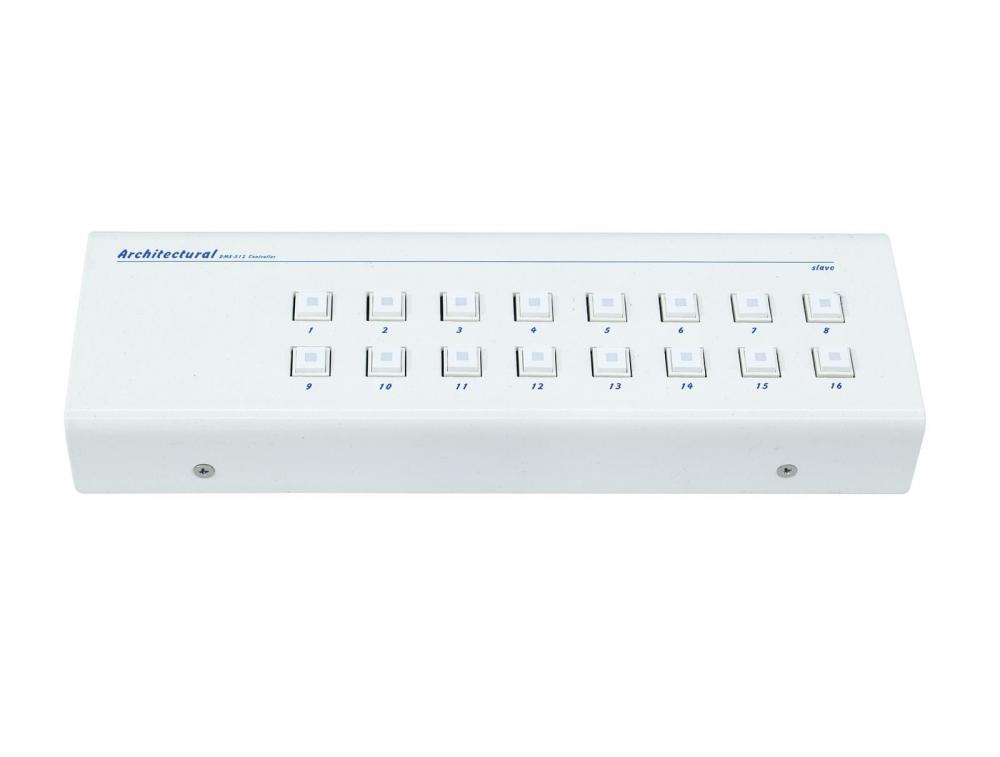

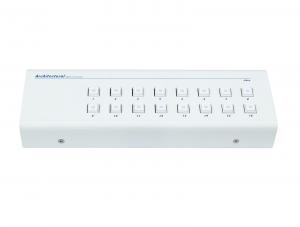

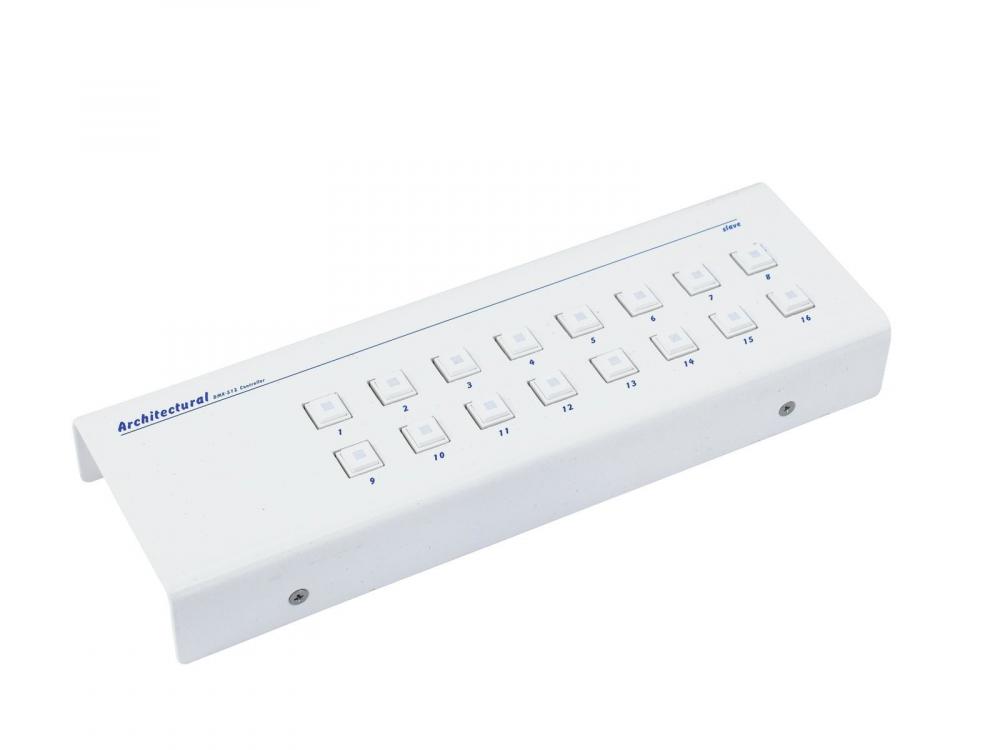

FUTURELIGHT ARC-S Control 512
|
technical overview |
Power supply: 10-24 V AC/DC, 50/60 Hz Dimensions (W x D x H): 230 x 30 x 75 mm Power consumption: 2,40 W Weight: 0,75 kg IP classification: IP20 Color: White Height: 3 cm Depth: 7,5 cm Width: 23 cm DMX channels: 1024 |
main features |
Comfortable architectural controller -512 DMX-channels -1 Master, up to 12 Slaves -All kinds of DMX-equipment (luminaires, LED-effects etc.) can be controlled -Comfortable adjustment of different parameters -Built-in clock with battery backup -999 scenes -999 programs with 99 steps each -99 daily programs with 128 steps each -99 weekly programs with 7 steps each -99 monthly programs with 31 steps each -Special program with 1 step -Simultaneously controllable events: 12 programs, 12 daily programs, 12 weekly programs and 12 monthly programs -PC-connection via USB -Power-unit included in the delivery -Installation only by professional installers or electricians -Case color: White -Housing design: Desktop console -Made in Europe -Control: DMX |
Control | |
control channels, min |
1024 ch
|
control channels, max |
1024 ch
|
Electrical | |
power consumption watt, max |
2.40 W
|
AC Volts, min |
10 V
|
AC Volts, max |
24 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
Mechanical | |
weight |
0.75 kg
|
width |
230.00 mm
|
height |
75.00 mm
|
length |
30.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
