Info | |
---|---|
order code |
51841960
|
product link | |
EAN |
4026397502763
|
Product Name |

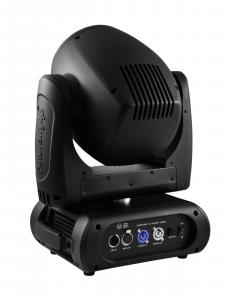

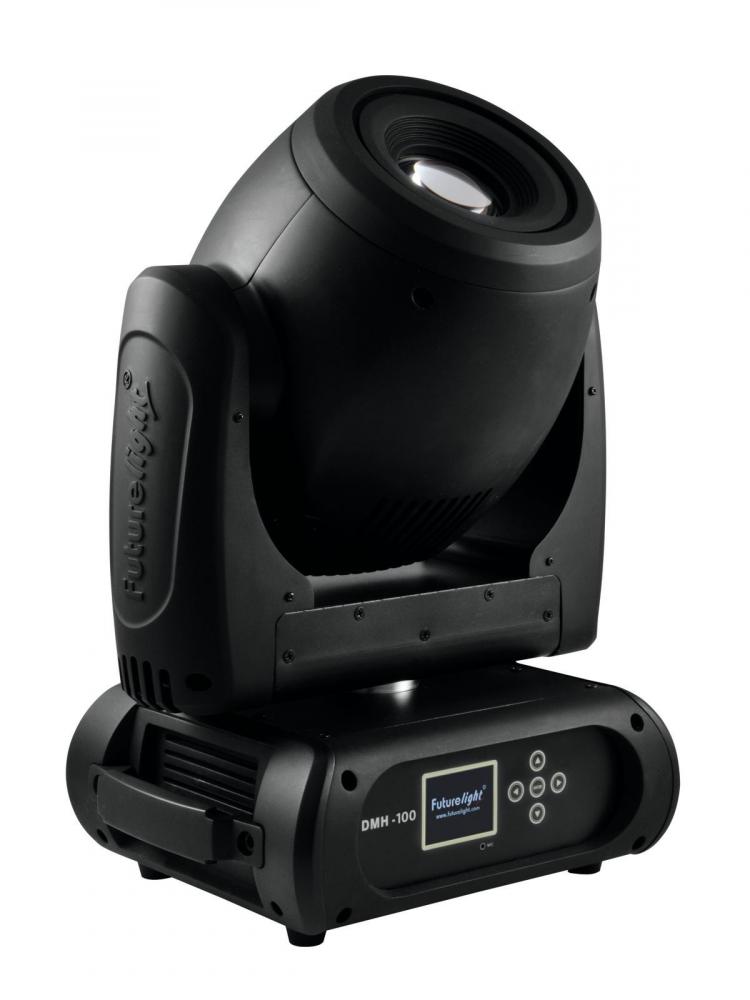

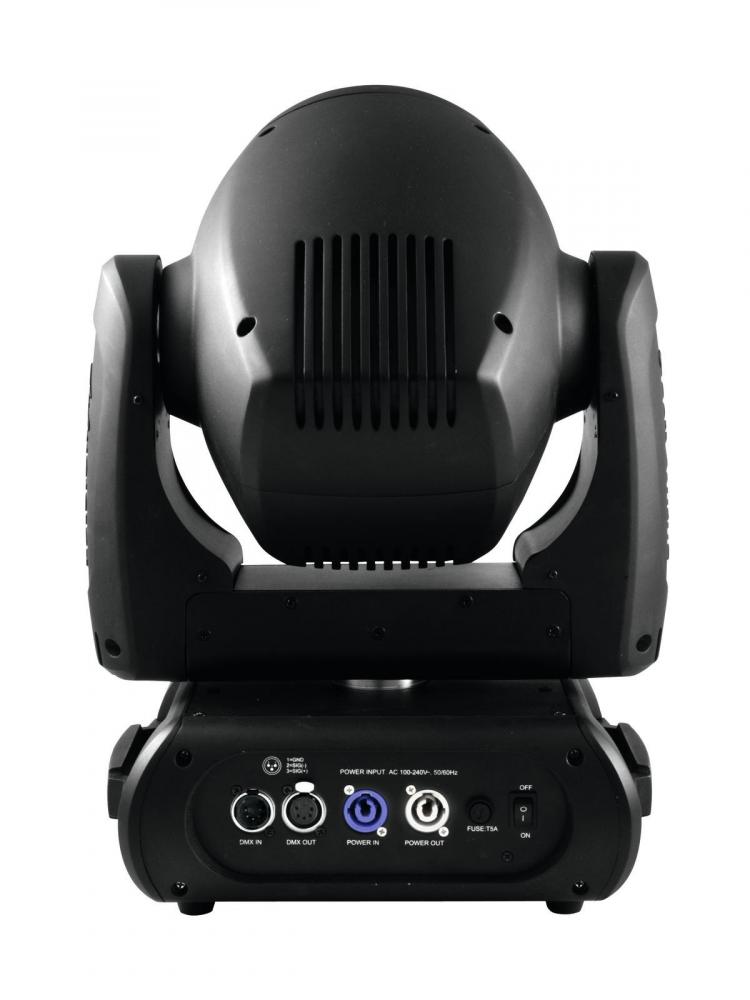

FUTURELIGHT DMH-100 RGBW LED Moving Head
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 17/19/26/33 DMX connection: 5-pin and 3-pin XLR Sound-control: via built-in microphone Wireless signal transmission: 2.4 GHz (ISM) LED type: Array Cluster 100 W LED number: 1 Beam angle: 13° Static gobo-wheel: 7 gobos and open Rotating gobo-wheel: 7 gobos and open Outside diameter of the gobos: 27 mm Image diameter of the gobos: 22 mm Maximum PAN-movement: 630° Maximum TILT-movement: 270° Dimensions (L x W x H): 343 x 250 x 428 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting DMX channels: 17 Weight: 13 kg Power consumption: 200 W Max. TILT movement: Exact positioning (16 bit resolution) 270° Pan tilt feedback Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Pan tilt feedback Gobo dimensions: External diameter 27 mm, Image diameter 22 mm Beam angle: 13° Lamp type: LED lamp Cooling fan: Yes, temperature-controlled IP classification: IP20 Height: 42,8 cm Depth: 25 cm Width: 34,3 cm Equipment: Gobos Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) LED: 1 x COB (chip-on-board) 100 W 4in1 QCL RGBW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
High performance LED Moving Head with quadcolor LED and unique color effect prism -Equipped with a 100 W COB LED in RGBW colors -With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden) -Color effect prism: Not only the gobos, also the colors are split -Supports RDM (Remote Device Management) -17, 19, 26 or 33 DMX channels selectable -Stepless RGBW color mixture -Color presets -Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter -Gobo wheel 1 with 7 rotating gobos plus open -All gobos can be interchanged -Slot-in gobo system for exchanging gobos without tools -With gobo shake function -Gobo wheel 2 with 7 static gobos plus open -Exact positioning via 16 bit PAN/TILT movement resolution -Exact color setting via 16 bit resolution -Motorized focus -Autofocus -Steplessly adjustable iris -Dimmer -Strobe effect with adjustable speed -Random strobe effect -Automatic position correction -PAN angle switchable between 540° and 630° -Sound-controlled via built-in microphone -Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector -Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset -DMX-controlled operation or stand-alone operation with Master/Slave function -The scenes can be modified via the Control Board or via an external controller and loaded into the memory -Number of scenes can be changed individually -Software upload by optional accessories via DMX link -Power connection via Neutrik PowerCon jack and included power cable -Feed-through output allows to power another device -After 8 devices the fixtures must have a renewed connection with the power mains -DMX control via every standard DMX controller -Case color: Black -Effect: Gobo effect; Single Beam -Power out: 1 x Powercon (Power out) gray, mounting version -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Control: W-DMX; Sound to light via microphone; Stand-alone; DMX; RDM -LED: 1 x COB (chip-on-board) 100 W 4in1 QCL RGBW (homogenous color mix) |
Connectors | |
DMX connector types |
both 3/5pin
|
Control | |
control channels, min |
17 ch
|
control channels, max |
17 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
200.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
13.00 kg
|
width |
343.00 mm
|
height |
428.00 mm
|
length |
250.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
Optical | |
beam angle/zoom, min |
13.00 °
|
beam angle/zoom, max |
13.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
100.00 W
|
optics/projection type |
Spotlight
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
gobowheels total |
1 pcs
|
number of fixed gobos |
7 pcs
|
number of rotating gobos |
7 pcs
|
