Info | |
---|---|
order code |
51841980
|
product link | |
EAN |
4026397637366
|
Product Name |

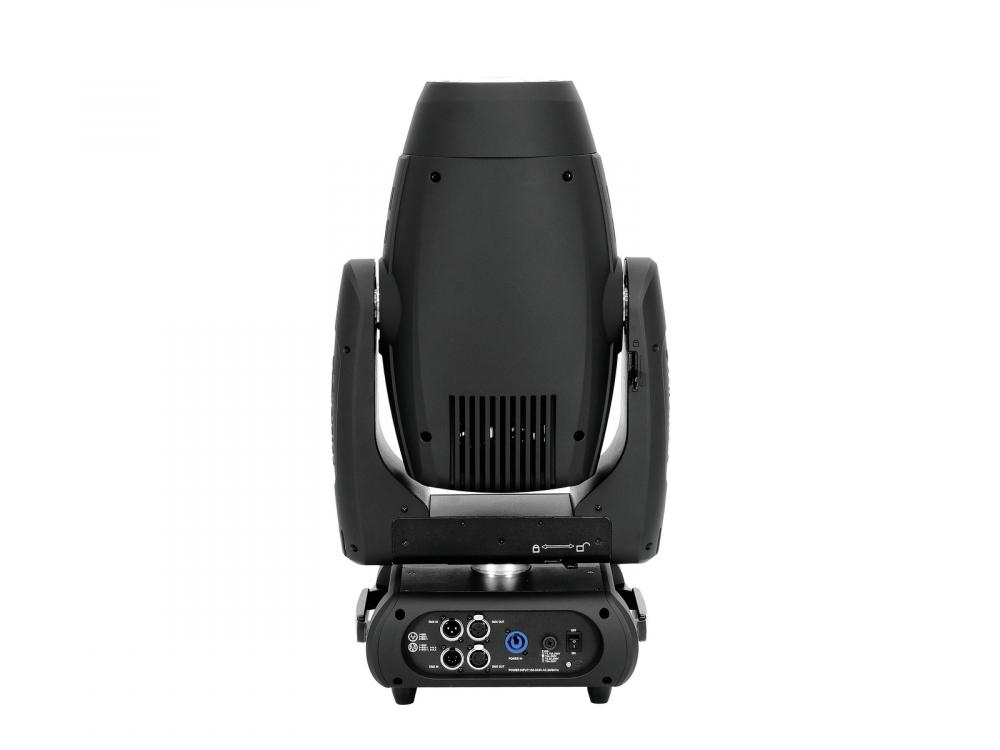

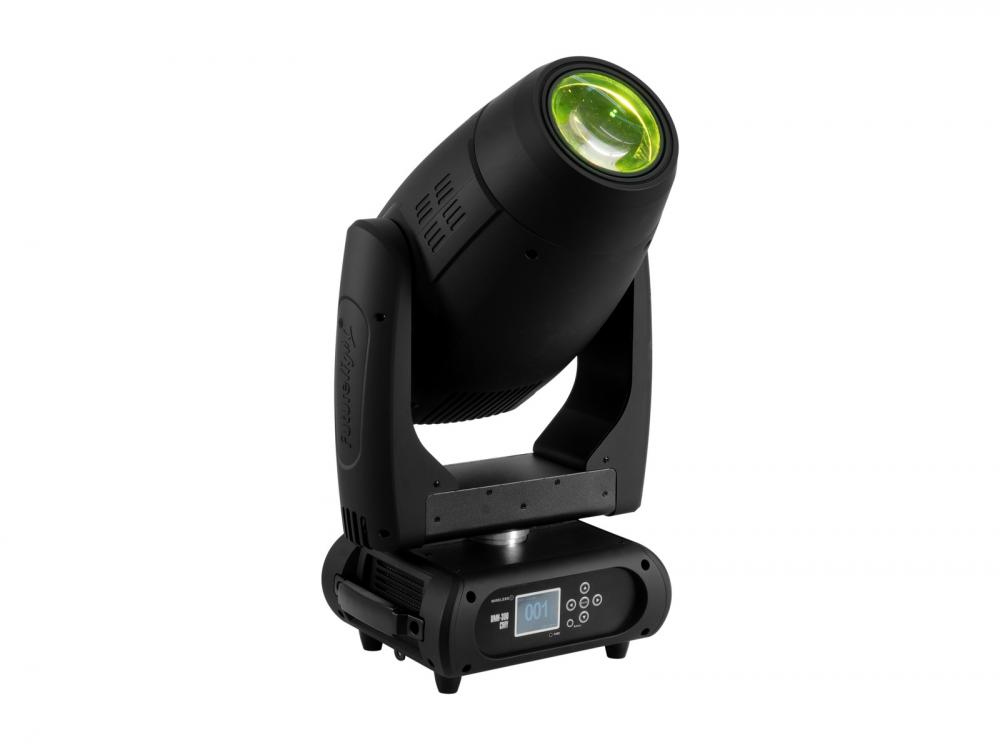

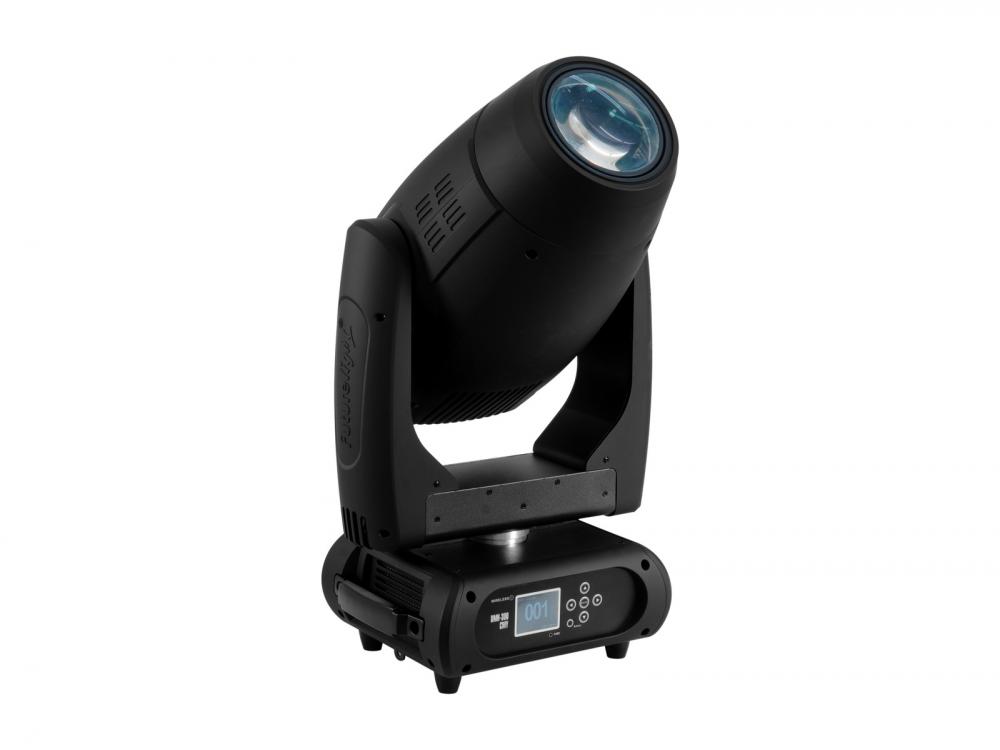

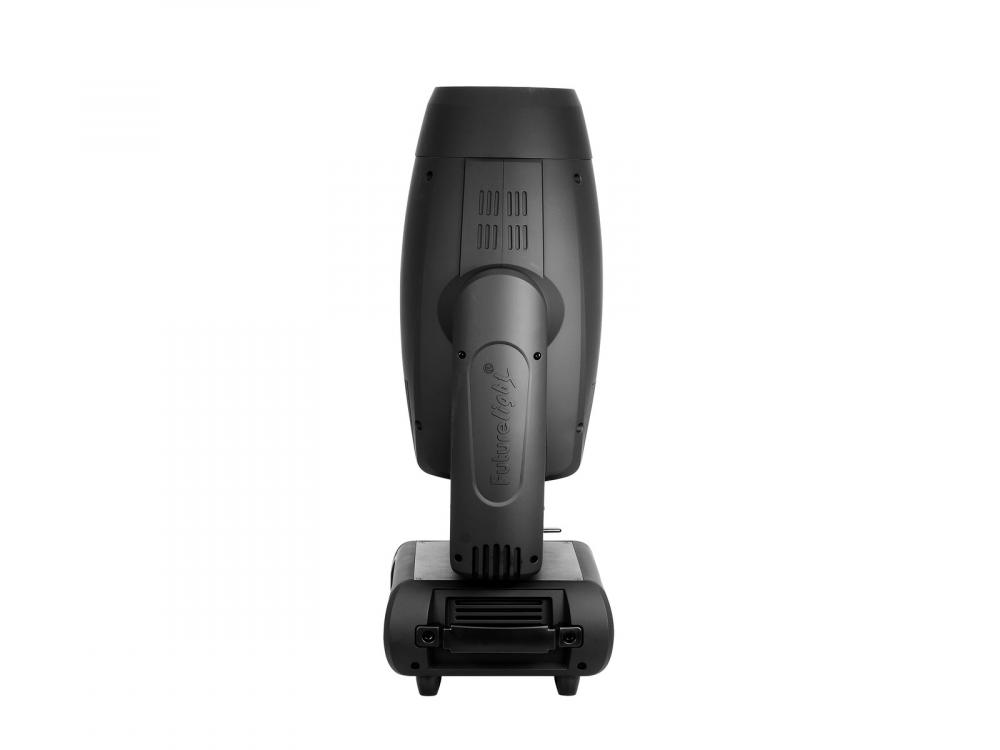

FUTURELIGHT DMH-300 CMY Moving Head
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 19/21/28/29 DMX connection: 5-pin and 3-pin XLR Sound-control: via built-in microphone LED type: 270 W COB, white, 8000 K LED number: 1 Beam angle: 8-44° Color-system: CMY color-mixture Color-wheel: 8 dichroic filters plus open Static gobo-wheel: 7 gobos and open Rotating gobo-wheel: 7 gobos and open Outside diameter of the gobos: 27 mm Image diameter of the gobos: 22 mm Maximum PAN-movement 630°: in 4 s Maximum TILT-movement 265°: in 2.8 s Dimensions (L x W x H): 445 x 369 x 534 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 25,10 kg Lamp type: LED lamp Cooling fan: Yes, temperature-controlled IP classification: IP20 Power consumption: 340 W Beam angle: 8 - 44° Width: 44,5 cm Depth: 36,9 cm Height: 53,4 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 265° Pan tilt feedback Equipment: Gobos rotating; Gobos static; Prisma 3-fold; Zoom motor-driven; Focus motor-driven; Frost filter; Iris Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 19; 21; 28; 29 LED: 1 x CTO Power supply: 110-240 V AC, 50/60 Hz |
main features |
PRO beam/wash Moving Head with 270 W COB LED, large zoom and CMY color mixing -Powerful white 270 W COB LED -Variable PWM frequency (pulse-width modulation) -CMY color mixing for indefinite color variations -Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden) -Supports RDM (Remote Device Management) -19, 21, 28 or 29 DMX channels selectable -Effect wheel with rotating 3-facet prism -Color wheel with 8 different dichroic color filters plus white -Rainbow effect with adjustable speed in both directions -Gobo wheel with 7 rotating gobos plus open -All rotating gobos can be interchanged -Slot-in gobo system for exchanging gobos without tools -With gobo shake function -Gobo wheel 2 with 7 static gobos plus open -Exact positioning via 16 bit PAN/TILT movement resolution -Motorized focus -Autofocus -Motorized zoom with 8 - 44° beam angle -Steplessly adjustable iris -Stepless frost-filter -Dimmer -Strobe effect with adjustable speed -Random strobe effect -Automatic position correction -PAN angle switchable between 540° and 630° -Sound-controlled via built-in microphone -Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset -DMX-controlled operation or stand-alone operation with Master/Slave function -The scenes can be modified via the Control Board or via an external controller and loaded into the memory -Number of scenes can be changed individually -Software upload by optional accessories via DMX link -Power connection via Neutrik PowerCon jack and included power cable -ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included) -DMX control via any standard DMX controller -Case color: Black -Effect: Strobe effect -Projection: flicker-free -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Control: WDMX upgradeable (optional); Stand-alone; DMX; RDM -LED: 1 x CTO |
Connectors | |
DMX connector types |
both 3/5pin
|
Control | |
control channels, min |
19 ch
|
control channels, max |
29 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
340.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
25.10 kg
|
width |
445.00 mm
|
height |
534.00 mm
|
length |
369.00 mm
|
pan range |
540 °
|
tilt range |
265 °
|
Optical | |
beam angle/zoom, min |
44.00 °
|
beam angle/zoom, max |
8.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
optics/projection type |
Spotlight
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
1 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
7 pcs
|
number of rotating gobos |
7 pcs
|
prism |
yes
|
CMY colormixing |
flag
|
