Info | |
---|---|
order code |
51840915
|
product link | |
EAN |
4026397625714
|
Product Name |

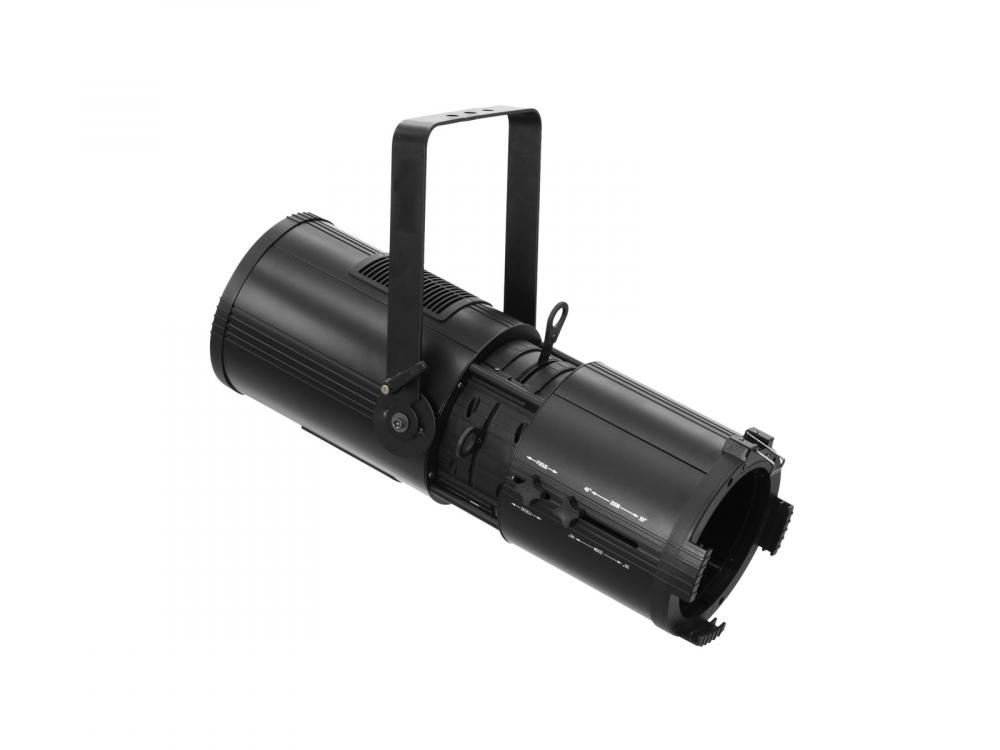

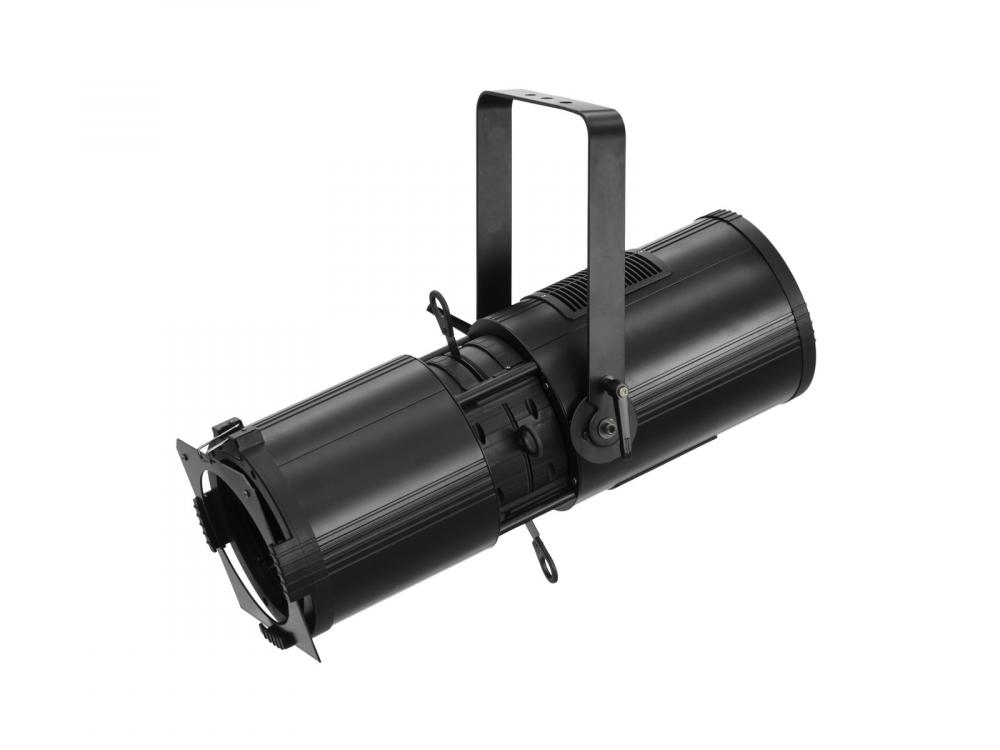

FUTURELIGHT Profile 200, 20-45°
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Number of DMX channels: 1/2 DMX-512 connection: 3-pin & 5-pin XLR LED type: 200 W WW COB Number of LEDs: 1 Beam angle: 20-45° Gobo outside/image diameter: 85 mm/60 mm Dimensions: 645 x 276 x 277 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 10 kg IP classification: IP20 Power consumption: 230 W Lamp type: LED lamp Beam angle: 20 - 45° Height: 27,7 cm Width: 27,6 cm Length: 64,5 cm Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) LED: 1 x COB (chip-on-board) 200 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |

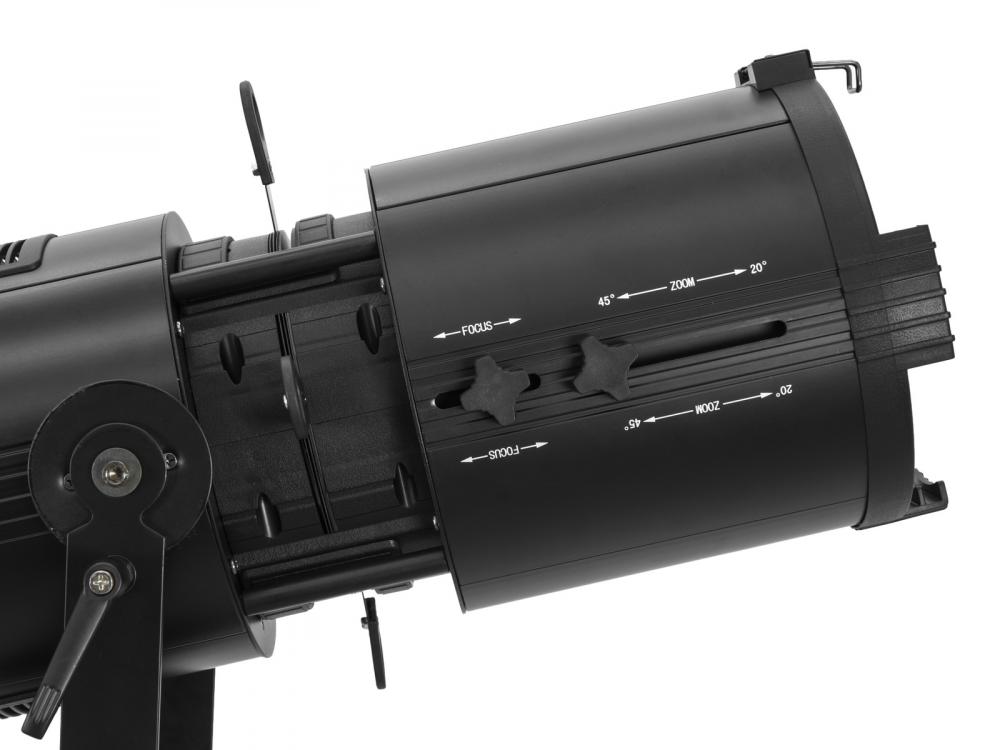

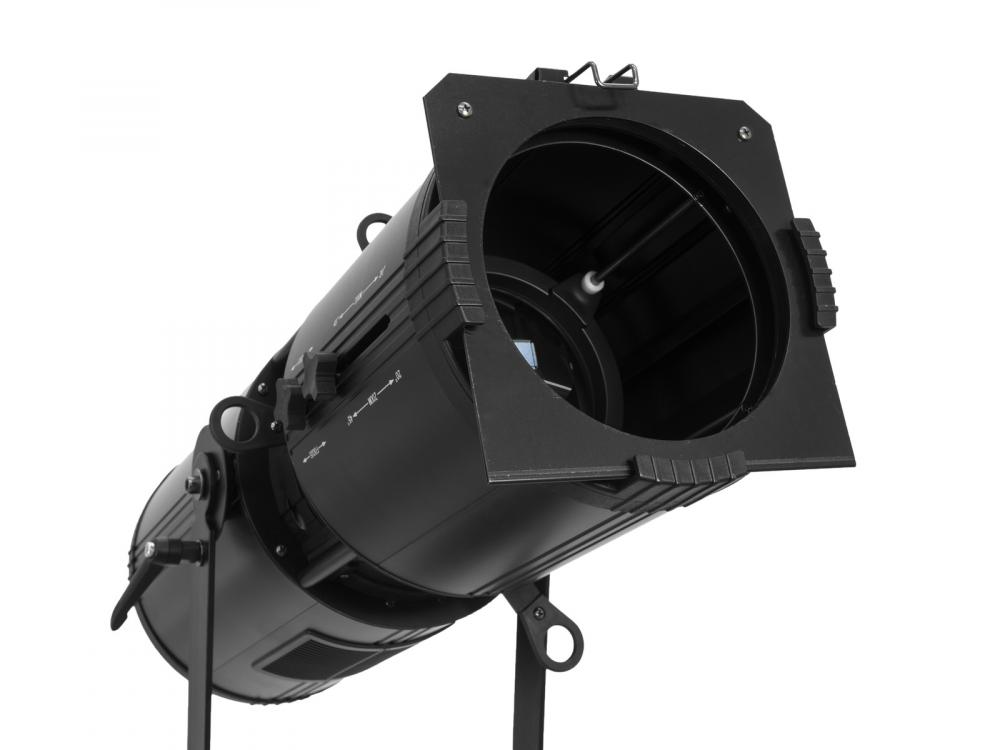

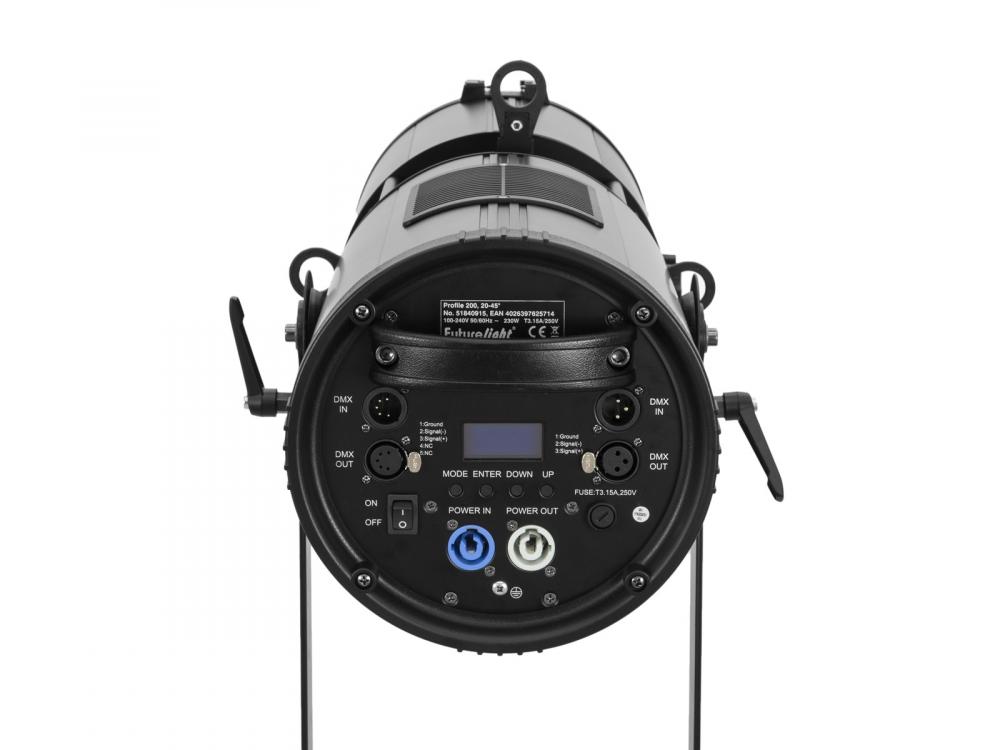

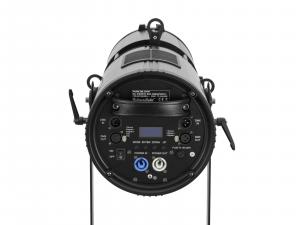

PRO profile spotlight, warm white 200 W LED, zoom, CRI >90, extremely quiet -Operable in stand-alone mode or via DMX -1 or 2 DMX channels selectable -1 high-power warm white 200 W COB LED -CRI of >90 -Color temperature: 3300 K -Functions: dimmer, strobe effect, Master/Slave -Dimmer speed (step response) adjustable -Addressing and setting via Control Board with LCD and four operating buttons -Glass front lens -Locking possibility at the bracket -Ideal for theatres and stages -Focus manually adjustable -Manually adjustable zoom -Color filter frame, gobo frame and 4 shutter blades included in delivery -Suitable for gobos with an outside/image diameter of 85 mm/60 mm -P-Con power input and feed-through output to power up to 8 devices -Switch-mode power supply for operation between 100 and 240 volts -Case color: Black -Color rendering index (CRI) more than: 90 Ra -Projection: flicker-free -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) -Power out: 1 x P-Con (Power out) gray, mounting version -Control: Stand-alone; DMX -LED: 1 x COB (chip-on-board) 200 W WW (homogenous color mix) |
Connectors | |
DMX connector types |
both 3/5pin
|
Control | |
control channels, min |
1 ch
|
control channels, max |
2 ch
|
Electrical | |
power consumption watt, max |
230.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
Mechanical | |
weight |
10.00 kg
|
width |
276.00 mm
|
height |
277.00 mm
|
length |
645.00 mm
|
Optical | |
beam angle/zoom, min |
45.00 °
|
beam angle/zoom, max |
20.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
200.00 W
|
WARM WHITE LED source |
yes
|
