Info | |
---|---|
order code |
51842561
|
product link | |
EAN |
4026397590609
|
Product Name |

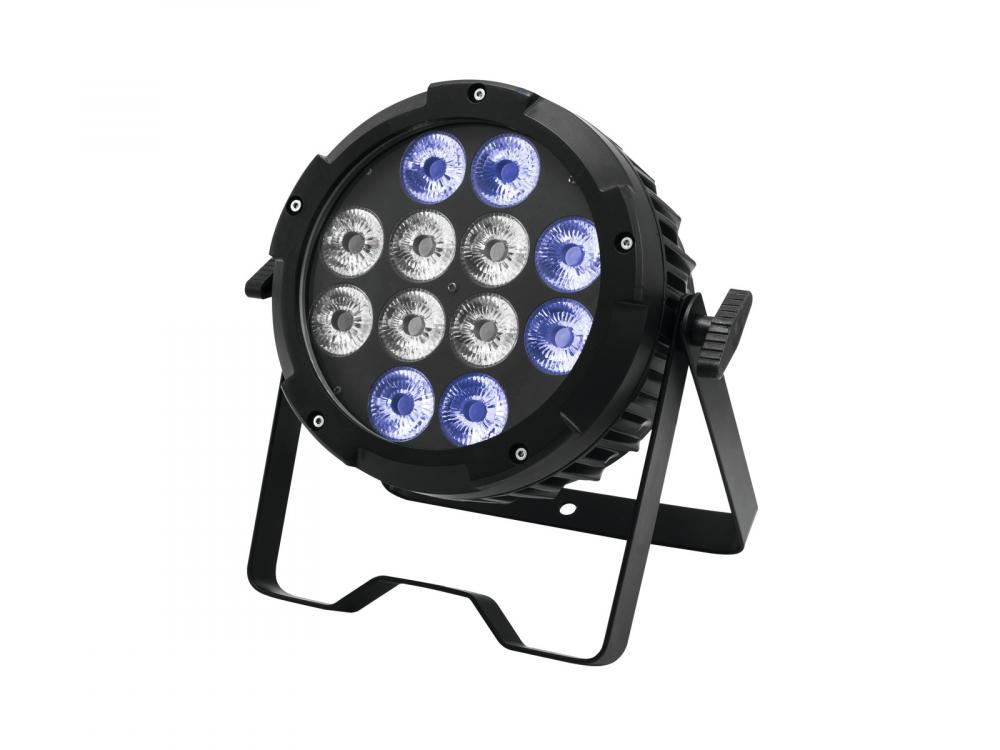

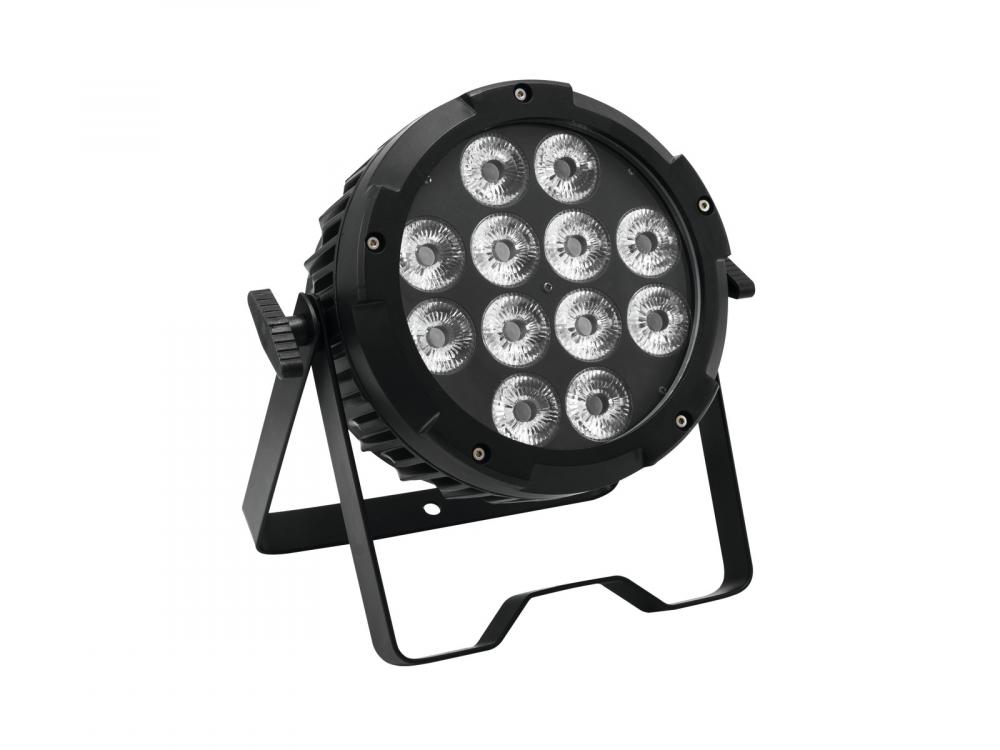

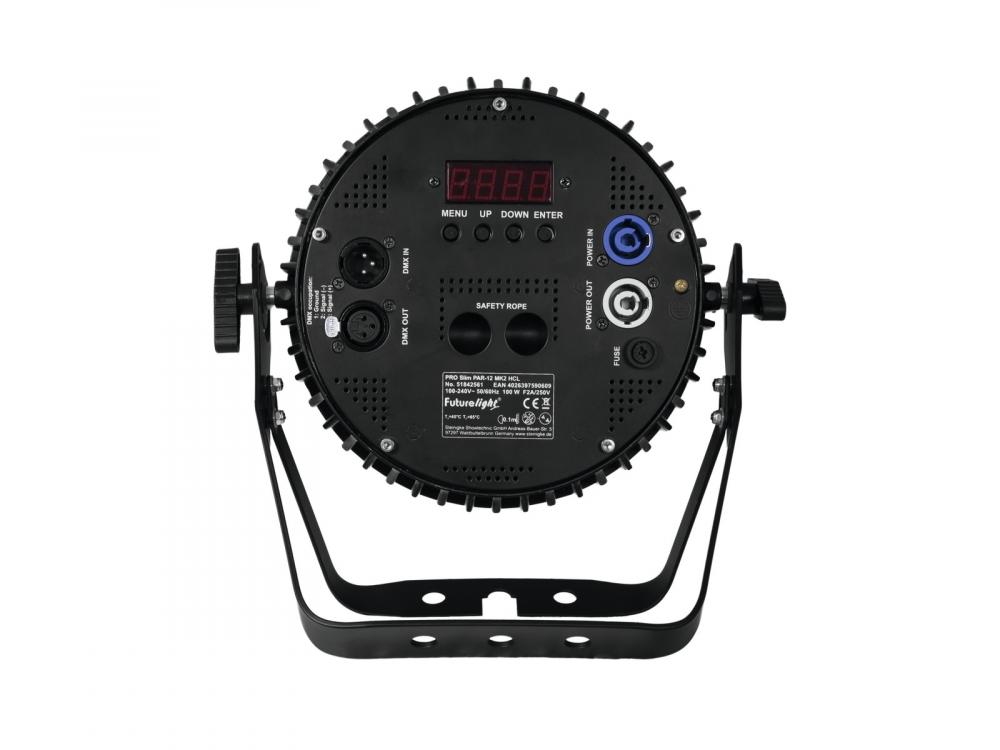

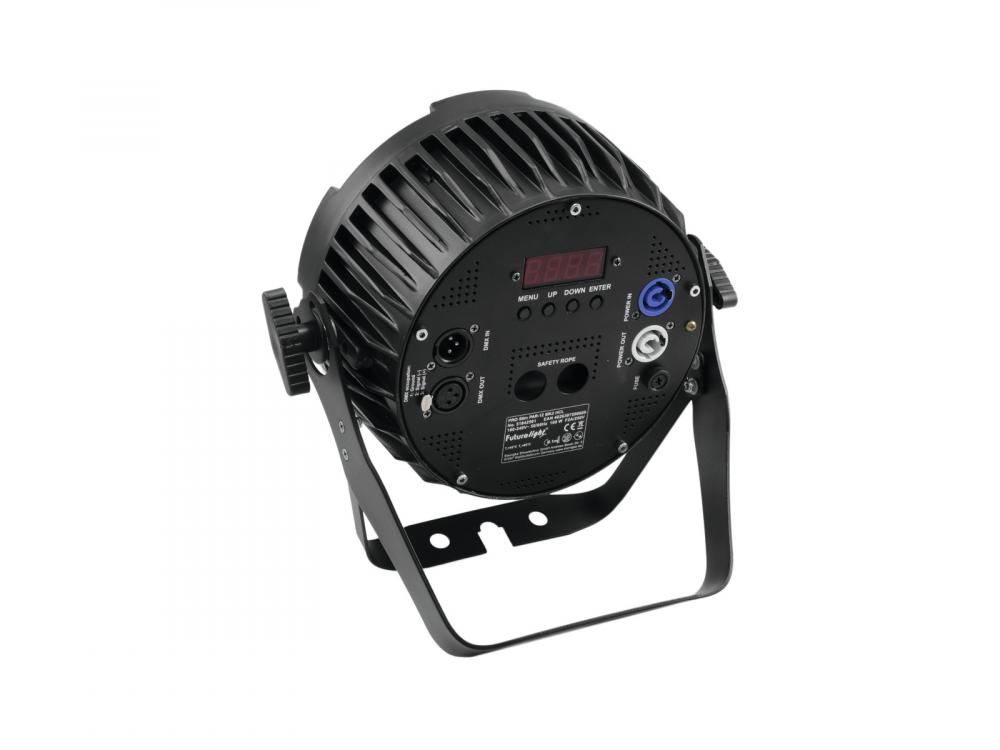

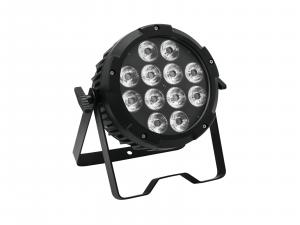

FUTURELIGHT PRO Slim PAR-12 MK2 HCL
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 6/10 DMX connection: 3-pin XLR Sound-control: via built-in microphone LED type: 10 W RGBAW+UV (6in1) LED number: 12 Beam angle: 18° Dimensions (W x D x H): 280 x 125 x 295 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP20 Beam angle: 18° Cooling fan: No, cooling by convection Weight: 4,80 kg Lamp type: LED lamp Power consumption: 100 W Laser class: Without laser Height: 29,5 cm Depth: 12,5 cm Width: 28 cm Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) DMX channels: 6; 10 LED: 12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
Flat PRO LED spot with 12 x 10 W 6in1 LED (RGBAW+UV) without fan -Equipped with 12 high-power LEDs in the colors red, green, blue, amber, white and UV -Flat housing form requires minimal space when rigging -Extremely compact housing in a beautiful design -Second mounting bracket for safe standing installation -Locking possibility at the brackets with large metal butterfly screws -Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation -Functions: static colors, RGBAW+UV color mixture, automatic color changes, dimmer, strobe effect with adjustable speed, sound-control via built-in microphone, Master/Slave operation -6 or 10 channels selectable -Addressing and setting via Control Board with four operating buttons and LED display -Switch-mode power supply for operation between 100 and 240 volts -Power connection via P-Con jack and included power cable with safety plug -Feed-through output allows to power up to 8 devices -DMX512 control possible via any commercial DMX controller -Case color: Black -Effect: Strobe effect; UV -Projection: flicker-free -Power out: 1 x P-Con (Power out) gray, mounting version -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) -Control: Stand-alone; DMX -LED: 12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
Control | |
control channels, min |
6 ch
|
control channels, max |
10 ch
|
Electrical | |
power consumption watt, max |
10.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
passive
|
Mechanical | |
weight |
4.80 kg
|
width |
280.00 mm
|
height |
295.00 mm
|
length |
125.00 mm
|
Optical | |
beam angle/zoom, min |
18.00 °
|
beam angle/zoom, max |
18.00 °
|
light source |
LED
|
Number of light sources |
12 pcs
|
wattage per light source |
10.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
UV light source |
yes
|
AMBER light source |
yes
|
