Info | |
---|---|
order code |
10451694
|
product link | |
EAN |
4026397505924
|
Product Name |

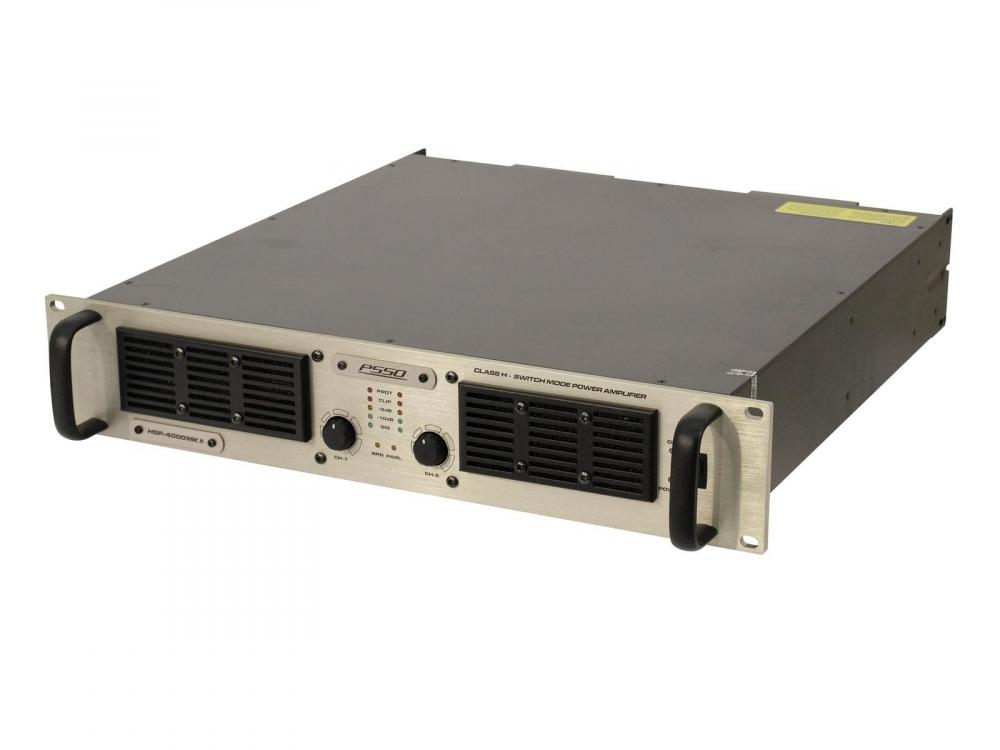

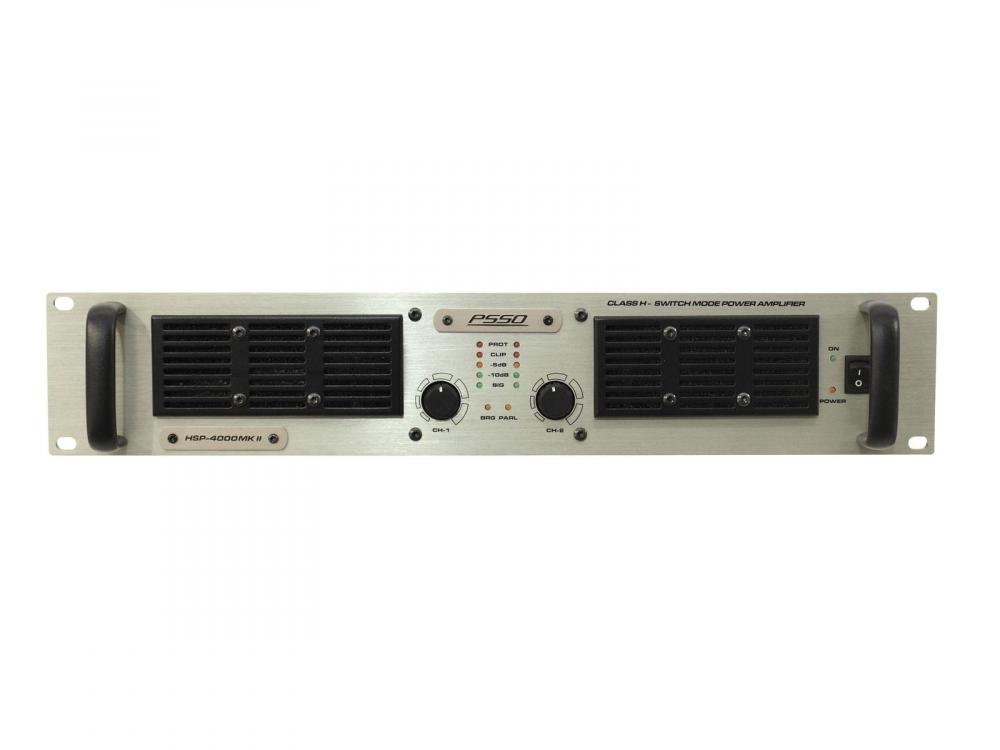

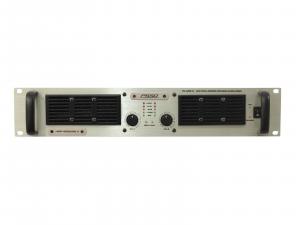

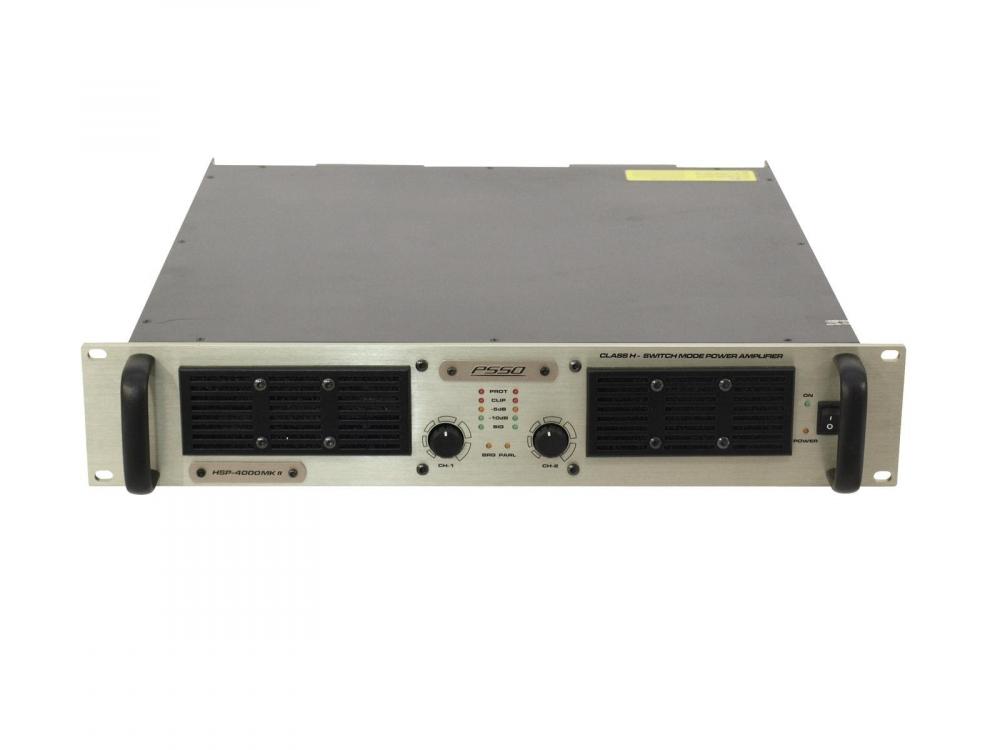

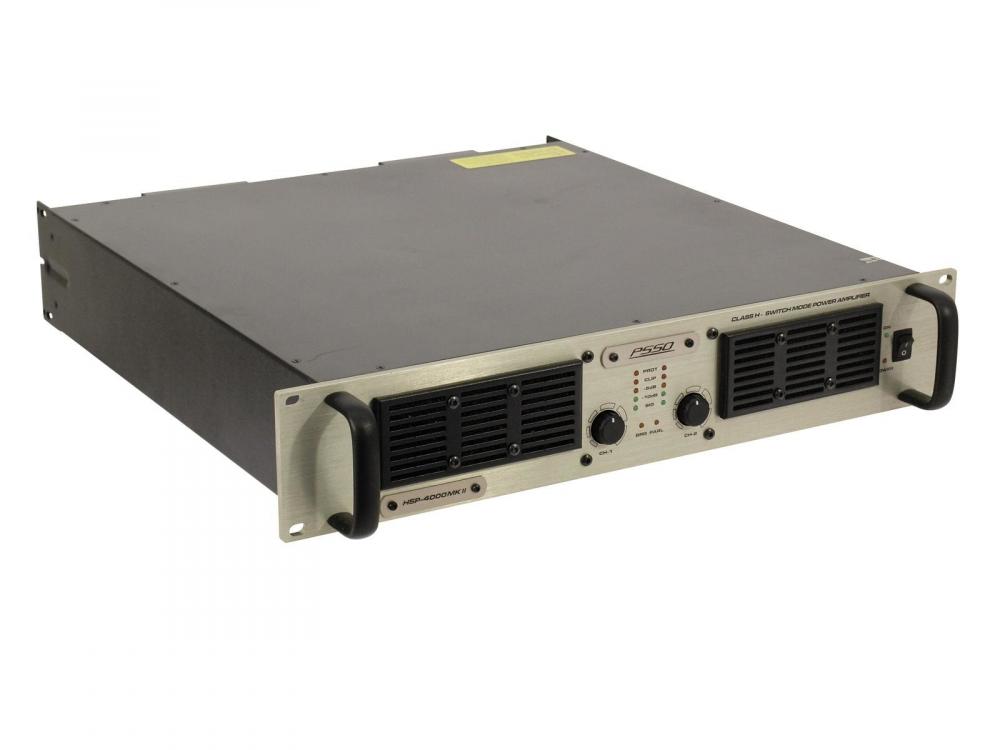

PSSO HSP-4000 MK2 SMPS Amplifier
|
technical overview |

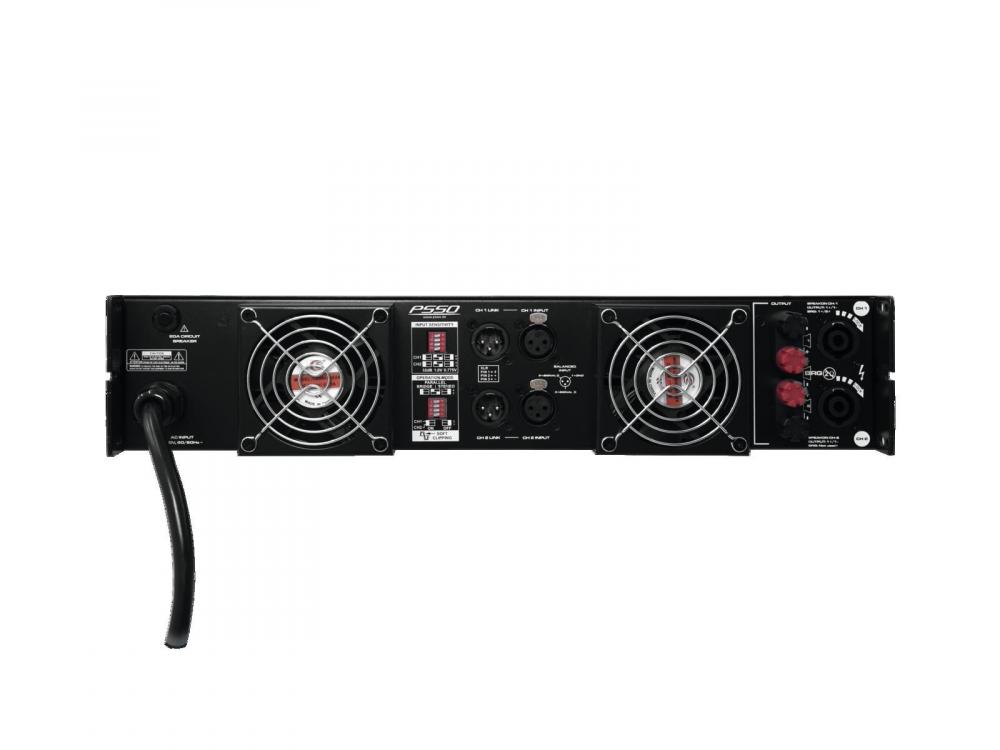

Power supply: 230 V AC, 50 Hz Power output (RMS): Stereo 4 ohms 2 x 2000 W Stereo 8 ohms 2 x 1200 W 8 ohms bridged 1 x 4100 W Signal-to-Noise ratio: >80 dB Total harmonic distortion: Damping factor: >200 Voltage gain: 32 dB Slew rate: >20 V/µsec Crosstalk: >70 dB Input sensitivity: 32 dB/1.0 V/0.775 V, switchable Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input connectors: 2 x XLR Output connectors: 2 x Speaker, screw terminals, 2 x XLR feed-through output Protection: Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals Cooling: 2 temperature-controlled fans, front-to-rear Controls: Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity LED indicators: parallel, bridge (globally), protect, clip, signal (per channel) Construction: Steel chassis, aluminum front panel Dimensions: 483 x 505 x 89 mm Rack installation with 2 U Weight: 14 kg Power consumption: 2000,00 W 1/8 power Power/channel (8 Ohm): 1200 W Power/channel (4 Ohm): 2000 W Frequency range: 20 - 20000 Hz Height: 8,9 cm Depth: 50,5 cm Width: 48,3 cm Power connection: Fix Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
main features |
Stereo PA amplifier with integrated SMPS, 2 x 2000 W -Stereo PA amplifier with class H circuitry -Low weight and height due to integrated switch mode power supply -Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts) -Limiter and speaker switch-on delay -3 operating modes can be selected (stereo, parallel or bridged) -2 calibrated level controls for precise level adjustment -Input sensitivity and limiter adjustable -LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel -LEDs for parallel and bridge mode -Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals -Highly efficient front-to-rear air routing -Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs -Speaker outputs via lockable Speaker plugs and screw terminals -Rugged steel chassis with aluminum front panel -Rack installation with 2 units -Height unit: 2 U -Housing design: (19") 48,3 cm rack installation -Power connection: Fix Power supply cord with safety plug (M) |
Audio | |
No. of channels |
2 pcs
|
Voltage Gain, to |
32.00 dB
|
Crosstalk |
70.00 dB
|
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
20000 ohm
|
Signal to Noise Ratio |
80.00 dB
|
THD (Total Harmonic Distortion) |
0.10 %
|
Connectors | |
Input XLR |
2 pcs
|
Electrical | |
power consumption watt, max |
2000.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Power per channels at 4 Ω |
2000 W
|
Power per channels at 8 Ω |
1200 W
|
Power per channels at 8 Ω on bridge mode |
4100 W
|
power input connector |
fixed
|
cooling |
active
|
Mechanical | |
weight |
14.00 kg
|
width |
483.00 mm
|
height |
89.00 mm
|
length |
505.00 mm
|
height in rack-units |
2 U
|
enclosure material |
Steel chassis, aluminum front panel
|
