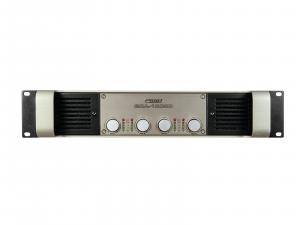

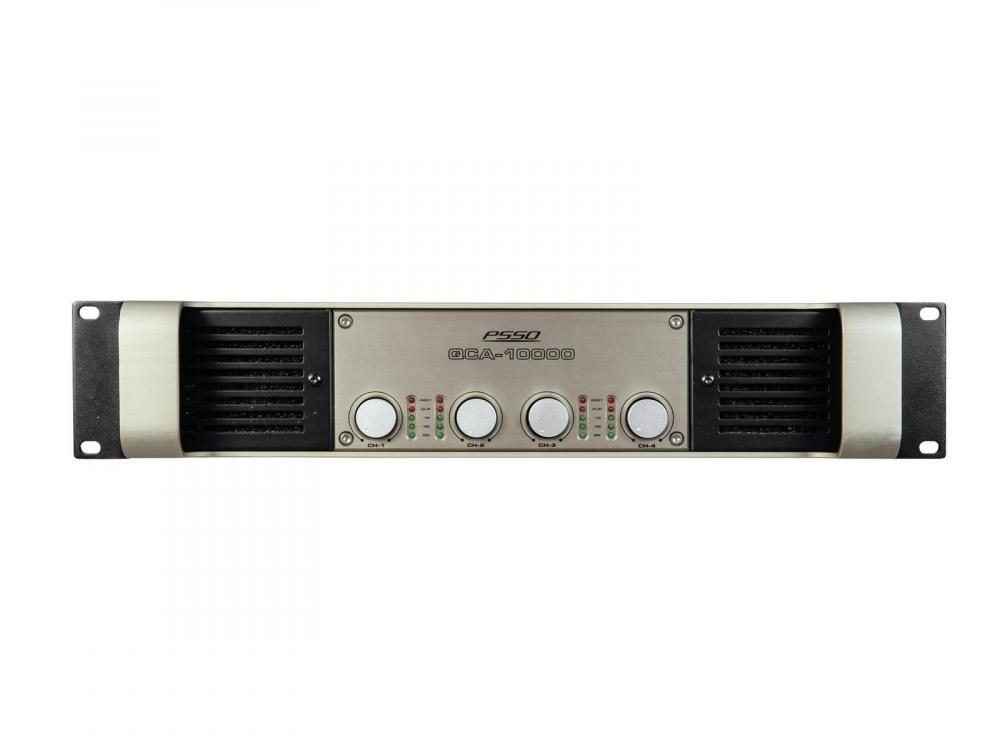

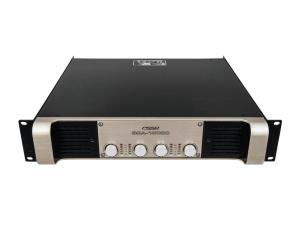

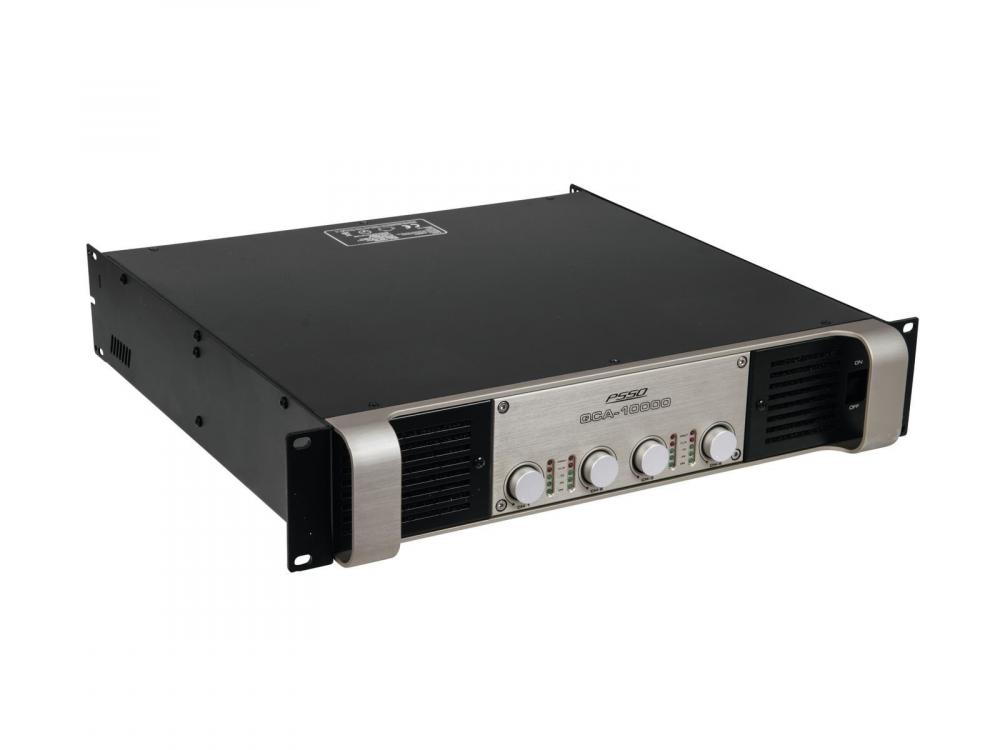

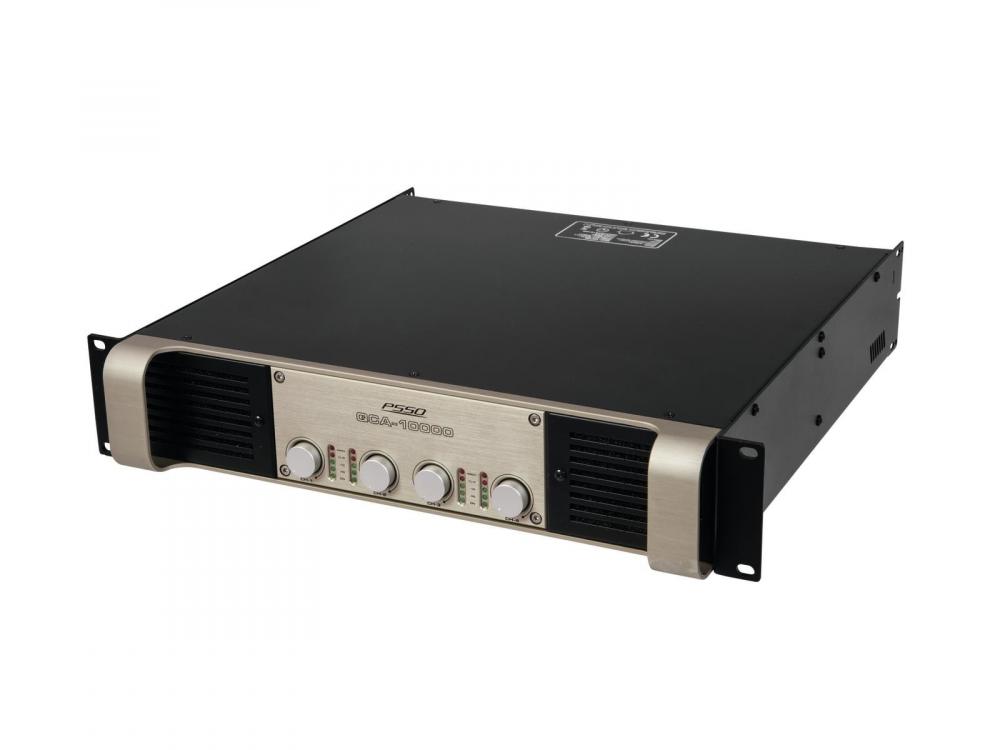

PSSO QCA-10000 4-Channel SMPS Amplifier

PSSO

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for PSSO QCA-10000 4-Channel SMPS Amplifier

Info
order code
10451697
product link
EAN
4026397513370
Product Name
PSSO QCA-10000 4-Channel SMPS Amplifier
technical overview
Power supply: 230 V AC, 50 Hz
Power output (RMS):
2 ohms 4 x 2500 W
4 ohms 4 x 2100 W
8 ohms 4 x 1300 W
4 ohms bridged 2 x 5000 W
8 ohms bridged 2 x 4200 W
Signal-to-Noise ratio: >80 dB
Total harmonic distortion:
Damping factor: >800
Slew rate: >10 V/µsec
Crosstalk: >65 dB
Input sensitivity: 0.775 V/1.0 V/1.4 V/38 dB/32 dB/26 dB, switchable
Voltage gain: 40.3 dB (0.775 V), 38 dB (1.0 V), 35.1 dB (1.4 V)
Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
Input connectors: 4 x XLR

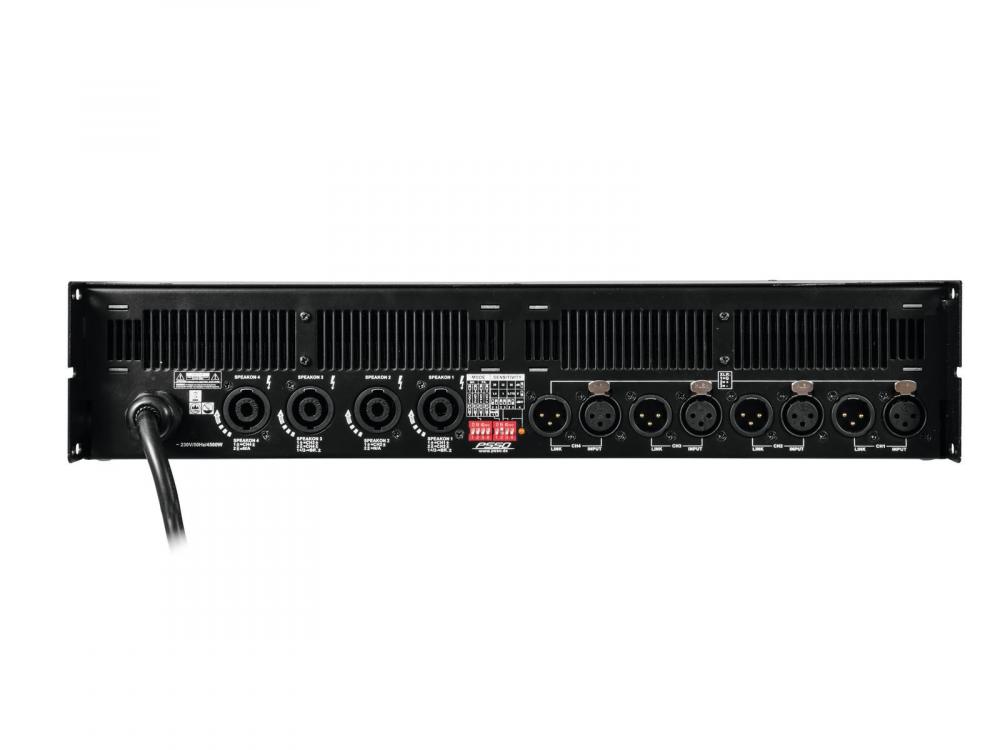

Output connectors: 4 x Speaker, 4 x XLR feed-through output
Protection: Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals
Cooling: 2 temperature-controlled fans, front-to-rear
Controls: Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
LED indicators: Protect, clip, signal (per channel)
Construction: Steel chassis, aluminum front panel
Dimensions: 483 x 445 x 89 mm
Rack installation with 2 U
Power consumption: 1150,00 W 1/8 power
Weight: 13,90 kg
Power/channel (8 Ohm): 1300 W
Power/channel (4 Ohm): 2100 W
Frequency range: 20 - 20000 Hz
Height: 8,9 cm
Depth: 44,5 cm
Width: 48,3 cm
Power connection: Fix Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features
PA amplifier with SMPS, 4 x 2150 W / 2 ohms, 4 x 2100 W / 4 ohms
-4-channel PA amplifier with class I circuitry
-4 x 2100 W/4 ohms
-Low weight and height due to integrated switch mode power supply
-Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
-Speaker switch-on delay
-3 operating modes can be selected (stereo, parallel or bridged)
-4 level controls for precise level adjustment
-Input sensitivity adjustable
-LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
-Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
-Highly efficient front-to-rear air routing
-Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
-Speaker outputs via lockable Speaker plugs
-Rugged steel chassis with aluminum front panel
-Rack installation with 2 units
-Neutrik Speakon outputs
-Height unit: 2 U
-Power connection: Fix Power supply cord with safety plug (M)
-Housing design: (19") 48,3 cm rack installation
Audio
Frequency response, from
20 Hz
Frequency response, to
20000 Hz
impedance
20000 ohm
Signal to Noise Ratio
80.00 dB
No. of channels
4 pcs
Crosstalk
65.00 dB
Voltage Gain, from
35.10 dB
Voltage Gain, to
40.30 dB
THD (Total Harmonic Distortion)
0.05 %
Connectors
Input XLR
4 pcs
Electrical
power consumption watt, max
1150.00 W
AC Volts, min
230 V
AC Volts, max
230 V
power input connector
fixed
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
cooling
active
Power per channels at 2 Ω
2500 W
Power per channels at 4 Ω
2100 W
Power per channels at 8 Ω
1300 W
Power per channels at 4 Ω on bridge mode
5000 W
Power per channels at 8 Ω on bridge mode
4200 W
Mechanical
weight
13.90 kg
width
445.00 mm
height
89.00 mm
length
483.00 mm
enclosure material
Steel chassis, aluminum front panel
height in rack-units
2 U
