Info | |
---|---|
order code |
10451701
|
product link | |
EAN |
4026397545456
|
Product Name |

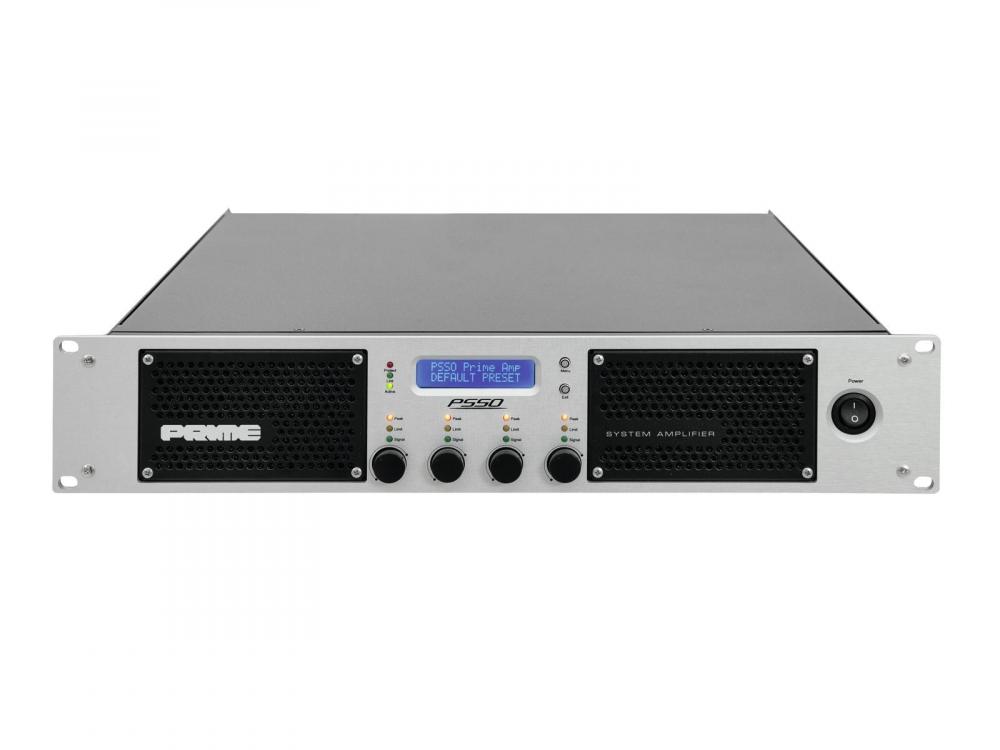

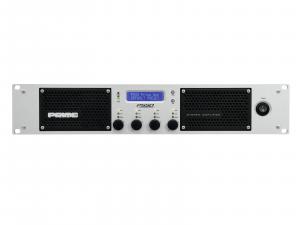

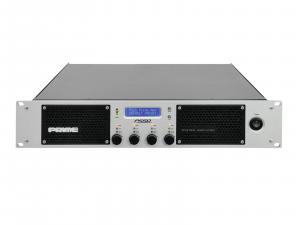

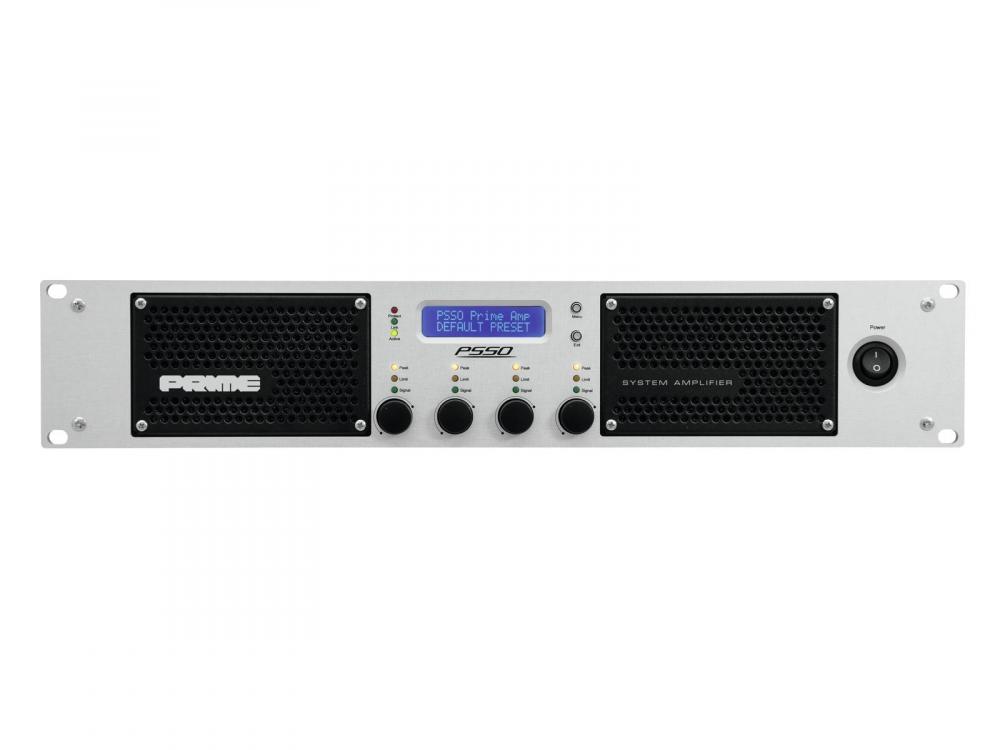

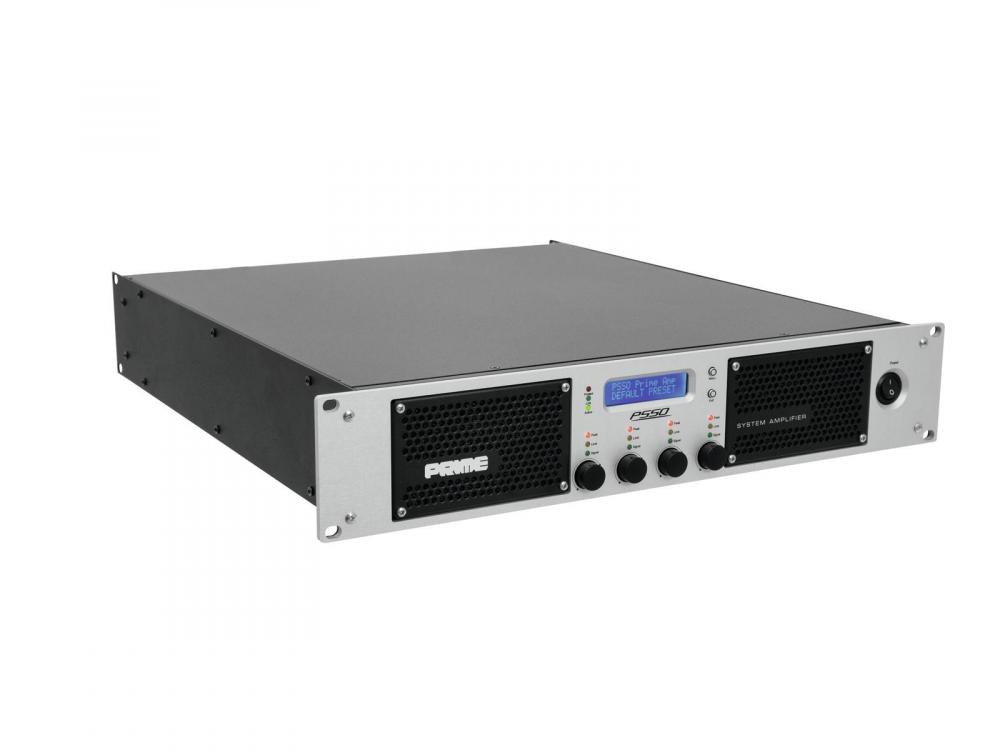

PSSO PRIME System Amplifier DSP
|
technical overview |

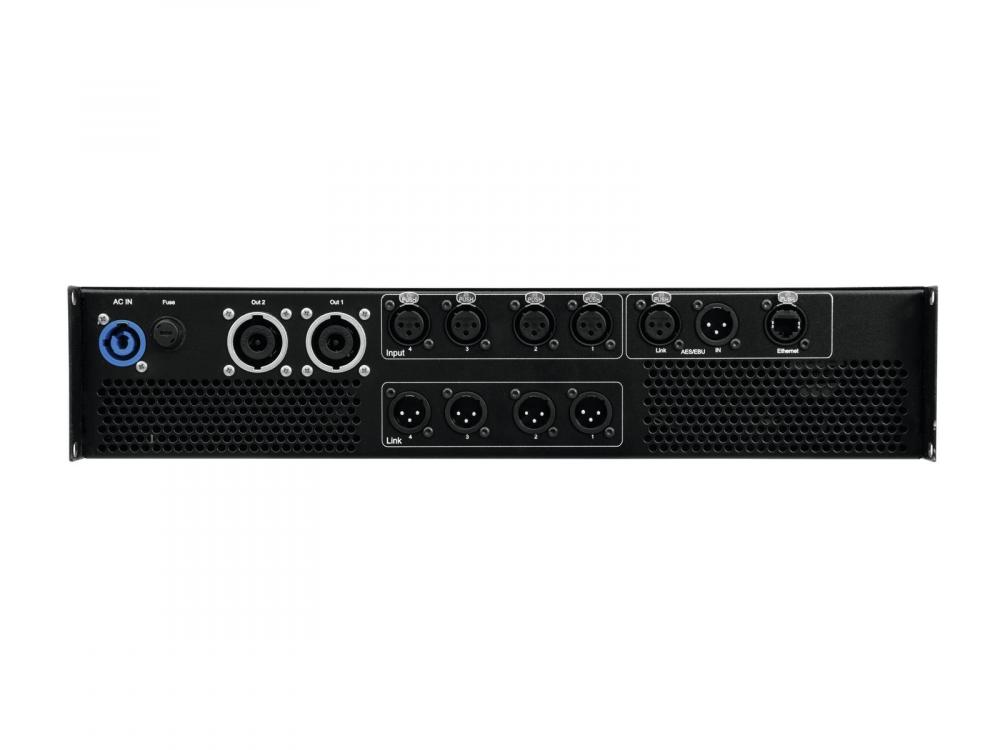

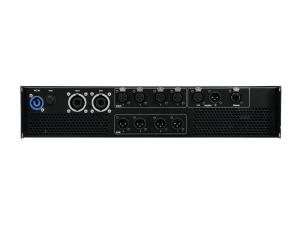

Power supply: 100-240 V AC, 50/60 Hz Power output (RMS): Channel 1, 4: 2400 W at 4 ohms 1500 W at 8 ohms Channel 2, 3, 5, 6: 800 W at 4 ohms 400 W at 8 ohms Channel 2/3, 5/6 bridged: 2 x 1500 W at 8 ohms Signal-to-Noise ratio: >120 dB Total harmonic distortion: Damping factor: >1000 (8 ohms, 1 kHz) Voltage gain: LF 32 dB, MF 26 dB Analog inputs: 4 x XLR Digital inputs: 2 x AES/EBU (XLR) Analog output: 4 x XLR (link) 2 x 8-pin Speakon Pin configuration: 1+/-: 2400W, 2+/-: 800W und 3+/-: 800W, 4+/-: n.c. Communication: LAN (TCP/IP) Protection: Intelligent mains fuse protection, input current limiter, protection against turn-on and turn-off transients, DC protection of outputs, under and over voltage protection Cooling: temperature-controlled air-cooling Controls: Power switch, encoder, menu, exit LED indicators: Protect, Peak, Limit, Signal Construction: Steel chassis, aluminum front panel Dimensions: 483 x 482 x 88 mm Rack installation with 2 U Weight: 12 kg Power consumption: 920 W 1/8 power Power/channel (8 Ohm): 1500 W Power/channel (4 Ohm): 2400 W Frequency range: 20 - 40000 Hz Height: 8,9 cm Depth: 48,2 cm Width: 48,3 cm Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |

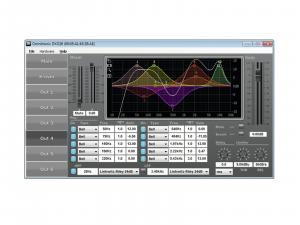

6 channel PA amp with SMPS, 2 x 2400 W, 4 x 800 W -6-channel PA amplifier with high-performance DSP, freely programmable -Sample frequency: 96 kHz and 64-bit technology -Premium components ensure excellent sound features -Efficient class D amplifier circuitry -2 Pascal amplifier modules -4 analog inputs and 2 digital AES/EBU interfaces (XLR) -4 analog link outputs (XLR) -2 Neutrik Speakon outputs -Neutrik Powercon mains input -Real-time remote control via built-in Ethernet LAN interface -User-friendly software for PC and Mac included -80 presets can be stored and activated -Manual control via encoder, LCD screen and buttons at the front panel -120 dB dynamic range -Flexible routing -10 parametric EQ -X-Over: Bessel, Linkwitz-Riley, Butterworth with 24 dB/octave -Delay -Limiter and noise gate -Phase reverse -Password protection -Low weight and height due to integrated switch mode power supply -Automatic power supply adaption between 100 and 240 volts without power selector -Intelligent mains fuse protection -Input current limiter -Protection against turn-on and turn-off transients -DC protection of outputs -Under and over voltage protection -Temperature-controlled air-cooling -High damping factor>1000 -Low distortion, THD+N -Rugged steel chassis with anodized aluminum front panel -Rack installation with 2 units -Windows XP, Vista, 7, 8 and Mac OS X 10.5.8 and better -Height unit: 2 U -Housing design: (19") 48,3 cm rack installation -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
40000 Hz
|
Signal to Noise Ratio |
120.00 dB
|
Voltage Gain, from |
26.00 dB
|
Voltage Gain, to |
32.00 dB
|
THD (Total Harmonic Distortion) |
0.05 %
|
AES/EBU inputs |
2 pcs
|
Electrical | |
power consumption watt, max |
920.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
power input connector |
Powercon
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Power per channels at 4 Ω |
2400 W
|
Power per channels at 8 Ω |
1500 W
|
Mechanical | |
weight |
12.00 kg
|
width |
482.00 mm
|
height |
88.00 mm
|
length |
483.00 mm
|
enclosure material |
Steel chassis, aluminum front panel
|
height in rack-units |
2 U
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00105862.pdf |
