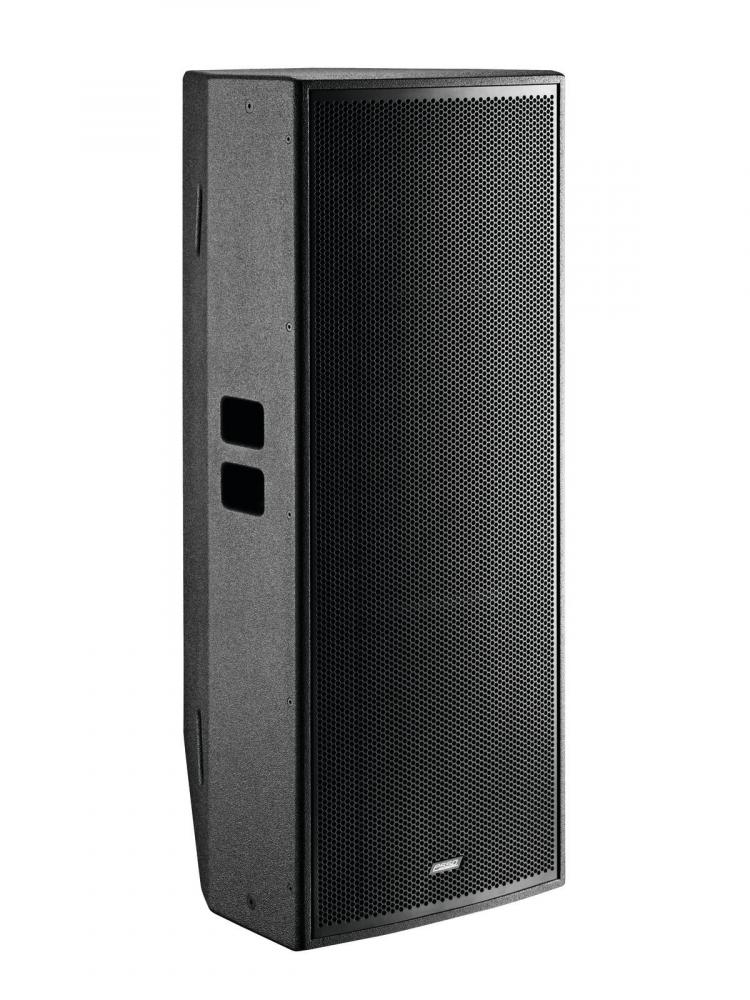

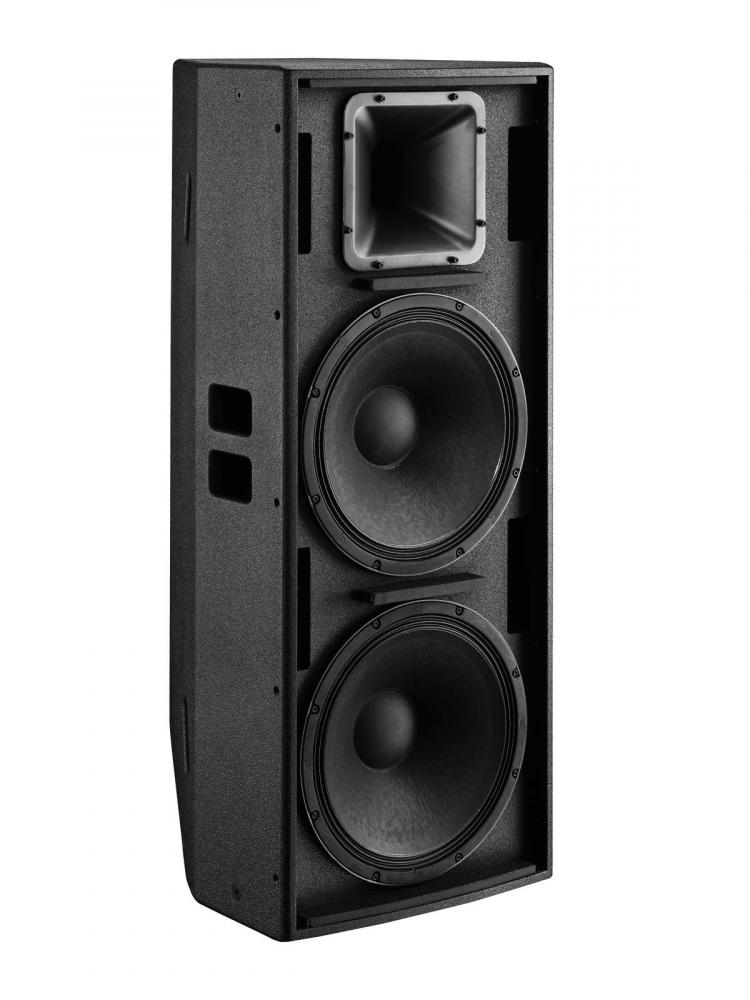

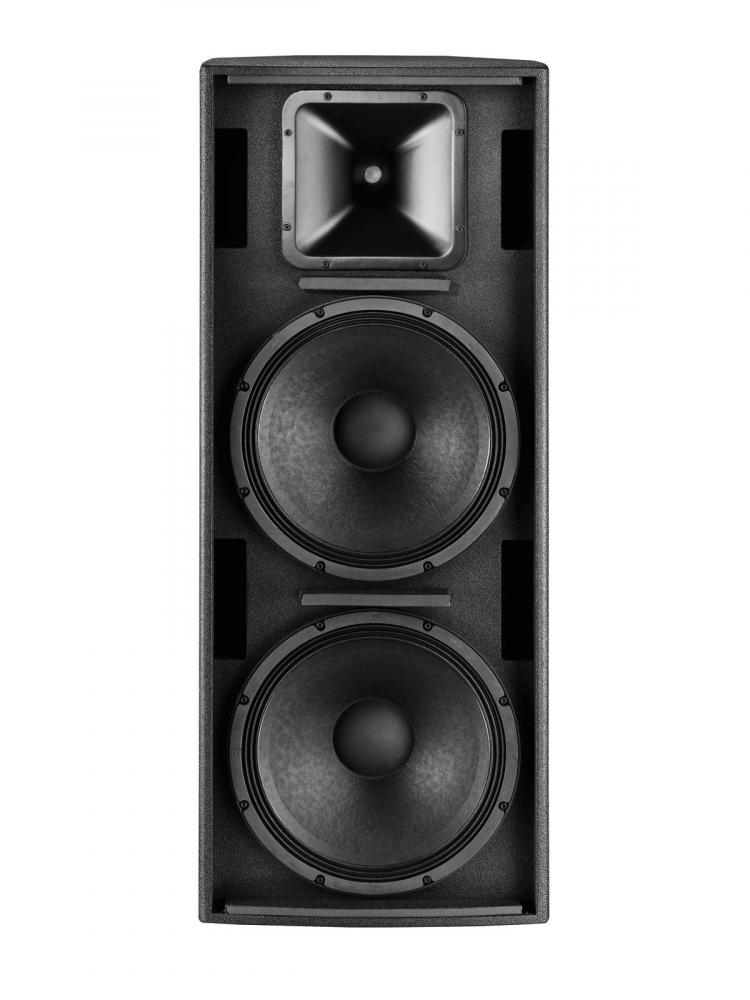

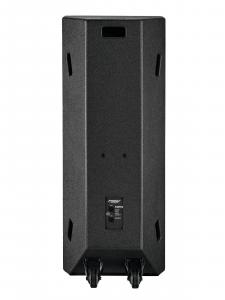

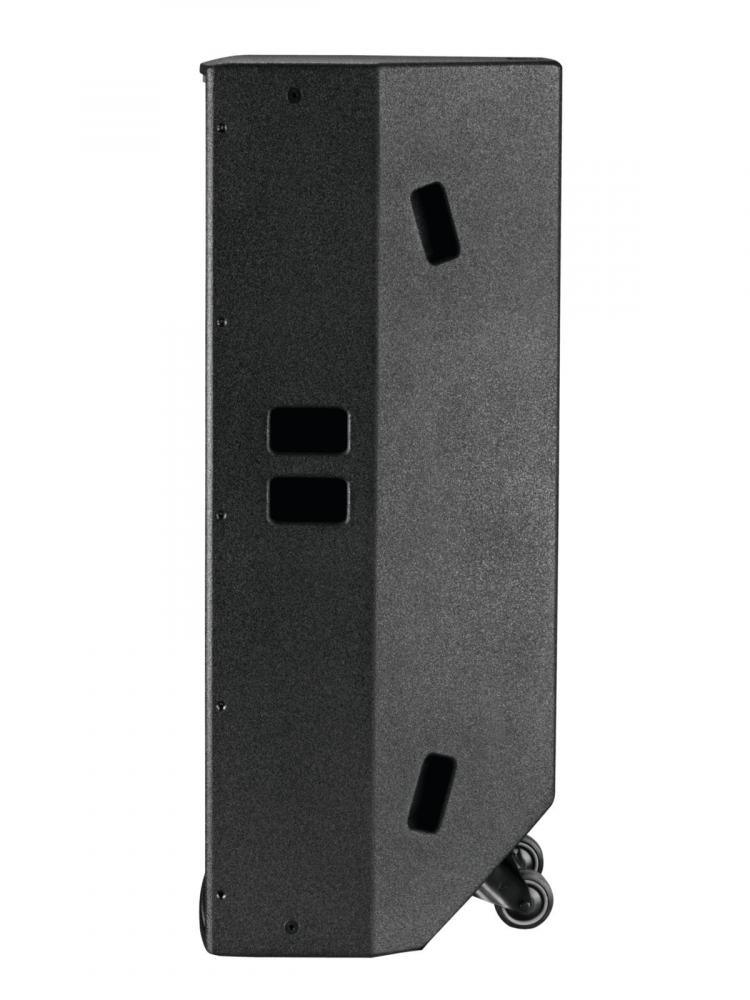

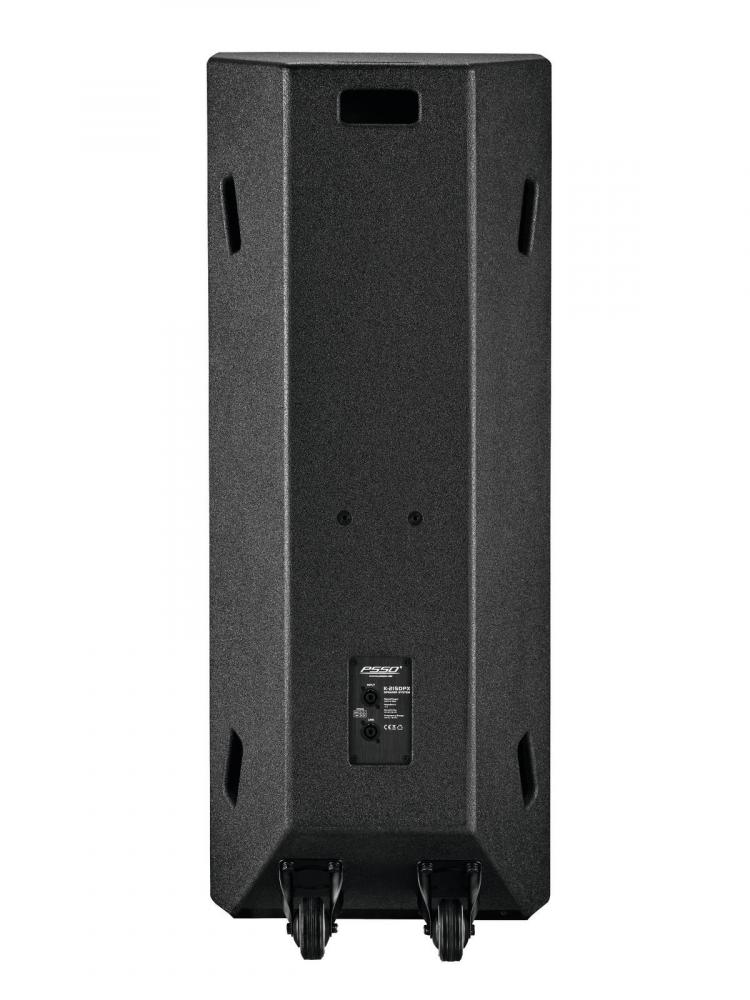

PSSO K-215DPX 2-Way Top 1000W

PSSO

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for PSSO K-215DPX 2-Way Top 1000W

Info
order code
11041096
product link
EAN
4026397516364
Product Name
PSSO K-215DPX 2-Way Top 1000W
technical overview
Components: 2 x 38 cm woofer (15"), 2.5 cm horn (1")
Connection: 2 x Speakon
Sensitivity: 100 dB
Maximum SPL: 136 dB
Crossover frequency: 1.6 kHz
Dispersion angle: 70° x 50°
Dimensions (H x W x D): 1170 x 465 x 478 mm
Weight: 52 kg
Rated power: 1000 W RMS
Size of woofer: (15") ca. 38 cm
Number of bass-woofer: 2 Pc/Pcs
Program power: 2000 W
Frequency range: 44 - 19000 Hz
Height: 117 cm
Depth: 47,8 cm
Width: 46,5 cm
Impedance: 4 Ohm
main features
Pro PA speaker with 2 x 15" woofer, 1" horn and 100 W RMS, 4 ohms
-Rugged full-range top speaker, qualified for suspension and touring applications
-Housing made of 20 mm birch plywood with steel corners
-Transport wheels
-2 x 38 cm (15") bass speaker with diecast aluminum basket
-Rotatable constant directivity horn tweeter
-Horn exit 25 mm (1")
-Voice coil 50 mm (2")
-Premium custom-made drivers by European manufacturer CELTO Acoustique
-Premium passive 2-way crossover
-Bassreflex system
-Parallel Neutrik Speakon connectors
-Trapezoidal multi-functional housing with scratch-resistant lacquer surface
-Impact-resistant steel grille with acoustic foam
-Applications: standing, on a subwoofer, suspended
-Transport aid: Trolley
Audio
Frequency response, from
44 Hz
Frequency response, to
19000 Hz
impedance
4 ohm
Electrical
power consumption watt, max
1000.00 W
Mechanical
weight
52.00 kg
width
465.00 mm
height
1170.00 mm
length
478.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00083314.pdf
