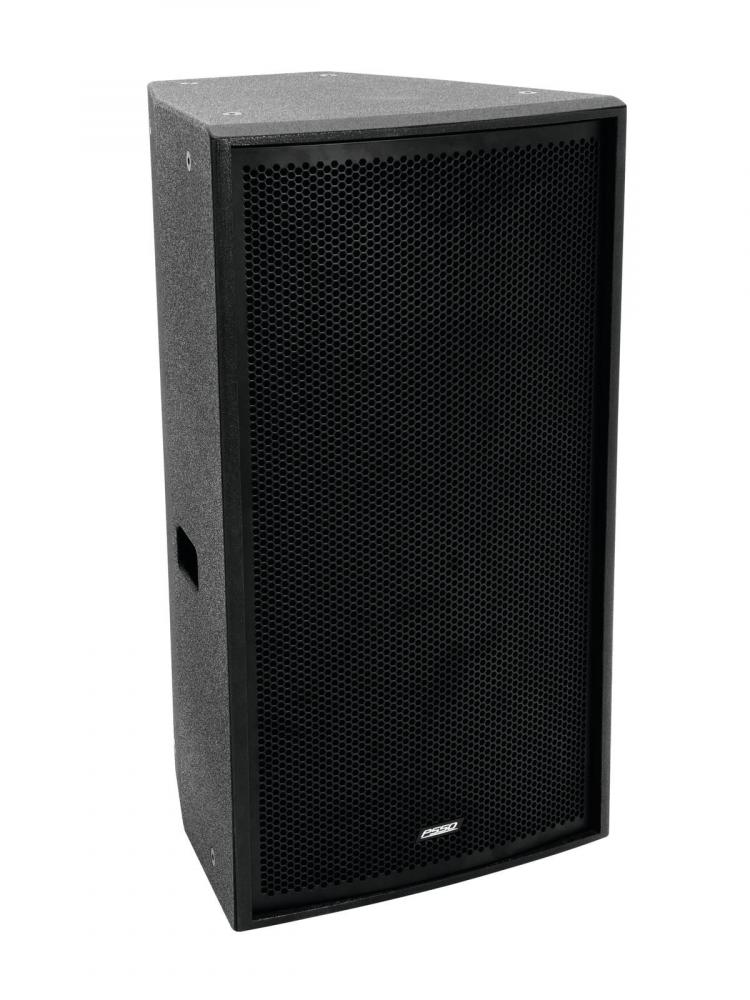

PSSO K-315HD 3-Way Top 1000W

PSSO

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for PSSO K-315HD 3-Way Top 1000W

Info
order code
11041112
product link
EAN
4026397483079
Product Name
PSSO K-315HD 3-Way Top 1000W
technical overview
300 W RMS MHF
Components: 38 cm woofer (15"), 16.5 cm driver (6.5"), 3.6 cm horn tweeter (1.4")
Connection: 2 x Speakon
Sensitivity:
LF 98 dB
MHF: 108 dB
Maximum SPL: 137 dB
Impedance:
LF: 8 ohms
MHF: 8 ohms
Crossover frequency: 500 Hz and 2.5 kHz
Dispersion angle: 70° x 40° above 600 Hz
Dimensions (H x W x D): 800 x 445 x 443 mm
Weight: 37 kg
Rated power: 700 W RMS
Size of woofer: (15") ca. 38 cm
Number of bass-woofer: 1 Pc/Pcs
Program power: 1400 W
Frequency range: 45 - 20000 Hz
Height: 80 cm
Depth: 44,3 cm
Width: 45 cm
Impedance: 4/8 Ohm Biamp
main features
Pro PA speaker, 15" woofer, 6,5" mid, 1,4" horn, 1000 W RMS (Biamp)
-Rugged full-range top speaker, qualified for suspension and touring applications
-Biamp operation
-Housing made of 15 mm/18 mm birch plywood

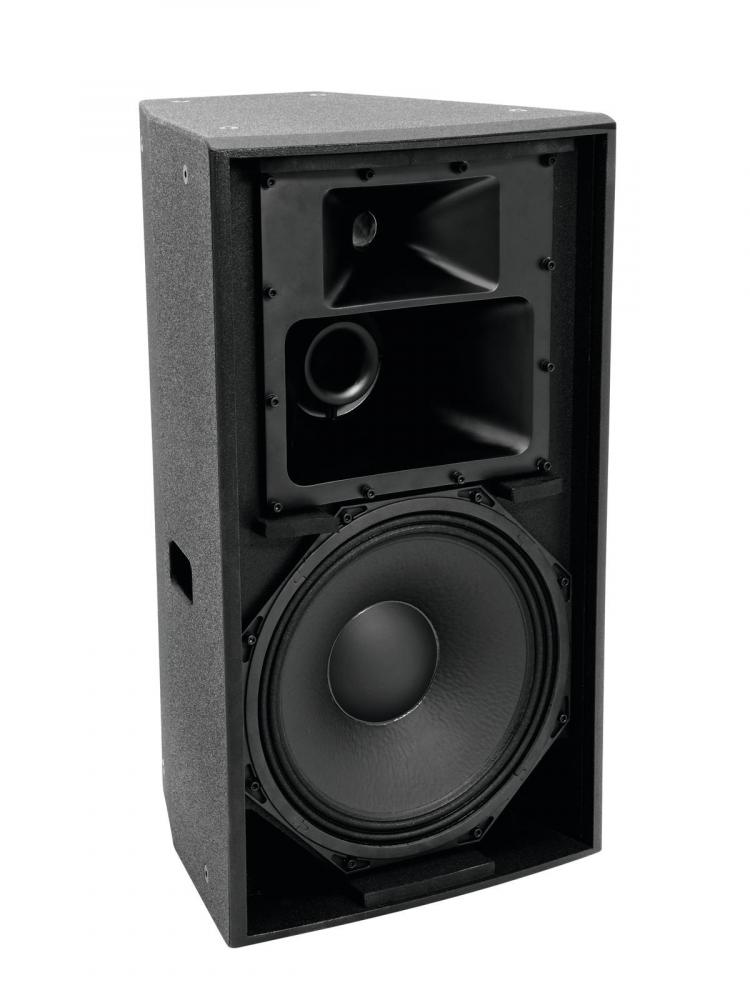

-38 cm neodymium bass speaker (15") and 16.5 cm midrange speaker (6.5") with diecast aluminum basket
-36 mm neodymium hybrid horn tweeter (1.4") with 72 mm voice coil (2.8")
-Premium custom-made drivers by European manufacturer CELTO Acoustique
-Bassreflex system

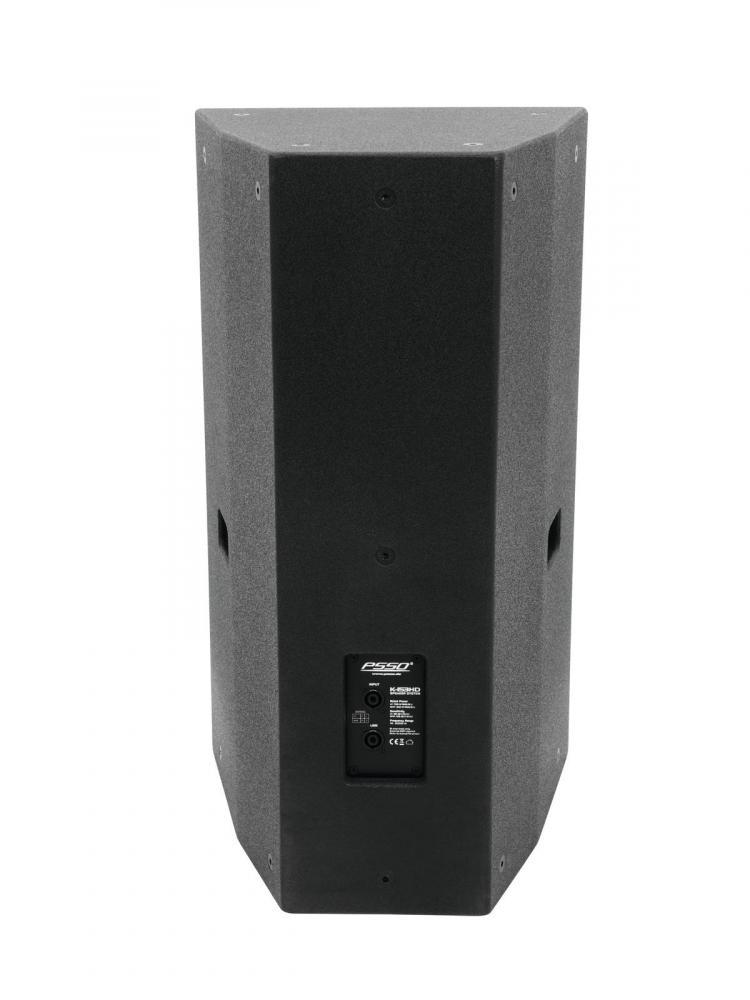

-Parallel Neutrik Speakon connectors
-Trapezoidal multi-functional housing with scratch-resistant lacquer surface

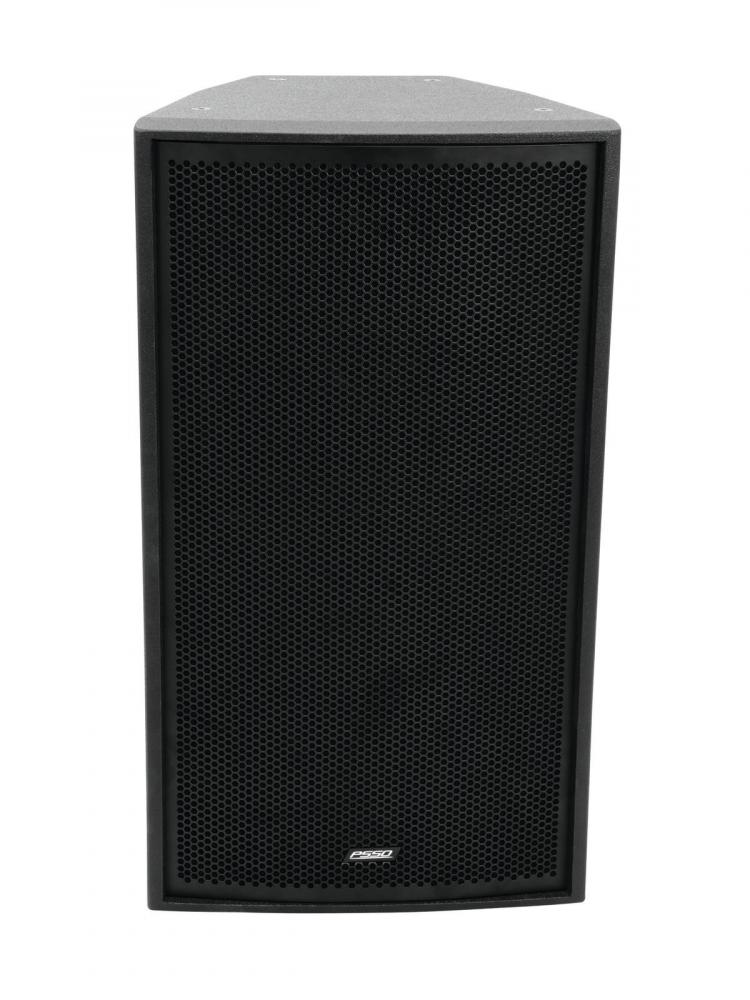

-Impact-resistant steel grille with acoustic foam
-Flange for stand installation
-Applications: standing, on a subwoofer or speaker stand, suspended
Audio

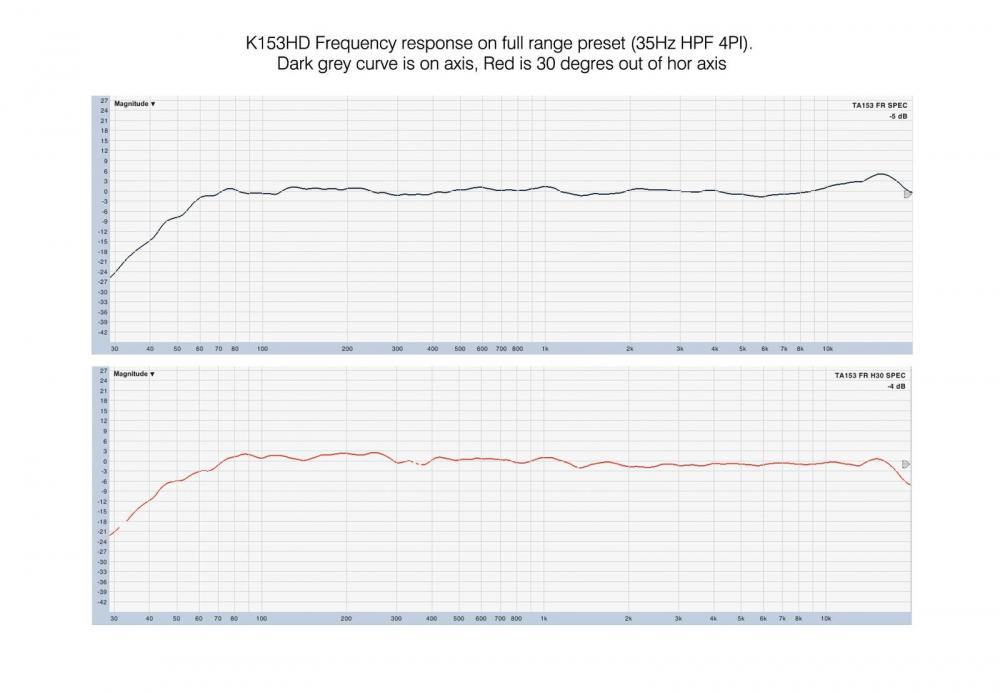

Frequency response, from
45 Hz
Frequency response, to
20000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
700.00 W
Mechanical
weight
37.00 kg
width
450.00 mm
height
800.00 mm
length
443.00 mm
