Info | |
---|---|
order code |
11040901
|
product link | |
EAN |
4026397447477
|
Product Name |

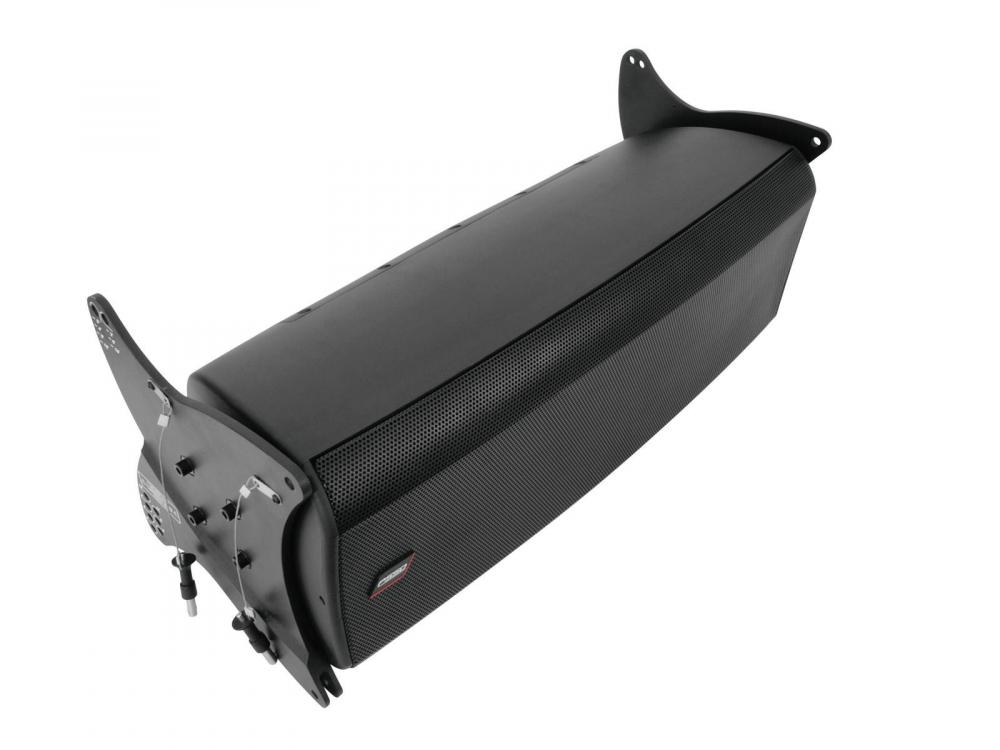

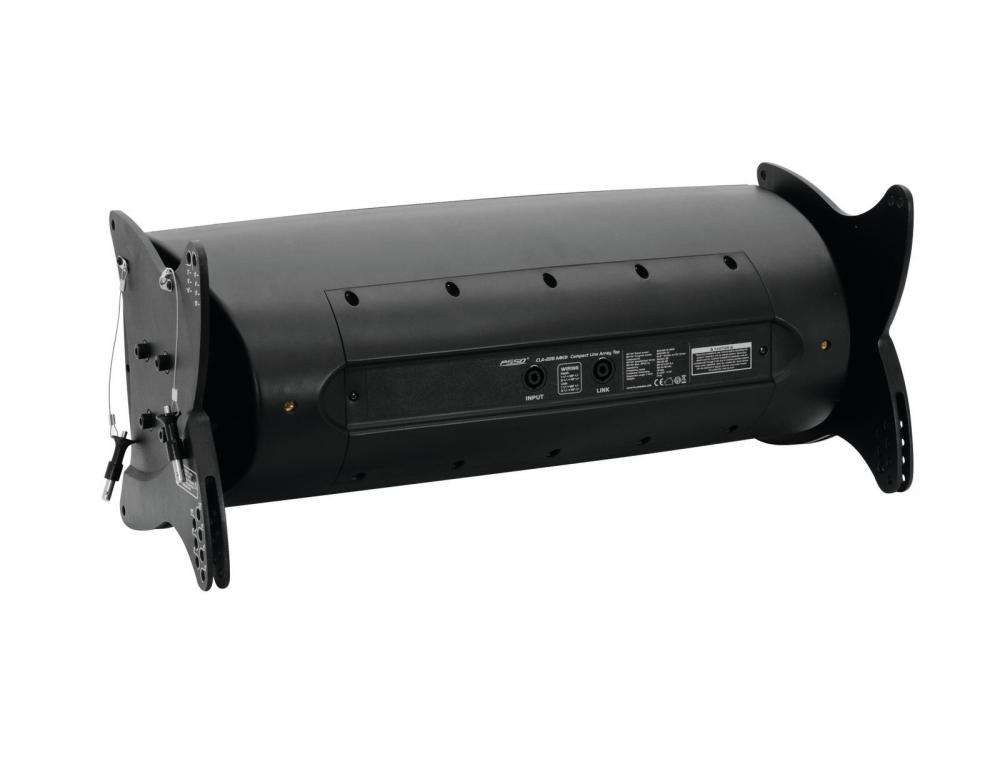

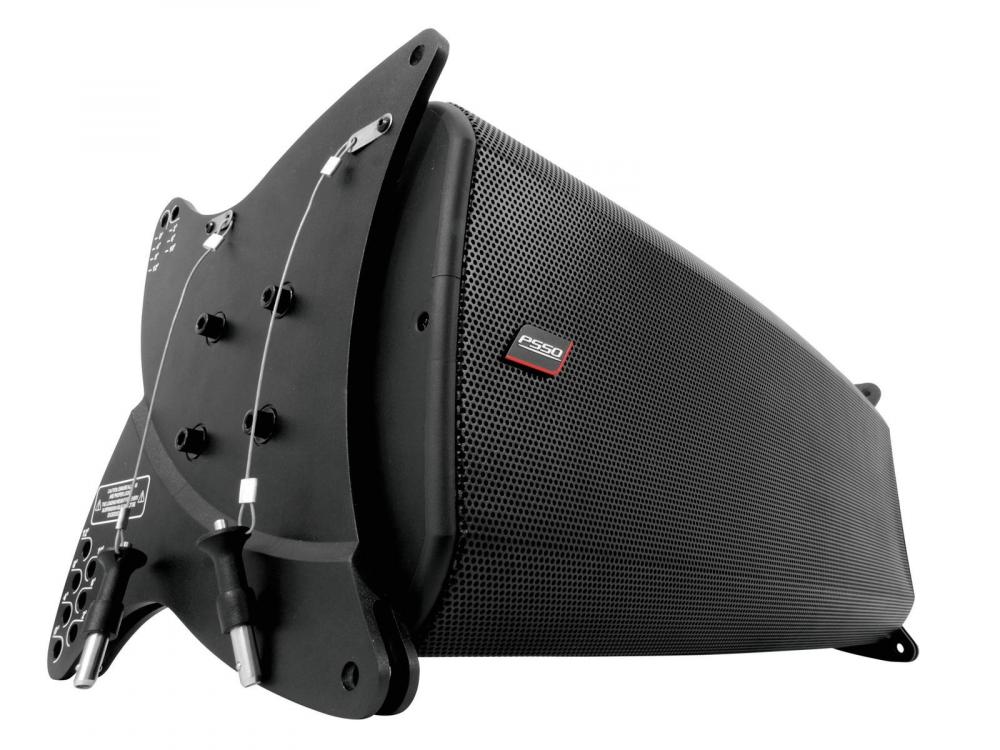

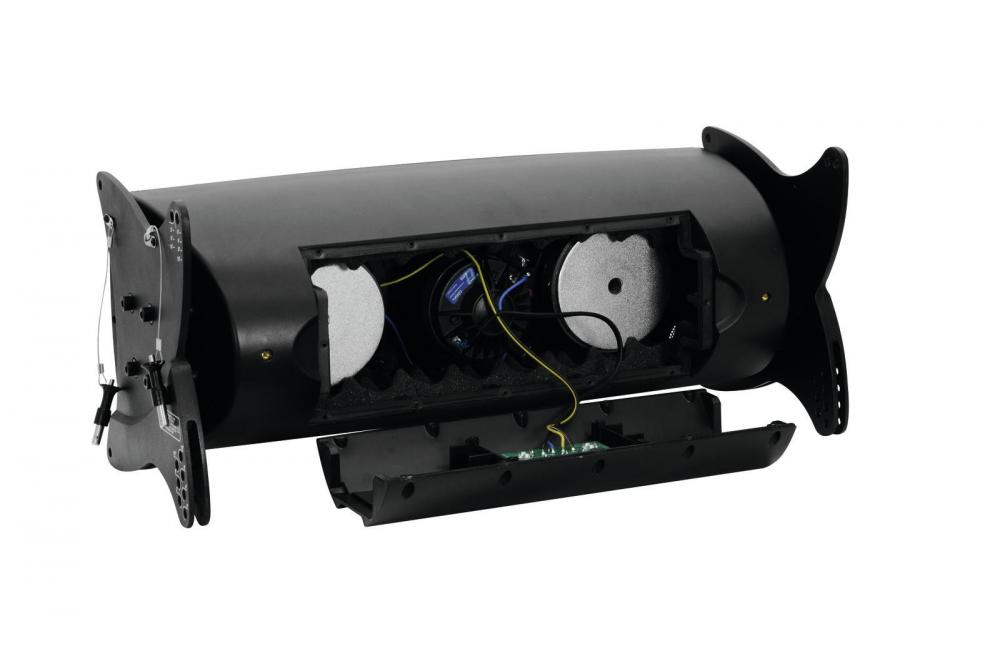

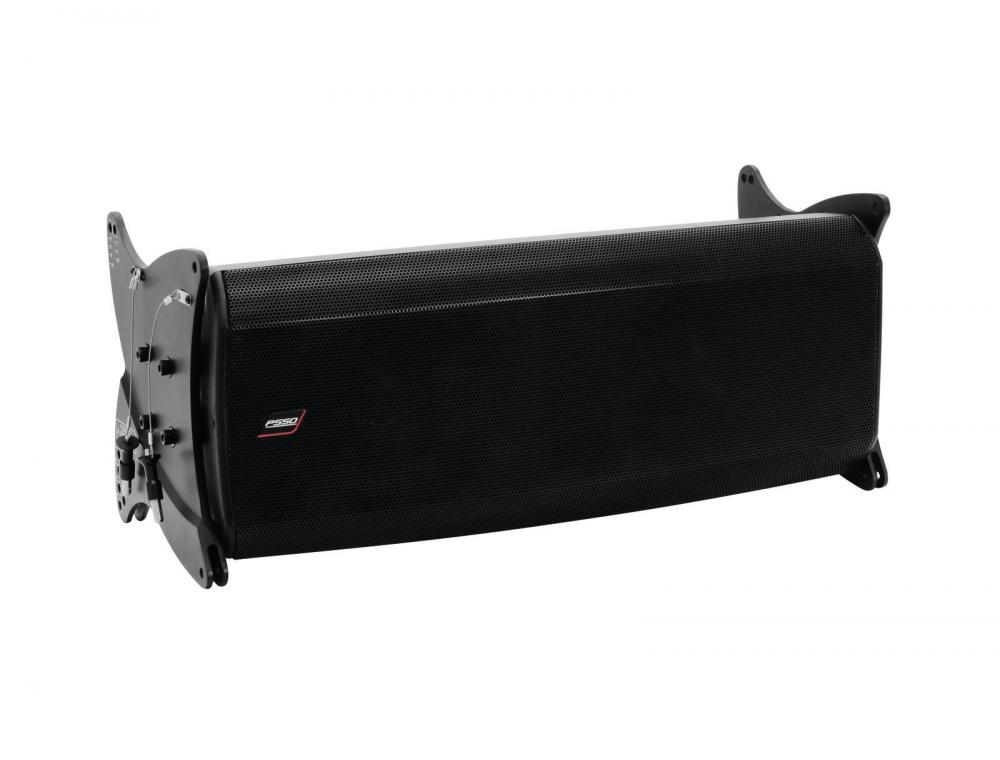

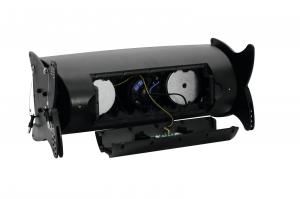

PSSO CLA-228 MK2 LINE ARRAY Top
|
technical overview |
MF rated power: 300 W RMS HF rated power: 60 W RMS MF program power: 600 W HF program power: 120 W Components: 2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73") Connection: 2 Speakon sockets (4-pin) MF sensitivity: 96 dB HF sensitivity: 104 dB MF maximum SPL: 123 dB HF maximum SPL: 124 dB Impedance: MF 16 ohms / HF 8 ohms Crossover frequency: 1.8 kHz Dispersion angle: H=100°, V=3° Dimensions (H x W x D): 285 x 670 x 285 mm Weight: 19 kg Frequency range: 68 - 20000 Hz Height: 28,5 cm Depth: 28,5 cm Width: 67 cm Impedance: 4/8 Ohm Biamp |
main features |
Top speaker, 2 x 8" woofer, 1,73" driver, MF: 300 W RMS, HF: 60 W RMS -Improved MKII version with BEYMA drivers -Compact line array for permanent installations and touring purposes -Time saving 2-man installation directly from the transport case -Lightweight housing due to high-quality plastic -Low weight of the whole construction and reduced demands for the flying points -Elegant housing design for avoiding resonance and standing waves -Two powerful 20 cm low/mid neodymium magnets (2 x 8") -4.4 cm neodymium driver (1.73") with titanium diaphragm -Specially designed waveguide -Maximum efficiency due to biamped control -Wide horizontal dispersion angle of 100° -Curving adjustable between 0° and 12° -Easy rigging with captive quick release pins -Tight locking pins eliminating vibration noise -Flying hardware regularly tested by an independent and accredited testing institute |
Audio | |
Frequency response, from |
68 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
8 ohm
|
Mechanical | |
weight |
19.00 kg
|
width |
670.00 mm
|
height |
285.00 mm
|
length |
285.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00075062.pdf |
